ACiQ 48K BTU 24 SEER2 Slim Ceiling Cassette Mini Split 3-Zone 230V 18+18+18

By: ACiQ
SKU: ES-48Z-M6C / SCC-18-HH-MB-3|ID: 103954
$6,639.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 24.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 48,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B  with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (4 Ton) with ceiling cassette mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

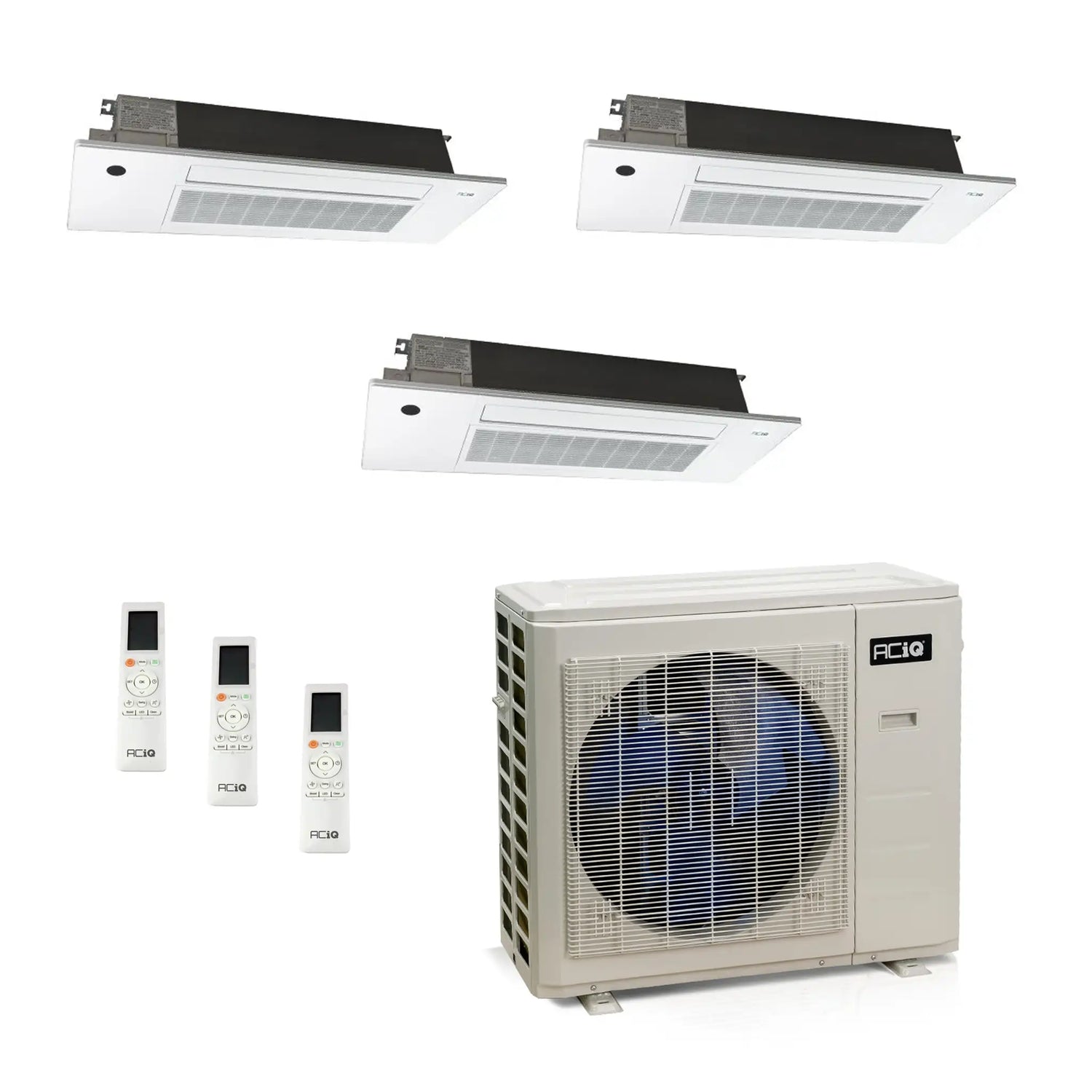

ACiQ 48K BTU 24 SEER2 Slim Ceiling Cassette Mini Split 3-Zone 230V 18+18+18

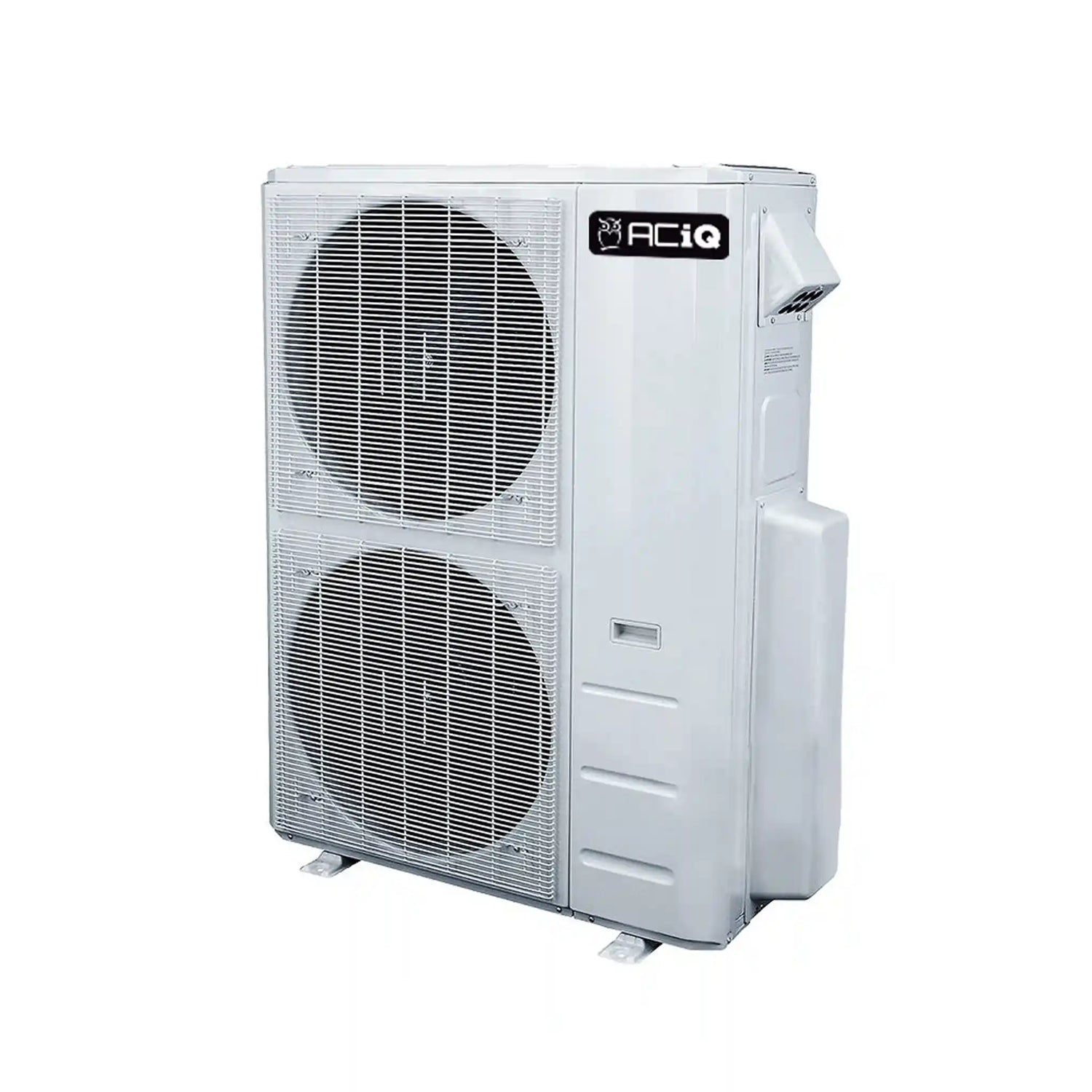

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

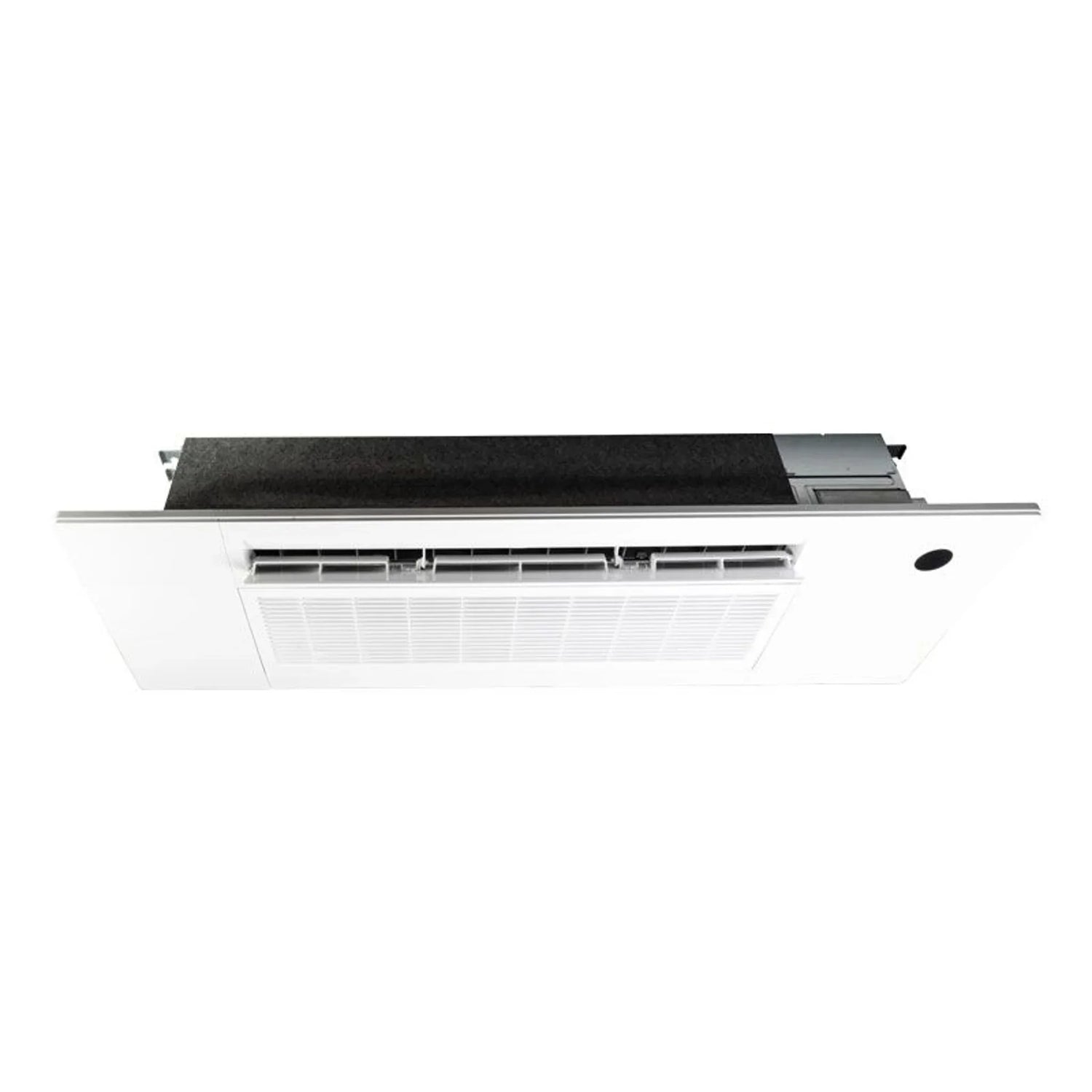

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x3

The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x3 offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.

Key Features

  • Narrow profile fits between 16 inch-on-center joists
  • Switchable size – select between 12,000 BTU and 18,000 BTU
  • No-ladder filter cleaning – grille lowers on cables for easy access to filter
  • Handheld remote included
  • Decorative Grille included

Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Slim Ceiling Cassette Mini Split Air Handler

Owner's Manual Remote Control Manual ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x3

BrandACiQ
SKUSCC-18-HH-MB
Cooling BTU16700 BTU
Heating BTU20000 BTU
Maximum CFM400
Decibel Level (dBA)35
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height8.98"
Width50.31"
Depth13.19"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x3

Standard Warranty5 year parts
Registered Warranty10 year parts
