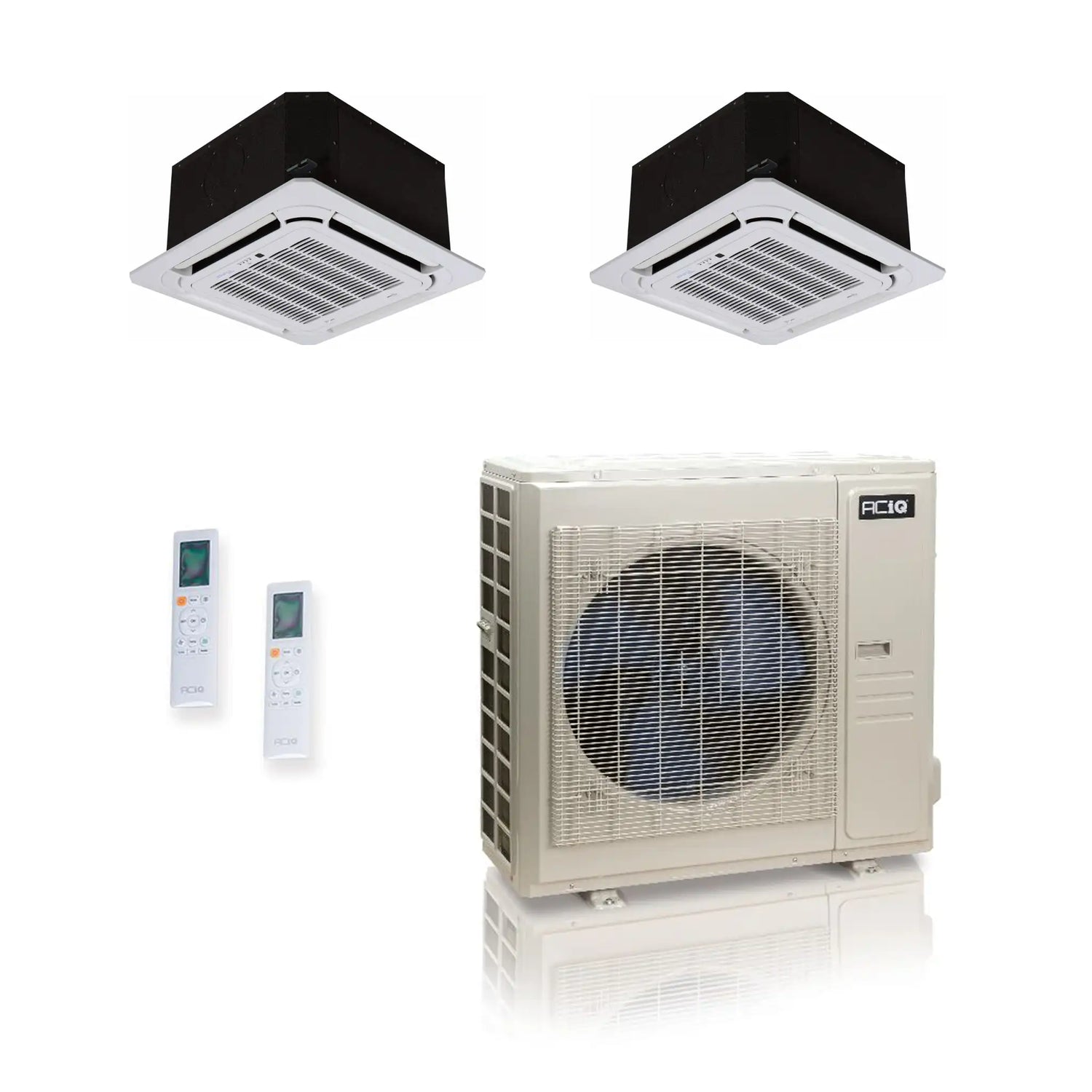

ACiQ 48K BTU 24 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 24+24

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-24CC-HH-MC-2|ID: 103570
$5,299.99
+ Free shipping

Key Features

  • Efficiency: Rated 24 SEER2 and 10.3 HSPF2 for high-efficiency heating and cooling.
  • Capacity: The 4-ton (48,000 BTU) multi-zone condenser powers two independently controlled zones at 24K+24K BTU.
  • Refrigerant: Uses R454B refrigerant with a rotary inverter compressor.
  • Indoor Units: Twin 24,000 BTU ceiling cassette air handlers deliver 4-way airflow and a flush, discreet ceiling-mounted look in each zone.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48K BTU 24 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 24+24

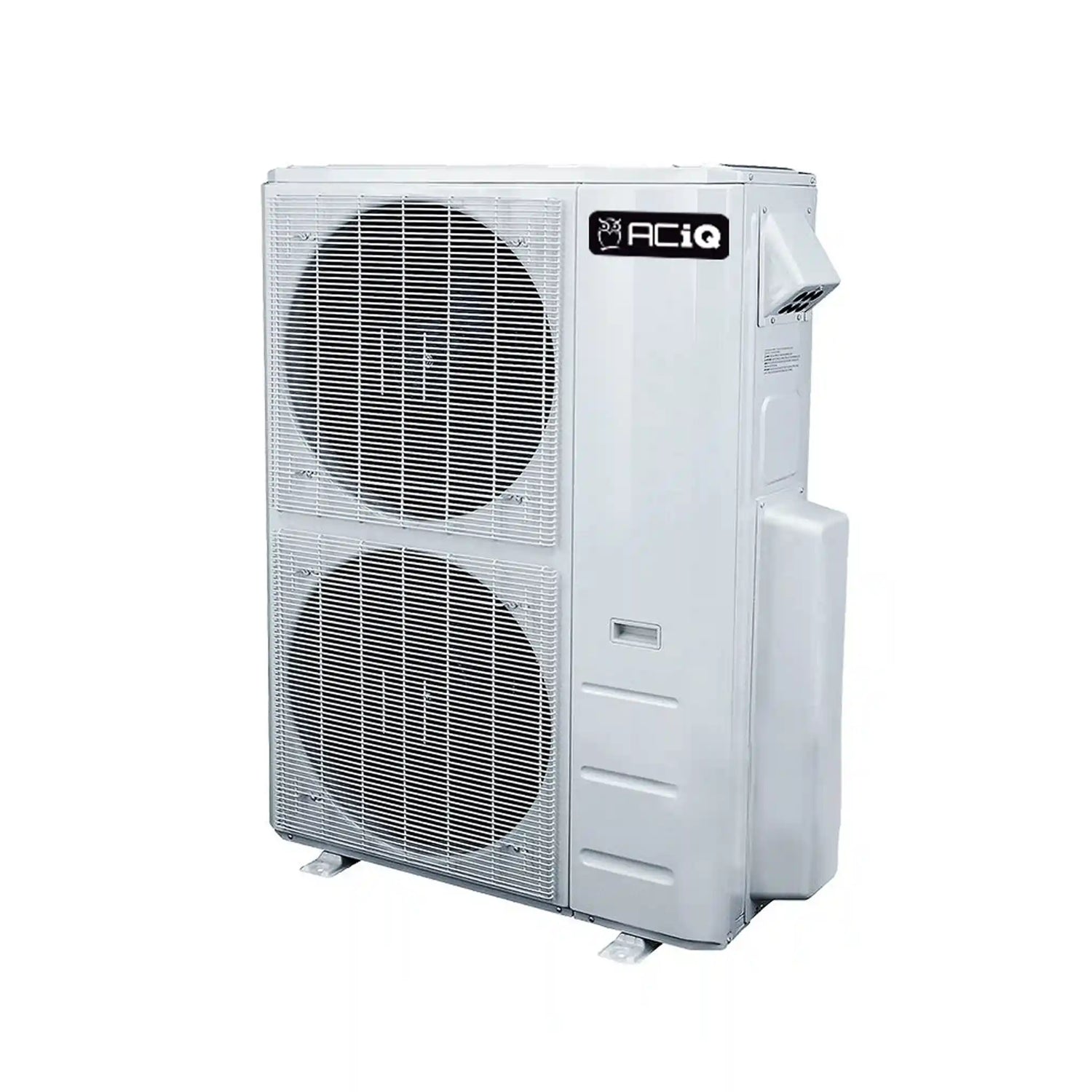

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

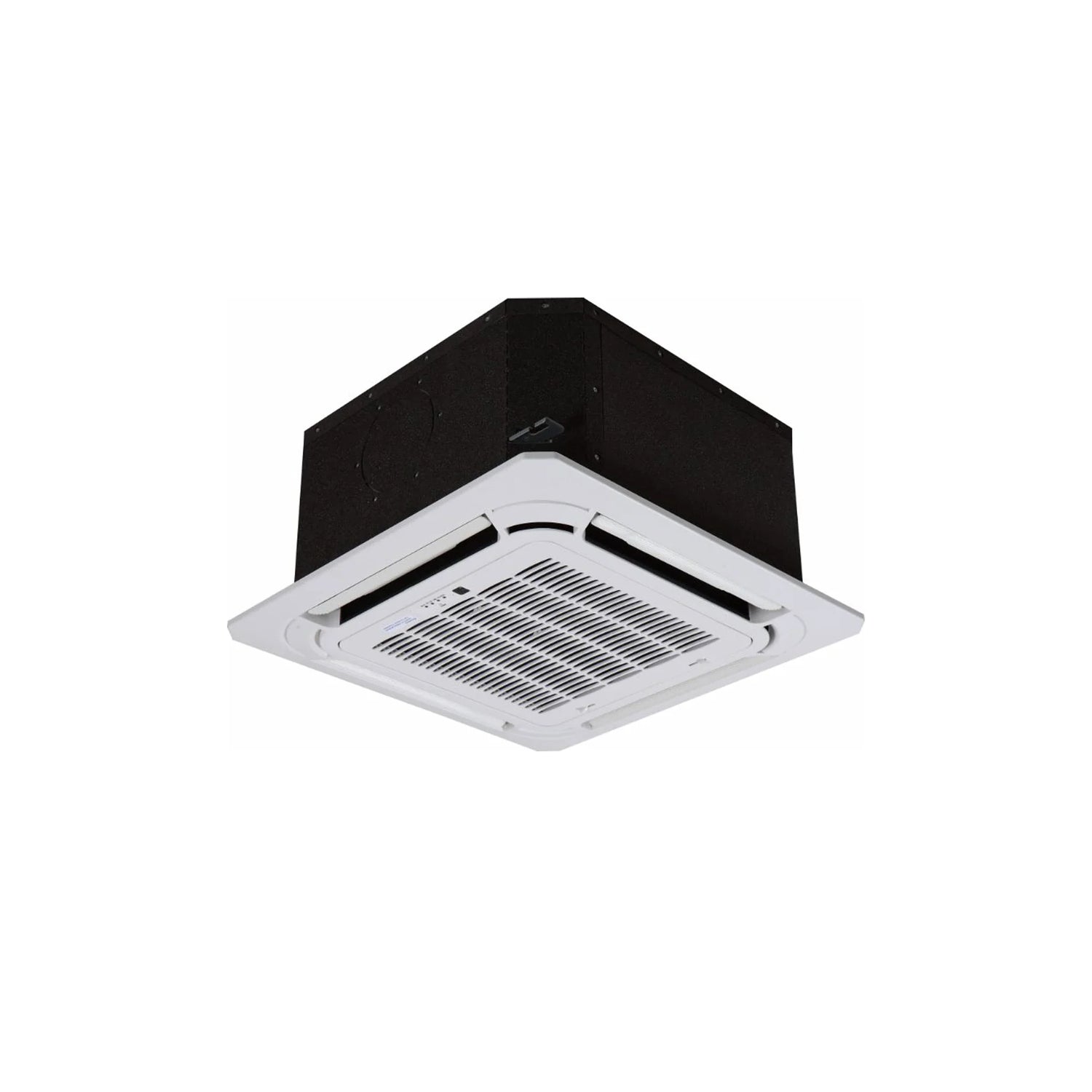

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

Looking for a more hidden appearance and centralized air distribution? The ACiQ-24CC-HH-MC ceiling cassette air handler is the perfect solution. This ceiling cassette unit offers high-efficiency heating and cooling, with a sleek and understated appearance once installed.

Key Features

  • 24,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for a medium room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
  • Ceiling Cassette for hidden appearance

Ceiling Cassettes offer a flush-mounted design for a discreet look and provide quiet comfort with precision engineering to maintain set temperatures efficiently. The unit comes with a factory-installed condensation pump for easy maintenance.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Remote Control Manual — 24K-48K Submittal — 24K Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

BrandACiQ
SKUACIQ-24CC-HH-MC
ControllerWireless Included
Product FeaturesWiFi
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM765.2
Decibel Level (dBA)As low as 33.5
Electric HeatHeat Pump
RefrigerantR454B
SEER220
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.07"
Width32.68"
Depth32.68"
ReplacesN/A

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
