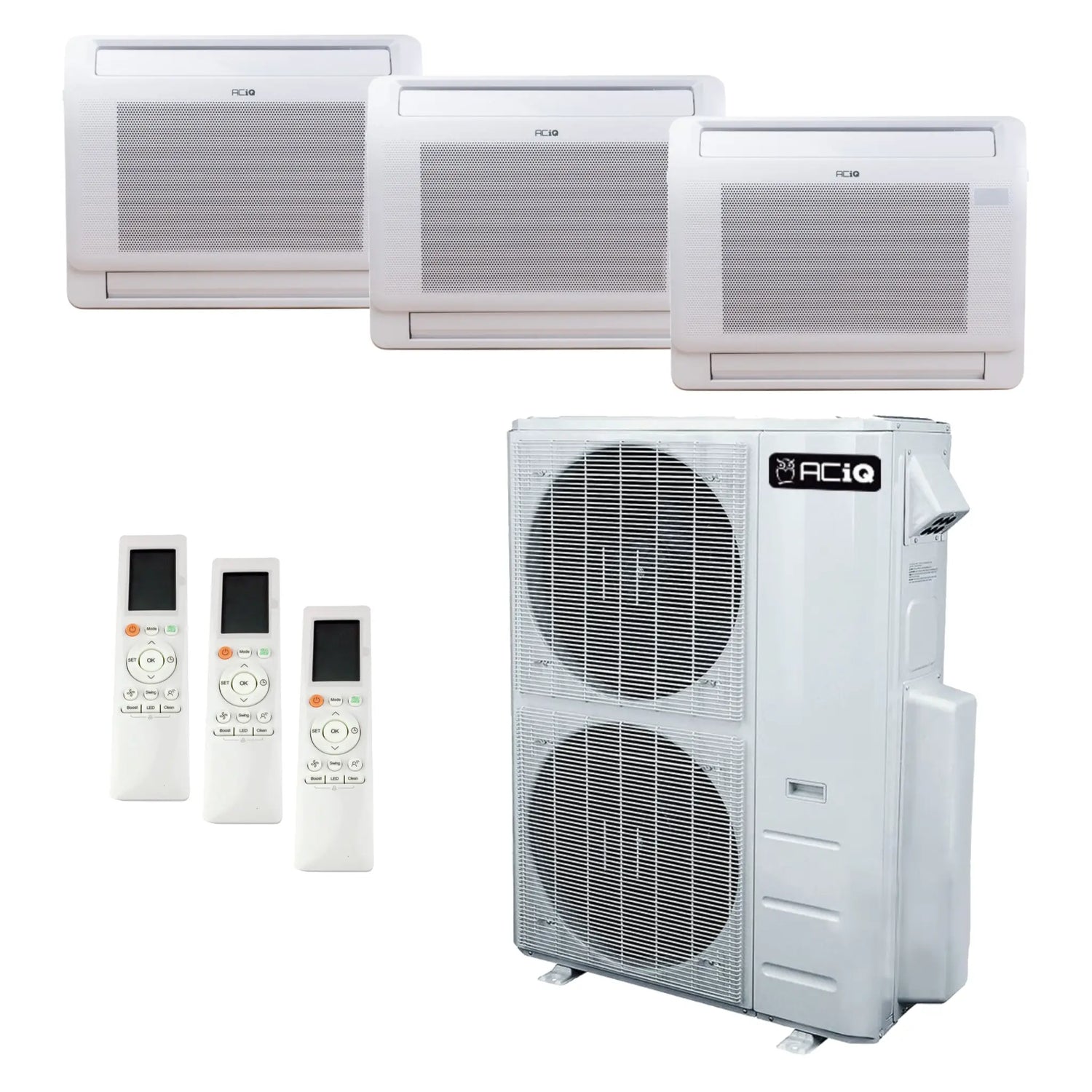

ACiQ 48K BTU 24 SEER2 3-Zone Floor Mount Mini Split R454B 230V 18+18+18

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-18FM-HH-MD-3|ID: 103941
$6,219.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 24.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 48,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (4 Ton) with floor mounted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48K BTU 24 SEER2 3-Zone Floor Mount Mini Split R454B 230V 18+18+18

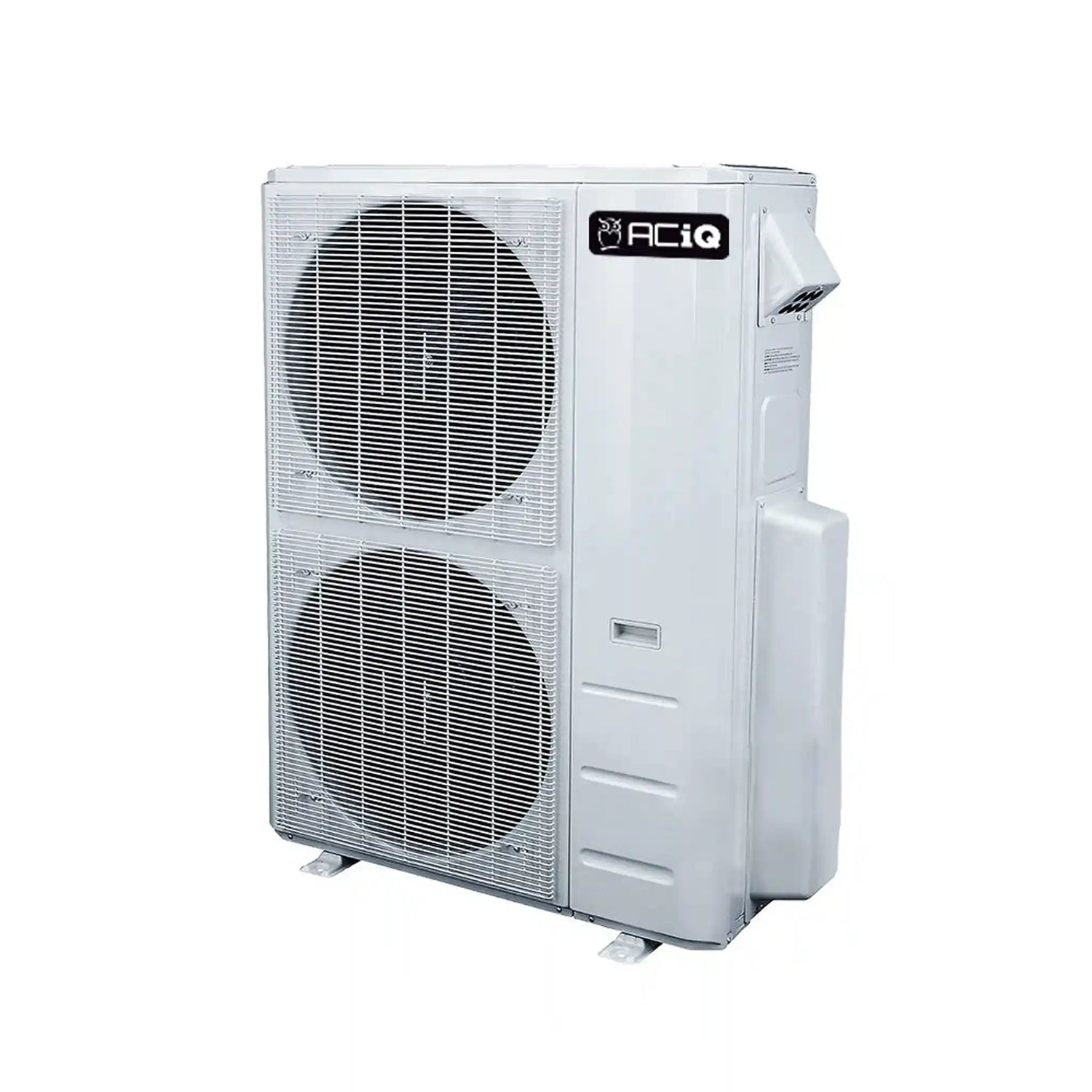

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

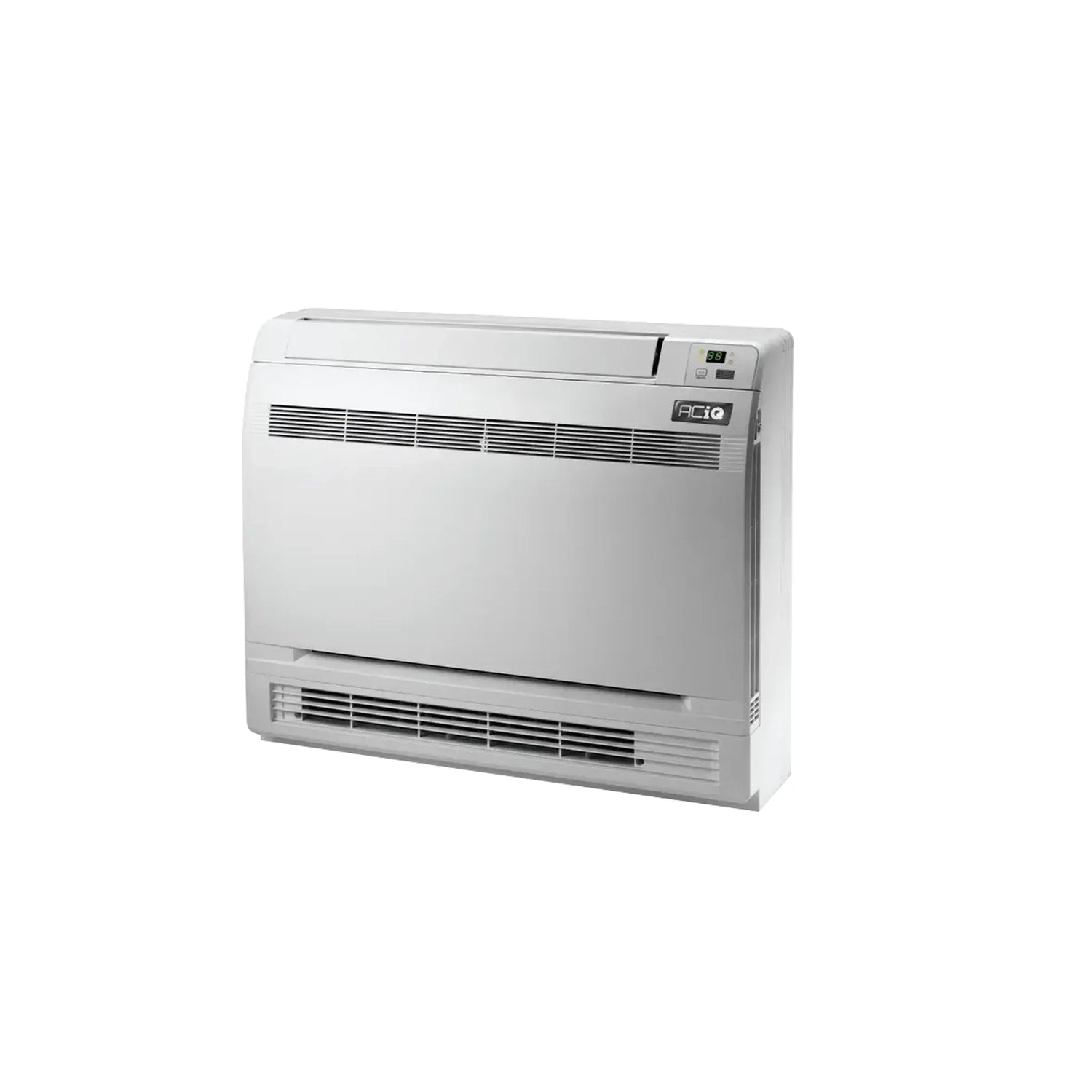

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x3

The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.

Key Features

  • 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
  • Versatile installation – floor- or ceiling-mounted configuration
  • Ideal for sunrooms, attics, or rooms with angled ceilings
  • Maximum CFM: 576.8 with quiet operation as low as 29 dBA
  • Pre-wired for condensate pump with overflow shutoff
  • Wireless remote included
  • R454B refrigerant – eco-friendly and efficient
  • Energy Star certified

This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Floor Mount Mini Split Air Handler

AHRI Certificate — ACIQ-18FM-HH-MD Extended Performance Table — ACIQ-18FM-HH-MD Installation Manual — 18K-60K Owner's Manual — 18K-60K Remote Control Manual — 18K-60K Service Manual — 18K-60K ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"
Warranty12 year compressor, 7 year parts with online registration

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x3

BrandACiQ
SKUACIQ-18FM-HH-MD
Cooling BTU17,000 BTU
Heating BTU19,000 BTU
CFM576.8
Decibel LevelAs low as 29 dBA
Mini Split TypeFloor Mounted
Zone CompatibilityMulti Zone
ControllerWireless Included
RefrigerantR454B
Electrical208/230V
Liquid / Suction Line1/4" / 1/2"
Dimensions (H x W x D)9.25" x 42.05" x 26.57"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty (Parts)5 years
Standard Warranty (Compressor)7 years
Registered Warranty (Parts)7 years
Registered Warranty (Compressor)12 years

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x3

Standard Warranty (Compressor)7 years
Standard Warranty (Parts)5 years
Registered Warranty (Compressor)12 years
Registered Warranty (Parts)7 years
