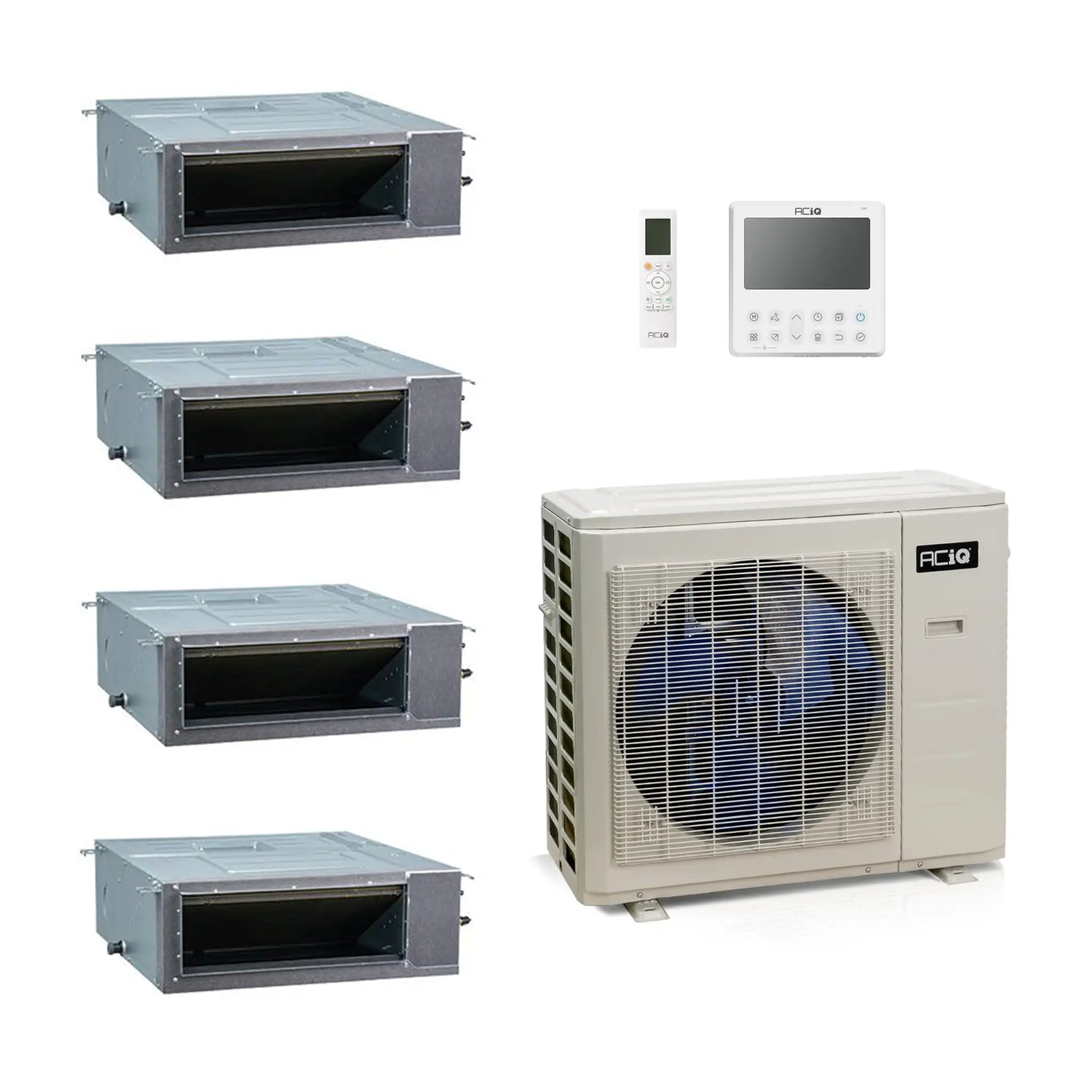

ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 4-Zone 12+12+12+12

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-12CD-HH-MC-4|ID: 104312
$7,099.99
+ Free shipping

Key Features

  • Efficiency: This 4-ton R454B condenser is rated 20.4 SEER2 with 10.3 HSPF2 for efficient cooling and heating.
  • Output: Total system output reaches 48,000 BTU (4 tons), divided evenly into four 12,000 BTU zones.
  • Mounting: Concealed duct air handlers hide above the ceiling or below the floor for a fully invisible install.
  • Control: Each 12,000 BTU zone runs independently through ducted registers, set by a wall-mounted thermostat.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 4-Zone 12+12+12+12

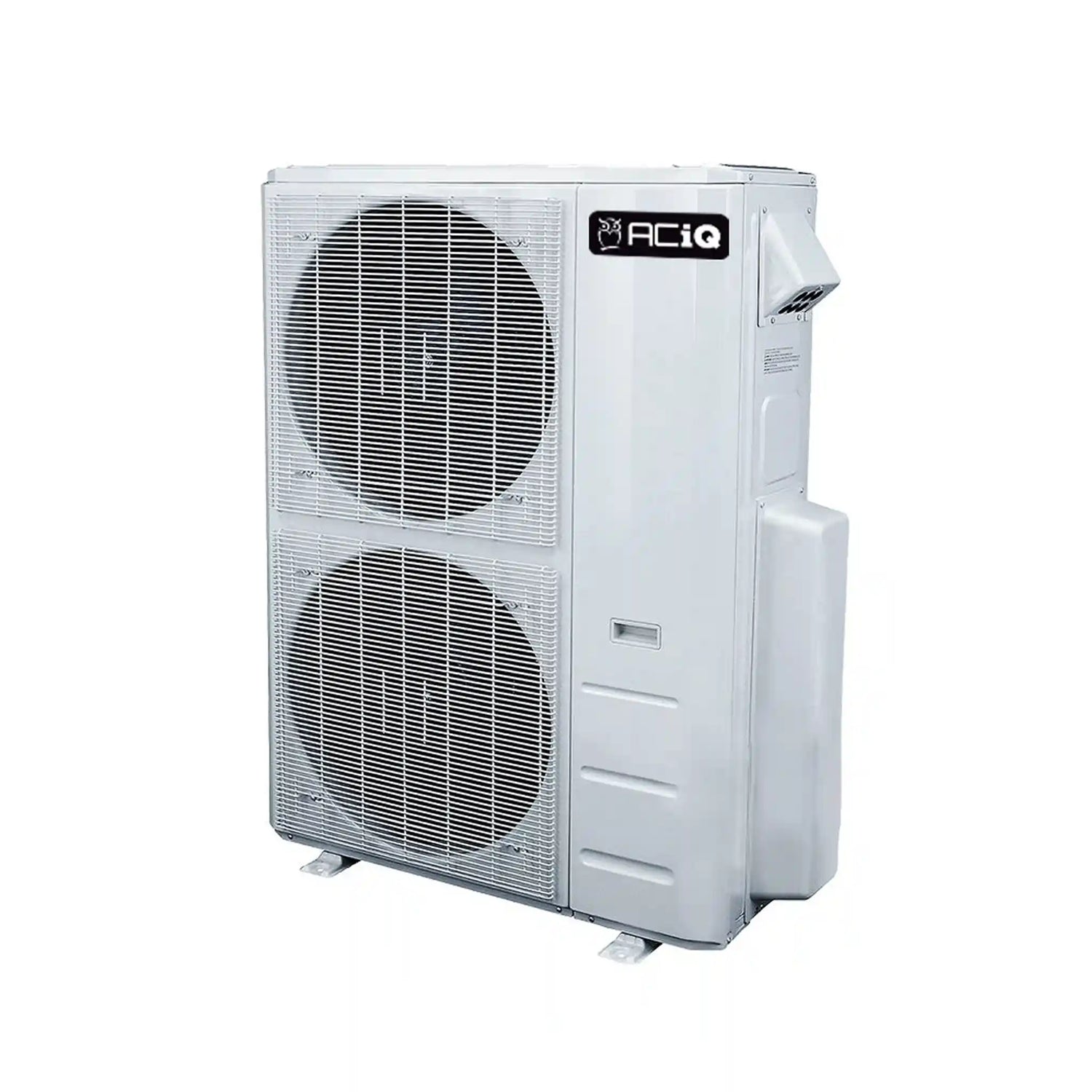

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

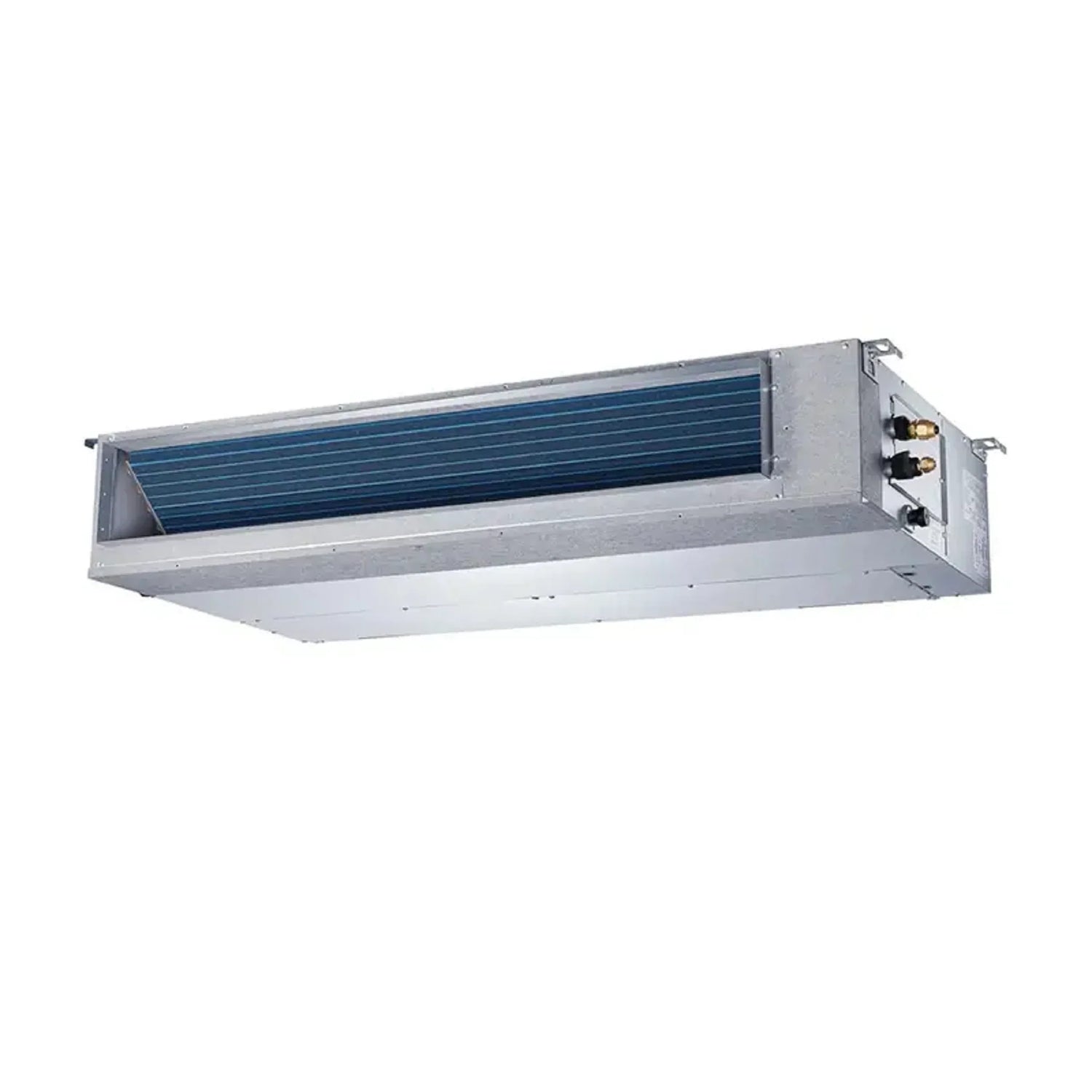

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC X4

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC X4. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

  • 12,000 BTU of heating or cooling power
  • Dry and Fan modes for added versatility
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — ACIQ-12CD-HH-MC ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC X4

BrandACiQ
SKUACIQ-12CD-HH-MC
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 26.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC X4

Standard Warranty5 year parts
Registered Warranty10 year parts
