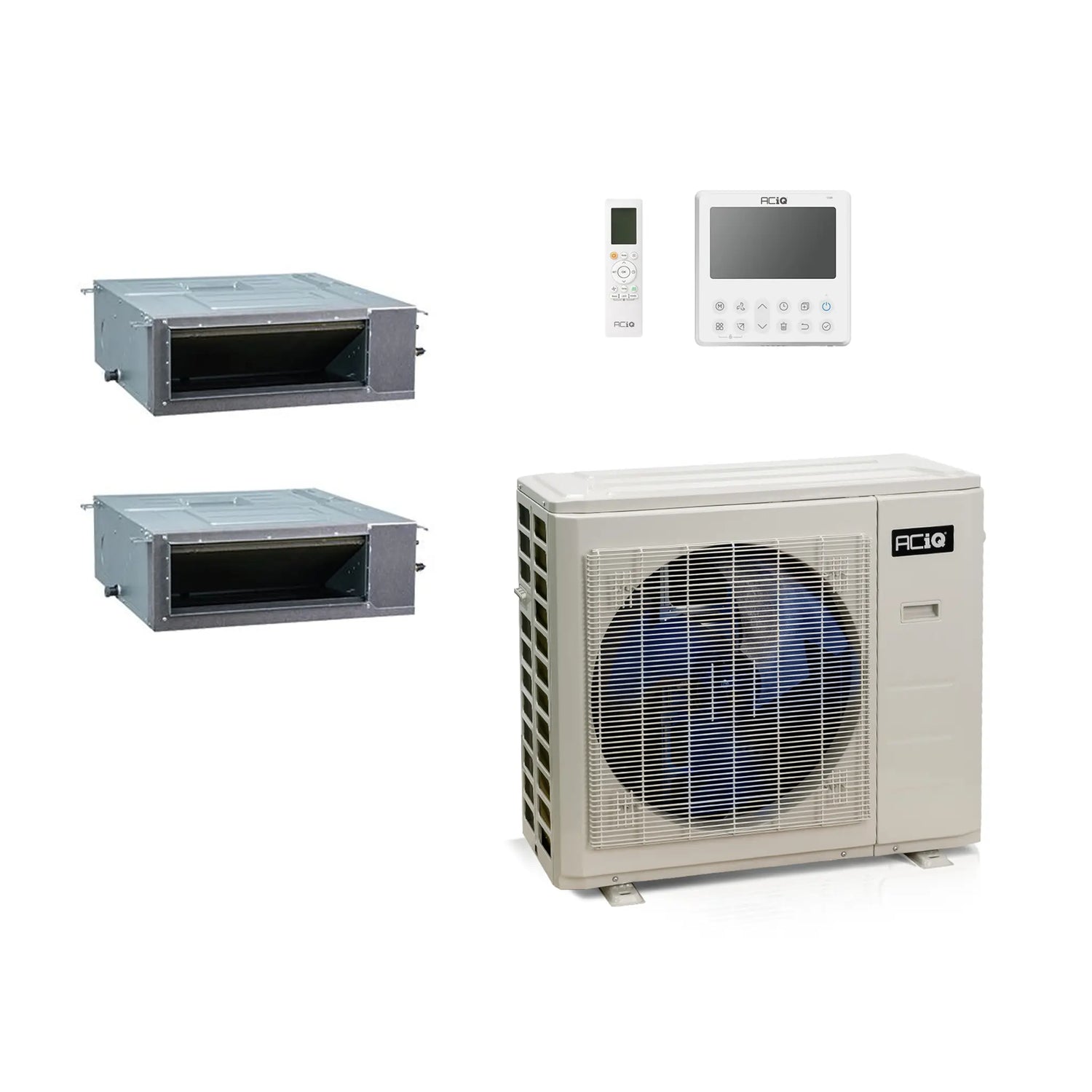

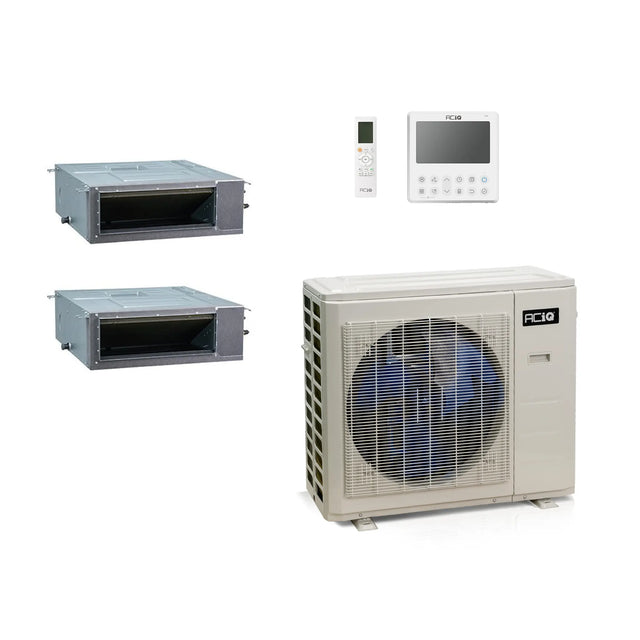

ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 2-Zone 230V 24+24

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-24CD-HH-MC-2|ID: 103571
$5,499.99
+ Free shipping

Key Features

  • Efficiency: Rated at 20.4 SEER2 and 10.3 HSPF2, this inverter-driven system delivers efficient heating and cooling performance.
  • Capacity: The 48,000 BTU (4-ton) condenser powers two matched 24,000 BTU zones for independent temperature control in each area.
  • Refrigerant: Runs on R454B refrigerant, rated for efficient cooling and heating from -13°F to 122°F outdoor temperatures.
  • Mounting: Both indoor units are concealed duct air handlers that install above the ceiling or below the floor, connecting to registers via flex ducting for a fully hidden setup.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 2-Zone 230V 24+24

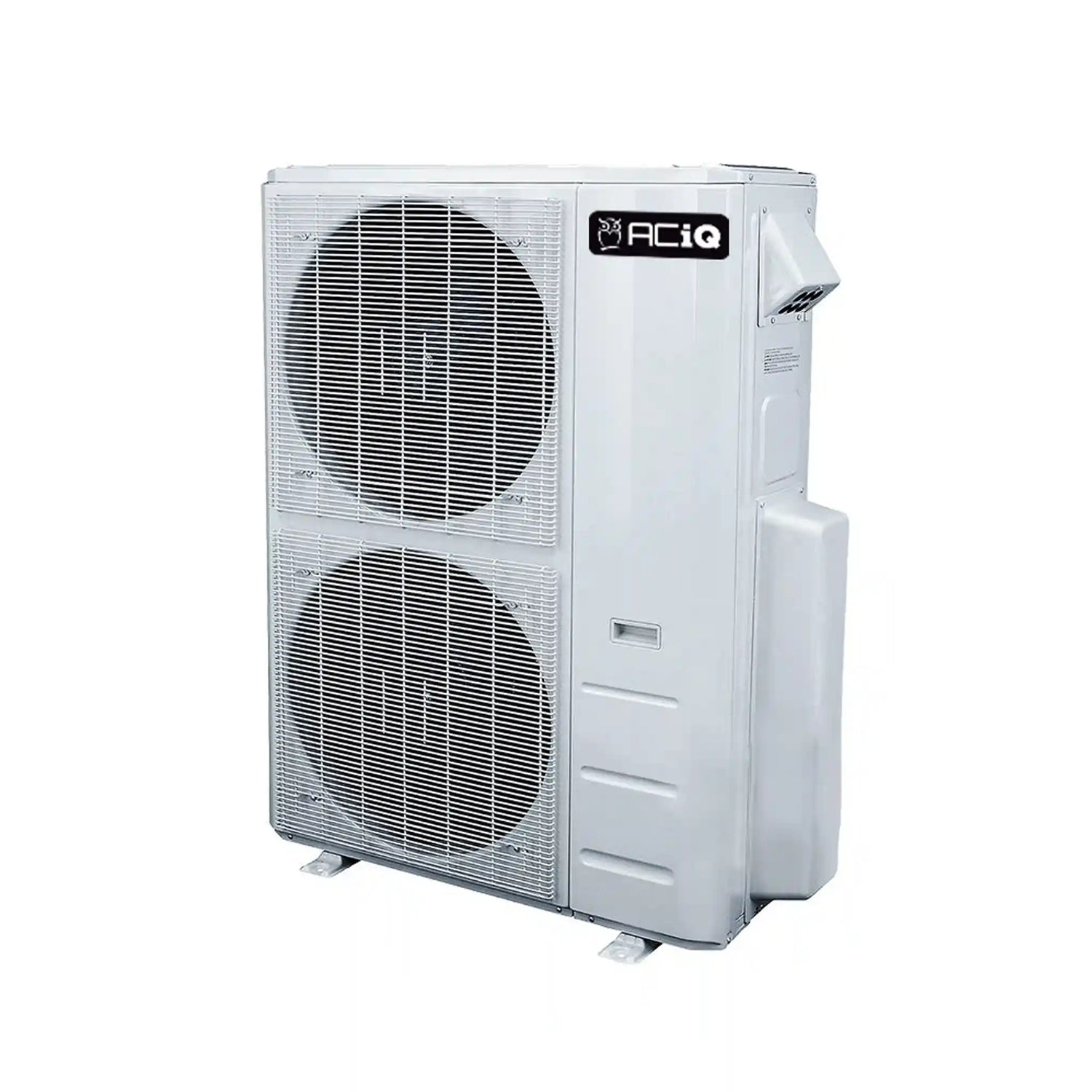

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

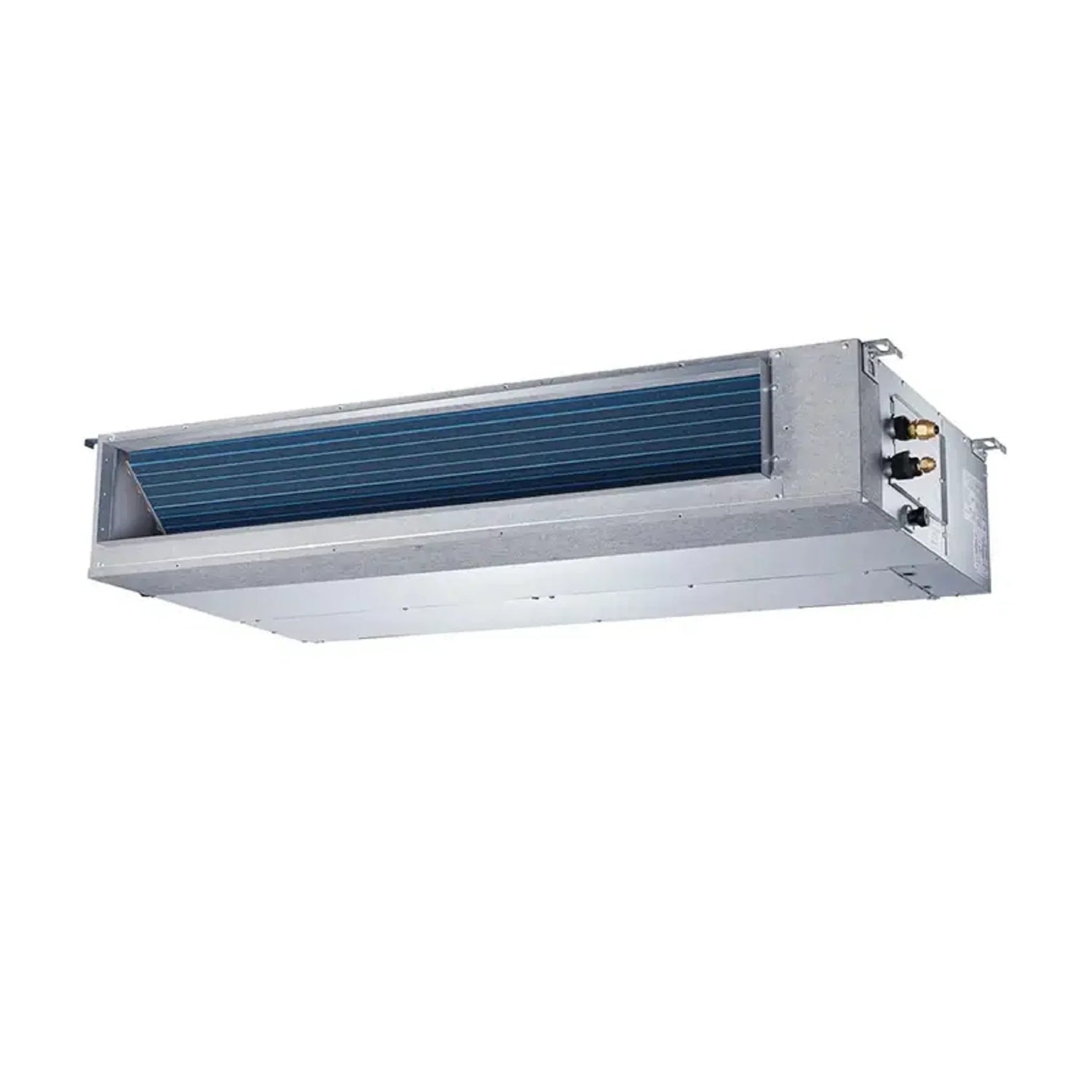

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

  • 24,000 BTU for heating or cooling
  • Dry and Fan modes available
  • Suitable for medium-sized rooms in most climates
  • Includes wall-mounted thermostat
  • Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — 24K Concealed Duct ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

BrandACiQ
SKUACIQ-24CD-HH-MC
Cooling BTU24,000 BTU
Heating BTU26,000 BTU
Maximum CFM853.5
Decibel Level (dBA)As Low as 29.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height9.65"
Width39.37"
Depth29.53"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
