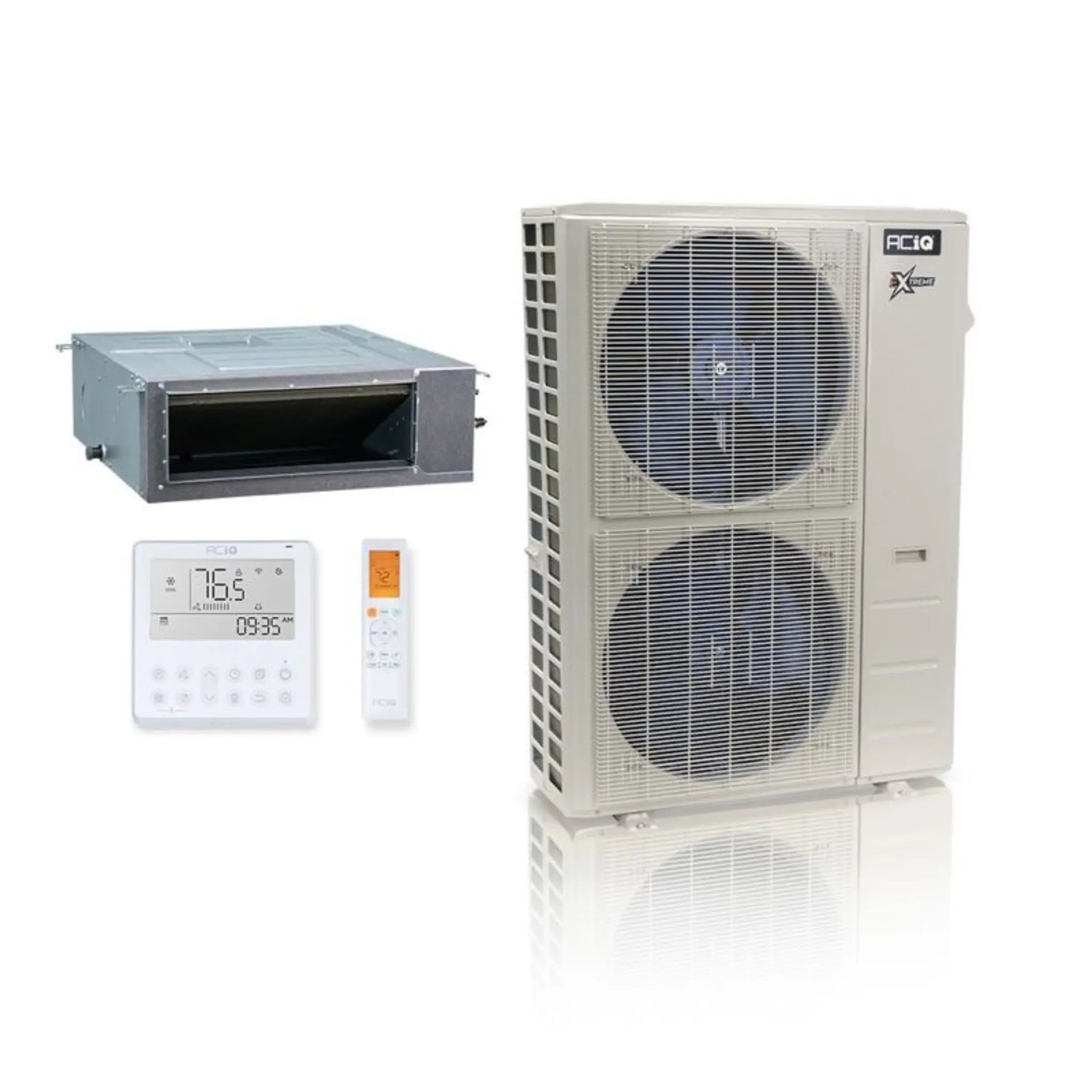

ACiQ 48K BTU 16.7 SEER2 Single Zone Concealed Duct Mini Split R454B 230V

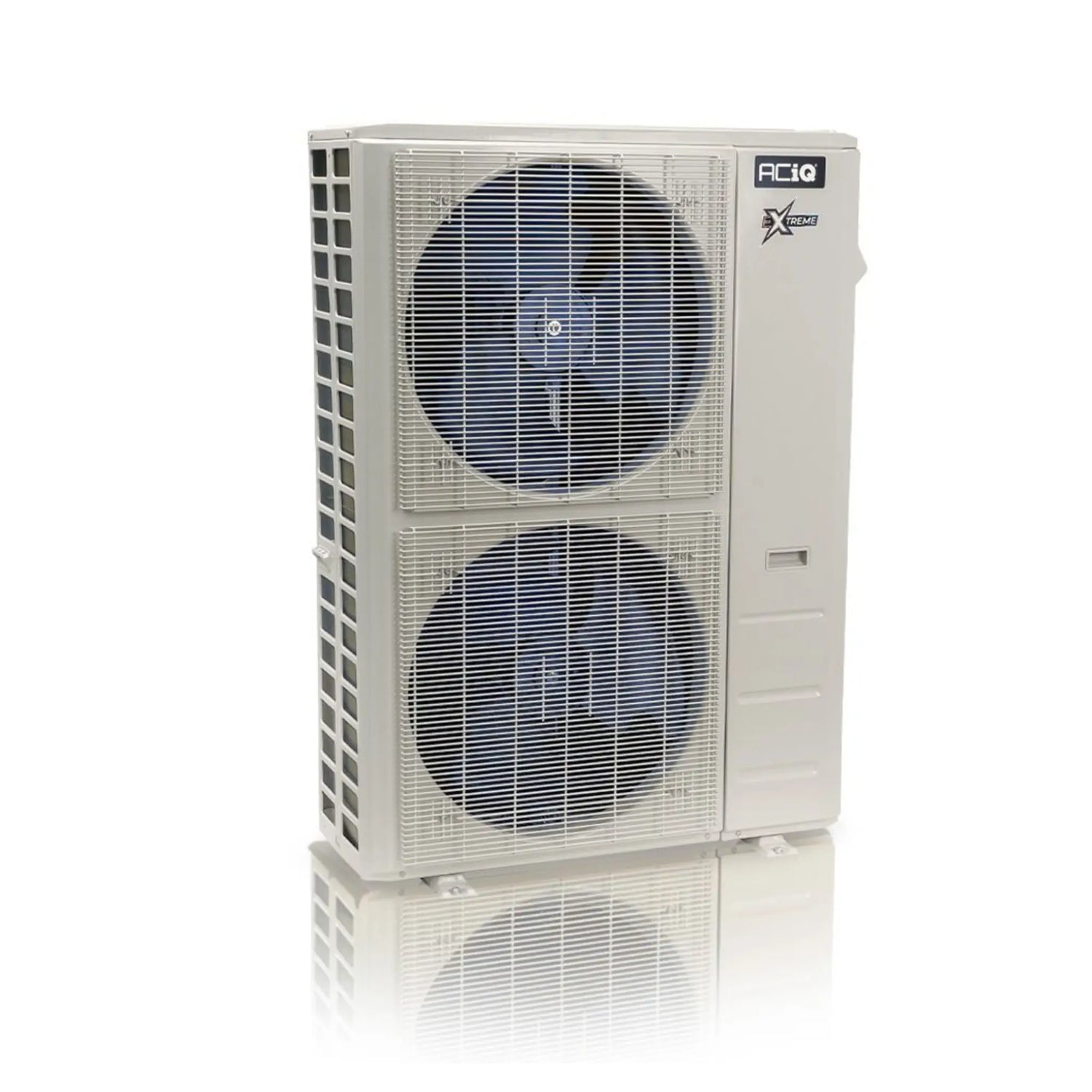

ACiQ 48K BTU 18 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-48ZPL-HP230C

The ACiQ 48,000 BTU Extreme Series Single Zone Condenser offers high-efficiency performance for both heating and cooling with advanced Hyper Heat inverter technology. Built to operate in extreme conditions, this condenser delivers heating down to -22°F and cooling up to 122°F. With a rotary inverter compressor and gold fin coil protection, this unit is engineered for dependable operation, quiet performance, and long-term durability in residential applications.

Key Features

• Advanced Inverter Technology
  Modulates compressor speed to match real-time demand, maximizing efficiency while keeping room temperatures steady.

• 16.7 SEER2 High Efficiency
  Achieves up to 16.7 SEER2 and 11.0 HSPF2 for lower energy bills throughout the year.

• 48,000 BTU Heating & Cooling
  Delivers 48,000 BTU (4 Ton) of conditioning, sized for open areas up to ~2,200 sq ft.

• All-Climate Performance
  Cools from 5°F to 122°F and heats from 5°F to 86°F for dependable year-round comfort.

• Eco-Friendly R454B Refrigerant
  Runs on low-GWP R454B refrigerant for environmentally responsible operation.

• Gold Fin Anti-Corrosion Coil
  Protective gold fin coating guards the coil against corrosion for a longer service life in harsh weather.

• Ultra-Quiet Operation
  Engineered for low-noise performance even under heavy workloads, keeping outdoor sound to a minimum.

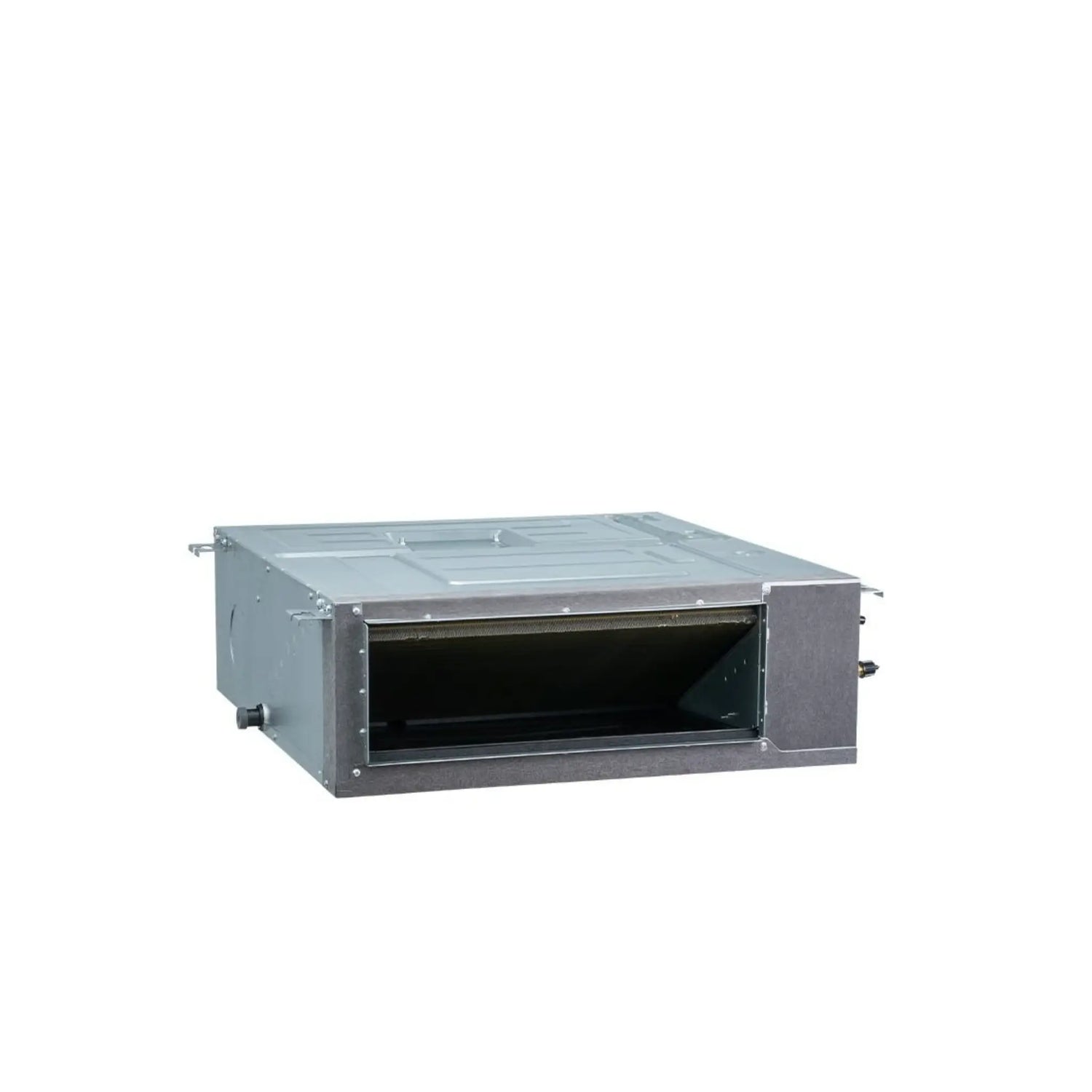

ACiQ 4 Ton 48,000 BTU Mini Split Concealed Duct Air Handler R454B 230V ACIQ-48CD-HH-MC

Paired with the ACIQ-48ZPL-HP230C condenser, the ACIQ-48CD-HH-MC concealed-duct air handler delivers quiet, even airflow throughout the space. It hides above the ceiling and connects to short duct runs for even, whole-room comfort, working in sync with the inverter condenser to hold precise, comfortable temperatures.

Key Features

• 48,000 BTU Concealed-Duct Air Handler
  Distributes 48,000 BTU of conditioned air quietly and evenly across the room.

• Concealed-Duct Design
  The indoor unit hides above the ceiling and connects to short duct runs for even, whole-room comfort.

• Variable-Speed Fan
  Automatically adjusts airflow to match demand for quiet operation and even temperatures.

• Washable Air Filter
  Easy-clean filter helps maintain healthy indoor air quality and steady airflow.

• R454B Compatible
  Factory-matched to the condenser for R454B refrigerant operation.
