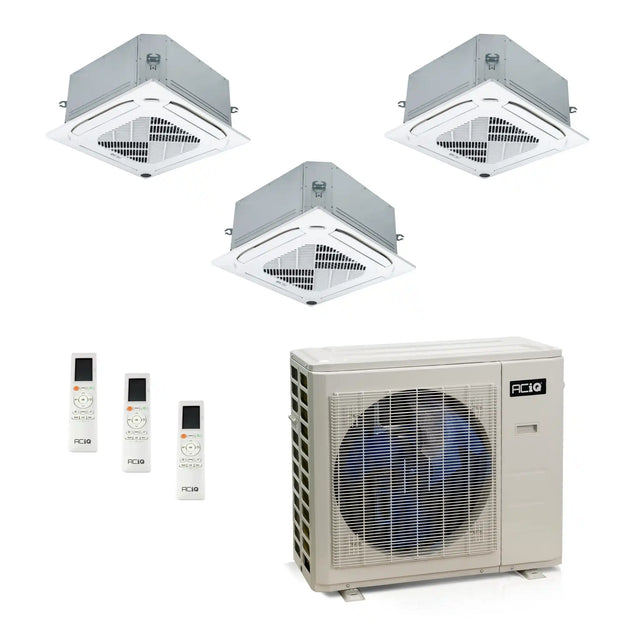

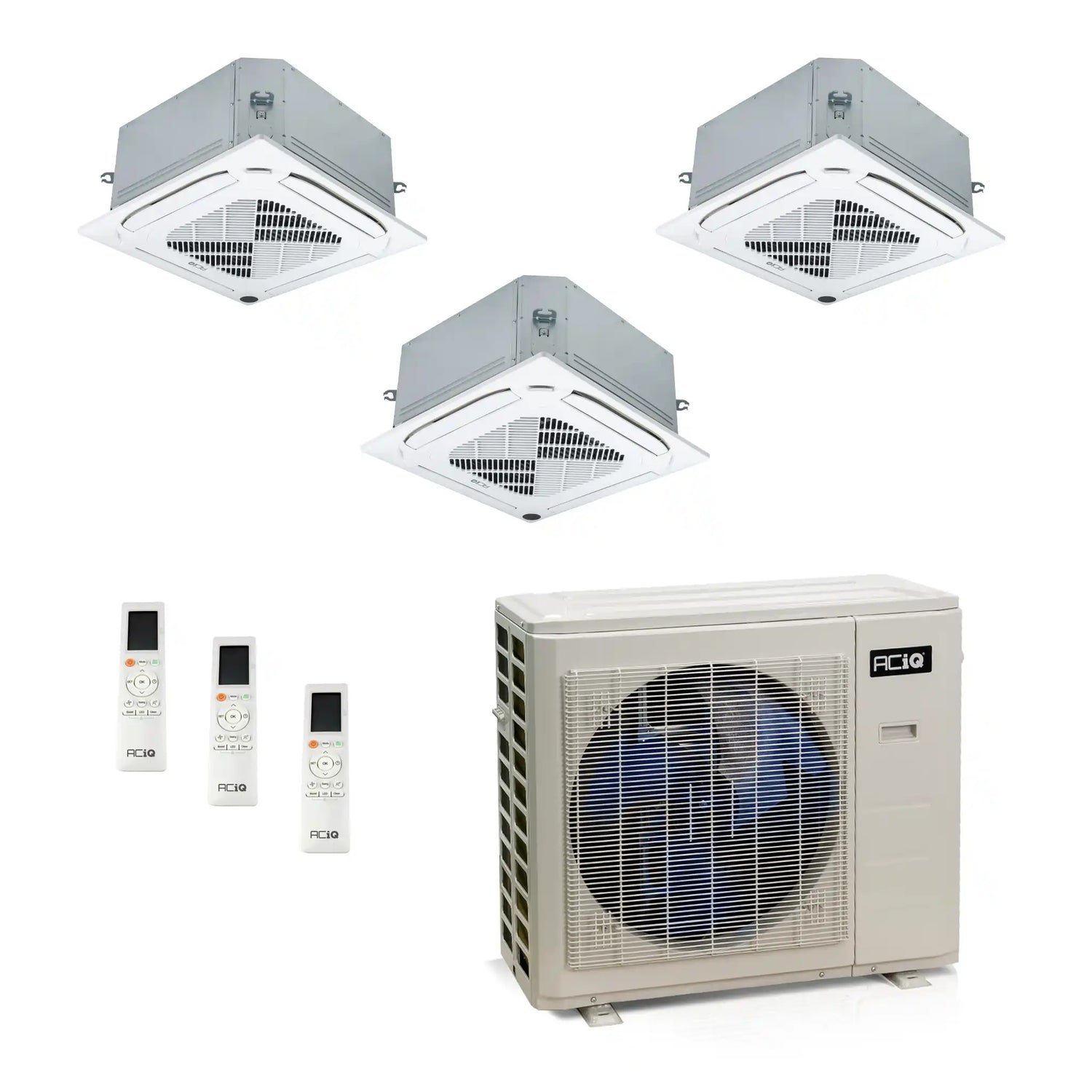

ACiQ 48,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 3-Zone 12+12+18

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-12CC-HH-MC-2 / ACIQ-18CC-HH-MC|ID: 103854
$5,899.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 24.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 48,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B  with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (4 Ton) with ceiling cassette mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 3-Zone 12+12+18

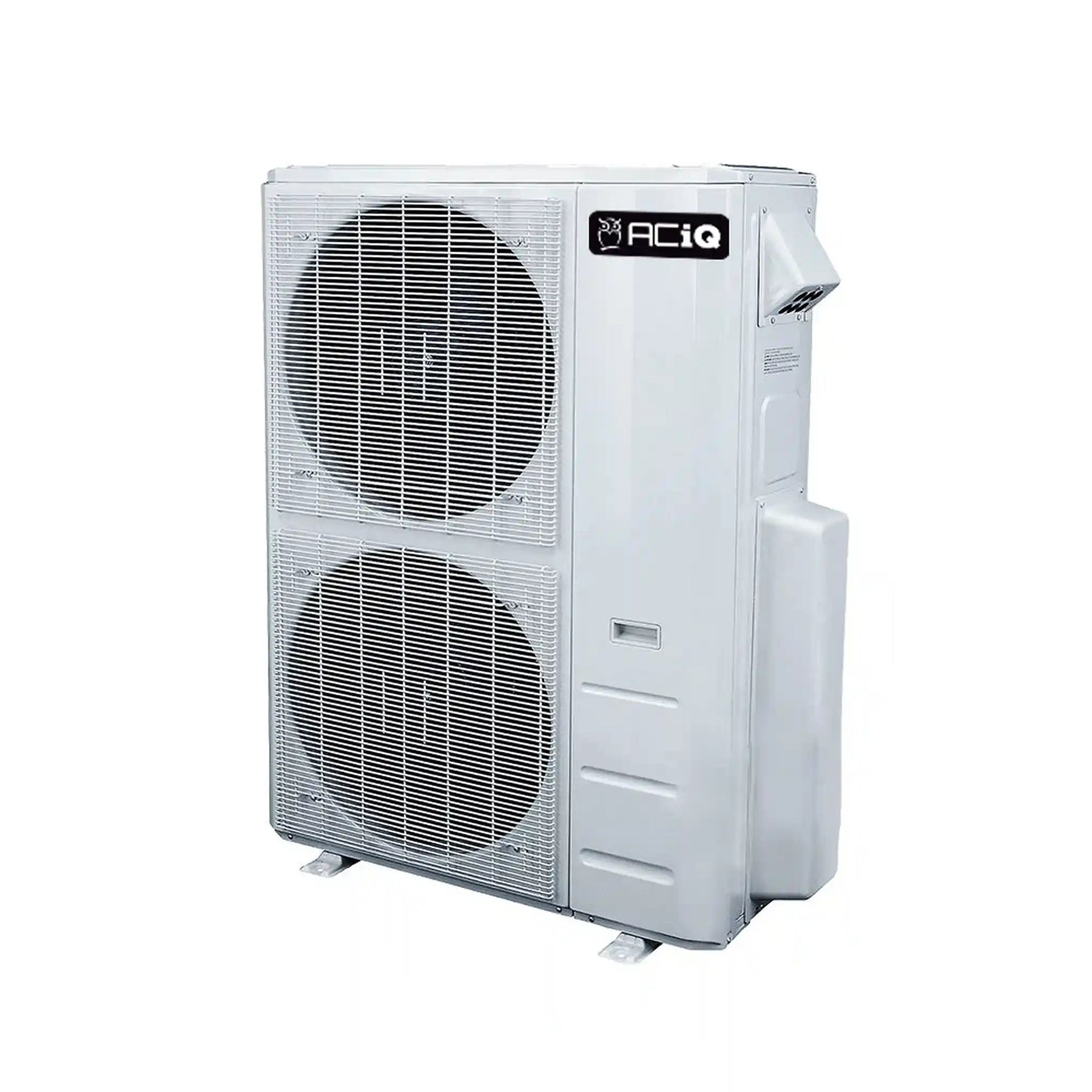

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

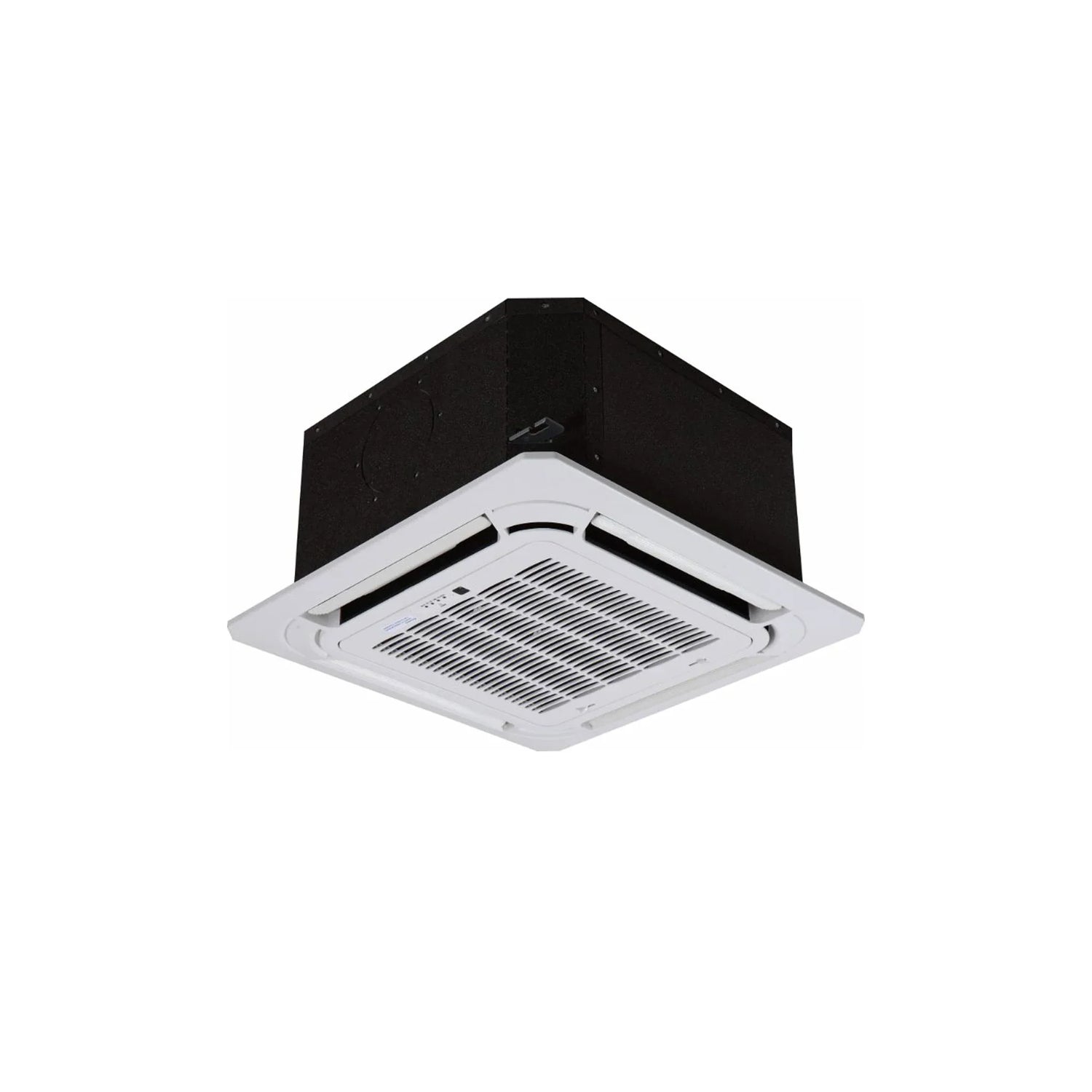

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

  • 12,000 BTU of Heating or Cooling power
  • Dry and Fan modes for versatile comfort
  • Perfect for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure — All Air Handler Installation & Owner's Manual — All Air Handler Submittal — ACIQ-12CC-HH-MC Submittal — ACIQ-18CC-HH-MC ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

BrandACiQ
SKUACIQ-12CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM335.29
Decibel Level (dBA)As low as 31.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.45 gal/hr
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Depth22.44"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC

BrandACiQ
SKUACIQ-18CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
Maximum CFM562.35
Decibel Level (dBA)As low as 35.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.586 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size25
Min. Breaker Size20
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height10.25"
Width22.5"
Depth22.5"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC

Standard Warranty5 year parts
Registered Warranty10 year parts
