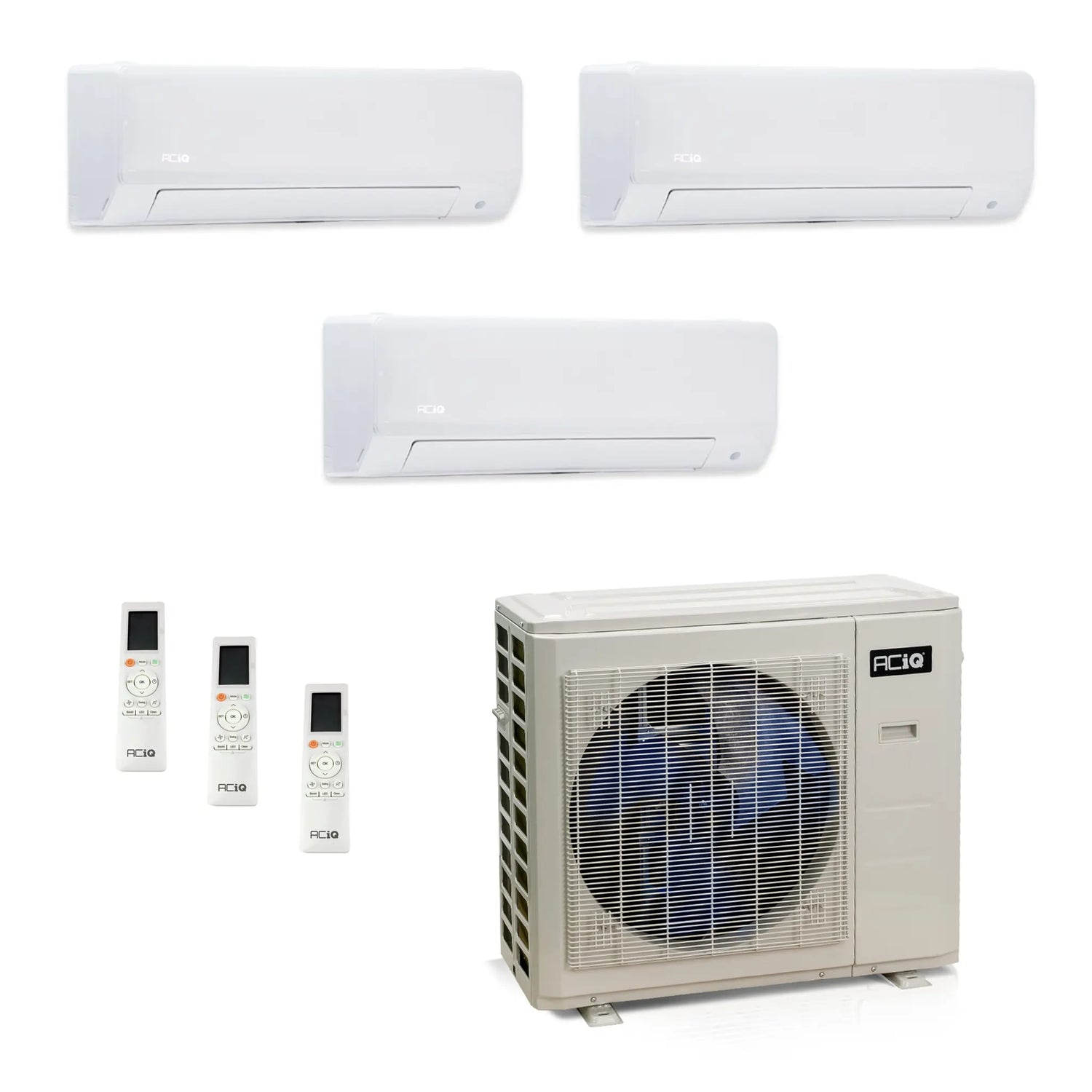

ACiQ 36K BTU 24 SEER2 Wall Mount Mini Split System 3-Zone R454B 230V 9+9+9

By: ACiQ
SKU: ES-36Z-M5C / ACIQ-09W-HH-MD-3|ID: 103819
$3,849.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 24.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 36,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (3 Ton) with wall mounted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 24 SEER2 Wall Mount Mini Split System 3-Zone R454B 230V 9+9+9

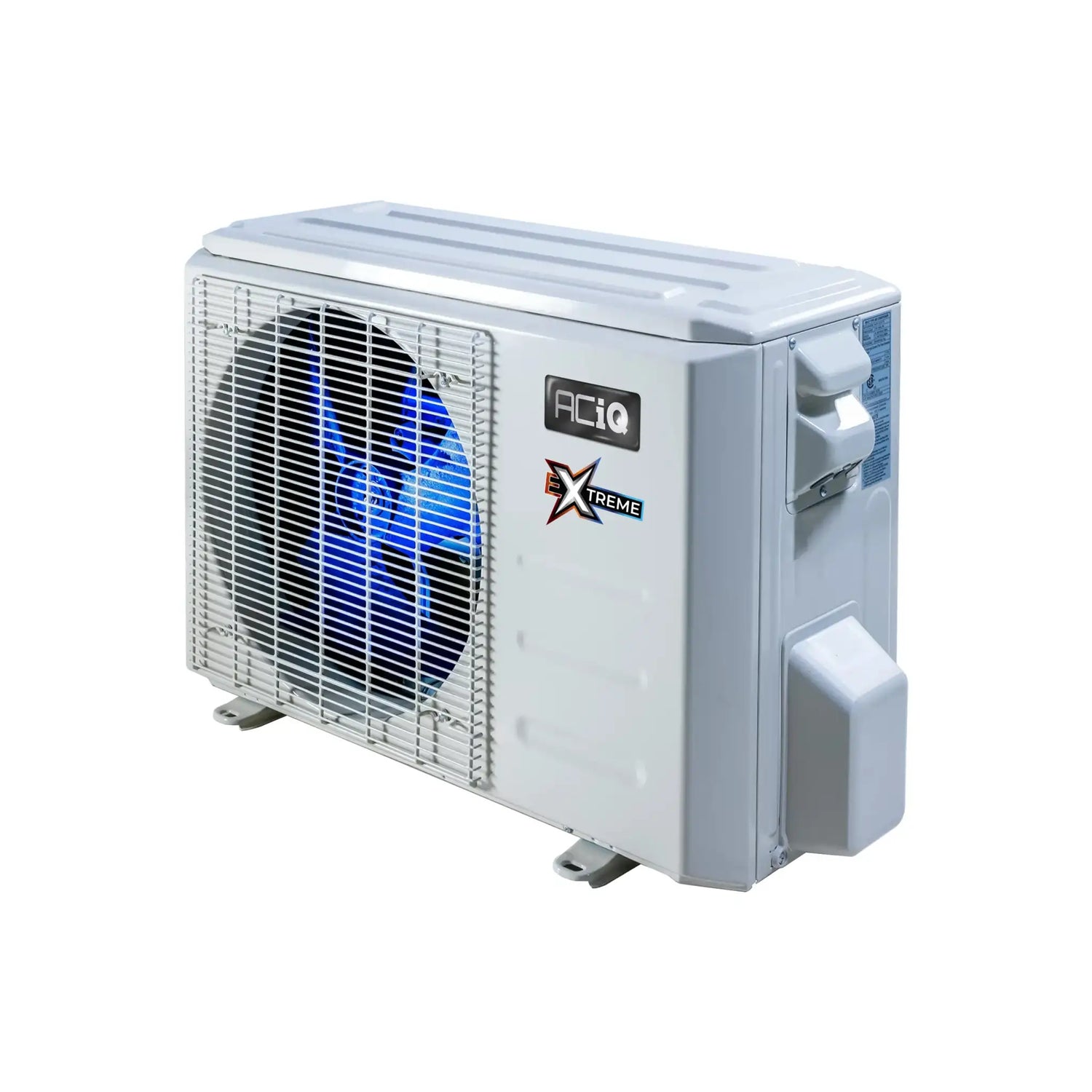

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x3

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

  • 9,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Wall Mount Mini Split Air Handler

Installation & Owner's Manual Remote Control Manual Submittal — ACIQ-09W-HH-MD Wi-Fi User Manual ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x3

BrandACiQ
SKUACIQ-09W-HH-MD
Cooling BTU9000 BTU
Heating BTU10000 BTU
Maximum CFM335.29
Decibel Level (dBA)38
Electric HeatHeat Pump
RefrigerantR454B
SEER23-24
SEER222.3
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Length33.40"
Height11.76"
Depth9.18"
ReplacesN/A

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x3

Standard Warranty5 year parts
Registered Warranty10 year parts
