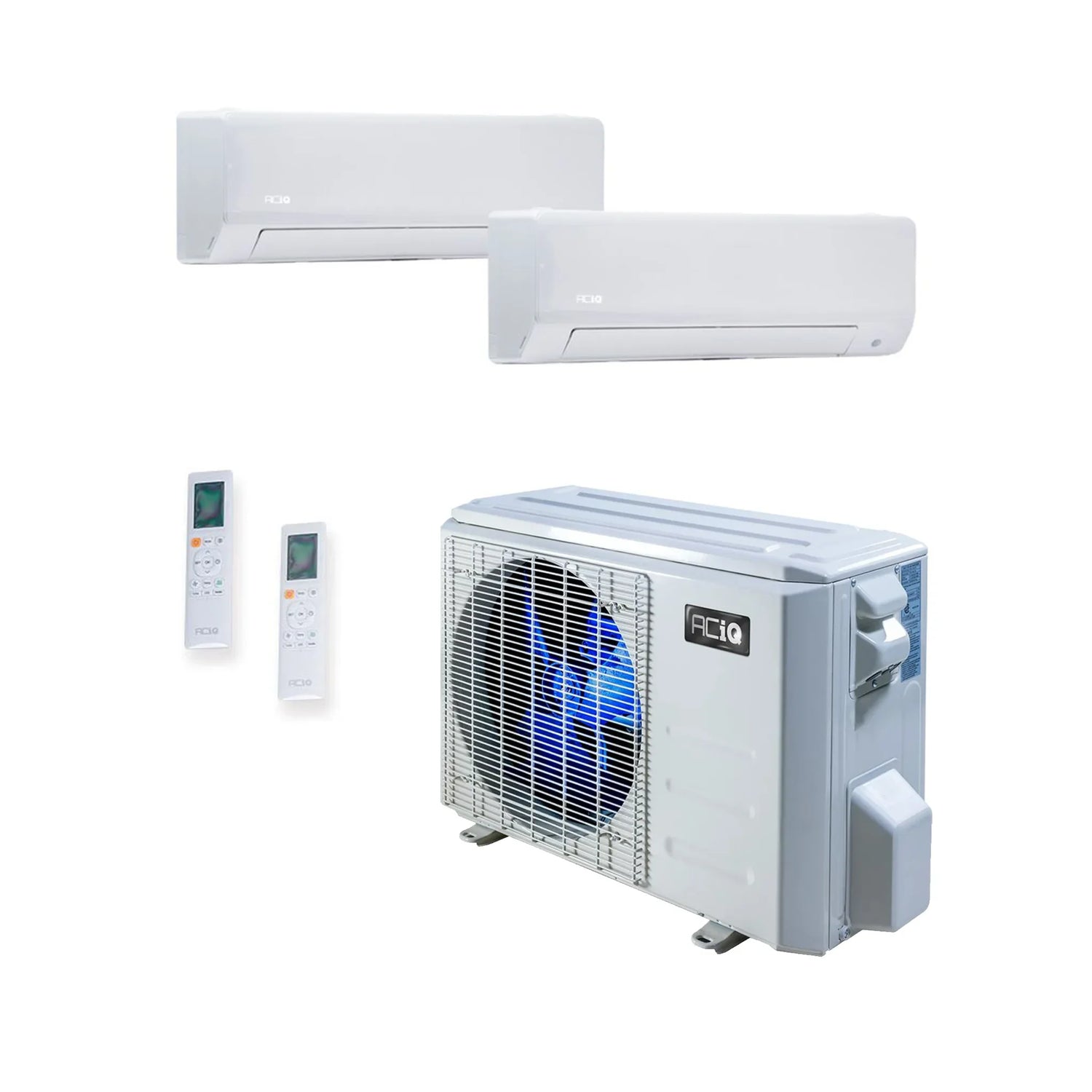

ACiQ 36K BTU 24 SEER2 Mini Split System 2-Zone Wall Mount R454B 230V 18+18
Key Features
- Efficiency: Achieves 24 SEER2 cooling efficiency and 9.5 HSPF2 heating efficiency via an inverter-driven multi-zone condenser.
- Capacity: The 3-ton (36,000 BTU) multi-zone condenser splits output evenly across 2 independently controlled zones at 18,000 BTU each.
- Refrigerant: Pre-charged with R454B refrigerant and protected by a Gold Fin coil, efficient down to -13°F outdoor temperatures.
- Smart Control: Both Platinum wall-mounted indoor units include WiFi control via Net Home Plus, Alexa, or Google Home, with quiet operation as low as 46.5 dBA.
Product Details
Product Details
ACiQ 36K BTU 24 SEER2 Mini Split System 2-Zone Wall Mount R454B 230V 18+18

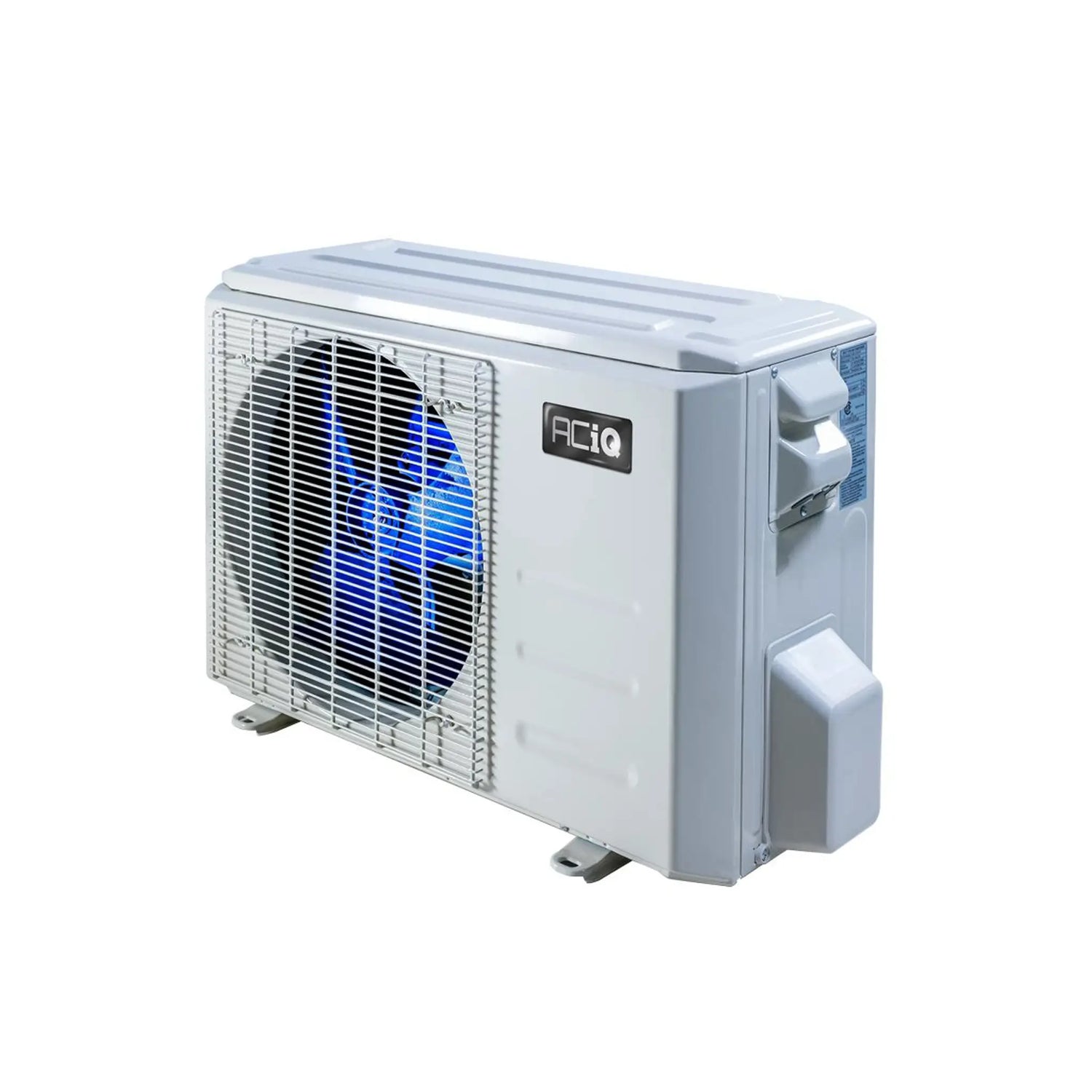

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C
ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.
Key Features
- 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 5 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

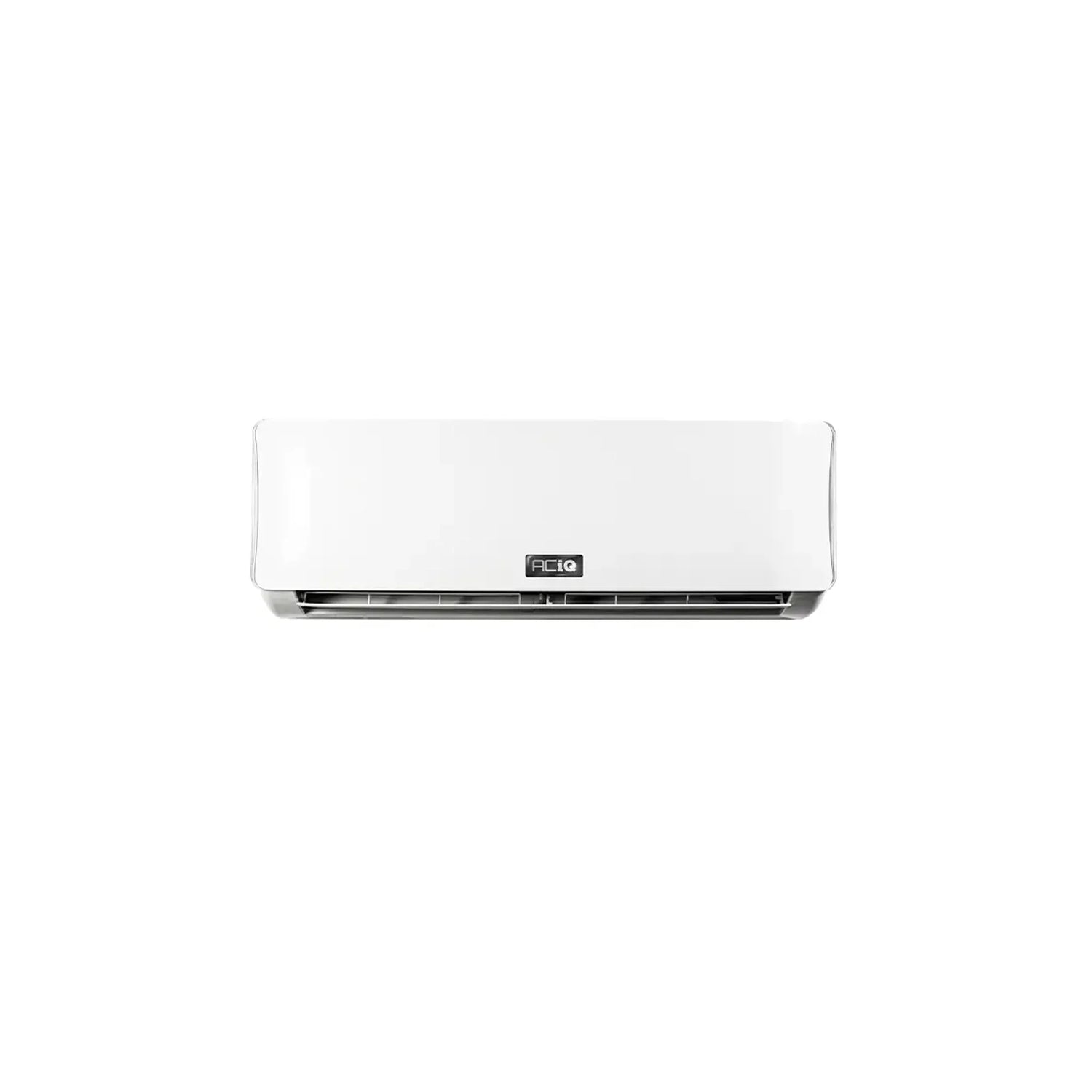

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD x2
The 18,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Equipped with adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.
Key Features
- 18,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACiQ-18W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board for error notifications, and smart remote compatibility. With WiFi capabilities, you can control your home's heating and cooling from anywhere using a smart device. Please note that installation with a condenser and other equipment is required, available at an additional cost if not included in the bundle.
