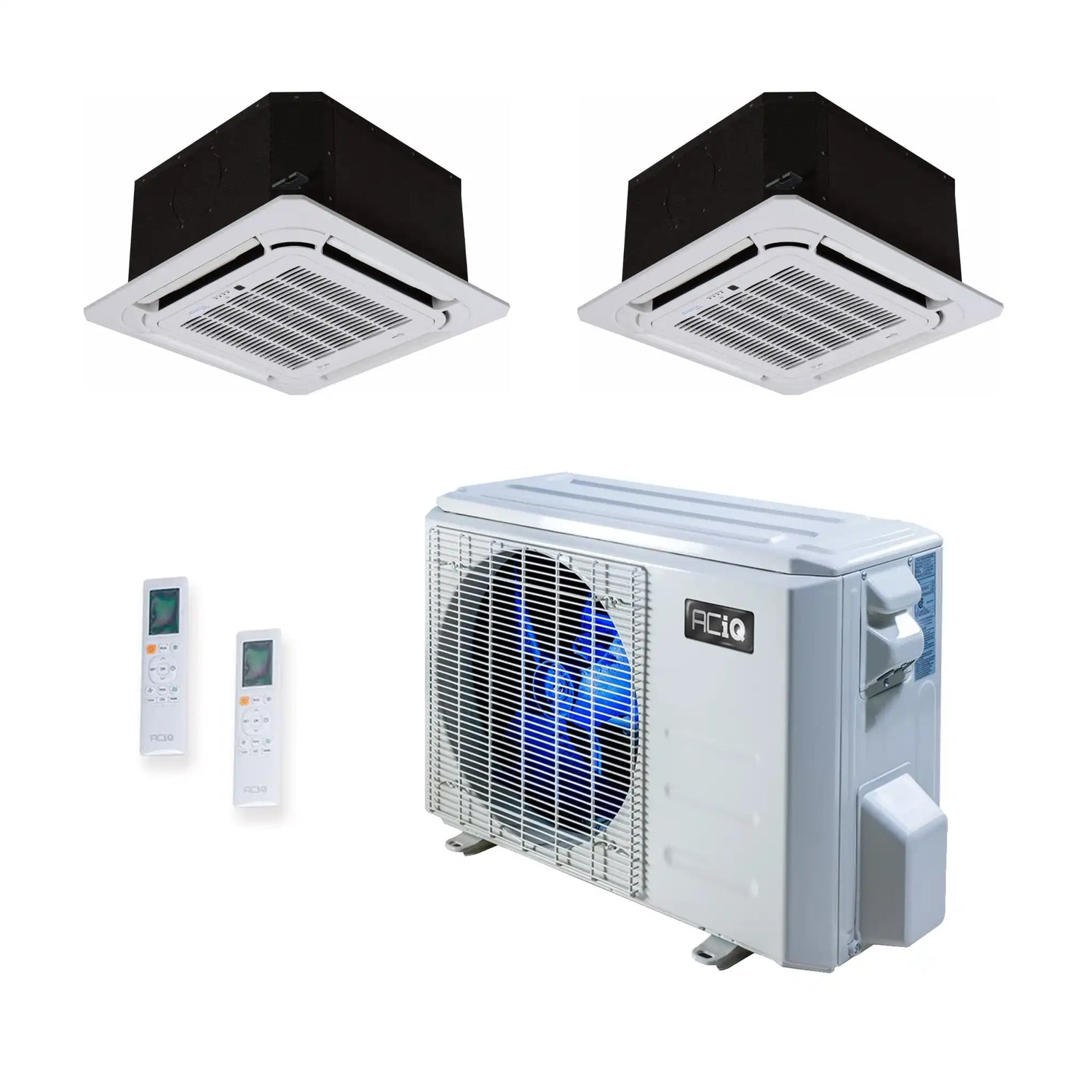

ACiQ 36K BTU 24 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 18+18

By: ACiQ
SKU: ES-36Z-M5C / ACIQ-18CC-HH-MC-2|ID: 103546
$4,499.99
+ Free shipping

Key Features

  • Efficiency: This inverter condenser achieves 24 SEER2 with 9.5 HSPF2 for efficient dual-zone comfort.
  • Capacity: A 3-Ton (36,000 BTU) outdoor unit powers two matched 18,000 BTU ceiling cassette zones for balanced, independent room control.
  • Refrigerant: Uses R454B refrigerant with a Gold Fin protective coil coating.
  • Mounting: Twin flush-mounted 4-way ceiling cassettes with factory-installed condensate pumps provide a discreet, centralized-airflow finish in each zone.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 24 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 18+18

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

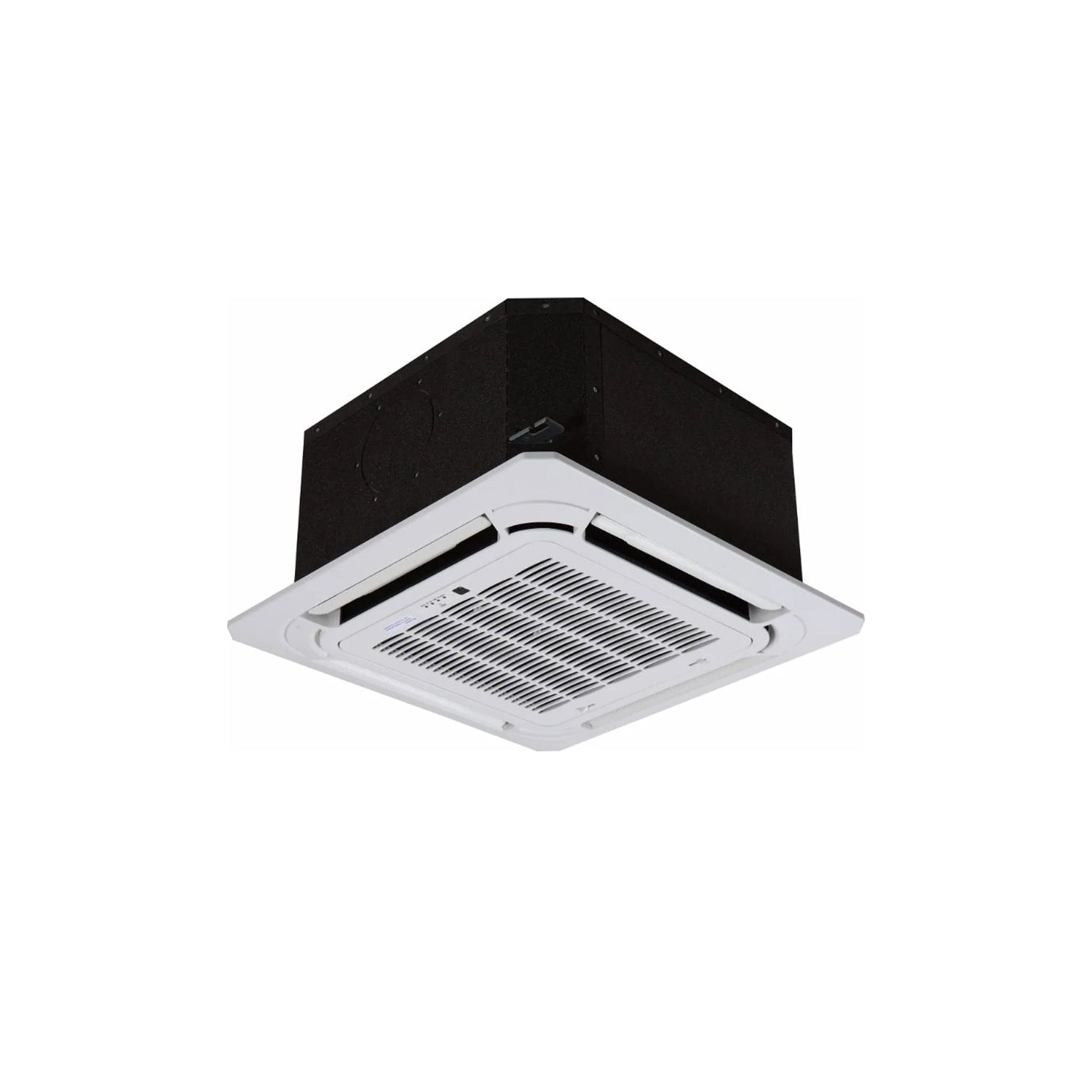

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Submittal — ACIQ-18CC-HH-MC ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

BrandACiQ
SKUACIQ-18CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
Maximum CFM562.35
Decibel Level (dBA)As low as 35.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.586 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size25
Min. Breaker Size20
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height10.25"
Width22.5"
Depth22.5"

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
