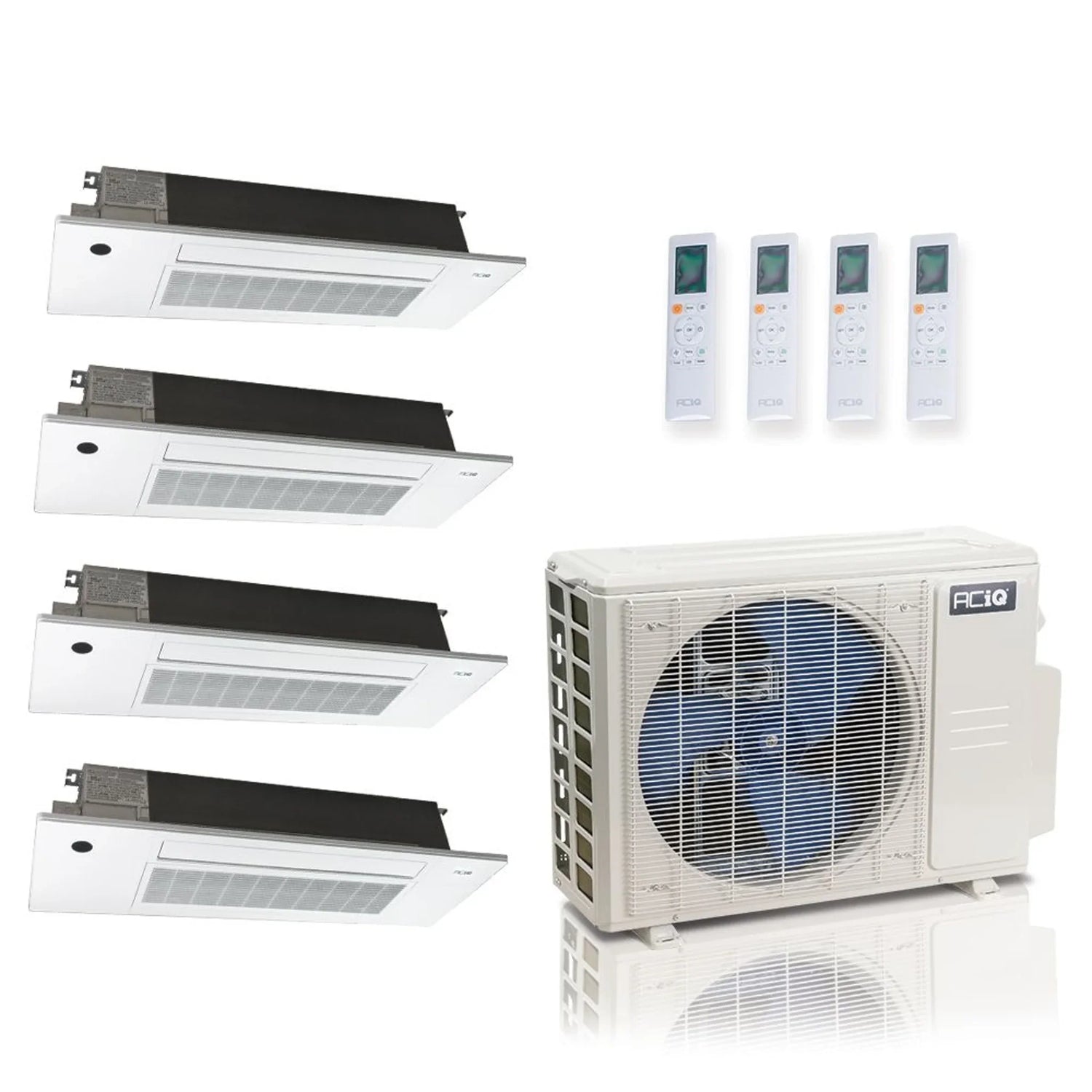

ACiQ 36K BTU 24 SEER2 4-Zone Ceiling Cassette Mini Split R454B 230V 9+9+9+9

By: ACiQ
SKU: ES-36Z-M5C / SCC-09-HH-MB-4|ID: 104298
$6,699.99
+ Free shipping

Key Features

  • System Capacity: Combines a 36,000 BTU (3-ton) condenser with four slim ceiling cassette air handlers set at 9K+9K+9K+9K for balanced 4-zone output.
  • Efficiency: Achieves 24 SEER2 efficiency through a rotary inverter compressor for reliable year-round energy savings.
  • Low-Profile Design: Each slim cassette fits between 16-inch on-center joists for a discreet, flush ceiling installation with one-way airflow.
  • Refrigerant & Control: Uses R454B refrigerant with dip-switch capacity settings and a handheld remote included for every zone.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 24 SEER2 4-Zone Ceiling Cassette Mini Split R454B 230V 9+9+9+9

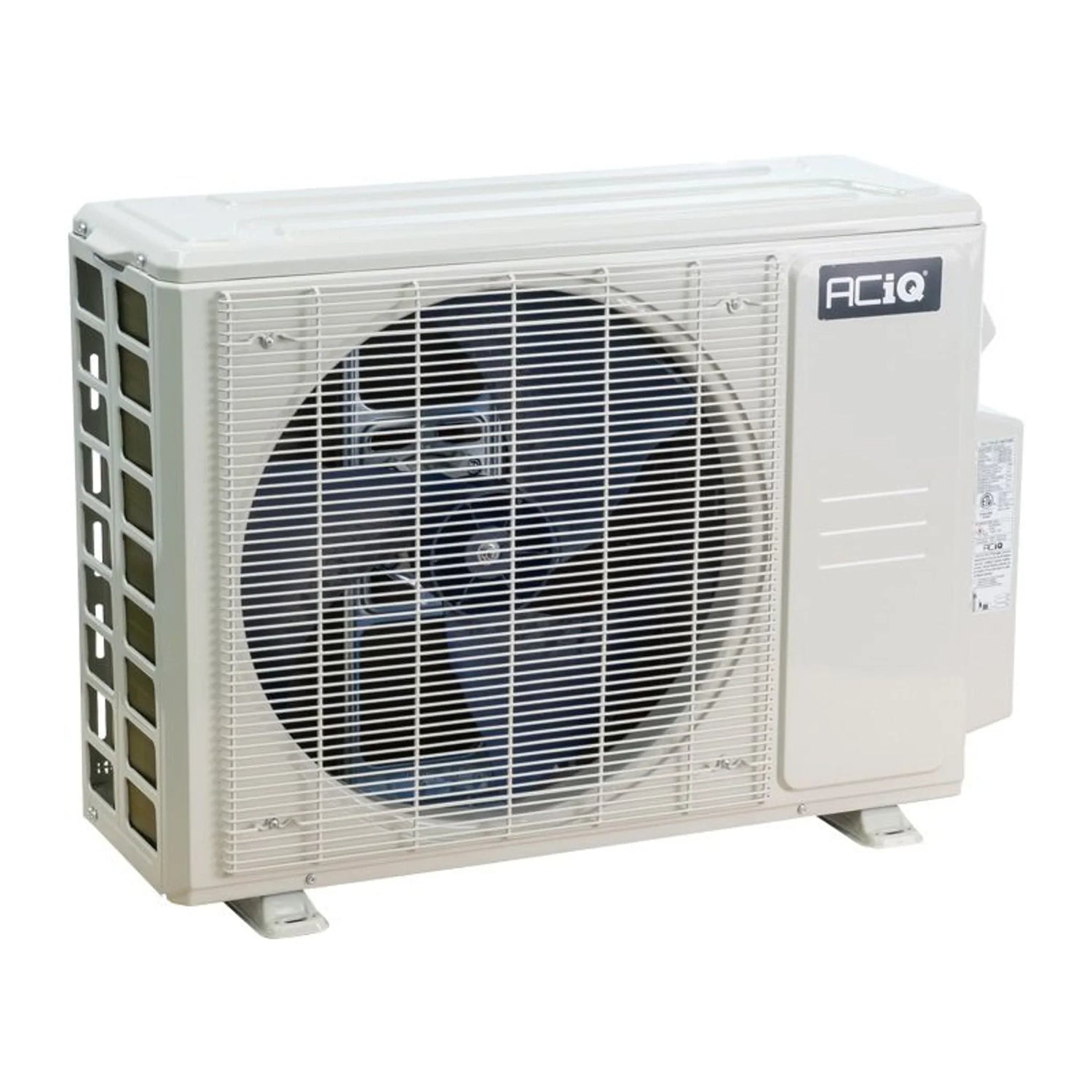

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

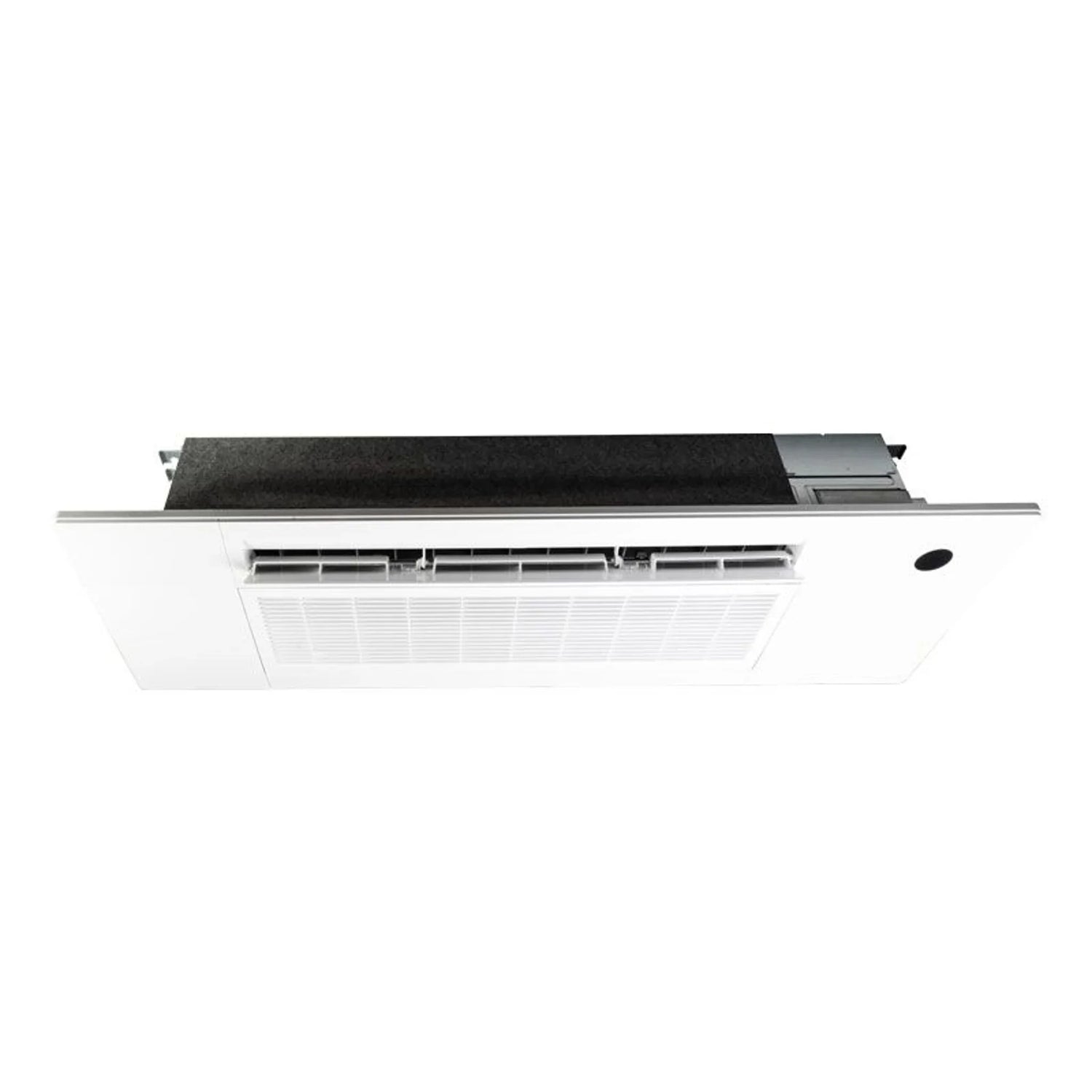

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

  • Fits between 16-inch on-center joists for easier installation
  • Rated for 6K, 9K, and 12K BTU; dip switch adjustable
  • One-way airflow design with discreet ceiling-mounted appearance
  • No-ladder filter access with lowering grille system
  • Handheld remote control included
  • Decorative grille included for a clean, modern look
  • Uses environmentally friendly R-454B refrigerant
  • Compatible with ACiQ multi-zone condensers

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Slim Ceiling Cassette Mini Split Air Handler

AHRI Certificate — SCC-09-HH-MB Owner's Manual Remote Control Manual Submittal — 9K Slim Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"
Warranty12 year compressor, 7 year parts with online registration

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

BrandACiQ
SKUSCC-0612-HH-MB
BTU6,000 / 9,000 / 12,000
Weight (in lbs)82.45
ManufacturerACiQ
ControllerWireless Included
Heating BTU6,000 / 9,000 / 12,000
Maximum CFMUp to 353.20 CFM
Decibel Level (dBA)As low as 24.0 Decibels
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Phase, 60Hz
PhaseSingle Phase
Mini Split TypeSlim Ceiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.98"
Width50.31"
Depth13.19"
Warranty12 year compressor, 7 year parts with online registration

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty (Parts)5 years
Standard Warranty (Compressor)7 years
Registered Warranty (Parts)7 years
Registered Warranty (Compressor)12 years

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

Standard Warranty (Parts)5 year parts
Standard Warranty (Compressor)7 year parts
Registered Warranty (Parts)7 year parts
Registered Warranty (Compressor)12 year parts
