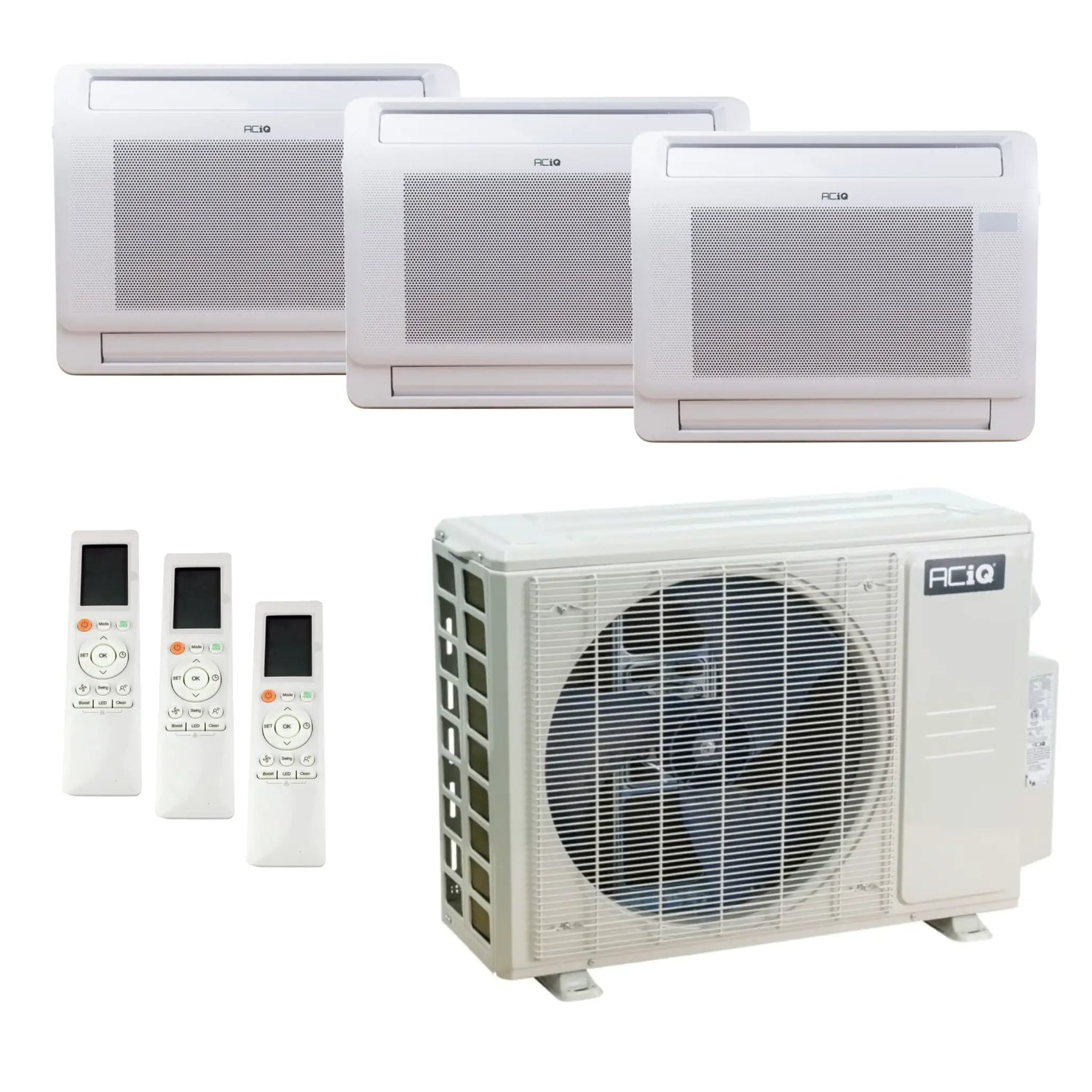

ACiQ 36K BTU 24 SEER2 3-Zone Floor Mount Mini Split R454B 230V 12+12+24

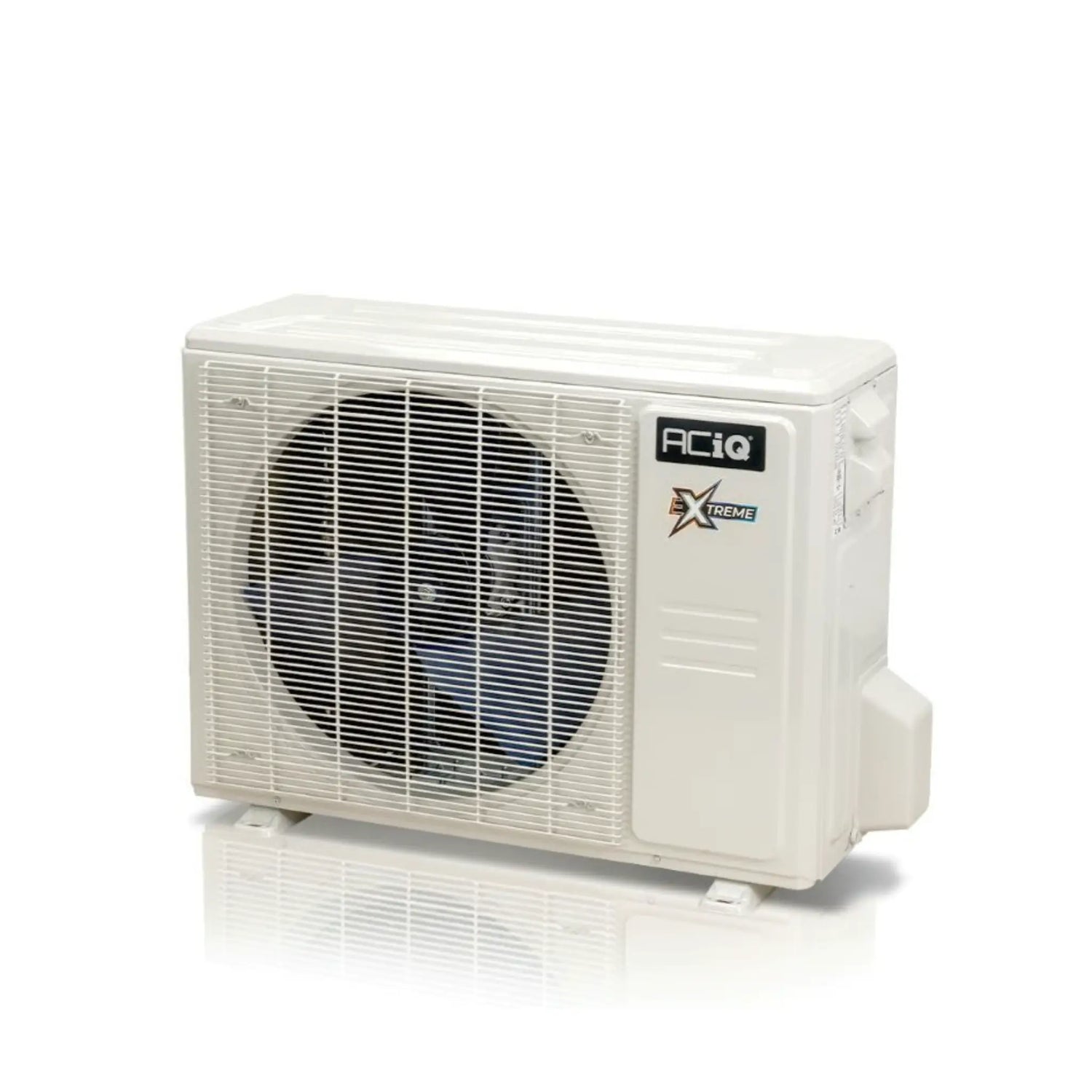

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

• 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
• Designed to function with up to 5 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Efficient heating from -13°F to 75°F outdoor temperatures
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

ACiQ Floor Mounted Air Handler Compact Climate Control for Challenging Spaces ACIQ-12FM-HH-MD x2

The ACiQ Floor Mounted Air Handler is a space-saving solution ideal for areas where traditional wall-mounted units won't fit, such as sun porches, attic rooms, and remodels with limited vertical wall space. Designed to install low on the wall or even directly on the floor, this console-style HVAC unit provides efficient year-round comfort with powerful heating and cooling capabilities.

Its unique airflow design makes it especially effective in heating applications—warm air is delivered at floor level to reduce heat stratification, ensuring consistent comfort from floor to ceiling. When switched to cooling mode, airflow reverses to improve cold air distribution throughout the room.

Perfect for areas with low ceilings, knee-walls, or windows occupying most wall space, this low-profile mini split air handler offers quiet, reliable operation and flexible placement options.

Key Features

• 12,000 BTU of efficient heating and cooling capacity
• Ideal for small rooms in most climate zones
• Optimized airflow for superior heating performance
• Reversible airflow in cooling mode for better air circulation
• Dry and fan modes for humidity control and air movement
• Compact, low-profile design fits under windows or on knee-walls
• Remote control thermostat for convenient temperature adjustments
• Surface-mount installation on either floor or ceiling
• Compatible with ACiQ mini split systems
• Reliable performance for sunrooms, attic remodels, and tight spaces

Note: The 18,000 and 24,000 BTU models differ slightly in appearance from the 12,000 BTU version. Refer to the installation manual for specific mounting instructions.

ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD

ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.

Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features. Models like the ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB are engineered specifically to solve complex installation challenges in unconventional environments.

Key Installation Advantages:

• Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
• Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
• Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
• Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
• Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.

Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
