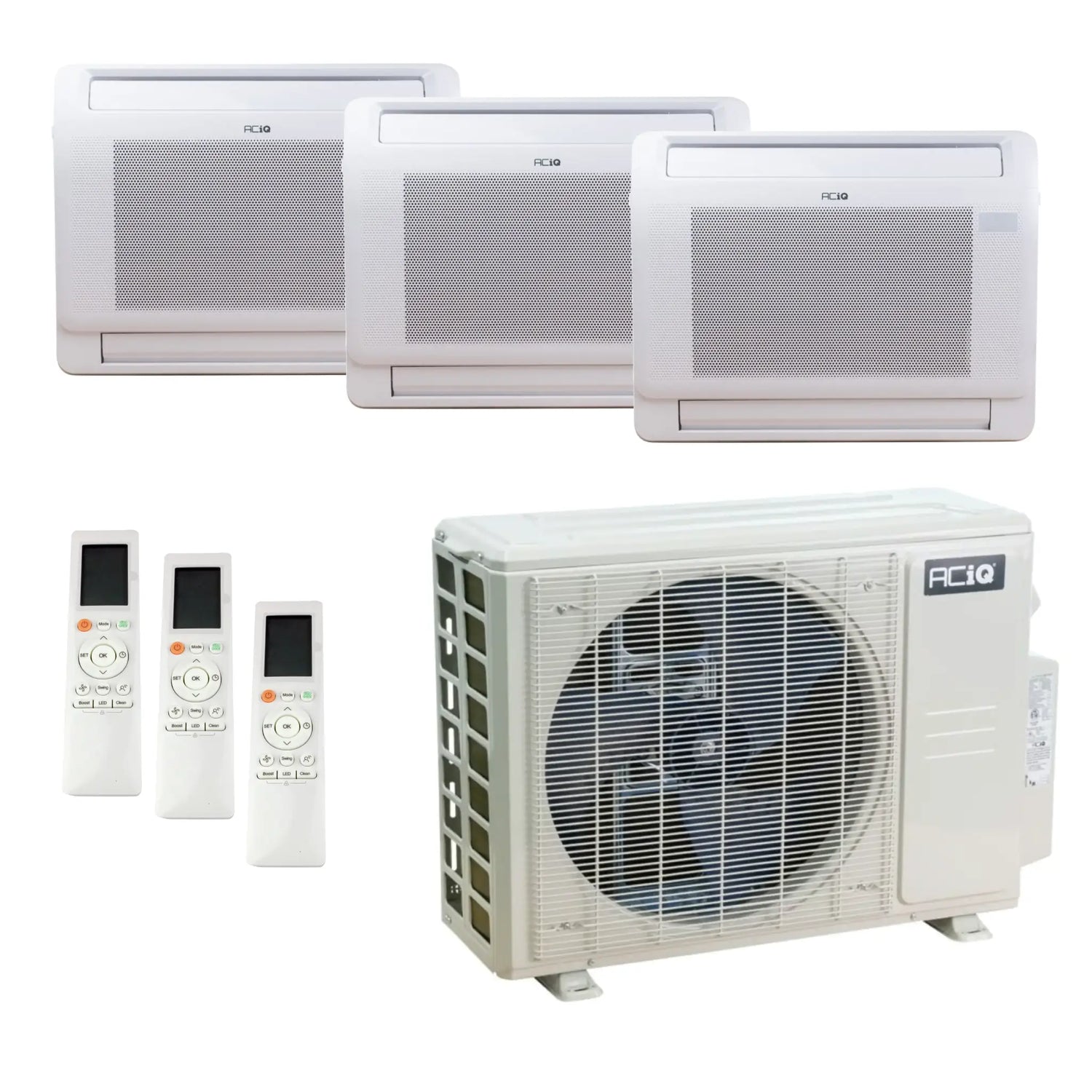

ACiQ 36K BTU 24 SEER2 3-Zone Floor Mount Mini Split R454B 230 Volts 9+9+9

By: ACiQ
SKU: ES-36Z-M5C / ACIQ-09FM-HH-MD-3|ID: 103791
$5,049.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 24.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 36,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (3 Ton) with floor mounted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 24 SEER2 3-Zone Floor Mount Mini Split R454B 230 Volts 9+9+9

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

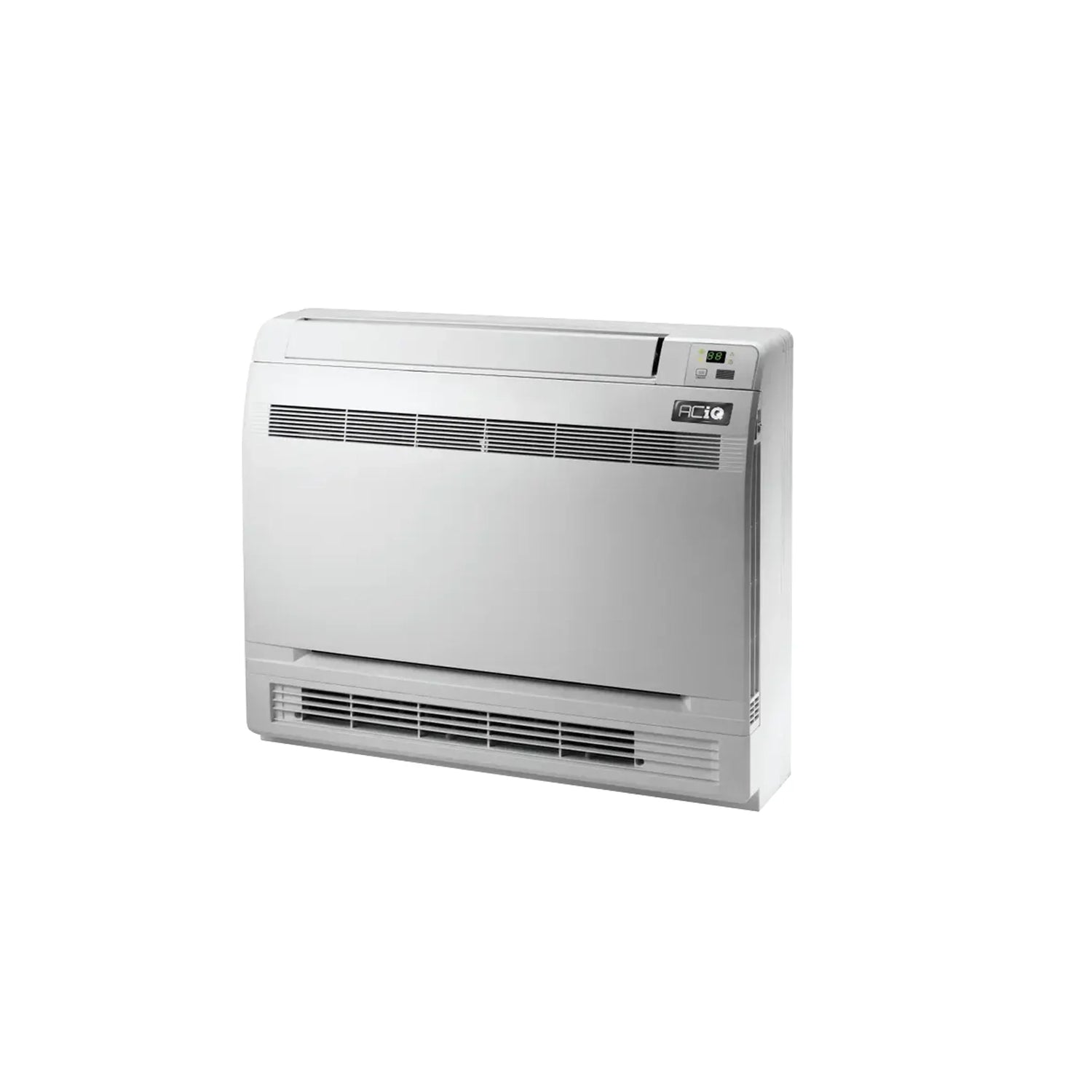

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD x3

The ACiQ Floor or Ceiling Mounted Mini Split Air Handler is a flexible indoor unit designed for installations where high-wall placement is not feasible. Delivering 12,000 BTU of powerful heating and cooling, it can be mounted low on the wall or suspended from the ceiling. Its low-profile design and quiet operation make it ideal for sunrooms, attics, and spaces with limited wall space. Adaptive airflow direction optimizes performance in both heating and cooling modes.

Key Features

  • 12,000 BTU floor or ceiling mounted mini split air handler
  • Optimized for heating at floor level and cooling with reversed airflow
  • Energy-efficient with R454B refrigerant and inverter compatibility
  • Ultra-quiet operation as low as 25 dBA
  • Multi-zone compatible design
  • Includes wireless remote controller
  • Ideal for rooms with low walls, sunrooms, or attic remodels

This unit is designed for versatile installations and offers both floor and ceiling mount capability for unique room configurations or limited-space environments.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Floor Mount Mini Split Air Handler

Submittal — ACIQ-09FM-HH-MD ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"
Warranty12 year compressor, 7 year parts with online registration

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD x3

BrandACiQ
Model #ACIQ-09FM-HH-MD
Cooling Capacity12,000 BTU
Heating Capacity12,000 BTU
SEER2—
Max CFM441
Sound Level (dBA)As low as 25
RefrigerantR454B
Voltage / Phase / Hz208/230V, 1 Phase, 60 Hz
Zone CompatibilityMulti Zone
Liquid Line1/4"
Suction Line3/8"
Mini Split TypeFloor Mounted
ControllerWireless Included
Unit Dimensions (L x H x D)27.56" x 8.27" x 23.62"

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty (Parts)5 years
Standard Warranty (Compressor)7 years
Registered Warranty (Parts)7 years
Registered Warranty (Compressor)12 years

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD x3

Standard Warranty (Compressor)7 years
Standard Warranty (Parts)5 years
Registered Warranty (Compressor)12 years
Registered Warranty (Parts)7 years
