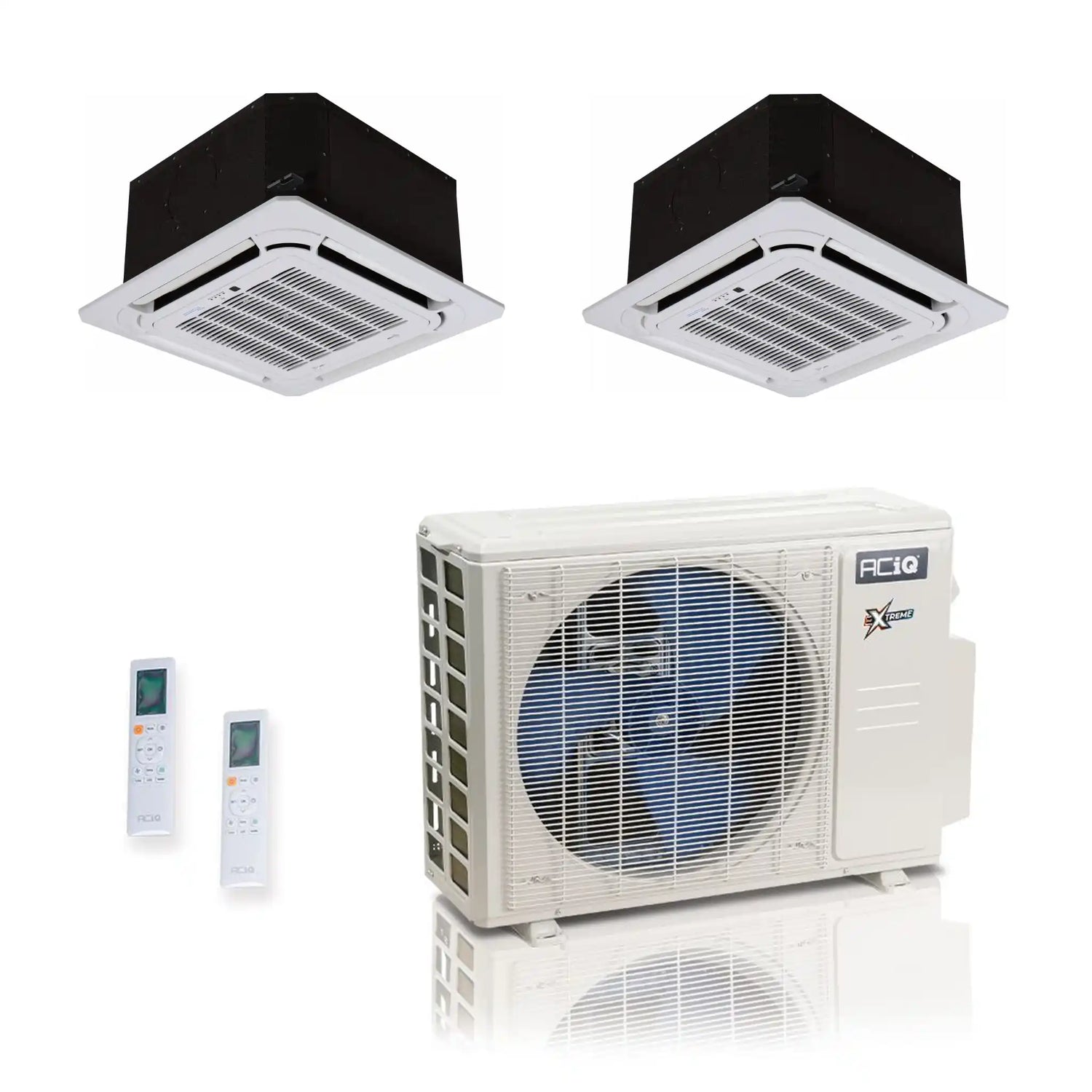

ACiQ 36K BTU 23 SEER2 Extreme Mini Split 2-Zone Ceiling Cassette 230V 18+24

By: ACiQ
SKU: ACiQ-36Z-HH-M5C / ACIQ-18CC-HH-MC / ACIQ-24CC-HH-MC|ID: 103430
$6,559.99
+ Free shipping

Key Features

  • Efficiency: Rated 23 SEER2 with a 10.7 HSPF2, plus ENERGY STAR certification for efficient year-round comfort.
  • Capacity: A 3-ton (36,000 BTU) Extreme Series twin-rotary condenser powers 2 zones sized at 18,000 and 24,000 BTU.
  • Refrigerant: Uses R454B refrigerant across the condenser and both air handlers.
  • Cassette Design: Both indoor units are flush-mount 4-way ceiling cassettes with factory condensate pumps for a hidden, whole-room airflow installation.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 23 SEER2 Extreme Mini Split 2-Zone Ceiling Cassette 230V 18+24

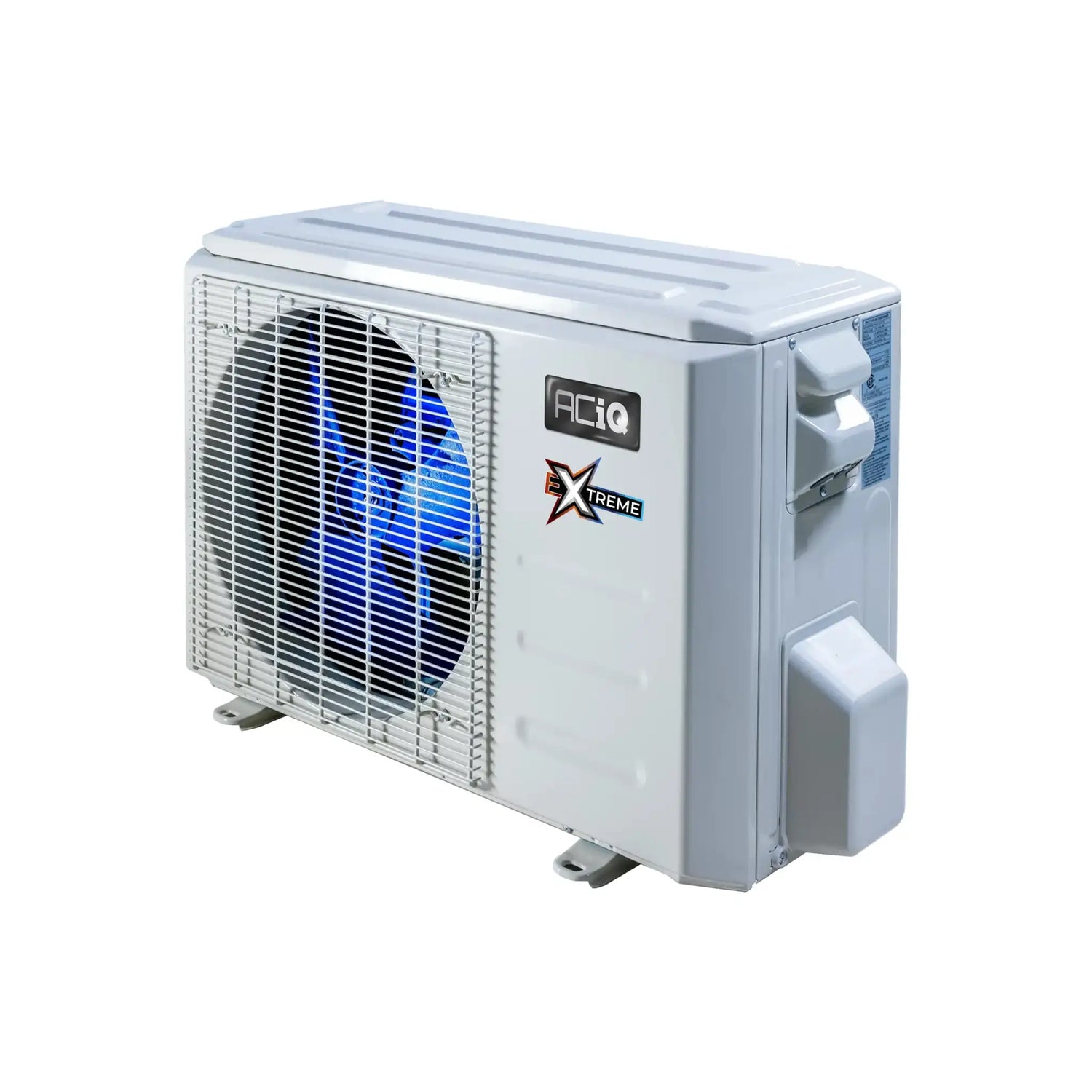

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

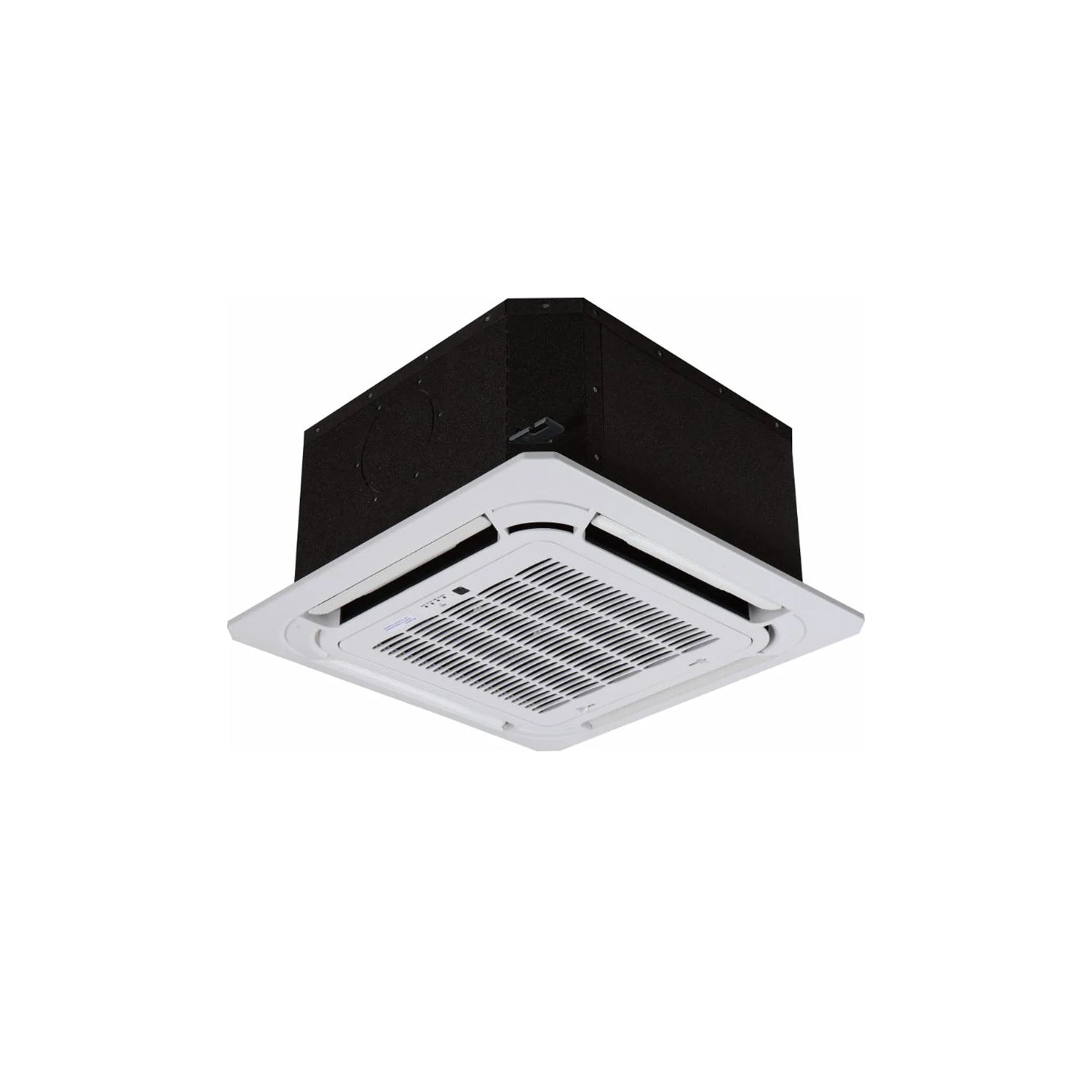

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Looking for a more hidden appearance and centralized air distribution? The ACiQ-24CC-HH-MC ceiling cassette air handler is the perfect solution. This ceiling cassette unit offers high-efficiency heating and cooling, with a sleek and understated appearance once installed.

Key Features

  • 24,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for a medium room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
  • Ceiling Cassette for hidden appearance

Ceiling Cassettes offer a flush-mounted design for a discreet look and provide quiet comfort with precision engineering to maintain set temperatures efficiently. The unit comes with a factory-installed condensation pump for easy maintenance.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-36Z-HH-M5C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure — All Air Handler Installation & Owner's Manual — All Air Handler Remote Control Manual — 24K-48K Submittal — ACIQ-18CC-HH-MC Submittal — 24K Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

BrandACiQ
SKUACIQ-36Z-HH-M5C
ReplacesACIQ-36Z-HH-M4B
Product FeaturesLow Ambient Heating
HSPF210.7
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM3037
Decibel Level (dBA)65
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER223
Compressor TypeTwin Rotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 Amps
Min. Breaker Size37 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height38.39"
Width38.58"
Depth16.34"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

BrandACiQ
SKUACIQ-18CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
Maximum CFM562.35
Decibel Level (dBA)As low as 35.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.586 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size25
Min. Breaker Size20
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height10.25"
Width22.5"
Depth22.5"

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

BrandACiQ
SKUACIQ-24CC-HH-MC
ControllerWireless Included
Product FeaturesWiFi
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM765.2
Decibel Level (dBA)As low as 33.5
Electric HeatHeat Pump
RefrigerantR454B
SEER220
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.07"
Width32.68"
Depth32.68"
ReplacesN/A

Warranty and Product Information

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Standard Warranty5 year parts
Registered Warranty10 year parts
