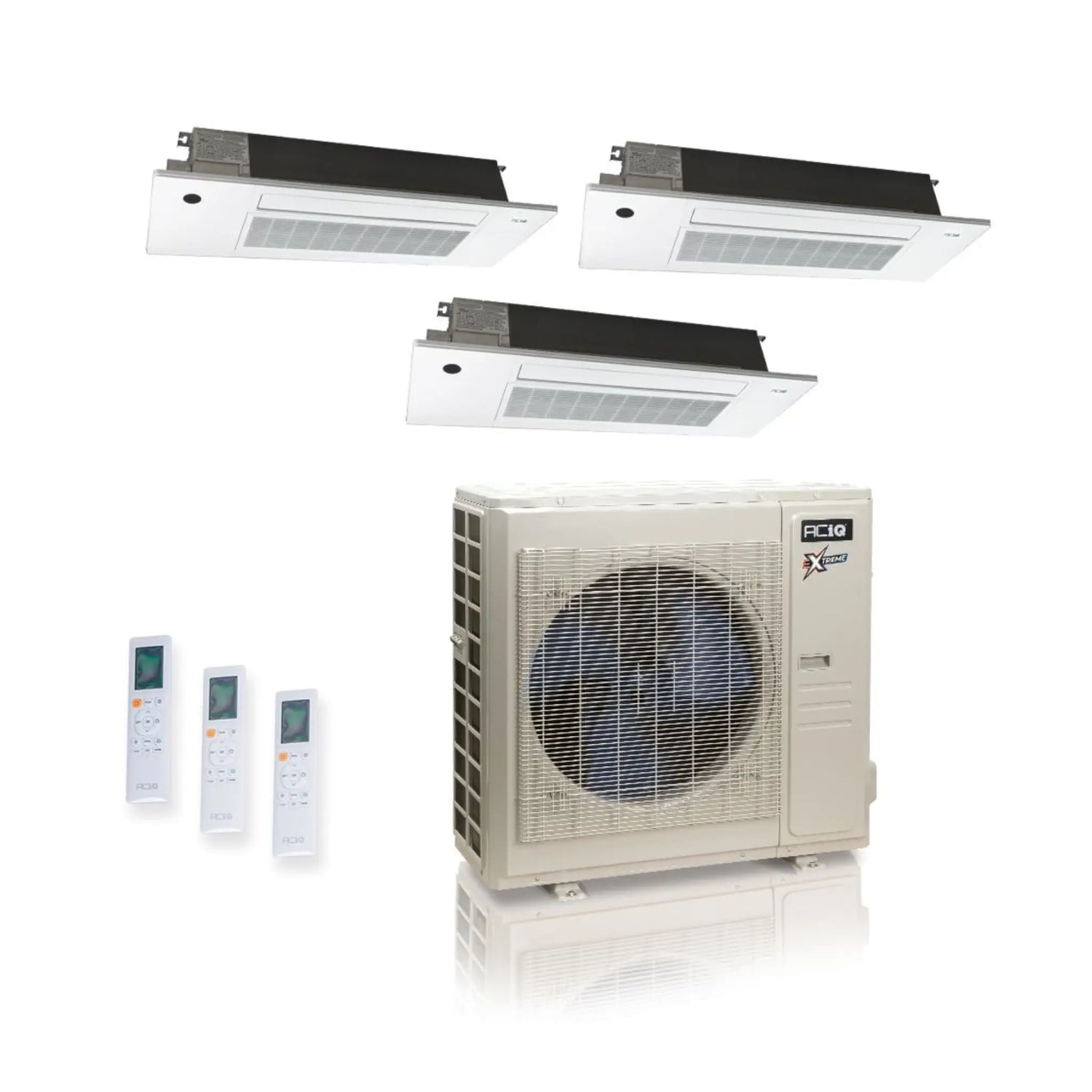

ACiQ 36K BTU 23 SEER2 3-Zone Slim Ceiling Cassette Mini Split R454B 230V 9+9+9

By: ACiQ
SKU: ACiQ-36Z-HH-M5C / SCC-09-HH-MB-3|ID: 103760
$7,609.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 23.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 36,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (3 Ton) with ceiling cassette mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 23 SEER2 3-Zone Slim Ceiling Cassette Mini Split R454B 230V 9+9+9

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

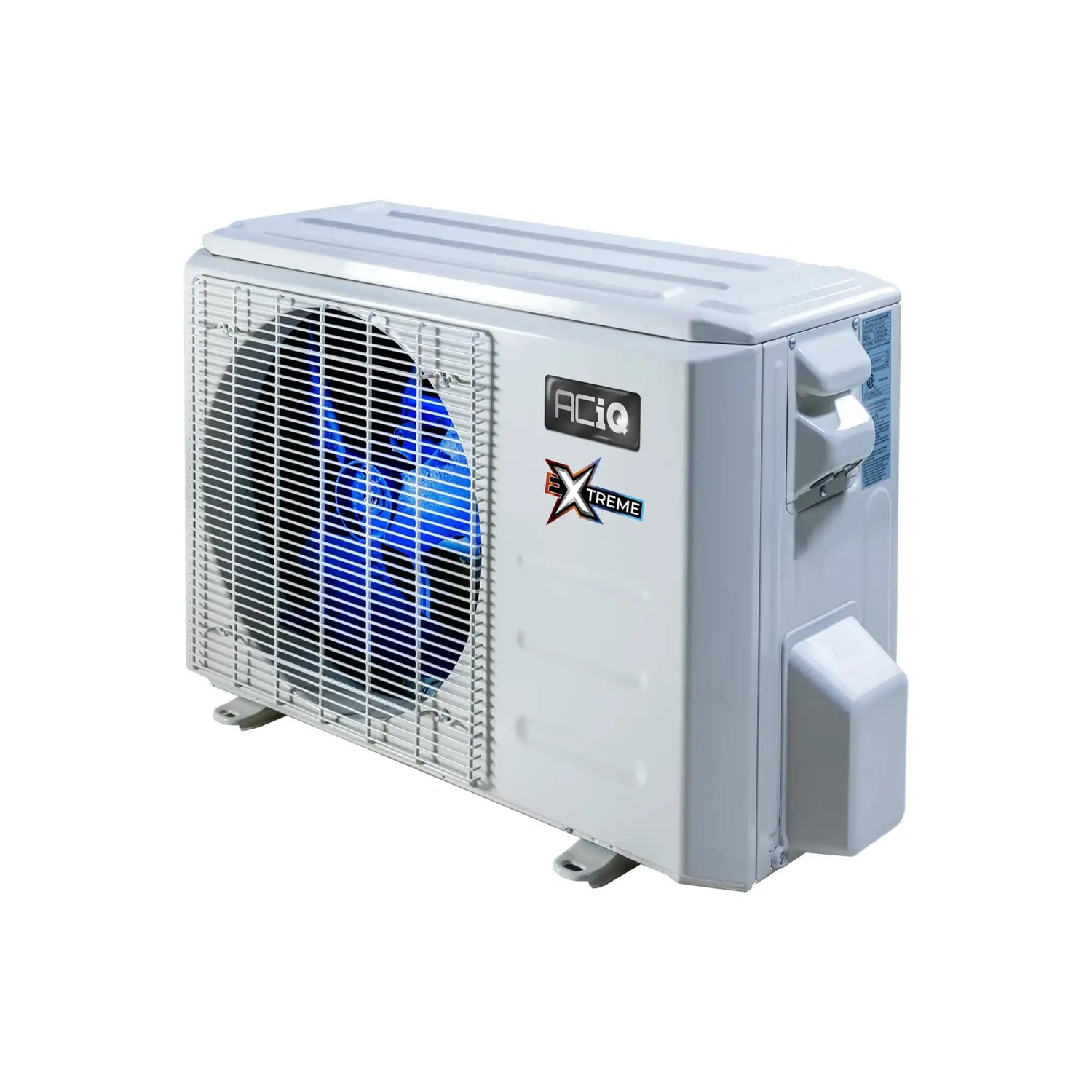

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

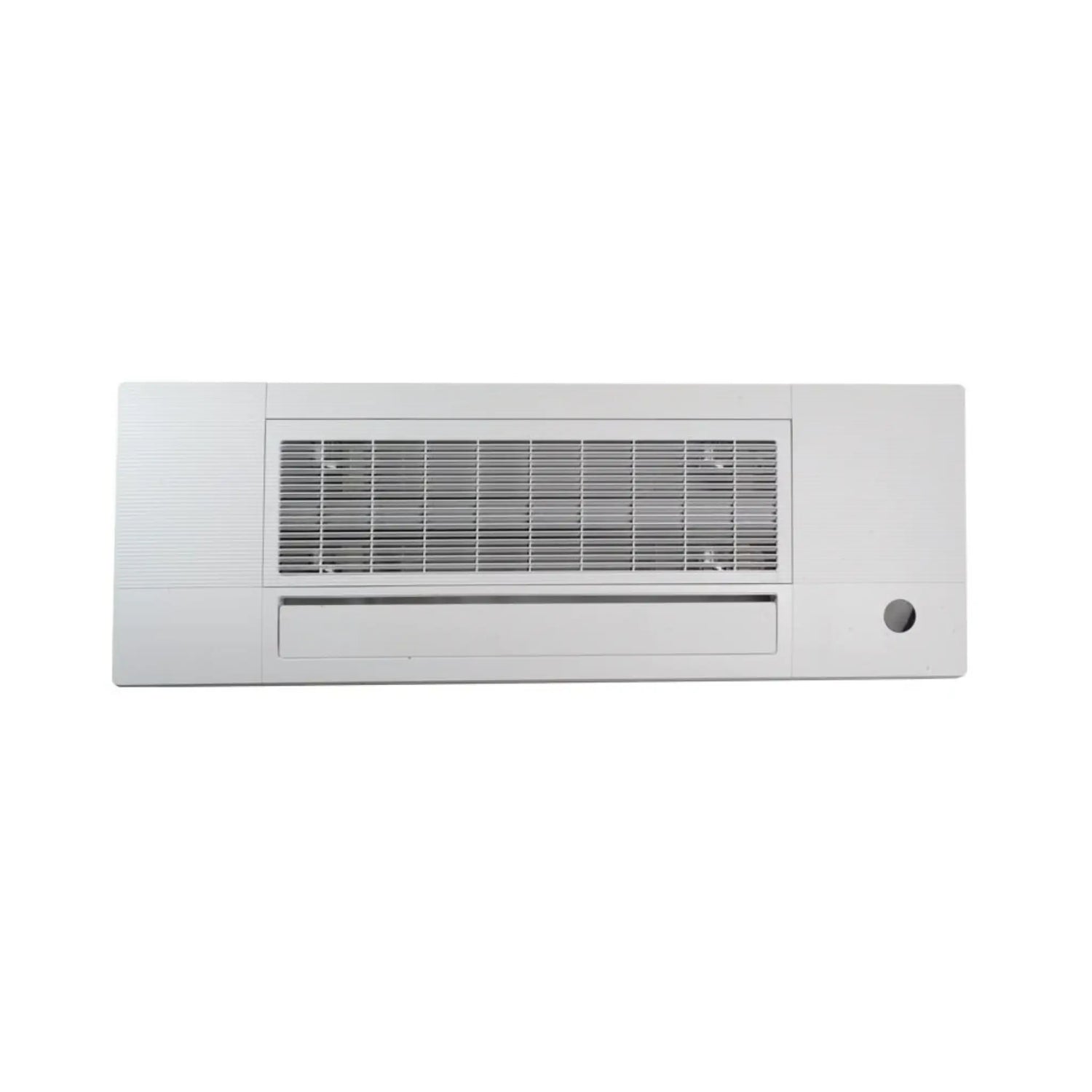

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

  • Fits between 16-inch on-center joists for easier installation
  • Rated for 6K, 9K, and 12K BTU; dip switch adjustable
  • One-way airflow design with discreet ceiling-mounted appearance
  • No-ladder filter access with lowering grille system
  • Handheld remote control included
  • Decorative grille included for a clean, modern look
  • Uses environmentally friendly R-454B refrigerant
  • Compatible with ACiQ multi-zone condensers

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-36Z-HH-M5C

ACiQ Slim Ceiling Cassette Mini Split Air Handler

AHRI Certificate — SCC-09-HH-MB Owner's Manual Remote Control Manual Submittal — 9K Slim Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

BrandACiQ
SKUACIQ-36Z-HH-M5C
ReplacesACIQ-36Z-HH-M4B
Product FeaturesLow Ambient Heating
HSPF210.7
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM3037
Decibel Level (dBA)65
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER223
Compressor TypeTwin Rotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 Amps
Min. Breaker Size37 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height38.39"
Width38.58"
Depth16.34"

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

BrandACiQ
SKUSCC-0612-HH-MB
BTU6,000 / 9,000 / 12,000
Weight (in lbs)82.45
ManufacturerACiQ
ControllerWireless Included
Heating BTU6,000 / 9,000 / 12,000
Maximum CFMUp to 353.20 CFM
Decibel Level (dBA)As low as 24.0 Decibels
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Phase, 60Hz
PhaseSingle Phase
Mini Split TypeSlim Ceiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.98"
Width50.31"
Depth13.19"
Warranty12 year compressor, 7 year parts with online registration

Warranty and Product Information

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Standard Warranty (Compressor)7 year parts
Standard Warranty (Parts)5 year parts
Registered Warranty (Compressor)12 year parts
Registered Warranty (Parts)7 year parts

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

Standard Warranty (Parts)5 year parts
Standard Warranty (Compressor)7 year parts
Registered Warranty (Parts)7 year parts
Registered Warranty (Compressor)12 year parts
