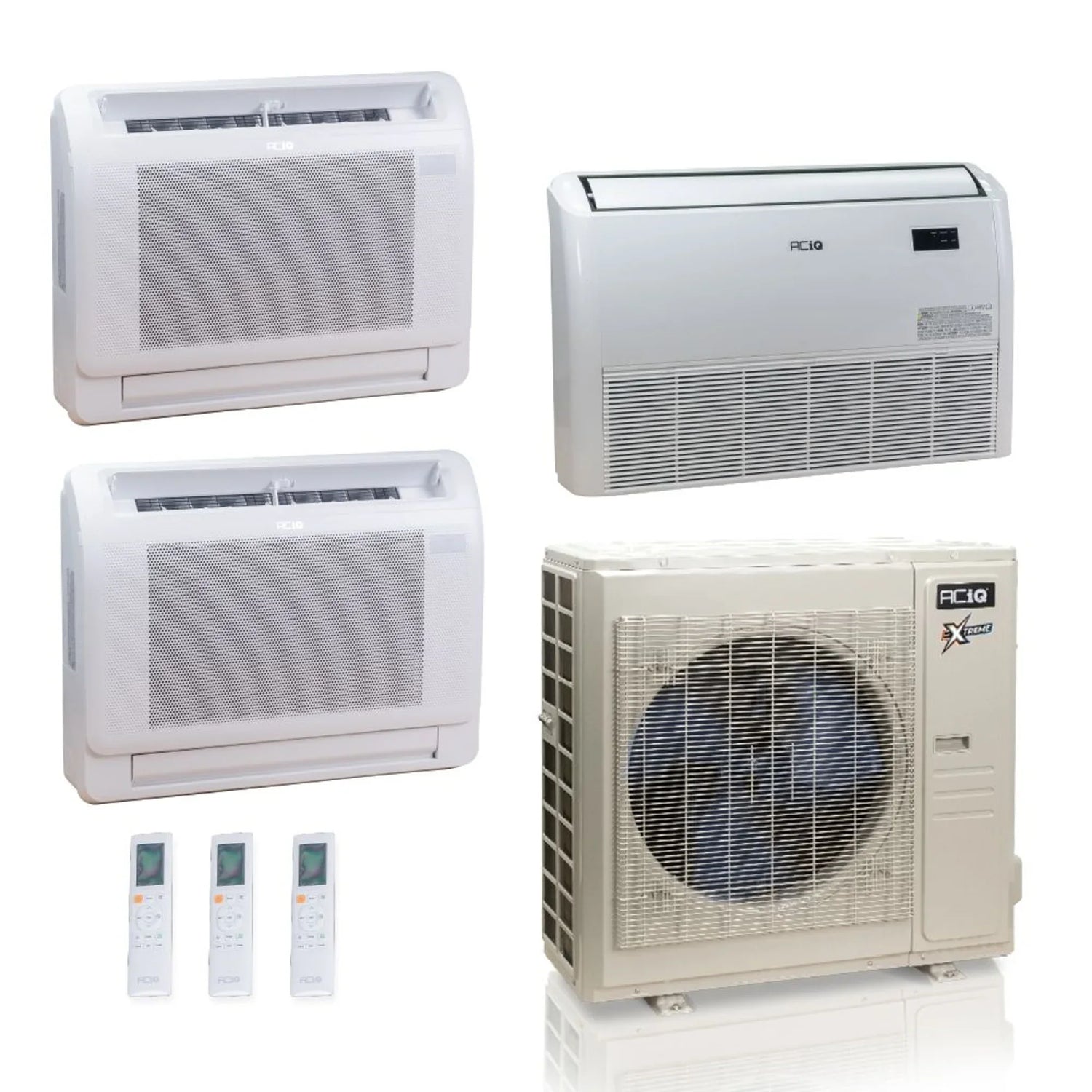

ACiQ 36K BTU 23 SEER2 3-Zone Floor Mount Mini Split R454B 230V 9+12+18

By: ACiQ
SKU: ACIQ-36Z-HH-M5C / ACIQ-09FM / ACIQ-12FM / ACIQ-18FM|ID: 103741
$7,299.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 23.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 36,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (3 Ton) with floor mounted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 23 SEER2 3-Zone Floor Mount Mini Split R454B 230V 9+12+18

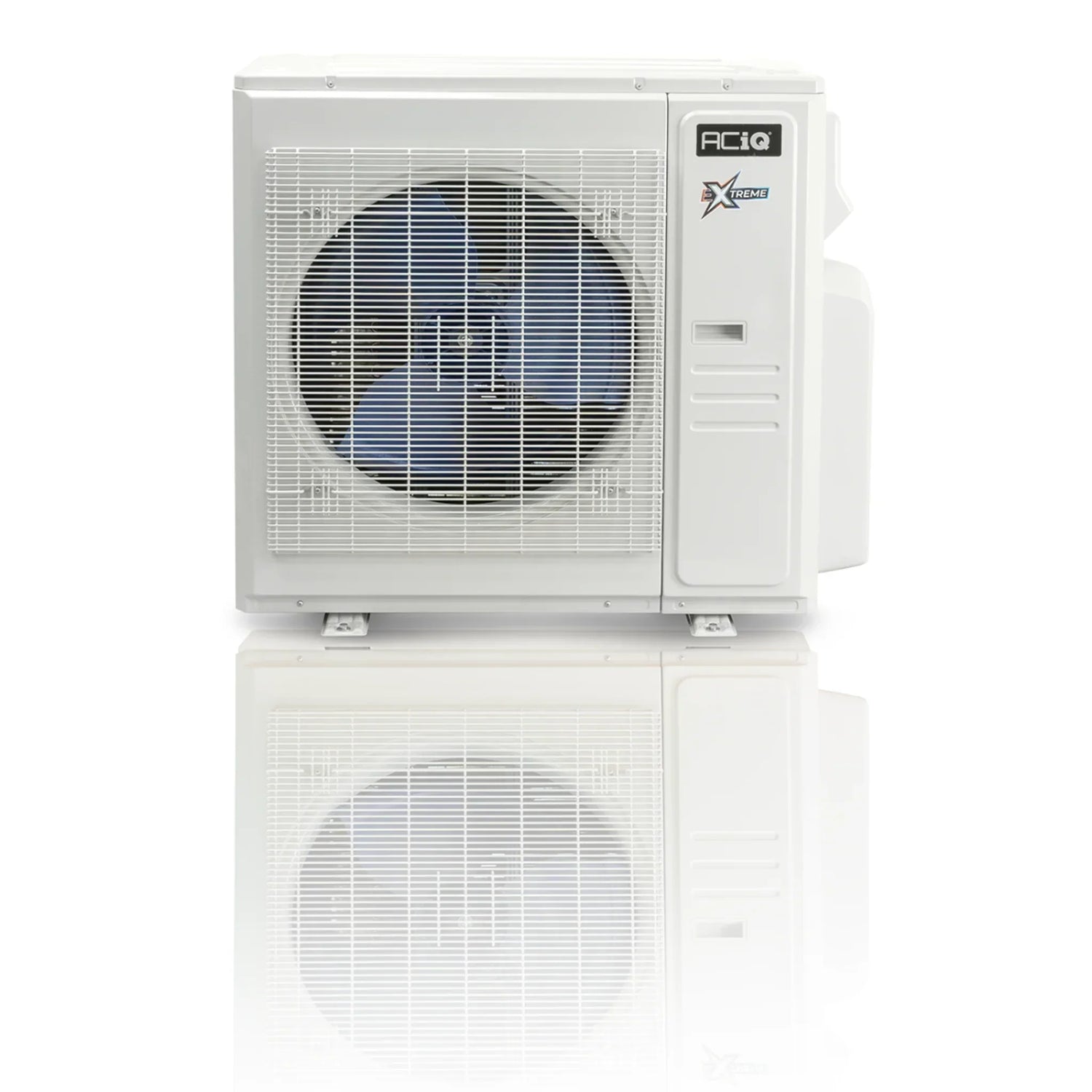

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACIQ-36Z-HH-M5C

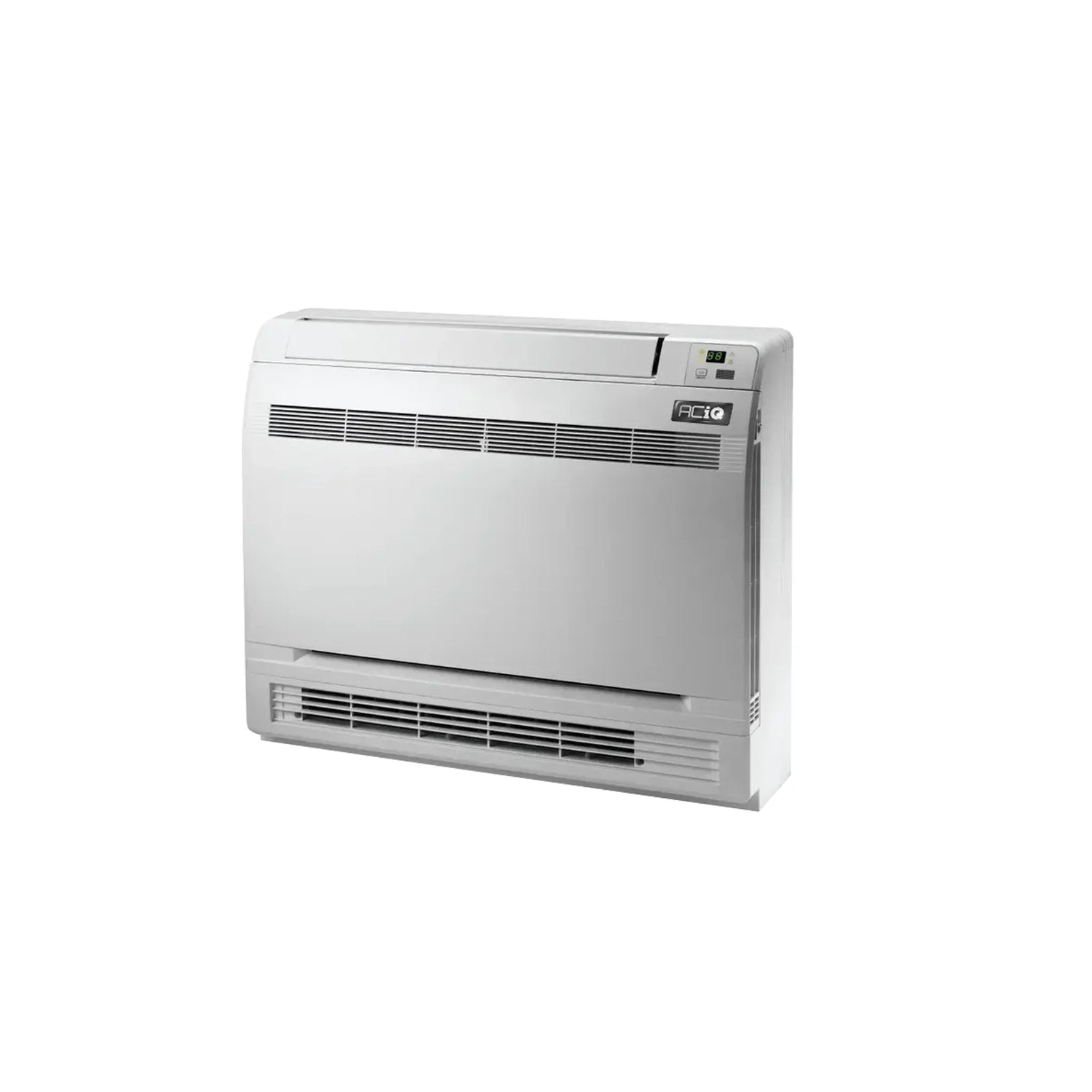

ACiQ Floor Mount Mini Split Air Handler

AHRI Certificate — ACIQ-18FM-HH-MD Extended Performance Table — ACIQ-18FM-HH-MD Installation Manual — 18K-60K Owner's Manual — 18K-60K Remote Control Manual — 12K-60K Remote Control Manual — 18K-60K Service Manual — 18K-60K Submittal — ACIQ-09FM-HH-MD Submittal — ACIQ-12FM-HH-MD ACiQ Warranty

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

BrandACiQ
SKUACIQ-36Z-HH-M5C
ReplacesACIQ-36Z-HH-M4B
Product FeaturesLow Ambient Heating
HSPF210.7
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM3037
Decibel Level (dBA)65
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER223
Compressor TypeTwin Rotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 Amps
Min. Breaker Size37 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height38.39"
Width38.58"
Depth16.34"

Warranty and Product Information

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts
