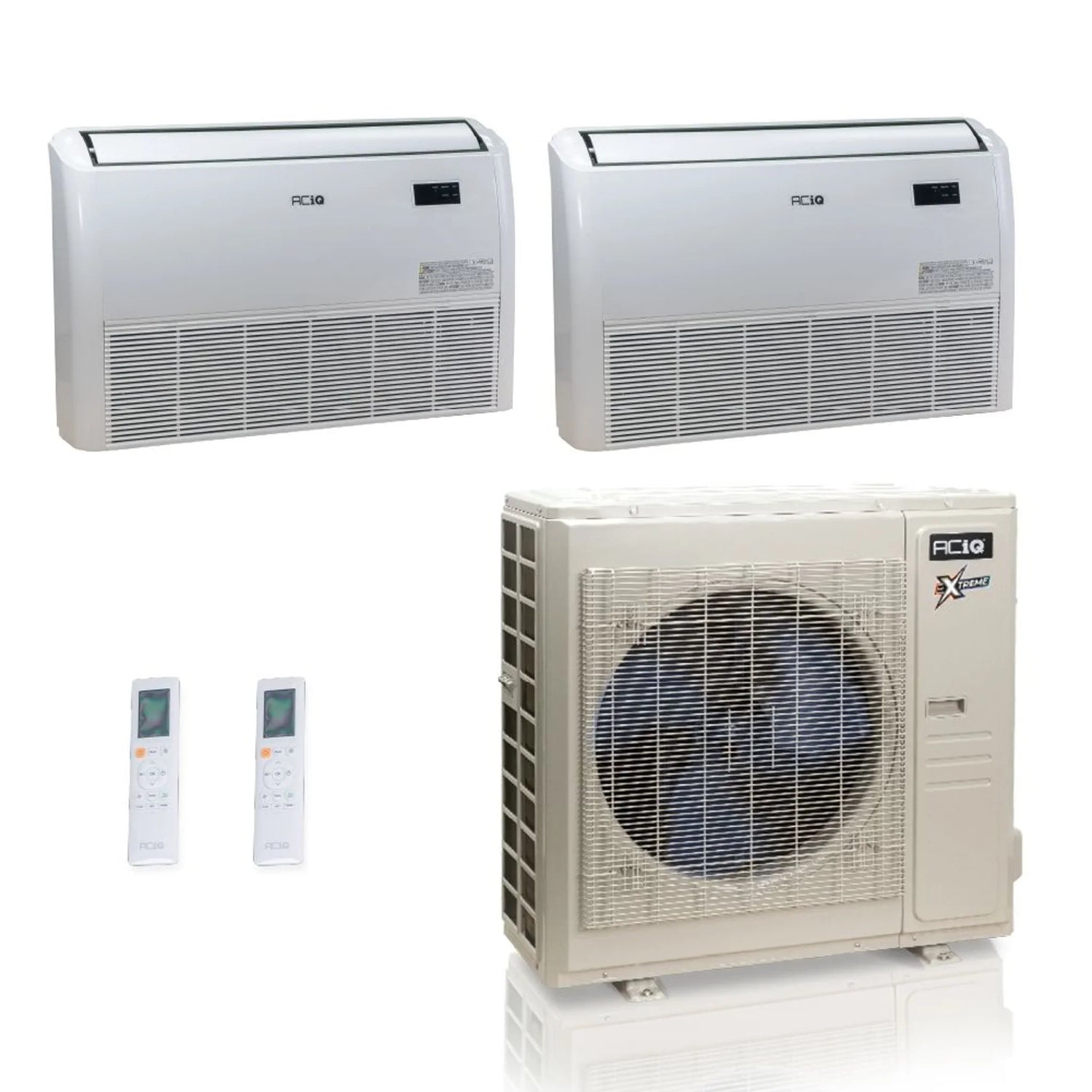

ACiQ 36K BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 24+24

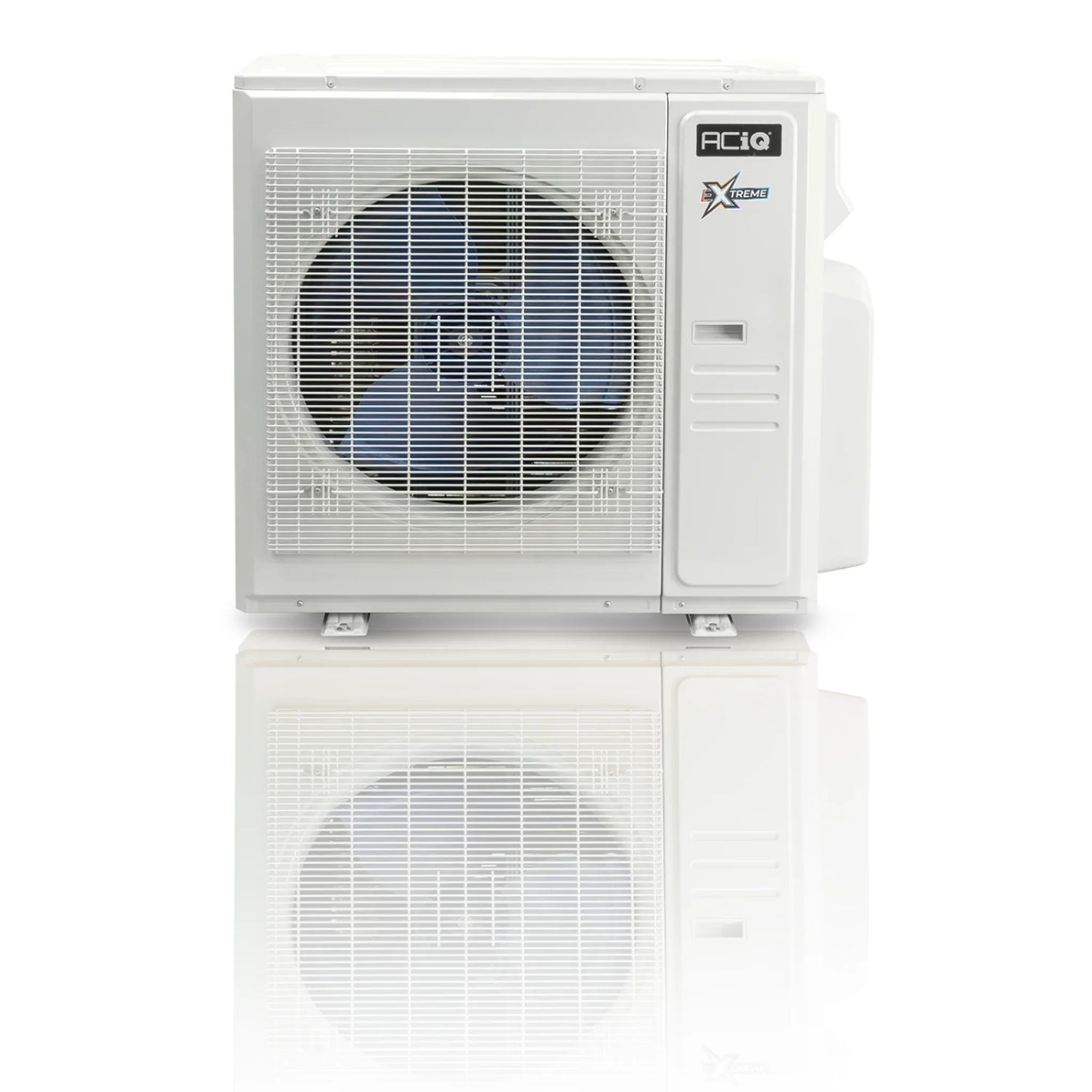

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

• 36,000 BTU, 23 SEER2 multi zone heat pump condenser
• Supports up to 5 attached air handlers
• Efficient cooling from -22°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Integrated Extreme Heat technology with base pan heater
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

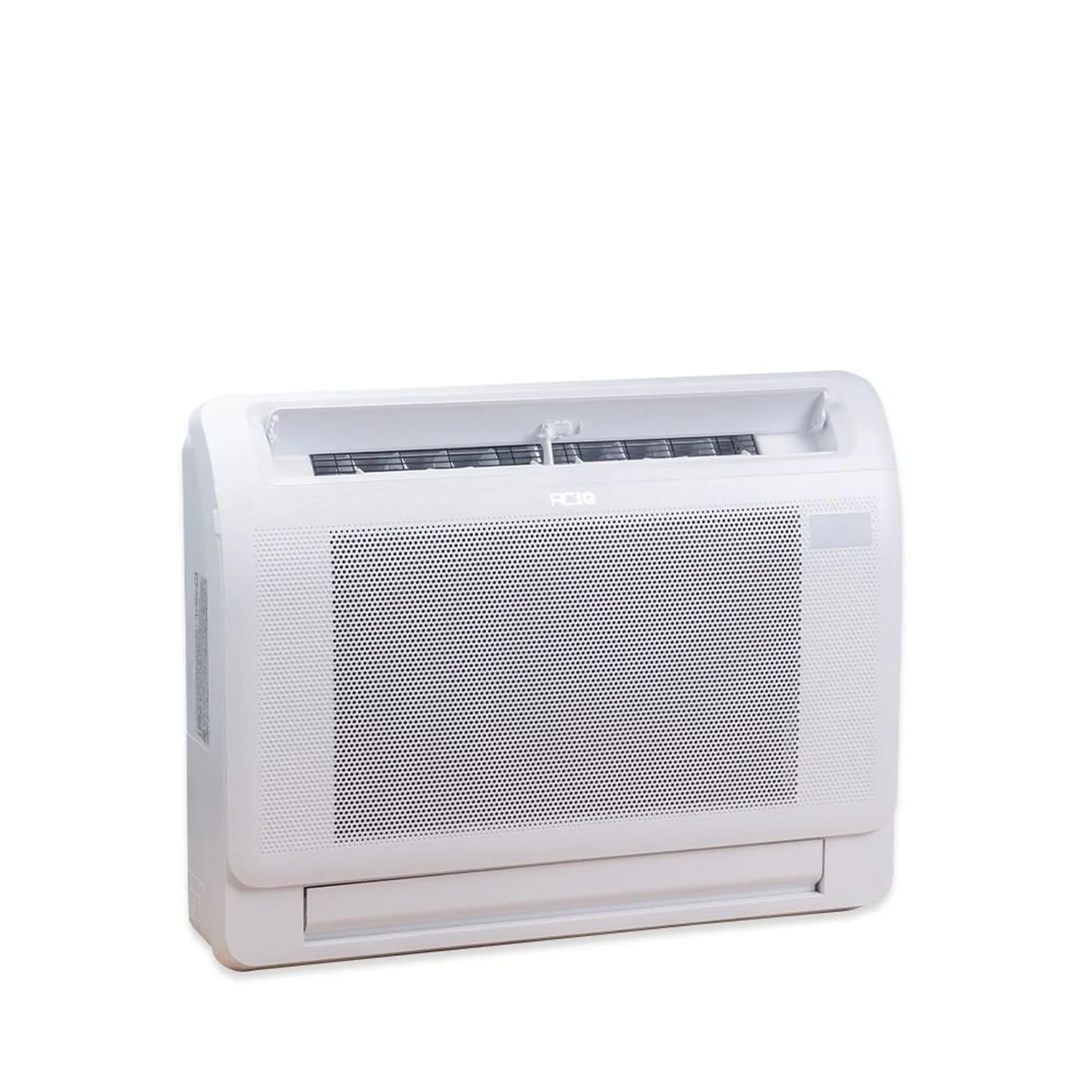

ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD x2

ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.

Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features. Models like the ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB are engineered specifically to solve complex installation challenges in unconventional environments.

Key Installation Advantages:

• Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
• Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
• Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
• Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
• Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.

Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
