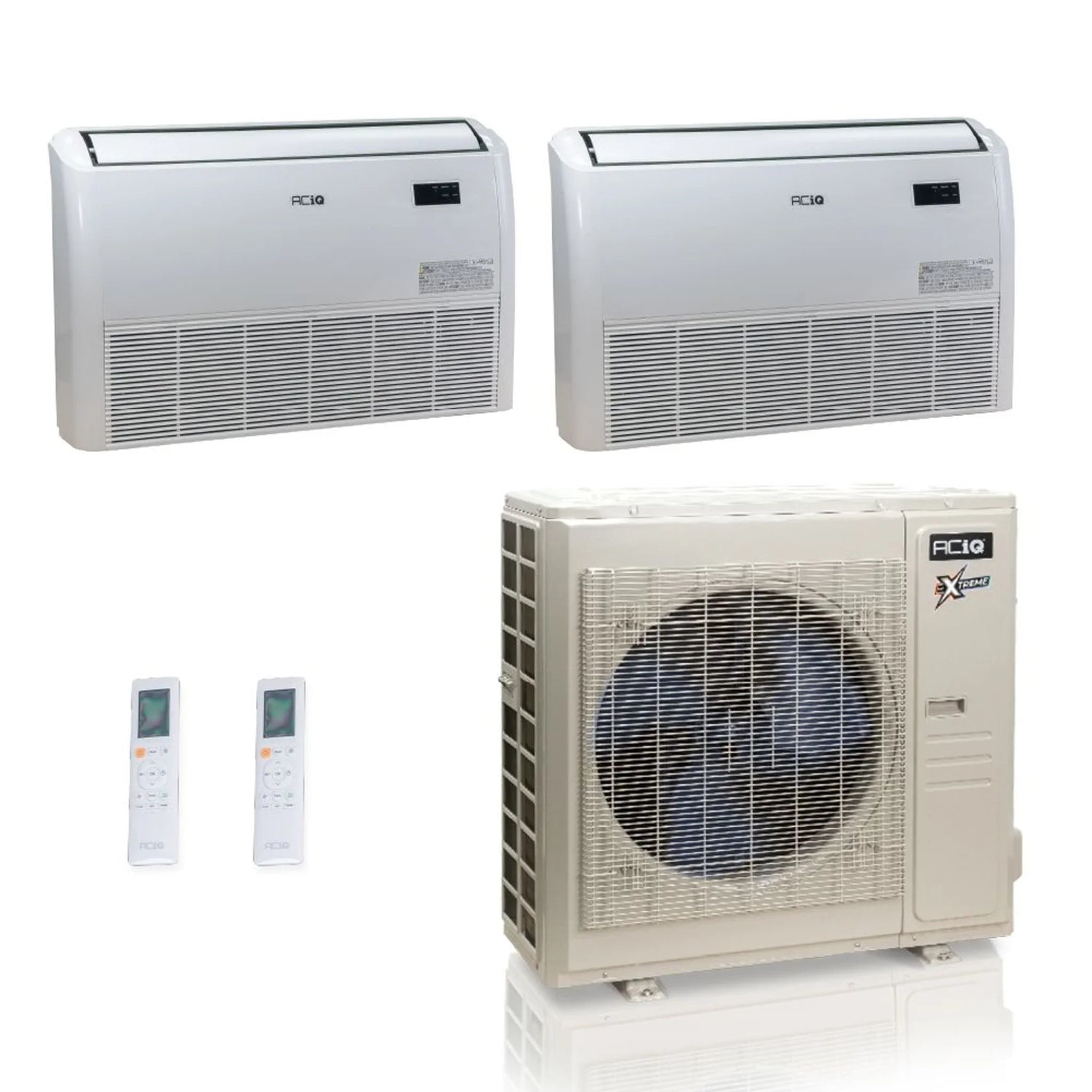

ACiQ 36K BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 18+18
Key Features
- Efficiency: Rated at 23 SEER2 and 10.7 HSPF2, this Extreme Series heat pump system delivers high-efficiency heating and cooling with low-ambient technology down to -22°F.
- Capacity: The 3-ton (36,000 BTU) multi-zone condenser powers 2 independently controlled zones split evenly at 18,000 BTU each.
- Refrigerant: Runs on eco-friendly R454B refrigerant with a twin rotary compressor and a Gold Fin-protected coil for long-term corrosion resistance.
- Indoor Units: Both zones use versatile floor/ceiling mounted air handlers, ideal for sunrooms, attics, or knee-wall installs, running as quiet as 29 dBA.
Product Details
Product Details
ACiQ 36K BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 18+18

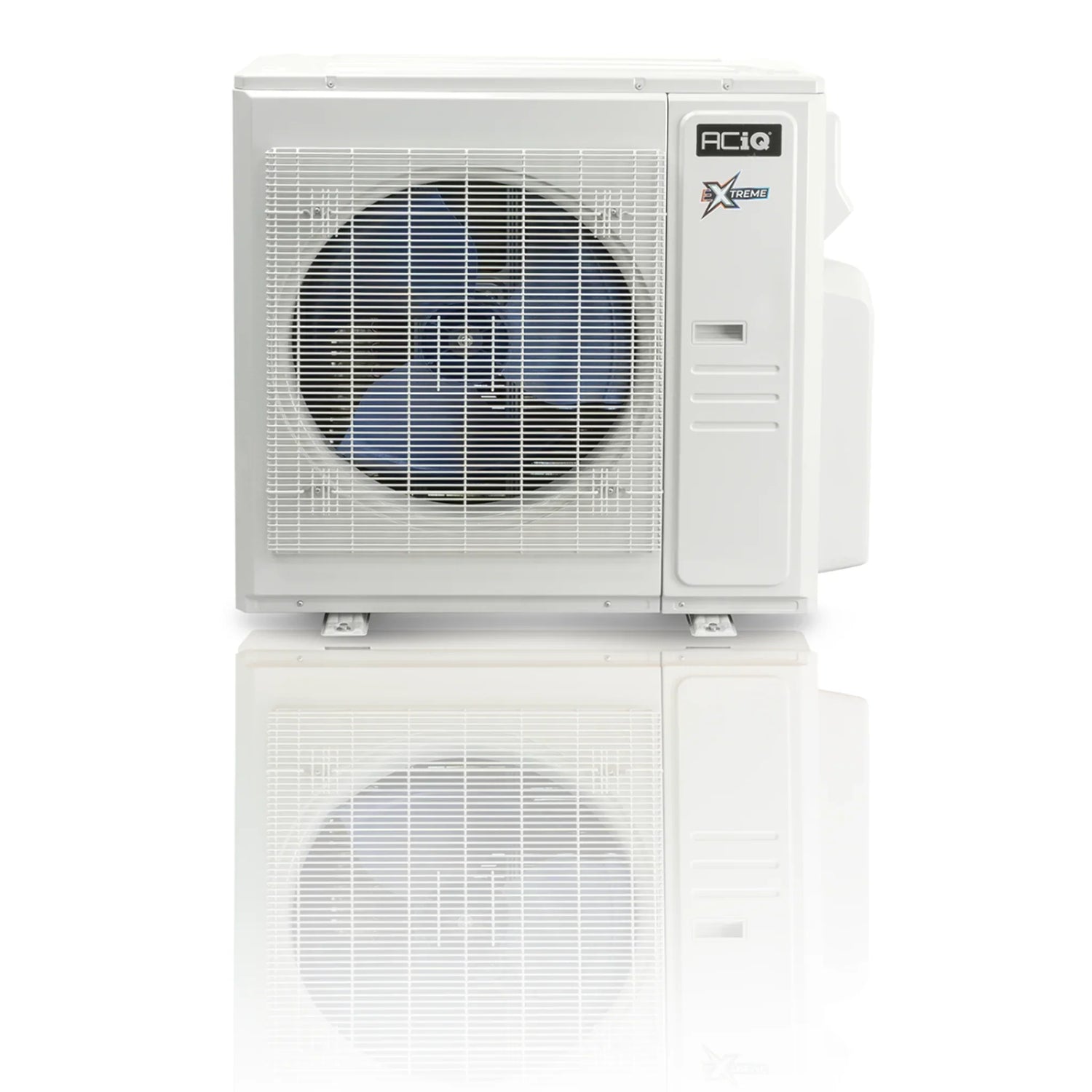

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C
Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.
Key Features
- 36,000 BTU, 23 SEER2 multi zone heat pump condenser
- Supports up to 5 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

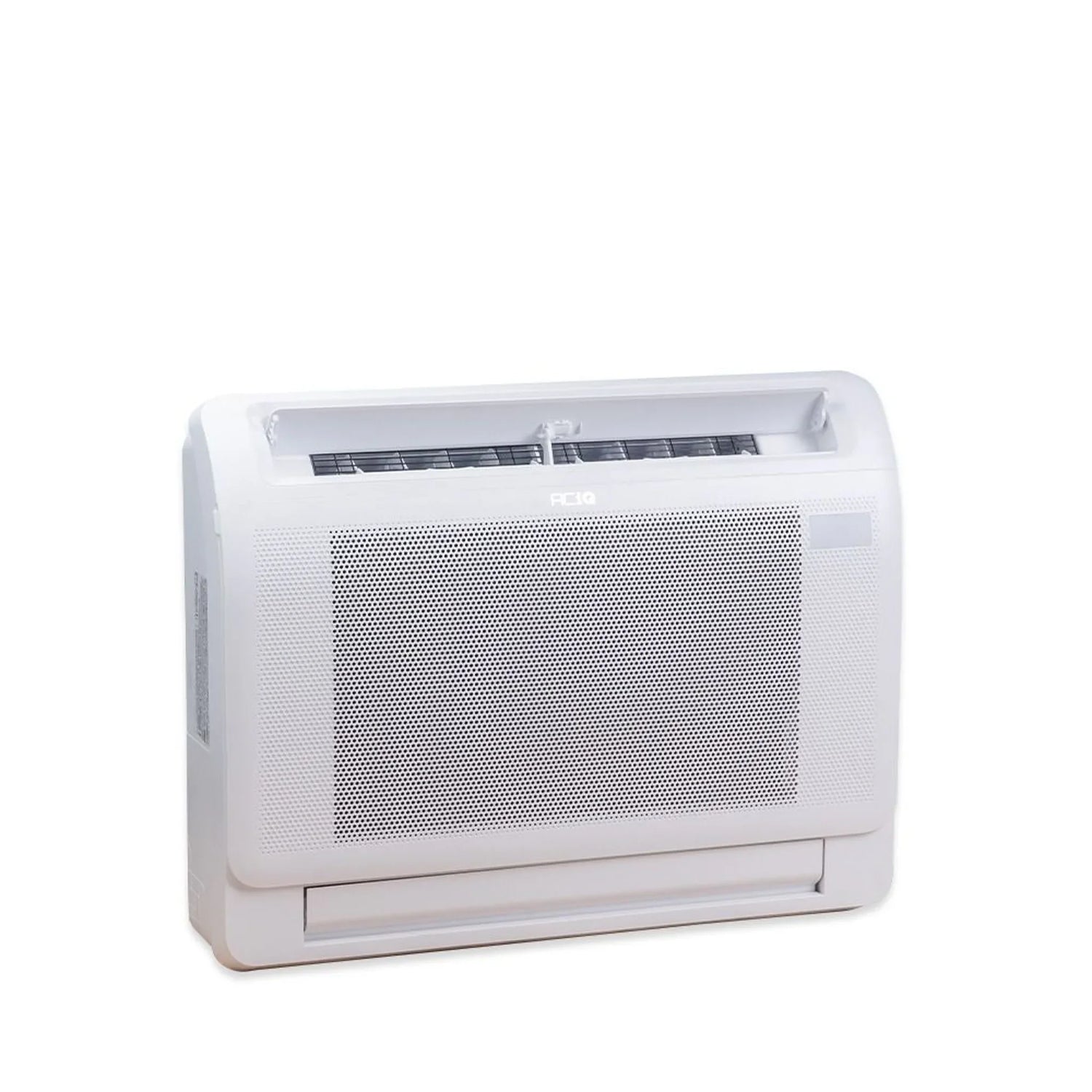

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2
The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.
Key Features
- 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
- Versatile installation – floor- or ceiling-mounted configuration
- Ideal for sunrooms, attics, or rooms with angled ceilings
- Maximum CFM: 576.8 with quiet operation as low as 29 dBA
- Pre-wired for condensate pump with overflow shutoff
- Wireless remote included
- R454B refrigerant – eco-friendly and efficient
- Energy Star certified
This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.
