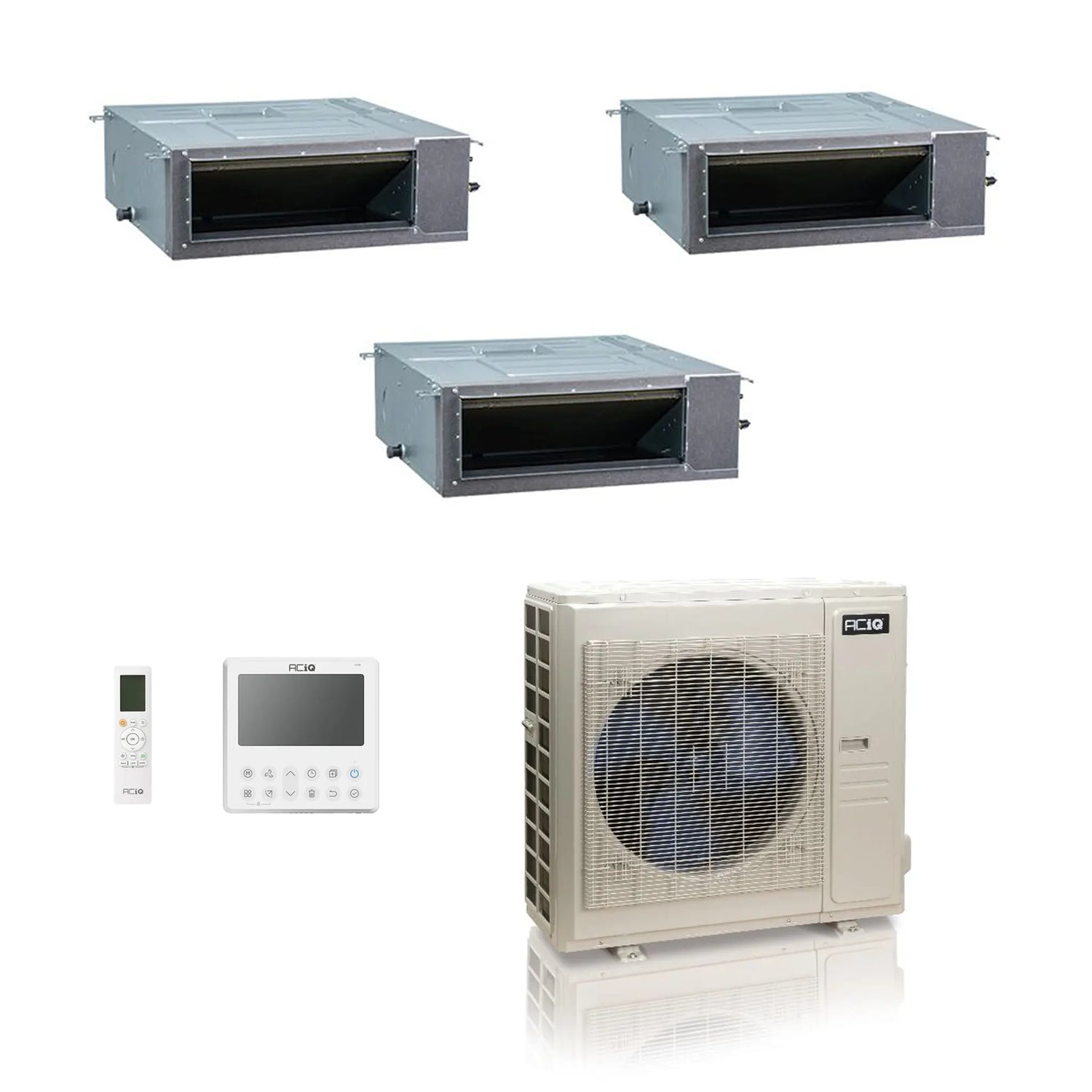

ACiQ 36K BTU 20 SEER2 Concealed Duct Mini Split System 3-Zone 230V 12+12+12

By: ACiQ
SKU: ES-36Z-M5C / ACIQ-12CD-HH-MC-3|ID: 103726
$5,499.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 20.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 36,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B  with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (3 Ton) with ducted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 20 SEER2 Concealed Duct Mini Split System 3-Zone 230V 12+12+12

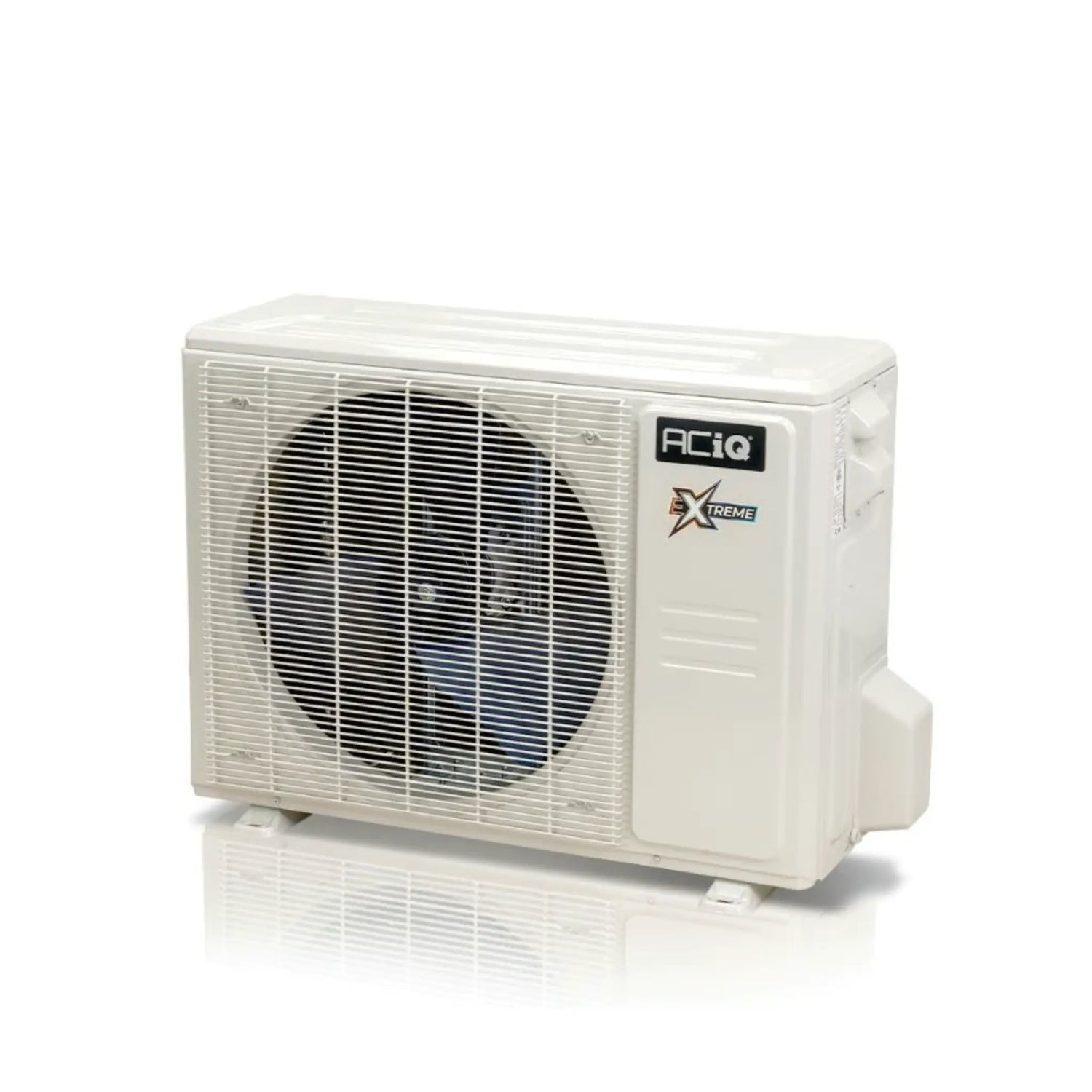

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x3

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x3. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

  • 12,000 BTU of heating or cooling power
  • Dry and Fan modes for added versatility
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — ACIQ-12CD-HH-MC ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x3

BrandACiQ
SKUACIQ-12CD-HH-MC
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 26.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x3

Standard Warranty5 year parts
Registered Warranty10 year parts
