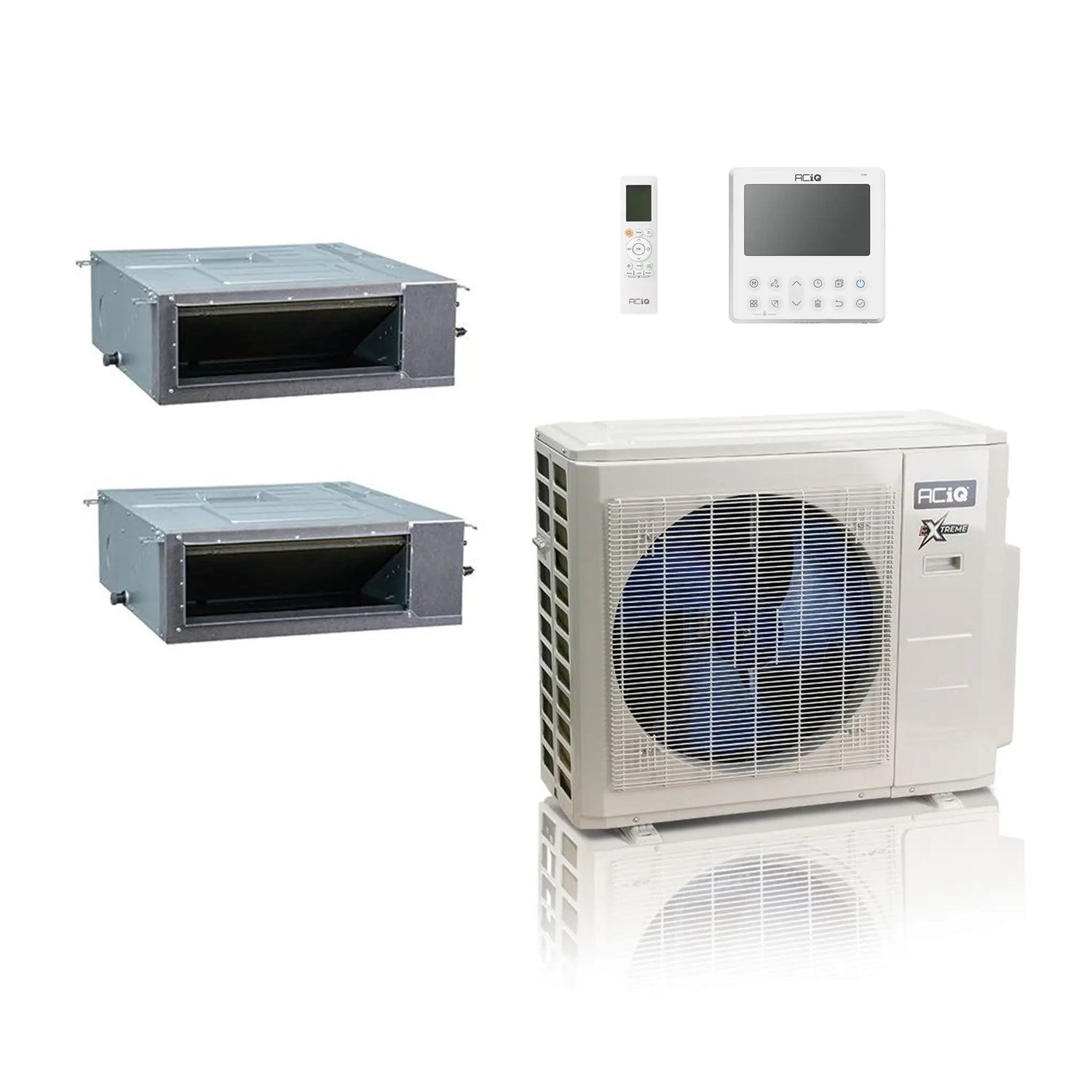

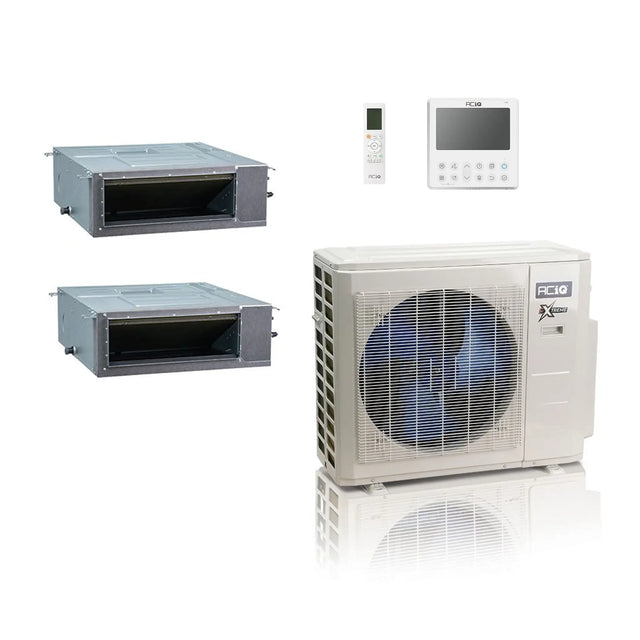

ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 24+24

By: ACiQ
SKU: ACiQ-36Z-HH-M5C / ACIQ-24CD-HH-MC-2|ID: 103437
$6,859.99
+ Free shipping

Key Features

  • Efficiency: Rated 19.4 SEER2 and 10.7 HSPF2 for efficient year-round heat pump performance.
  • Capacity: The 3-ton (36,000 BTU) Extreme Series condenser powers two independently controlled zones at 24K+24K BTU.
  • Refrigerant: Uses R454B refrigerant with a twin-rotary compressor design.
  • Indoor Units: Twin 24,000 BTU concealed duct air handlers hide above the ceiling or floor, delivering air through flex ducting for a fully concealed, no-visible-unit install.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 24+24

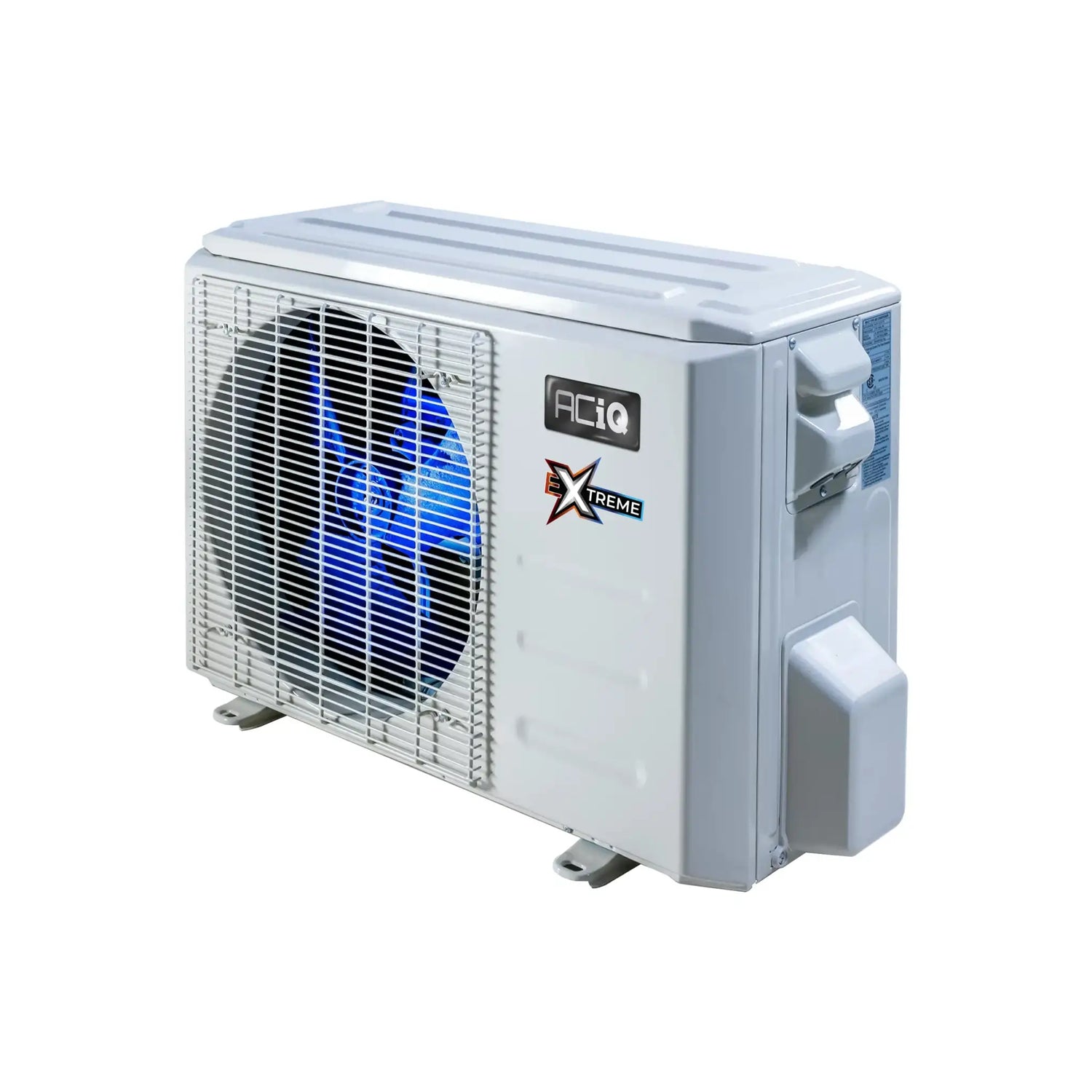

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

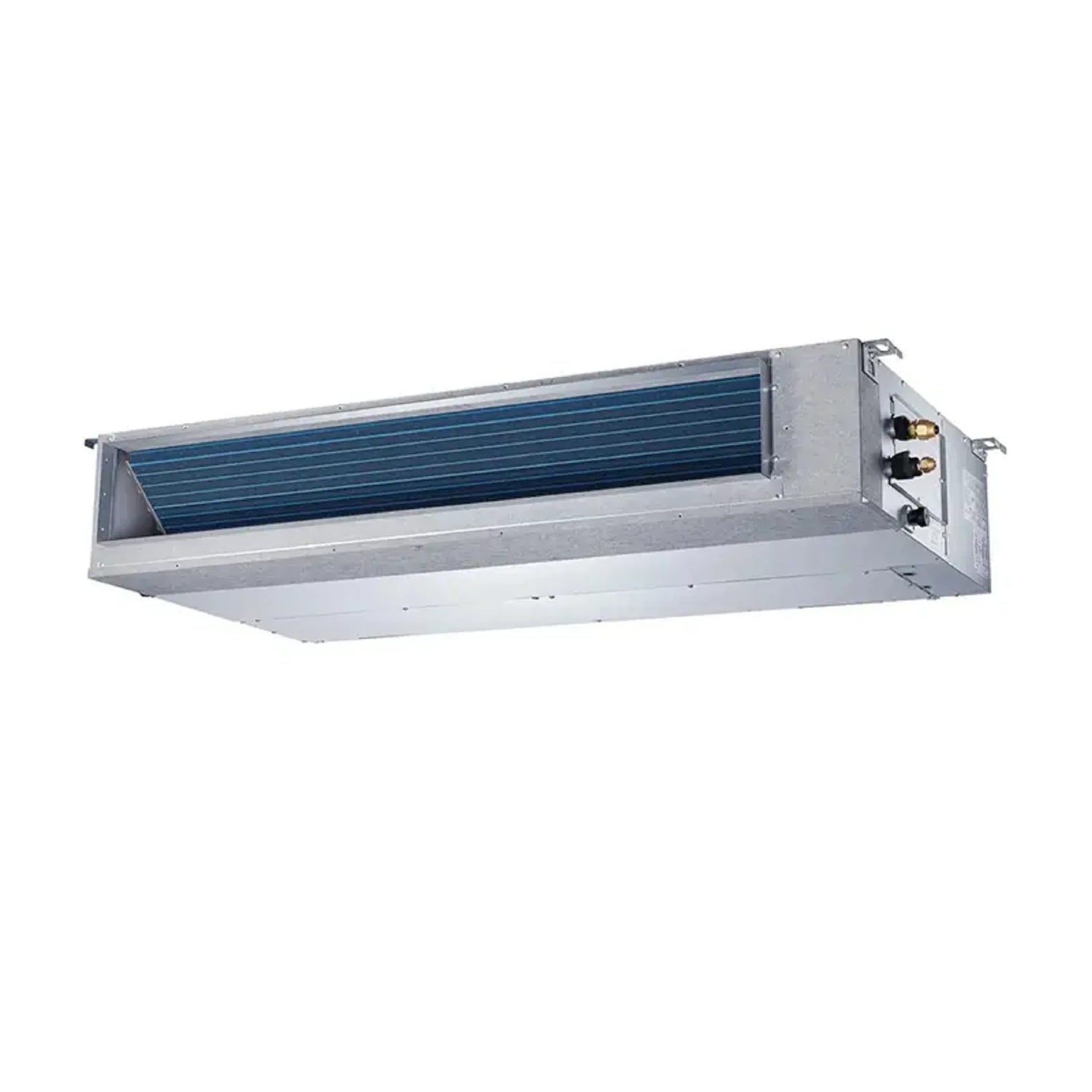

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

  • 24,000 BTU for heating or cooling
  • Dry and Fan modes available
  • Suitable for medium-sized rooms in most climates
  • Includes wall-mounted thermostat
  • Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-36Z-HH-M5C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — 24K Concealed Duct ACiQ Warranty

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

BrandACiQ
SKUACIQ-36Z-HH-M5C
ReplacesACIQ-36Z-HH-M4B
Product FeaturesLow Ambient Heating
HSPF210.7
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM3037
Decibel Level (dBA)65
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER223
Compressor TypeTwin Rotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 Amps
Min. Breaker Size37 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height38.39"
Width38.58"
Depth16.34"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

BrandACiQ
SKUACIQ-24CD-HH-MC
Cooling BTU24,000 BTU
Heating BTU26,000 BTU
Maximum CFM853.5
Decibel Level (dBA)As Low as 29.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height9.65"
Width39.37"
Depth29.53"

Warranty and Product Information

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
