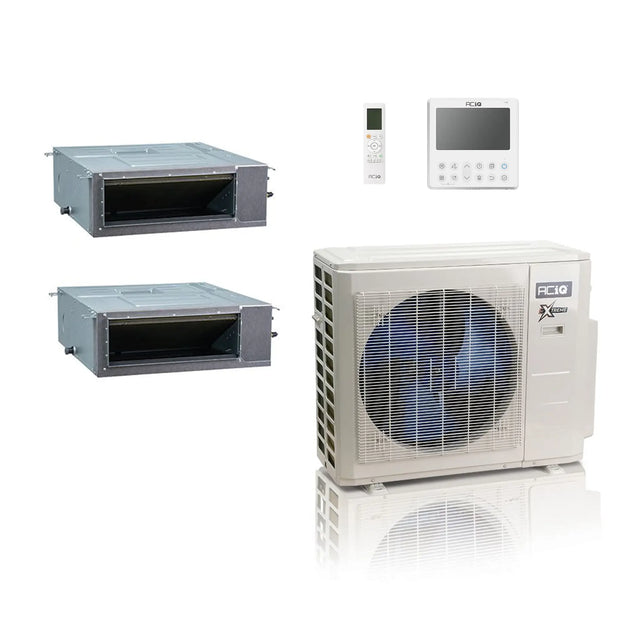

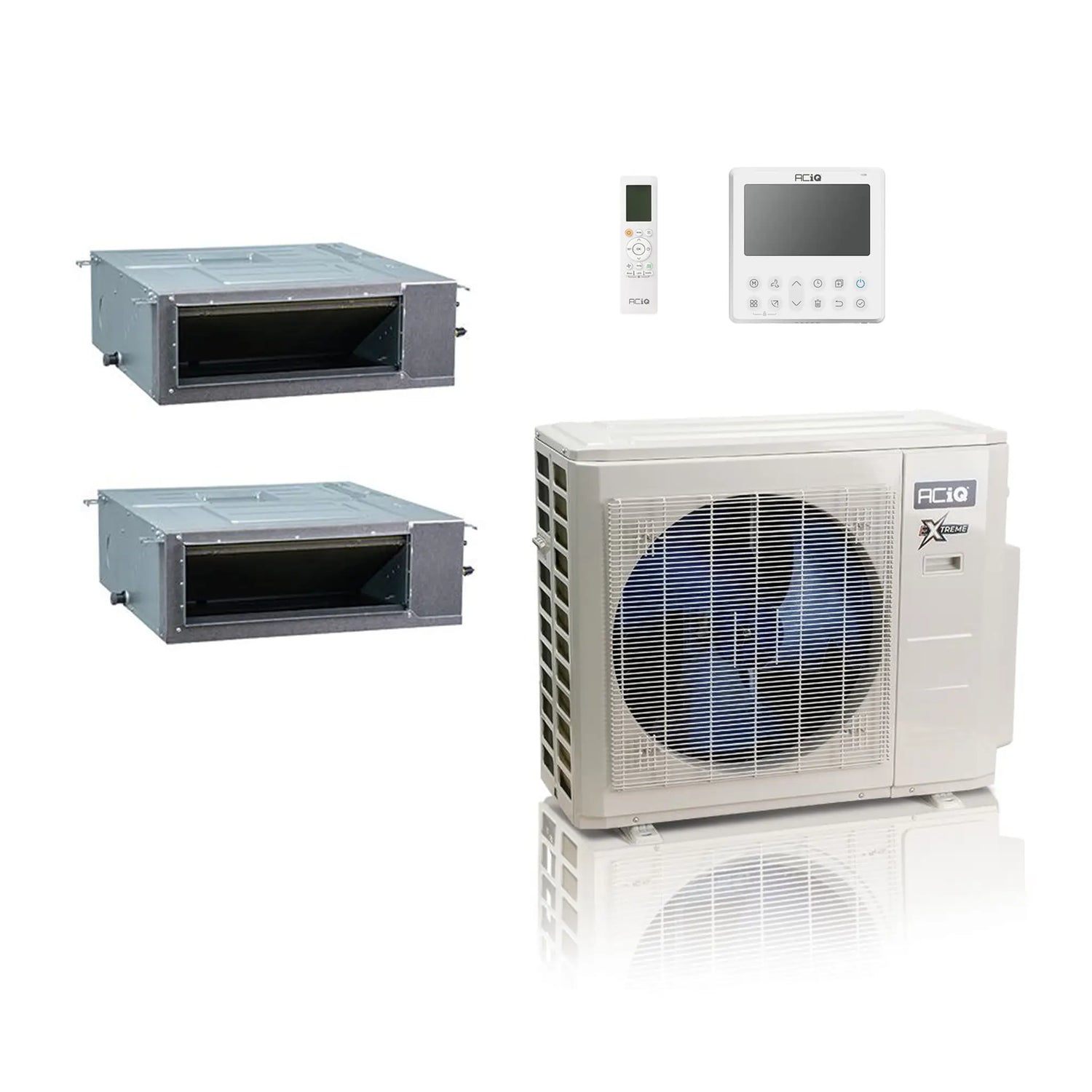

ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 18+24
Key Features
- Efficiency: This Extreme Series system is rated 19.4 SEER2 with 10.7 HSPF2 for efficient heating and cooling performance.
- Capacity: A 3-Ton (36,000 BTU) outdoor condenser serves two independent concealed-duct zones sized at 18,000 and 24,000 BTU.
- Refrigerant: Runs on R454B refrigerant with Gold Fin coil protection for corrosion resistance.
- Mounting: Concealed duct air handlers hide above ceilings or behind soffits, distributing air through flex ducting to registers for a fully invisible installation.
Product Details
Product Details
ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 18+24

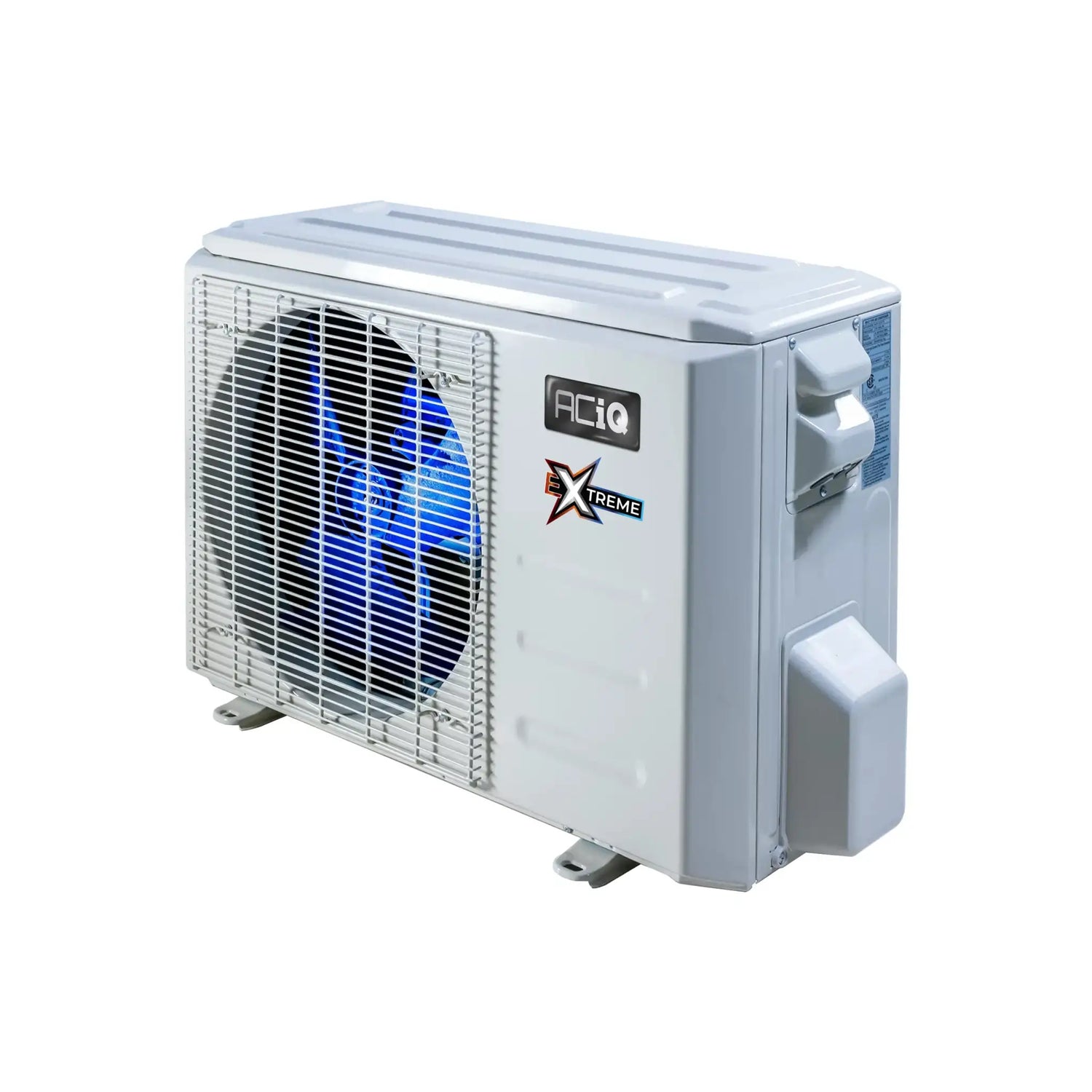

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C
Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.
Key Features
- 36,000 BTU, 23 SEER2 multi zone heat pump condenser
- Supports up to 5 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

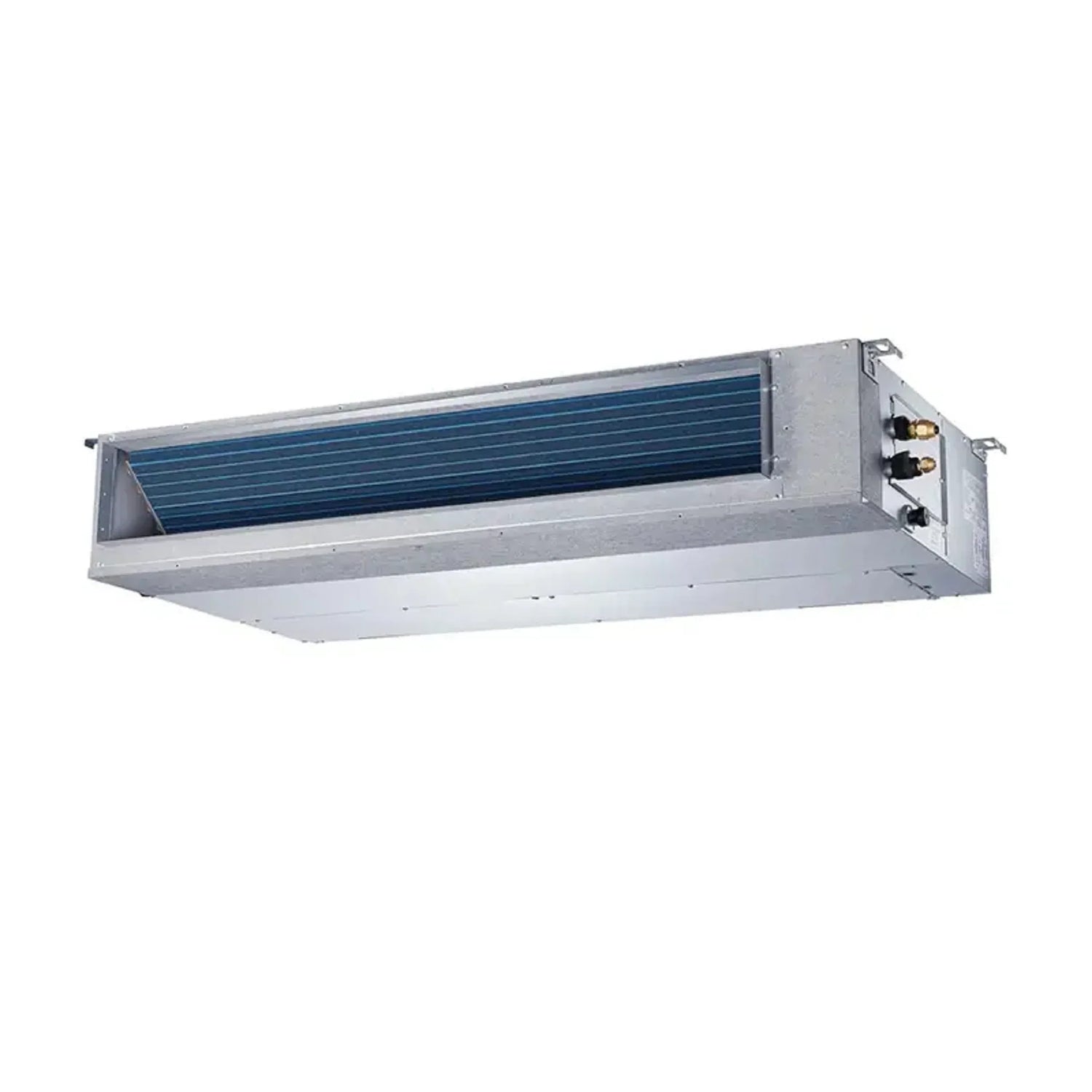

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC
The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.
Key Features
- 18,000 BTU of Heating or Cooling Capacity
- Dry and Fan Modes Available
- Good for Medium Rooms in Most Climates
- Wall Mounted Thermostat Included
- Concealed Duct Design for Flexible Installation
The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.
ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC
The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.
Key Features
- 24,000 BTU for heating or cooling
- Dry and Fan modes available
- Suitable for medium-sized rooms in most climates
- Includes wall-mounted thermostat
- Concealed Duct design for discreet installation
The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.
