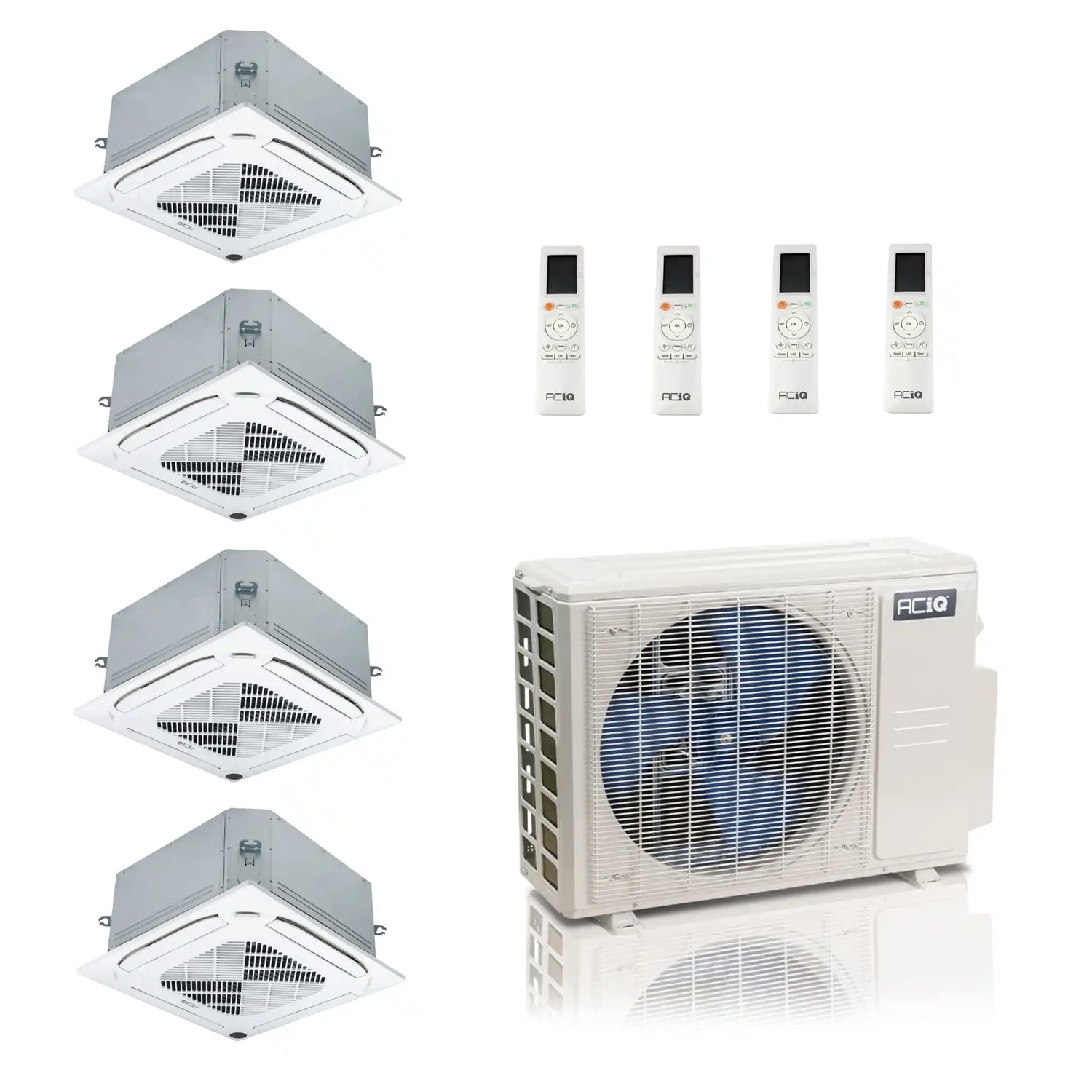

ACiQ 36,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 4-Zone 9+9+9+9

By: ACiQ
SKU: ES-36Z-M5C / ACIQ-09CC-HH-MC-4|ID: 104261
$5,699.99
+ Free shipping

Key Features

  • Efficiency: This 36,000 BTU 3-ton inverter condenser delivers a high 24 SEER2 rating for excellent whole-home energy savings.
  • Zone Control: Independently manage 4 matching zones sized 9K+9K+9K+9K BTU from a single outdoor multi-zone condenser.
  • Ceiling Cassette Comfort: Flush-mounted cassettes deliver 4-way airflow with only a discreet grille visible in each room.
  • Refrigerant: Pre-charged with eco-friendly R454B refrigerant and a factory-installed condensate pump on every unit.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 36,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 4-Zone 9+9+9+9

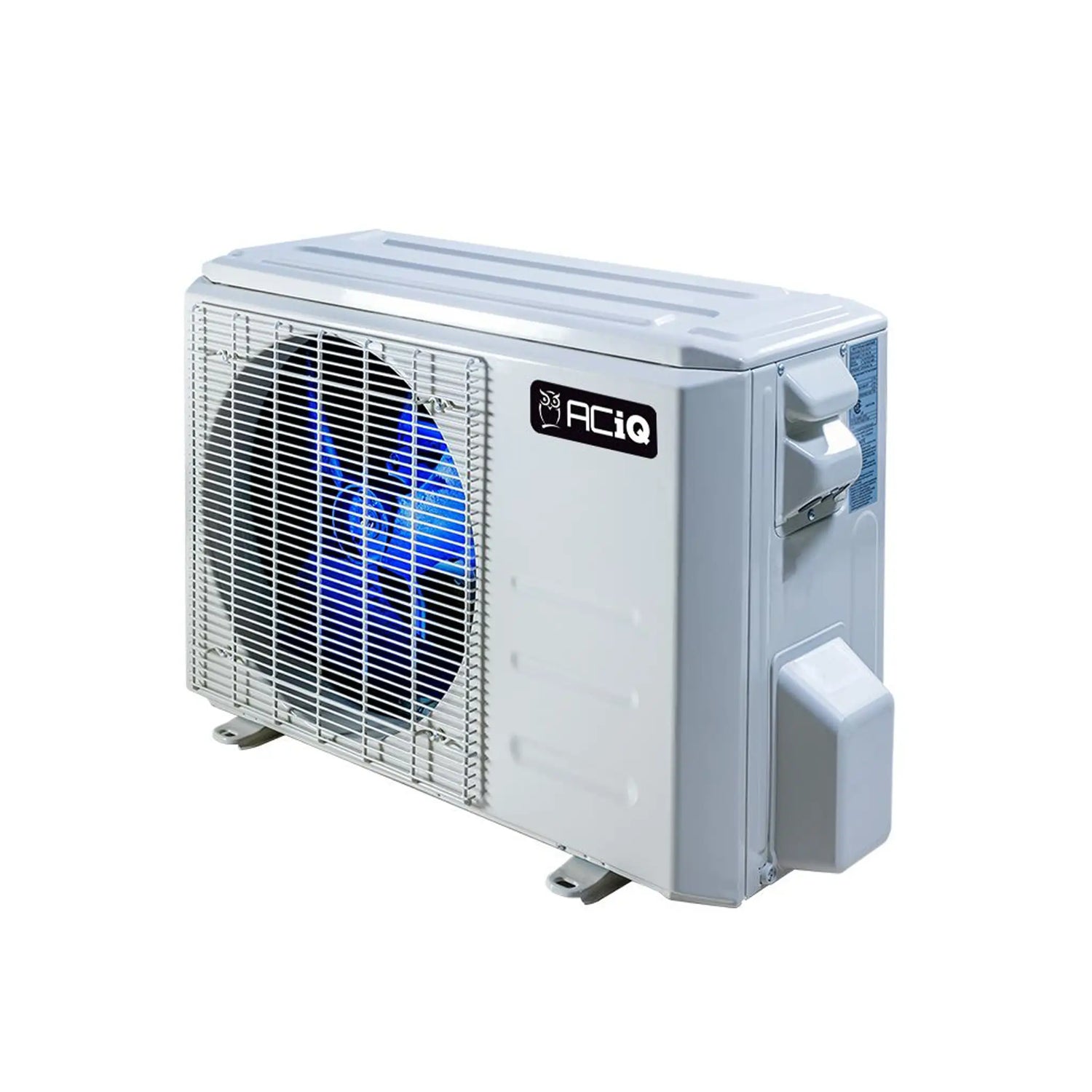

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

  • 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

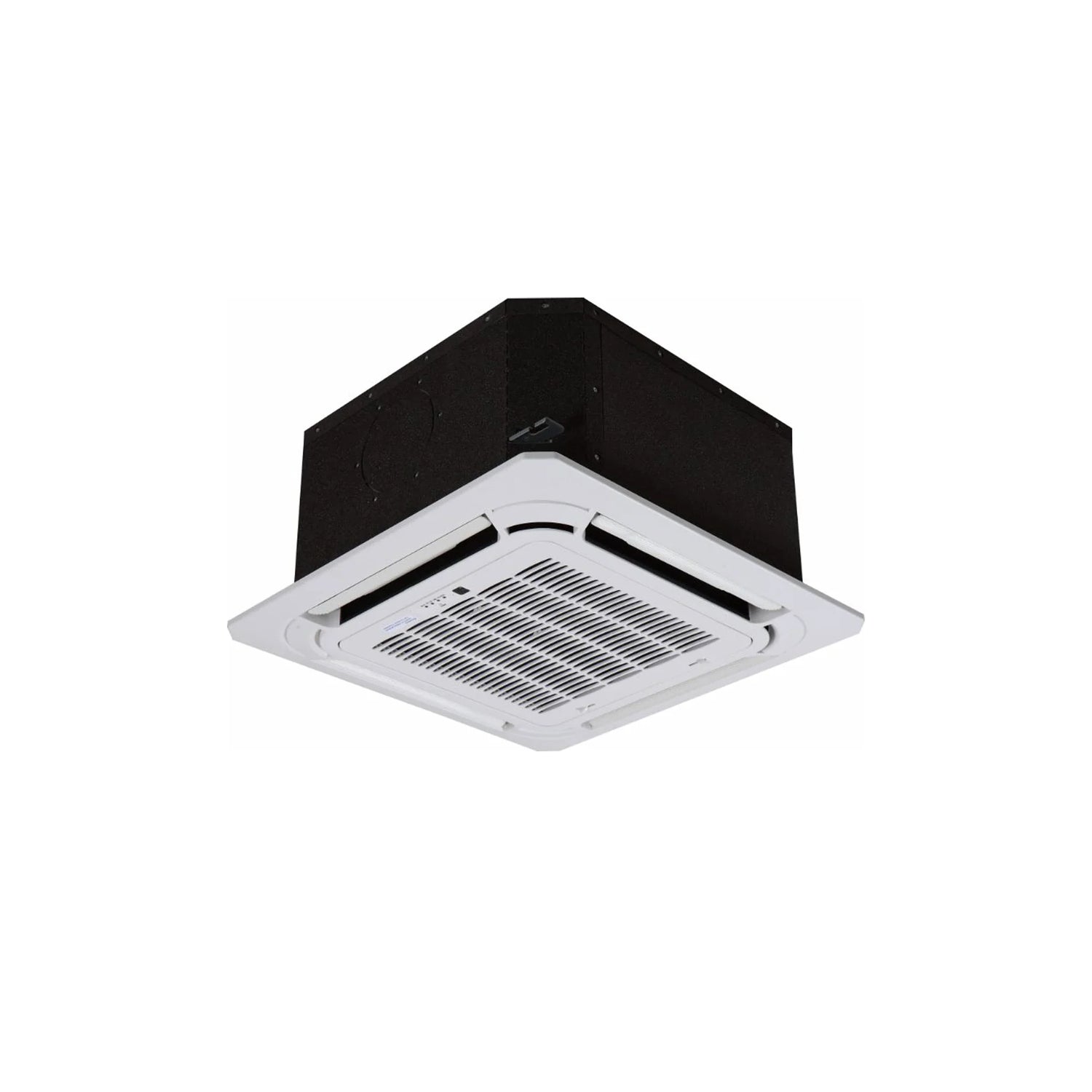

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-09CC-HH-MC x4

Looking for a more discreet air handler option? The ACiQ-09CC-HH-MC ceiling cassette mini split system is the perfect solution. With a hidden appearance and centralized air distribution, this ceiling cassette unit offers high-efficiency heating and cooling with a sleek design. The included hand-held remote control makes operation a breeze, and once installed, only the grille is visible for a seamless look.

Key Features

  • 9,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Ceiling Cassettes provide a quiet and efficient way to cool or heat your space, with the added benefit of a flush-mounted design for a discreet appearance. The factory-installed condensation pump ensures proper drainage, while the 4-way air supply delivers comfort in all directions.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Non-Ducted AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-36Z-M5C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Heating Performance Table — 9K-24K Installation & Owner's Manual Remote Control Manual — 9K-18K ACiQ Warranty

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

BrandACiQ
SKUES-36Z-M5C
ReplacesES-36Z-M4B
HSPF29.5
Cooling BTU36000 BTU
Heating BTU37000 BTU
Maximum CFM2148
Decibel Level (dBA)64.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER224
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (4); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size35 A
Min. Breaker Size30.5 A
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-09CC-HH-MC x4

BrandACiQ
SKUACIQ-09CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU9,000 BTU
Heating BTU9,800 BTU
Maximum CFM352.94 CFM
Decibel Level (dBA)As low as 32.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.272 gal/hr
SEER220.5
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Width22.44"
Depth22.44"
ReplacesACIQ-09CC-HH-MB

Warranty and Product Information

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-09CC-HH-MC x4

Standard Warranty5 year parts
Registered Warranty10 year parts
