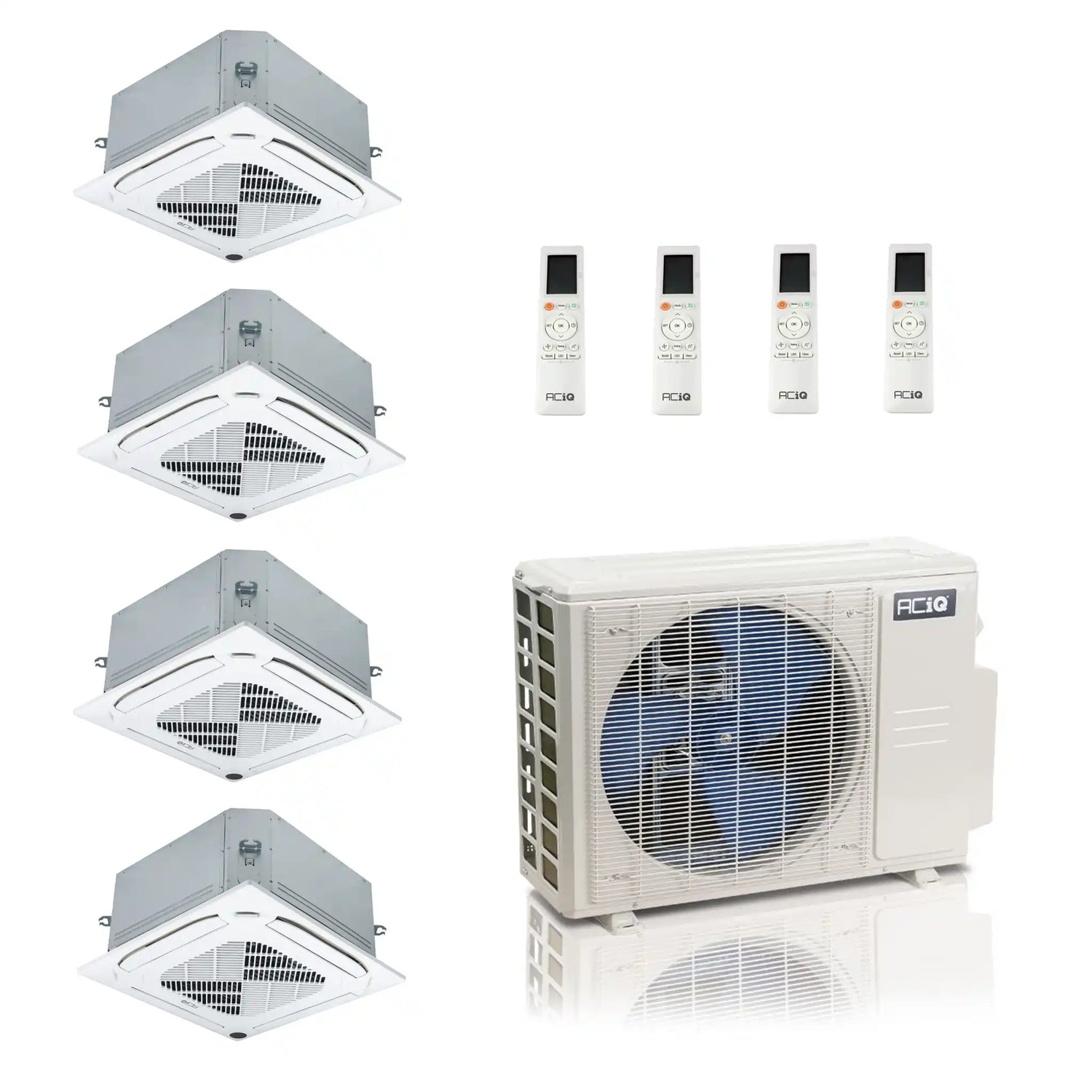

ACiQ 36,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 4-Zone 9+9+9+18
Key Features
- System Capacity: This 4-zone system provides 36,000 BTU (3 tons) of heating and cooling through three 9K and one 18K ceiling cassette air handlers.
- Efficiency: The 3-ton ES-36Z-M5C condenser earns a 24 SEER2 cooling rating and 9.5 HSPF2 heating rating for dependable year-round performance.
- Refrigerant: Charged with R454B refrigerant, the system includes a Gold Fin protected coil and self-diagnosing controls for easy troubleshooting.
- Mounting: Each ceiling cassette mounts flush with a 4-way air supply and factory-installed condensate pump, leaving only the discreet grille visible.
Product Details
Product Details
ACiQ 36,000 BTU 24 SEER2 Ceiling Cassette Mini Split System 4-Zone 9+9+9+18

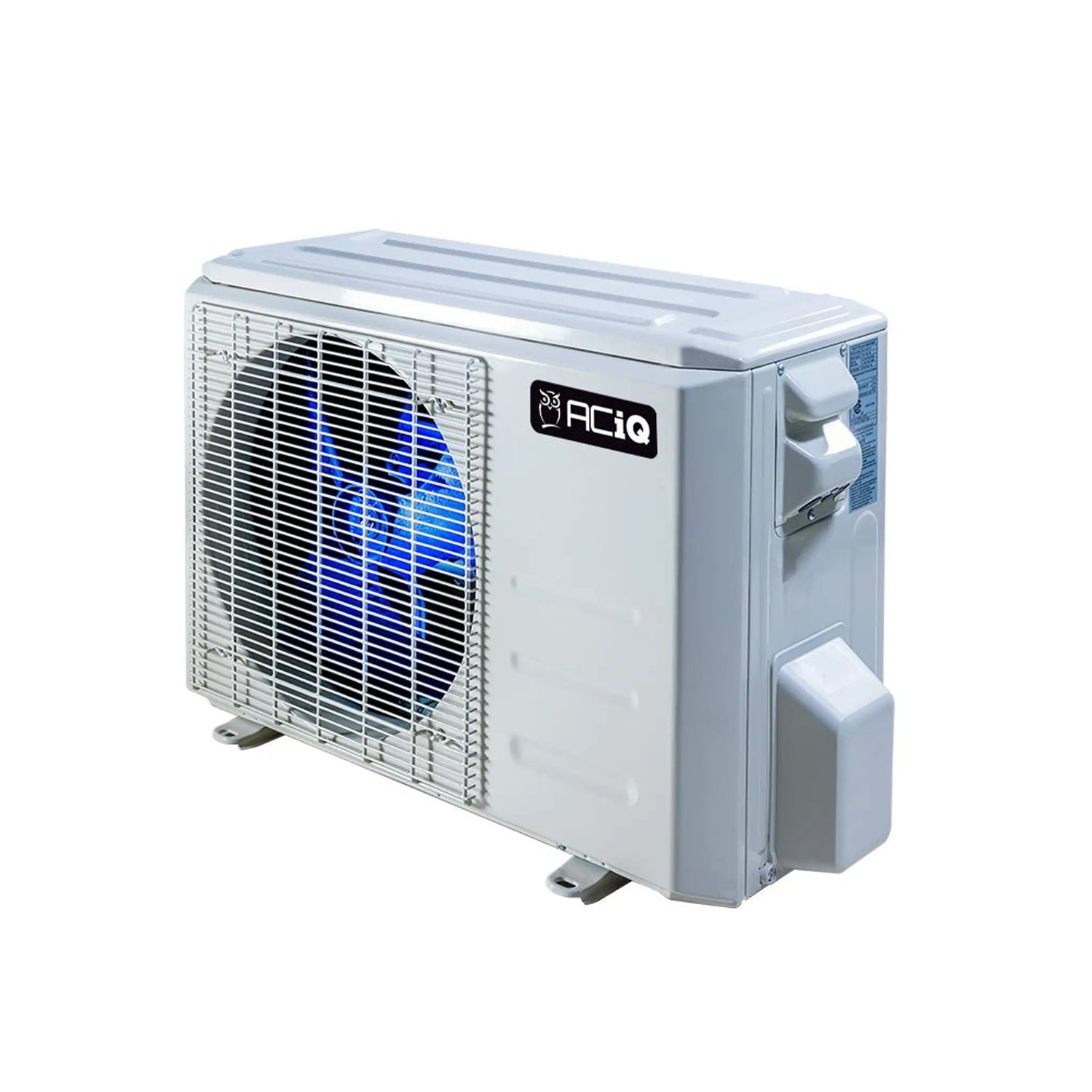

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C
ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.
Key Features
- 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 5 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

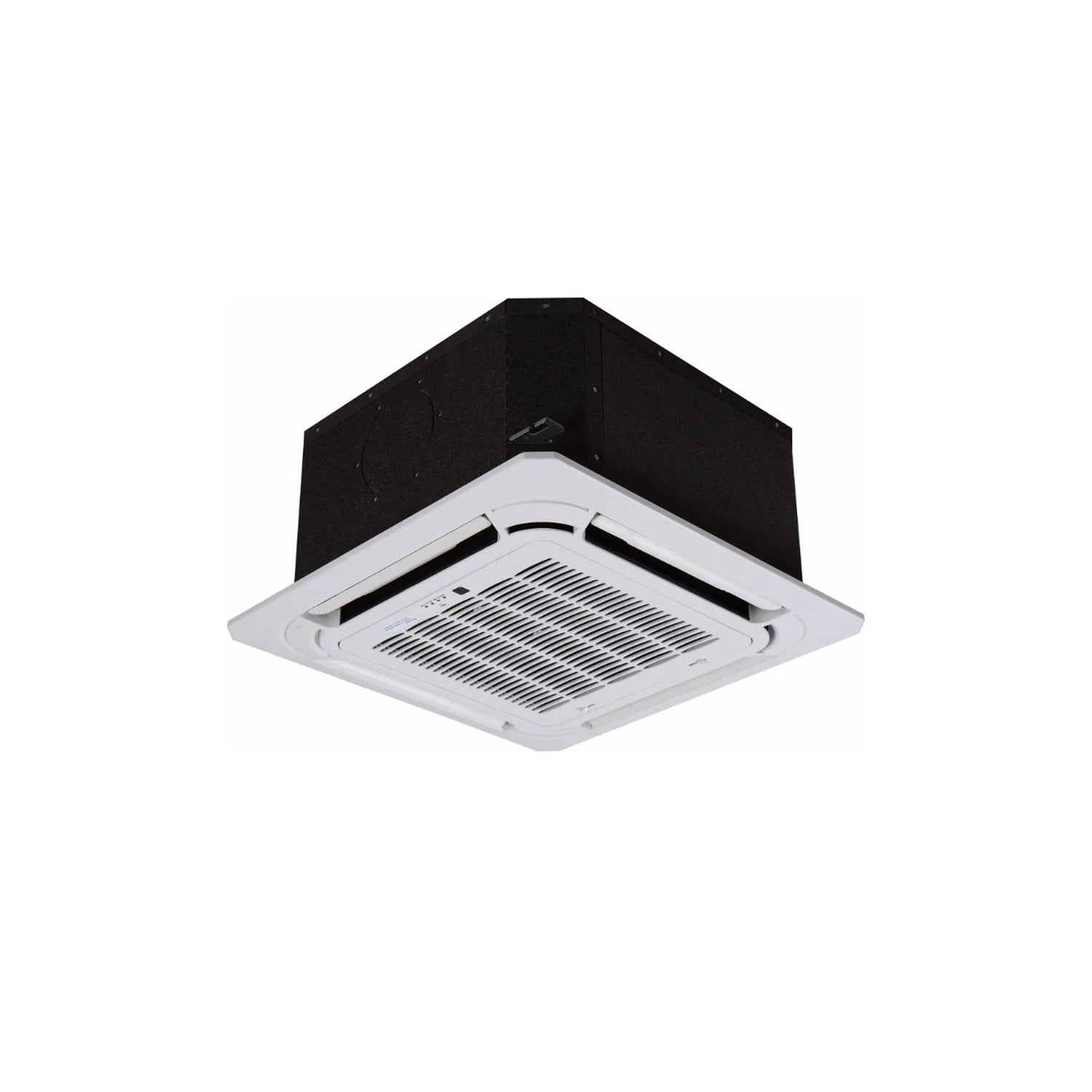

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-09CC-HH-MC x3
Looking for a more discreet air handler option? The ACiQ-09CC-HH-MC ceiling cassette mini split system is the perfect solution. With a hidden appearance and centralized air distribution, this ceiling cassette unit offers high-efficiency heating and cooling with a sleek design. The included hand-held remote control makes operation a breeze, and once installed, only the grille is visible for a seamless look.
Key Features
- 9,000 BTU of Heating or Cooling
- Dry and Fan modes available
- Good for small rooms in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote and Decorative Grille included
Ceiling Cassettes provide a quiet and efficient way to cool or heat your space, with the added benefit of a flush-mounted design for a discreet appearance. The factory-installed condensation pump ensures proper drainage, while the 4-way air supply delivers comfort in all directions.
ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC
Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.
Key Features
- 18,000 BTU of Heating or Cooling
- Dry and Fan modes available
- Suitable for medium rooms in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote and Decorative Grille included
- Flush-mounted Ceiling Cassette design for understated appearance
- Factory installed condensation pump for easy maintenance
ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.
