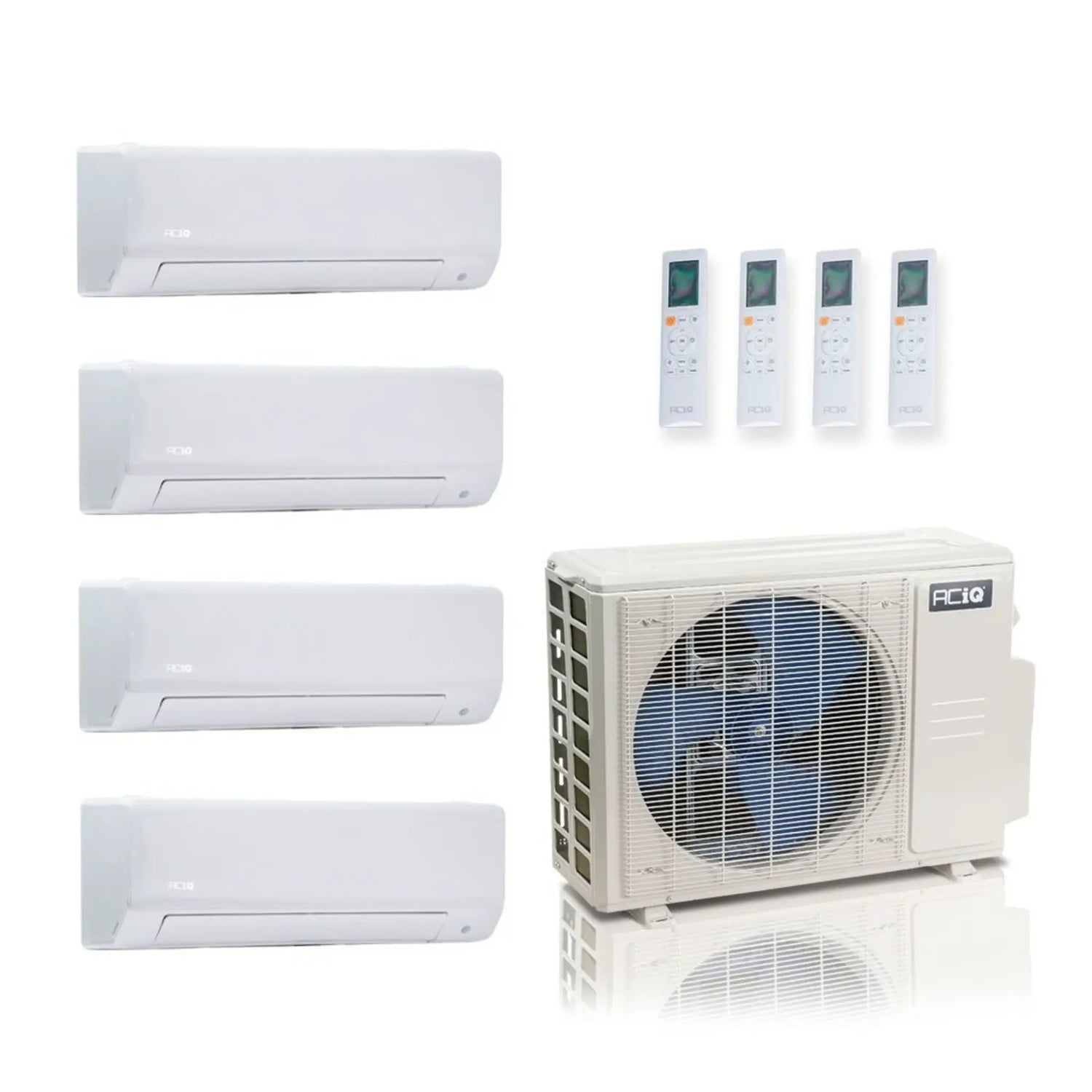

ACiQ 36,000 BTU 24 SEER2 4-Zone Wall Mount Mini Split R454B 230 12+12+12+12
Key Features
- Capacity: This 4-zone system delivers 36,000 BTU (3 tons) total output across four matched 12,000 BTU wall-mounted zones.
- Efficiency: The Inverter condenser is rated 24 SEER2 and 9.5 HSPF2, with efficient cooling and heating down to -13°F outdoors.
- Refrigerant: The condenser and all four wall-mounted air handlers run on eco-friendly, pre-charged R454B refrigerant.
- Smart Control: Each 12,000 BTU Platinum handler is WiFi-enabled for Net Home Plus, Alexa, or Google Home zone control.
Product Details
Product Details
ACiQ 36,000 BTU 24 SEER2 4-Zone Wall Mount Mini Split R454B 230 12+12+12+12

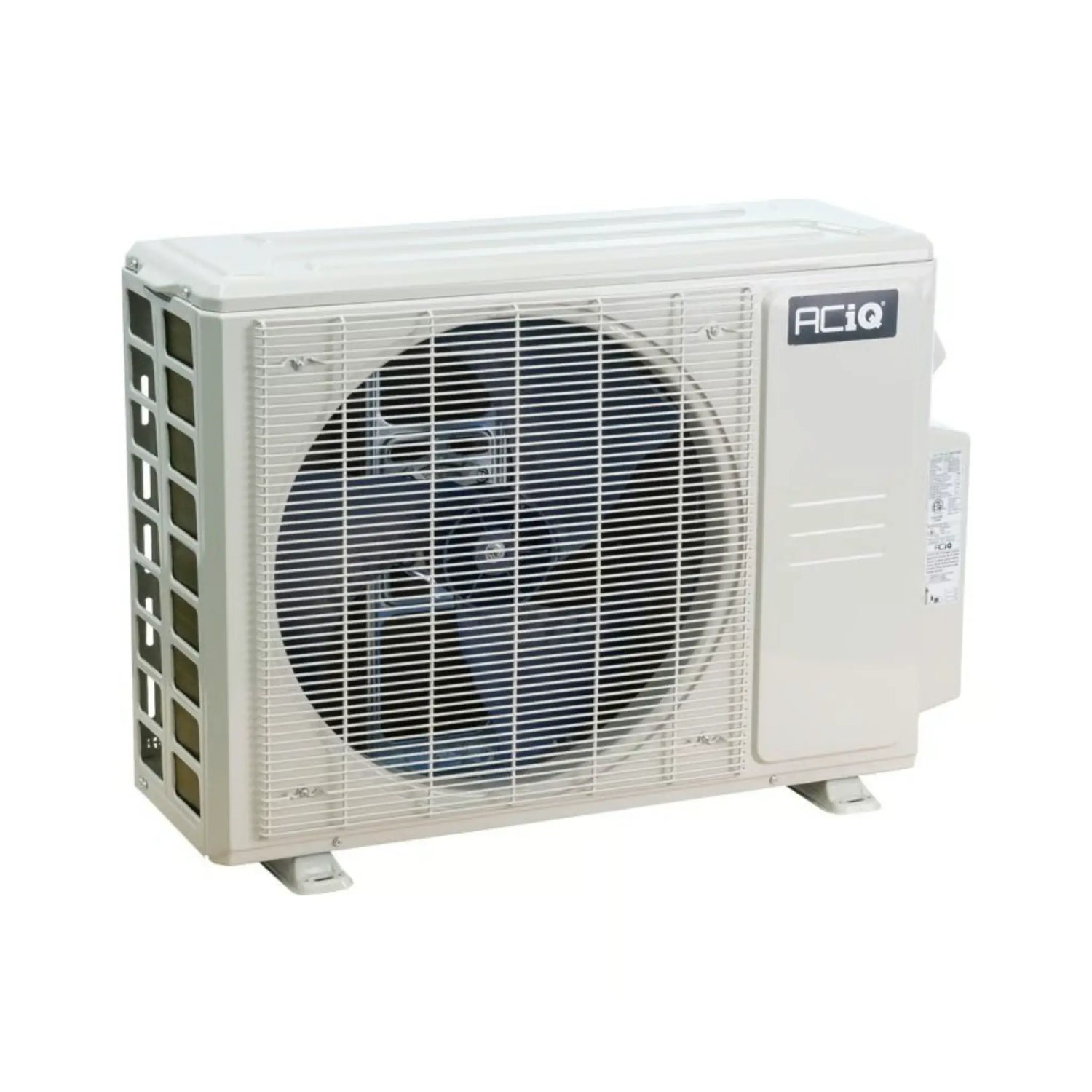

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C
ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.
Key Features
- 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 5 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

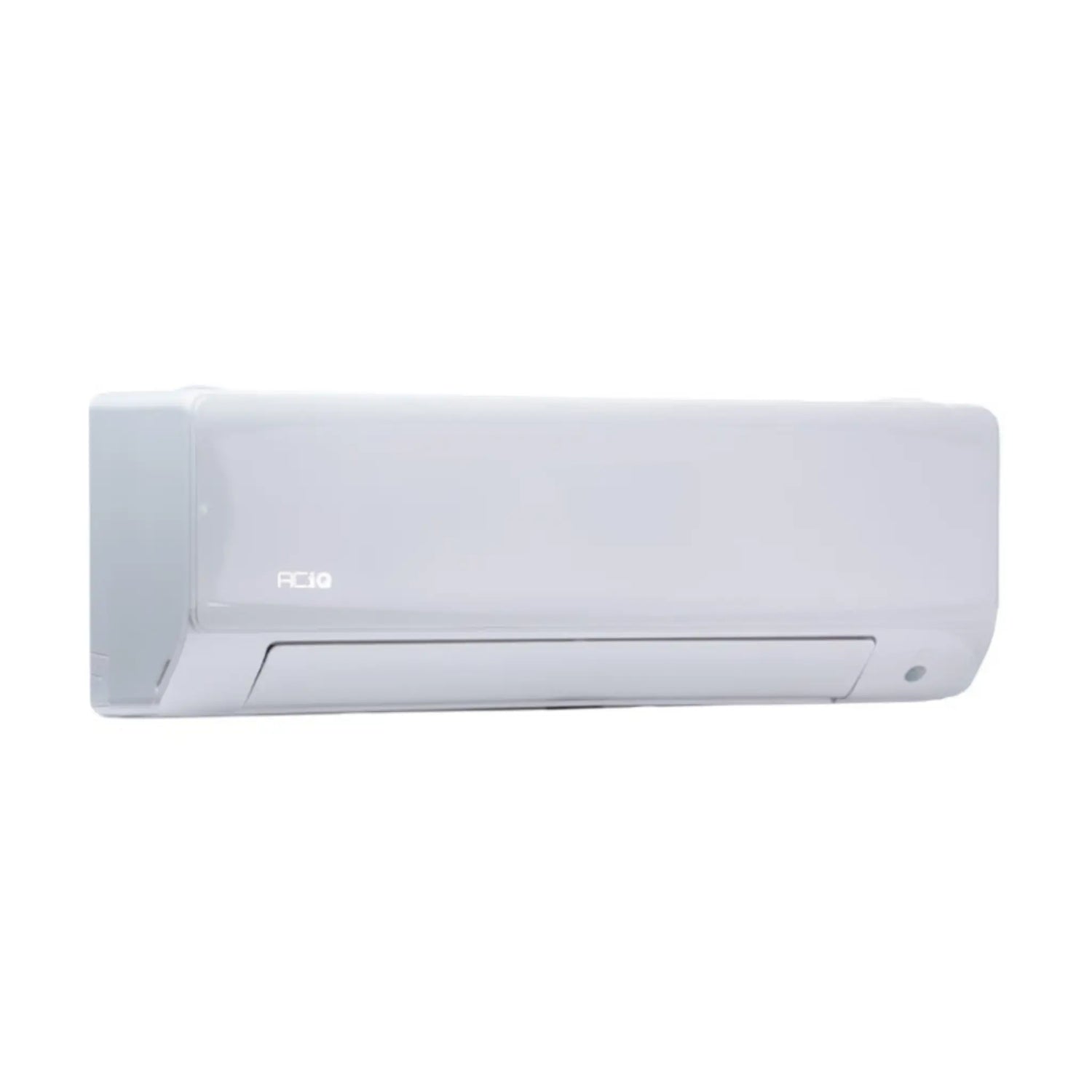

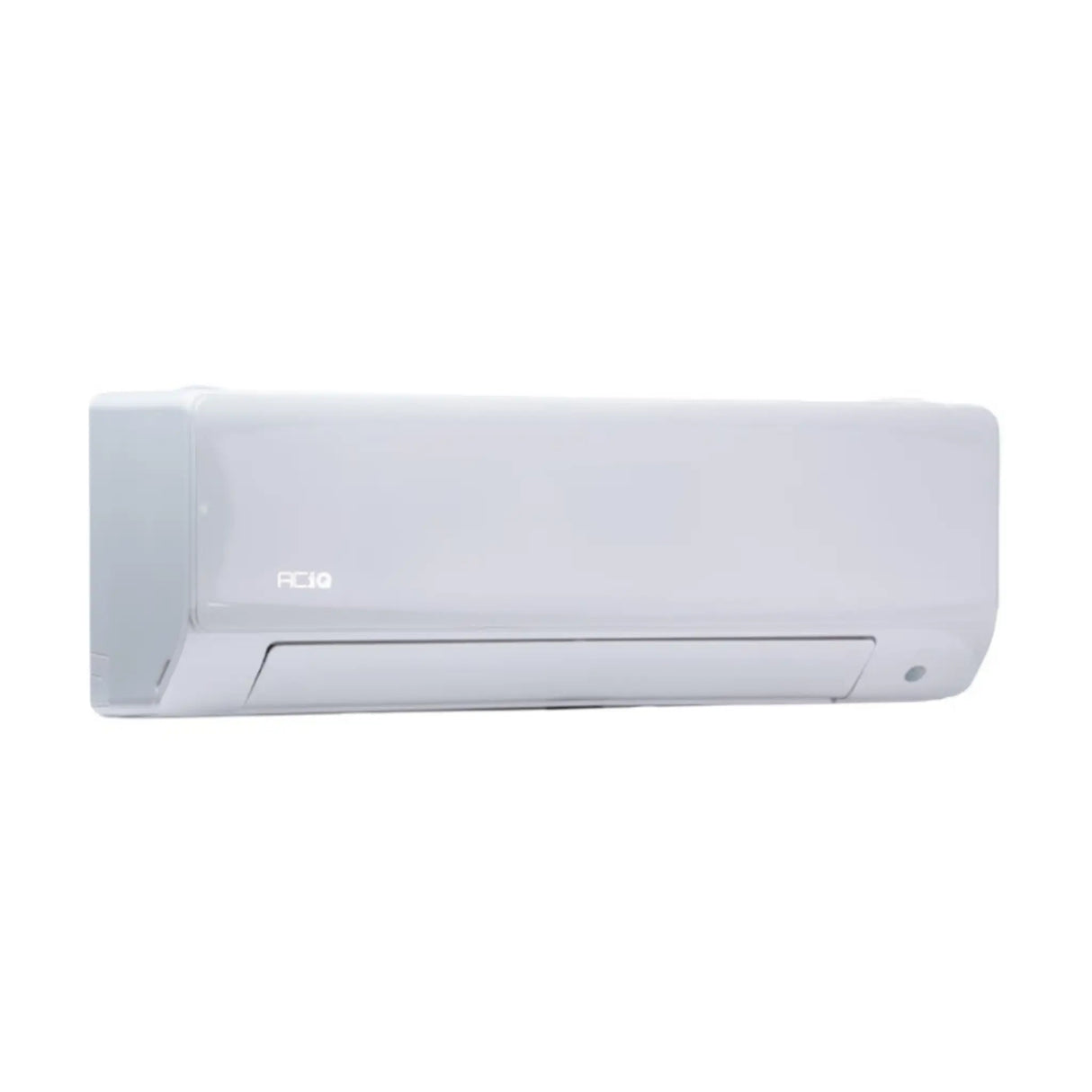

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x4
The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.
Key Features
- 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
- WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
- Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
- Quiet operation – as low as 19.5 dB for undisturbed comfort
- Advanced display panel with real-time temperature and diagnostic alerts
- Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
- Smart remote control included with LCD feedback screen
- Quick installation with flexible refrigerant line and drain exit
- Energy-efficient R454B refrigerant for reduced environmental impact
Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.
