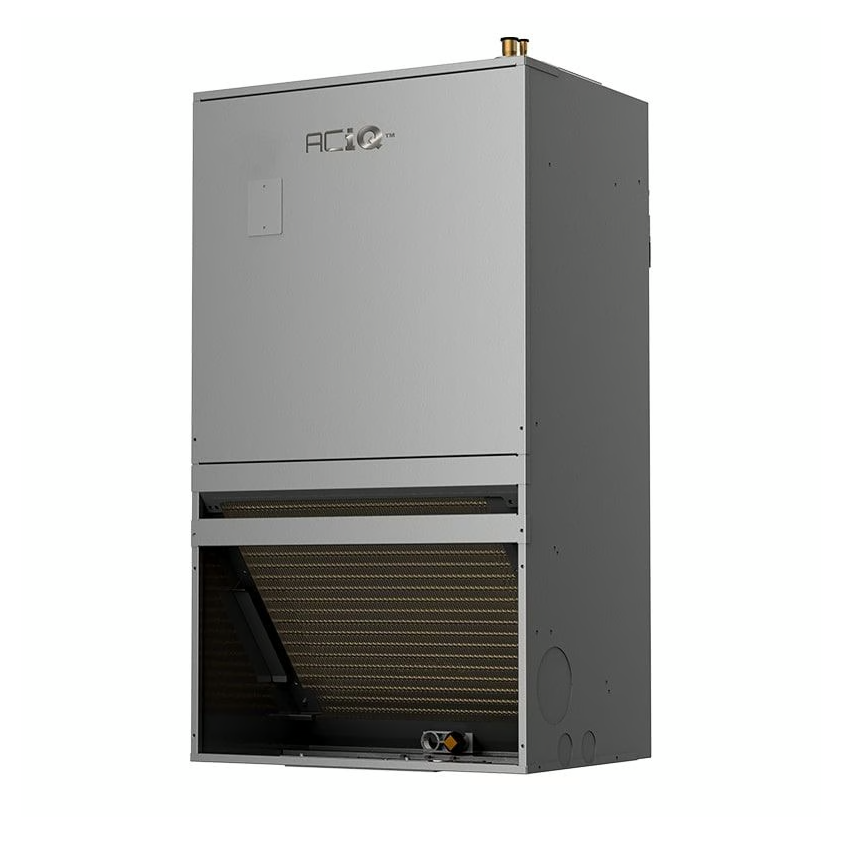

ACiQ 3 Ton Wall Mount Air Handler ACIQ-36W-WM 36000 BTU 208/230V 1-Phase 60Hz

By: ACiQ
SKU: ACIQ-36W-WM|ID: 105429
$1,189.00
+ Free shipping

Key Features

  • Capacity: Delivers 36,000 BTU of 3 ton cooling and heating output for larger homes and heavier loads.
  • Motor: A direct-drive, multi-speed blower motor pushes up to 1,188 CFM of airflow for balanced comfort.
  • Refrigerant: Designed for R410A refrigerant with a fully adjustable TXV supporting both cooling and heat pump modes.
  • Backup Heat: Optional 3, 5, 8, or 10 kW electric heat strips add reliable supplemental heating when needed.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 3 Ton Wall Mount Air Handler ACIQ-36W-WM 36000 BTU 208/230V 1-Phase 60Hz

The ACiQ Air Handler is meticulously crafted for flexible installation, whether mounted vertically on a wall or stud. It provides versatile placement options to suit various space configurations. Encased in a fully insulated, galvanized-steel cabinet, this air handler not only ensures durability but also enhances thermal efficiency for reliable and long-lasting performance. Its robust construction safeguards against wear and tear, making it a dependable choice for residential and commercial applications alike.

  • Connects to ductwork
  • Suitable for use with R-410A refrigerants
  • Equipped with a fully adjustable TXV for cooling and heat pump operation
  • Features a direct-drive, multi-speed motor allowing for air volume variation for both heating and cooling needs
  • Sequence-controlled, rust-resistant nickel chromium heating elements available in 3, 5, 8, and 10kw options
  • Includes a factory-installed pull-type disconnect for added convenience
  • Aluminum tube coils are integrated into all models
  • Comes with a thermoplastic drain pan featuring bottom primary and secondary drain connections
  • Equipped with a built-in filter rack (filter included) for improved indoor air quality
  • Includes a wall-hanging bracket for easy installation

Learning Resources

Submittal Install Manual Service Manual Disassembly Guide Warranty

Specifications

BrandACiQ
Model #ACIQ-36W-WM
Weight (in lbs)109 lbs
Additional Information20" x 20" x 1" Filter Size
Cooling BTU36,000 BTU
Blower MotorMulti Speed Direct Drive Motor
Maximum CFM1188.24
Decibel Level (dBA)55 dBA
Electric HeatElectric Heat Strip
Electric Backup Heat Capabilities (Optional)3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208-230 Single Phase 60 Hz
Tonnage3 Ton
Fuel TypeElectric
Height40"
Width22"
Depth19"
Min Amperage24 Amps
Max Amperage40 Amps
Weight60 lbs.

Warranty and Product Information

Standard Warranty (Residential)5 year parts
Standard Warranty (Multi-Family)5 year parts
Standard Warranty (Commercial)5 year parts
Registered Warranty (Residential)10 year parts
Registered Warranty (Multi-Family)10 year parts
Registered Warranty (Commercial)5 year parts
