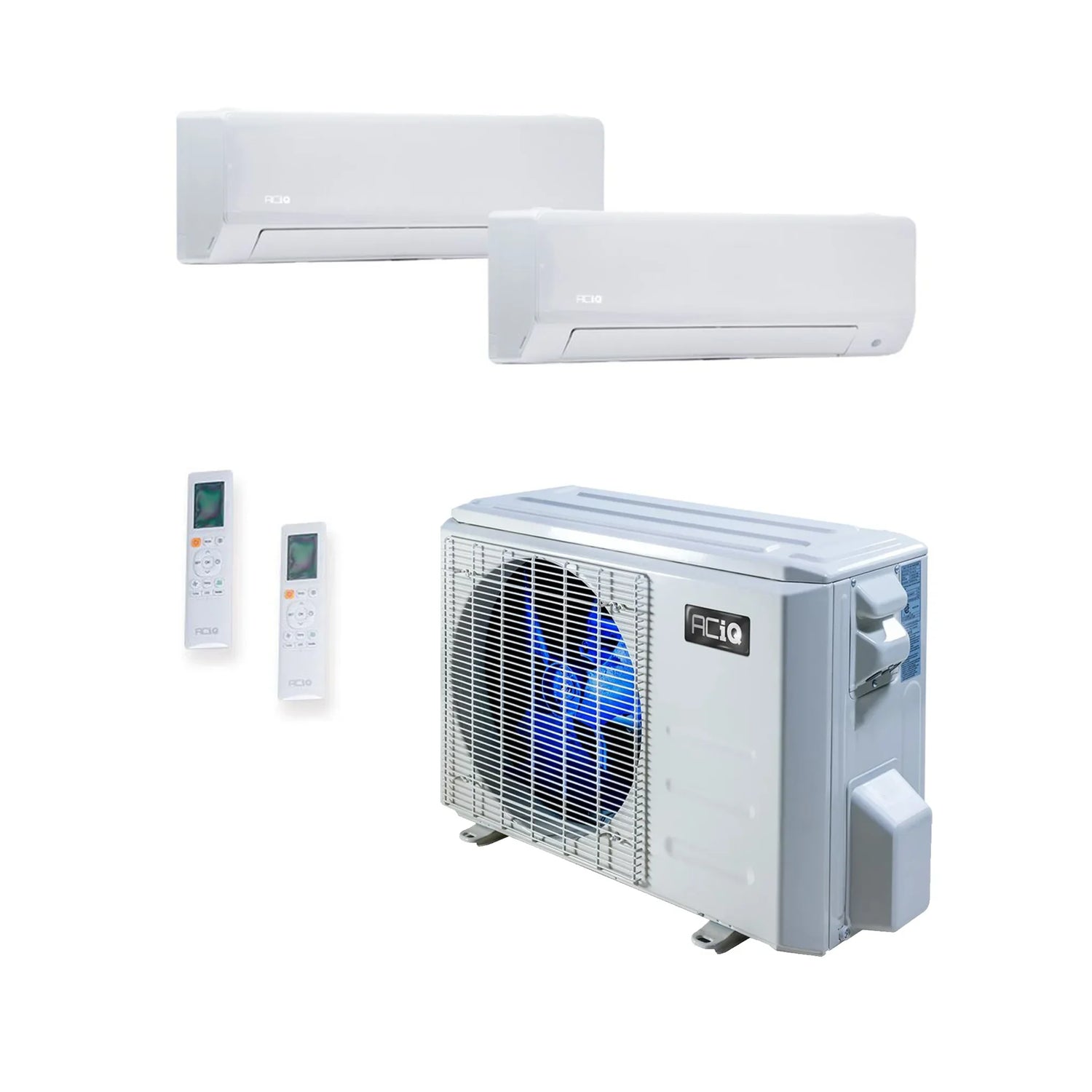

ACiQ 27K BTU 25 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 18+18

By: ACiQ
SKU: ES-27Z-M4C / ACIQ-18W-HH-MD-2|ID: 103518
$3,349.99
+ Free shipping

Key Features

  • Efficiency: Achieves 25 SEER2 and 9.5 HSPF2 for efficient, Energy Star qualified heating and cooling.
  • Capacity: 27,000 BTU (2.25-ton) condenser powers two matched 18,000 BTU wall-mount zones for balanced dual-room comfort.
  • Refrigerant: Pre-charged with environmentally friendly R454B refrigerant for up to 25 ft per line set.
  • Smart Control: WiFi-enabled wall-mount air handlers support the Net Home Plus app, Alexa, and Google Home for remote temperature control.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 27K BTU 25 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 18+18

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.

Key Features

  • 27,000 BTU, 25 SEER2 multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

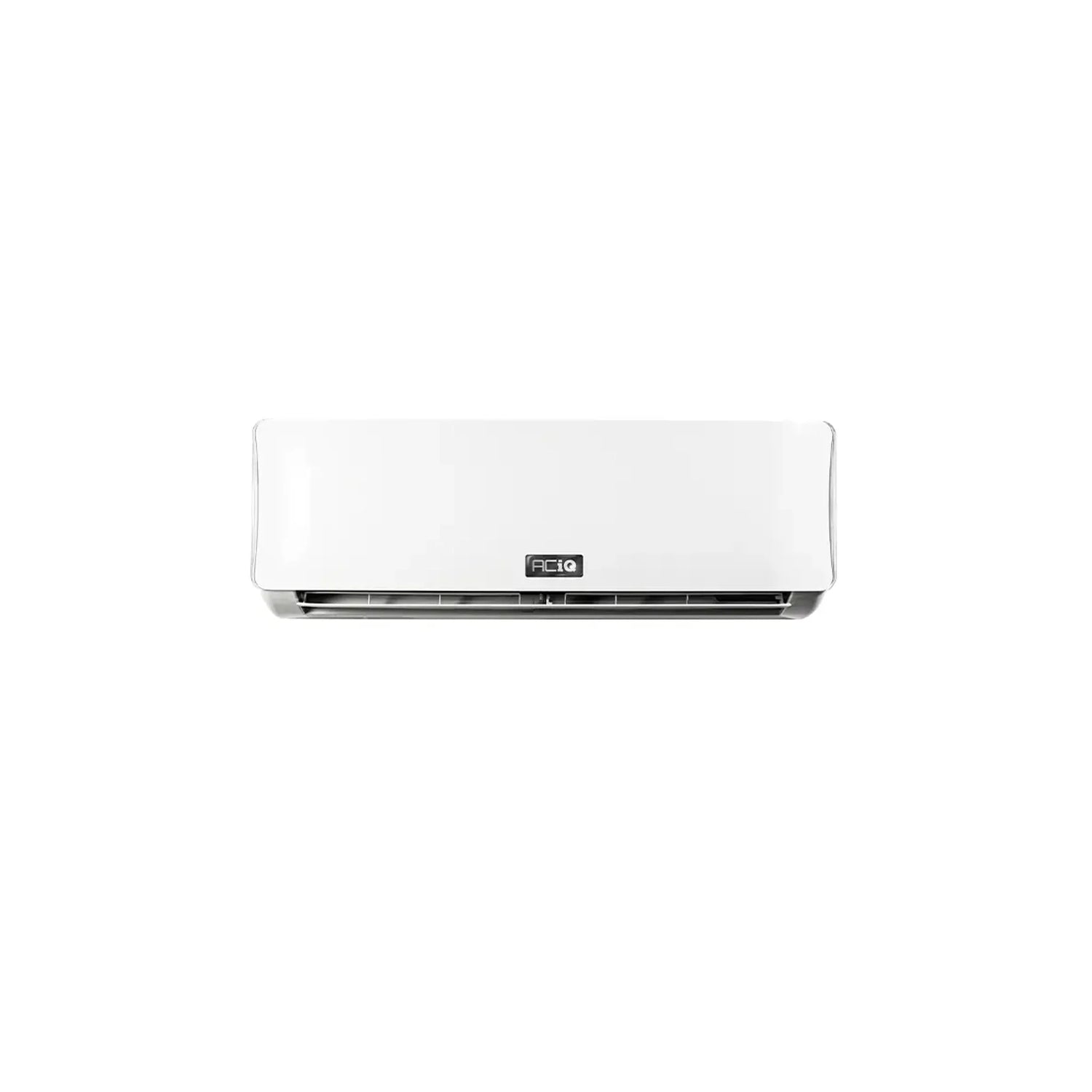

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD x2

The 18,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Equipped with adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.

Key Features

  • 18,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-18W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board for error notifications, and smart remote compatibility. With WiFi capabilities, you can control your home's heating and cooling from anywhere using a smart device. Please note that installation with a condenser and other equipment is required, available at an additional cost if not included in the bundle.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — Ducted Submittal — Non-Ducted

ACiQ Wall Mount Mini Split Air Handler

Installation & Owner's Manual Remote Control Manual Wi-Fi User Manual ACiQ Warranty

Specifications

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

BrandACiQ
SKUES-27Z-M4C
ReplacesES-27Z-M3B
HSPF29.5
Cooling BTU27000 BTU
Heating BTU27000 BTU
Maximum CFM2131
Decibel Level (dBA)61
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25 A
Min. Breaker Size23 A
Tonnage2 Ton to 2.5 Ton
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD x2

BrandACiQ
SKUACIQ-18W-HH-MD
Product FeaturesLow Ambient Heating
Cooling BTU18000 BTU
Heating BTU18000 BTU
Maximum CFM523.53
Decibel Level (dBA)46.5
Electric HeatHeat Pump
RefrigerantR454B
SEER18-20
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Length40.06"
Height12.60"
Depth9.72"

Warranty and Product Information

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD x2

Standard Warranty5 year parts
Registered Warranty10 year parts
