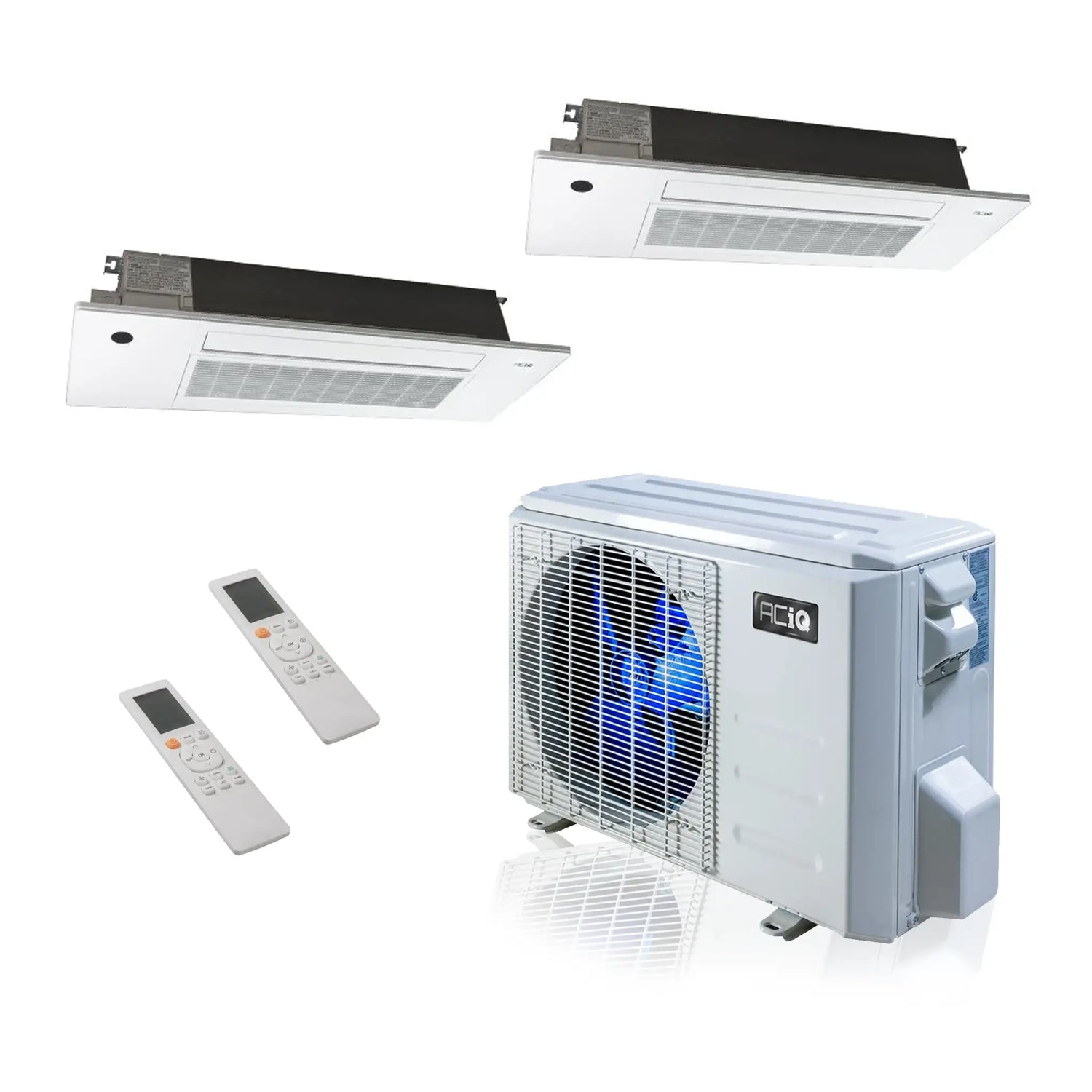

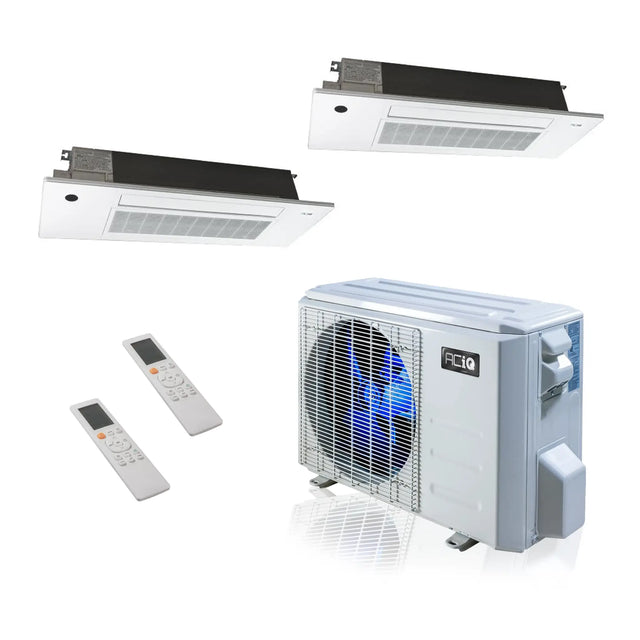

ACiQ 27K BTU 25 SEER2 Mini Split 2-Zone Slim Ceiling Cassette R454B 18+18

By: ACiQ
SKU: ES-27Z-M4C / SCC-18-HH-MB-2|ID: 103523
$4,409.99
+ Free shipping

Key Features

  • Efficiency: Rated at 25 SEER2 with a 9.5 HSPF2, this inverter system delivers strong efficiency across both zones.
  • Capacity: The 27,000 BTU (2.25 ton) outdoor condenser powers two independently controlled 18,000 BTU slim ceiling cassette zones.
  • Refrigerant: Both the condenser and cassettes run on environmentally friendly R454B refrigerant.
  • Design: Slim ceiling cassettes fit between 16-inch on-center joists with switchable 12K/18K capacity and a no-ladder lowering grille for easy filter access.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 27K BTU 25 SEER2 Mini Split 2-Zone Slim Ceiling Cassette R454B 18+18

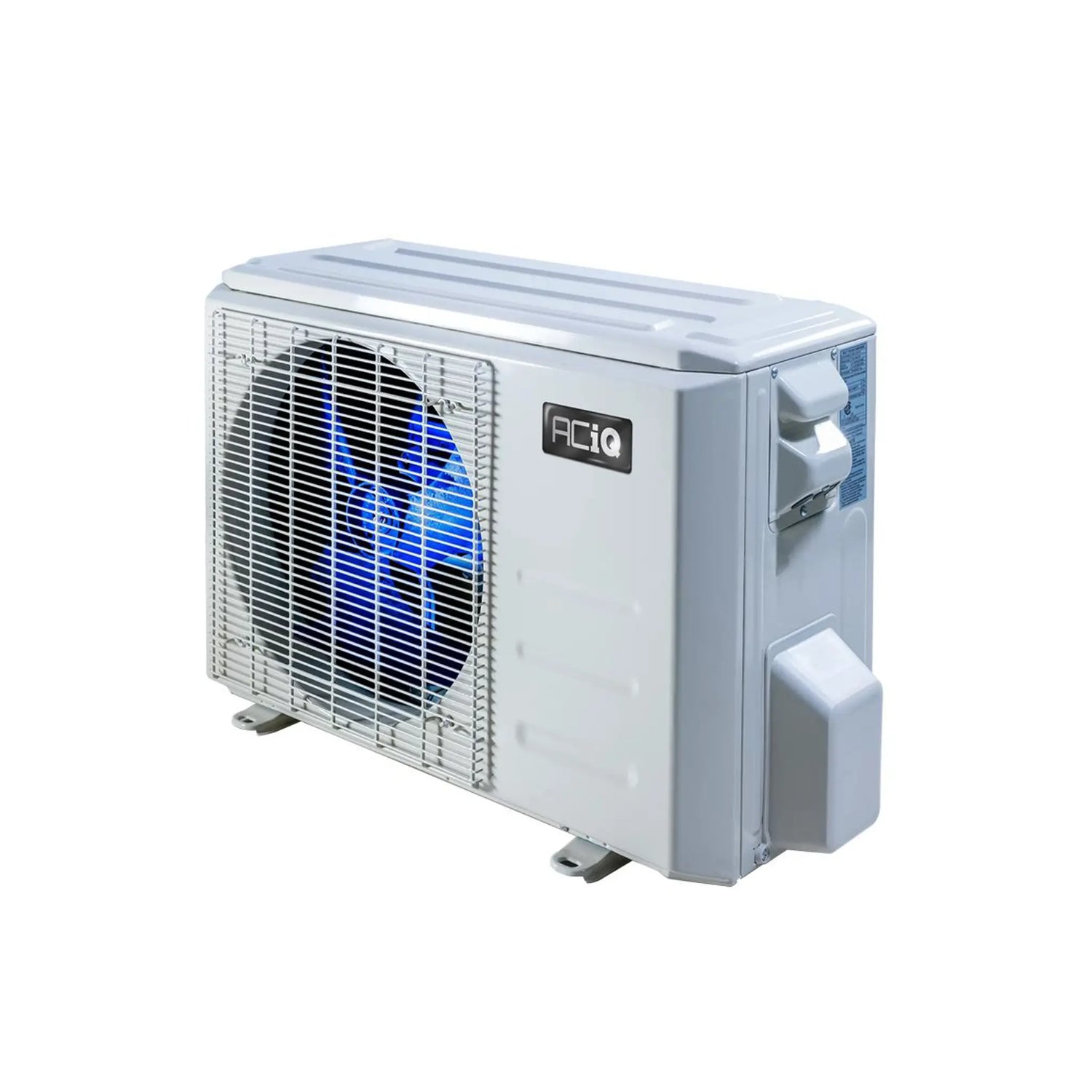

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.

Key Features

  • 27,000 BTU, 25 SEER2 multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2 offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.

Key Features

  • Narrow profile fits between 16 inch-on-center joists
  • Switchable size – select between 12,000 BTU and 18,000 BTU

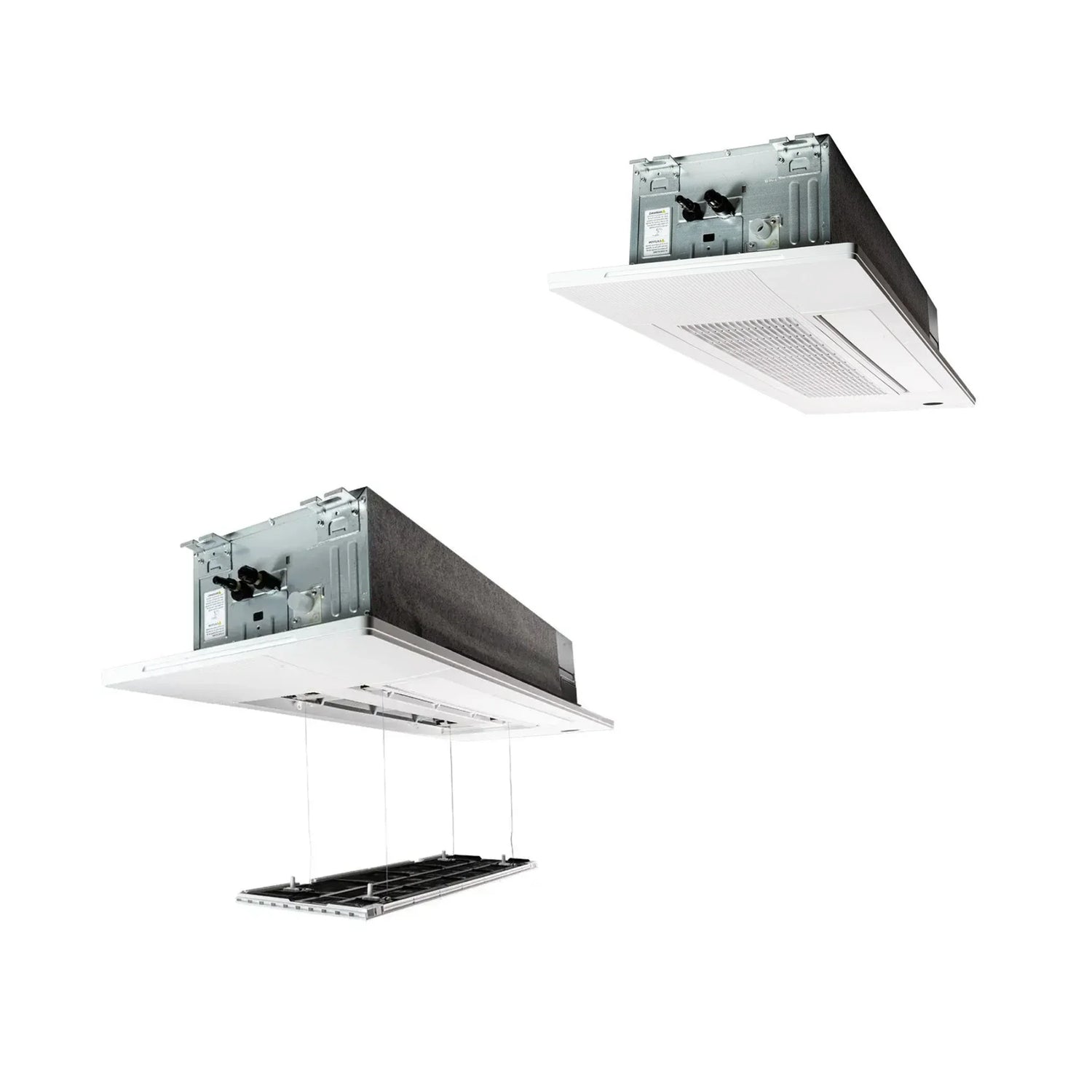

  • No-ladder filter cleaning – grille lowers on cables for easy access to filter
  • Handheld remote included
  • Decorative Grille included

Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — Ducted Submittal — Non-Ducted

ACiQ Slim Ceiling Cassette Mini Split Air Handler

Owner's Manual Remote Control Manual ACiQ Warranty

Specifications

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

BrandACiQ
SKUES-27Z-M4C
ReplacesES-27Z-M3B
HSPF29.5
Cooling BTU27000 BTU
Heating BTU27000 BTU
Maximum CFM2131
Decibel Level (dBA)61
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25 A
Min. Breaker Size23 A
Tonnage2 Ton to 2.5 Ton
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

BrandACiQ
SKUSCC-18-HH-MB
Cooling BTU16700 BTU
Heating BTU20000 BTU
Maximum CFM400
Decibel Level (dBA)35
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height8.98"
Width50.31"
Depth13.19"

Warranty and Product Information

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Standard Warranty5 year parts
Registered Warranty10 year parts
