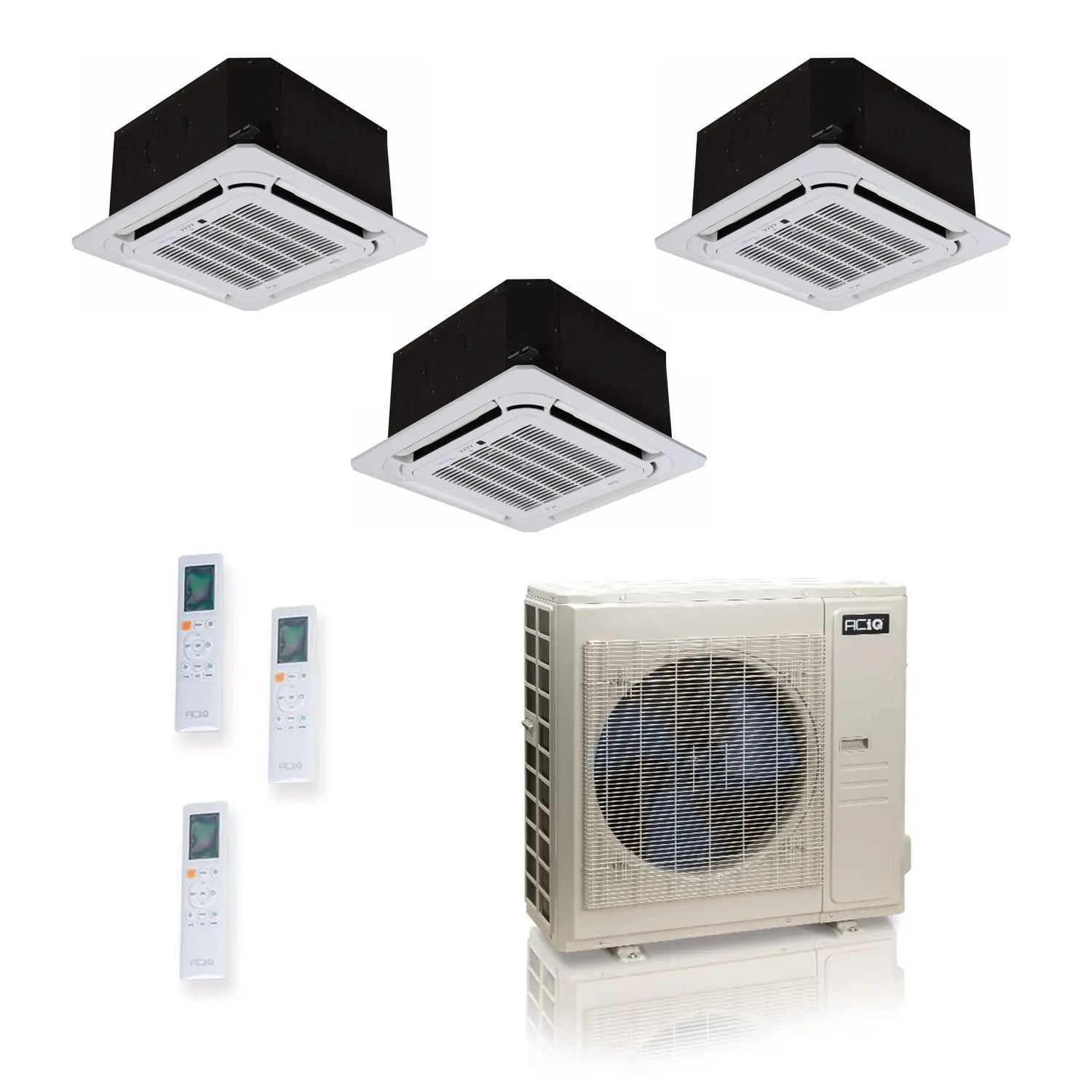

ACiQ 27K BTU 25 SEER2 Ceiling Cassette Mini Split System 3-Zone 230V 9+9+9

By: ACiQ
SKU: ES-27Z-M4C / ACIQ-09CC-HH-MC-3|ID: 103671
$4,449.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 25.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 27,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (2.25 Ton) with ceiling cassette mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 27K BTU 25 SEER2 Ceiling Cassette Mini Split System 3-Zone 230V 9+9+9

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.

Key Features

  • 27,000 BTU, 25 SEER2 multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

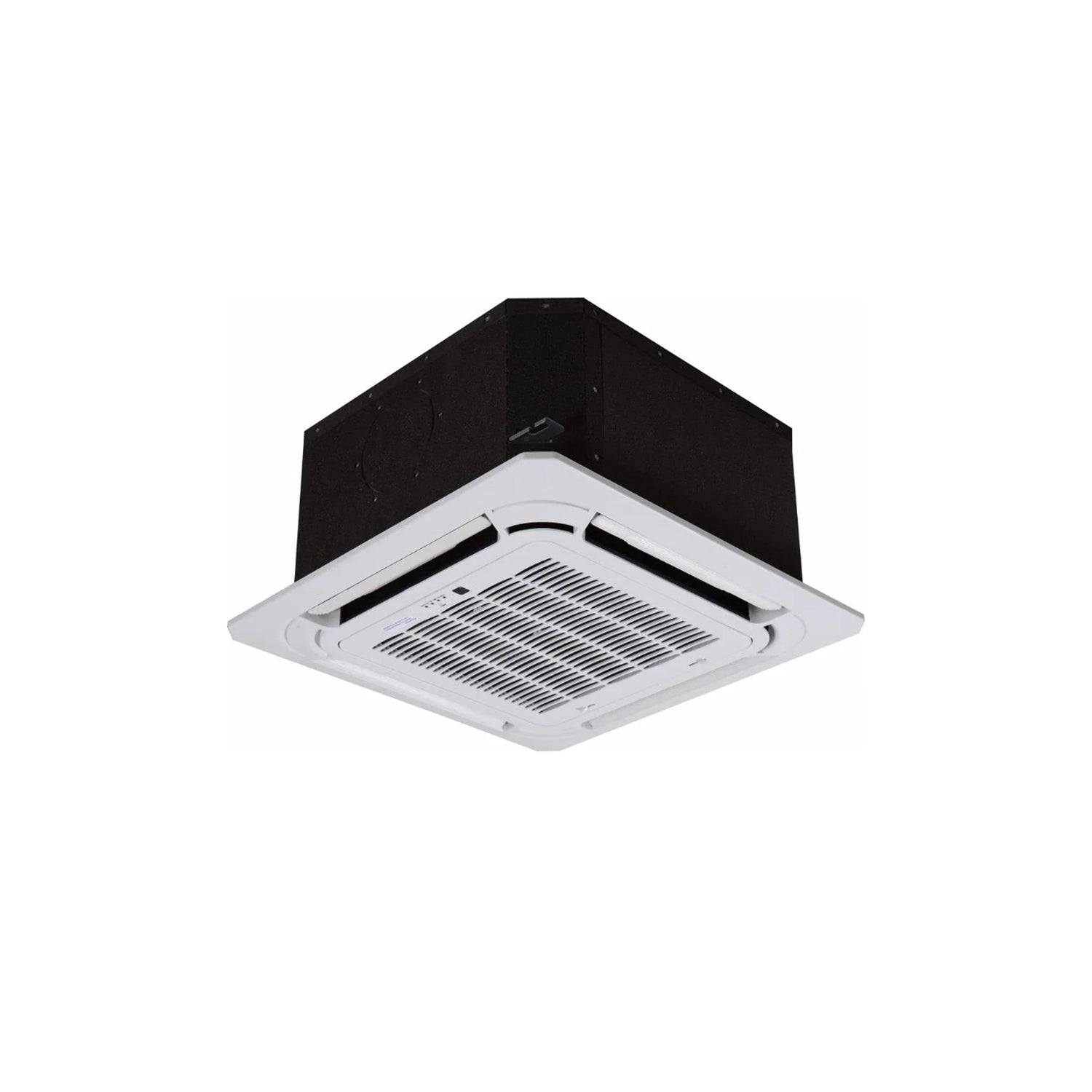

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC x3

Looking for a more discreet air handler option? The ACiQ-09CC-HH-MC ceiling cassette mini split system is the perfect solution. With a hidden appearance and centralized air distribution, this ceiling cassette unit offers high-efficiency heating and cooling with a sleek design. The included hand-held remote control makes operation a breeze, and once installed, only the grille is visible for a seamless look.

Key Features

  • 9,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Ceiling Cassettes provide a quiet and efficient way to cool or heat your space, with the added benefit of a flush-mounted design for a discreet appearance. The factory-installed condensation pump ensures proper drainage, while the 4-way air supply delivers comfort in all directions.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — Ducted Submittal — Non-Ducted

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Heating Performance Table — 9K-24K Installation & Owner's Manual Remote Control Manual — 9K-18K ACiQ Warranty

Specifications

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

BrandACiQ
SKUES-27Z-M4C
ReplacesES-27Z-M3B
HSPF29.5
Cooling BTU27000 BTU
Heating BTU27000 BTU
Maximum CFM2131
Decibel Level (dBA)61
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25 A
Min. Breaker Size23 A
Tonnage2 Ton to 2.5 Ton
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC x3

BrandACiQ
SKUACIQ-09CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU9,000 BTU
Heating BTU9,800 BTU
Maximum CFM352.94 CFM
Decibel Level (dBA)As low as 32.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.272 gal/hr
SEER220.5
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Width22.44"
Depth22.44"

Warranty and Product Information

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC x3

Standard Warranty5 year parts
Registered Warranty10 year parts
