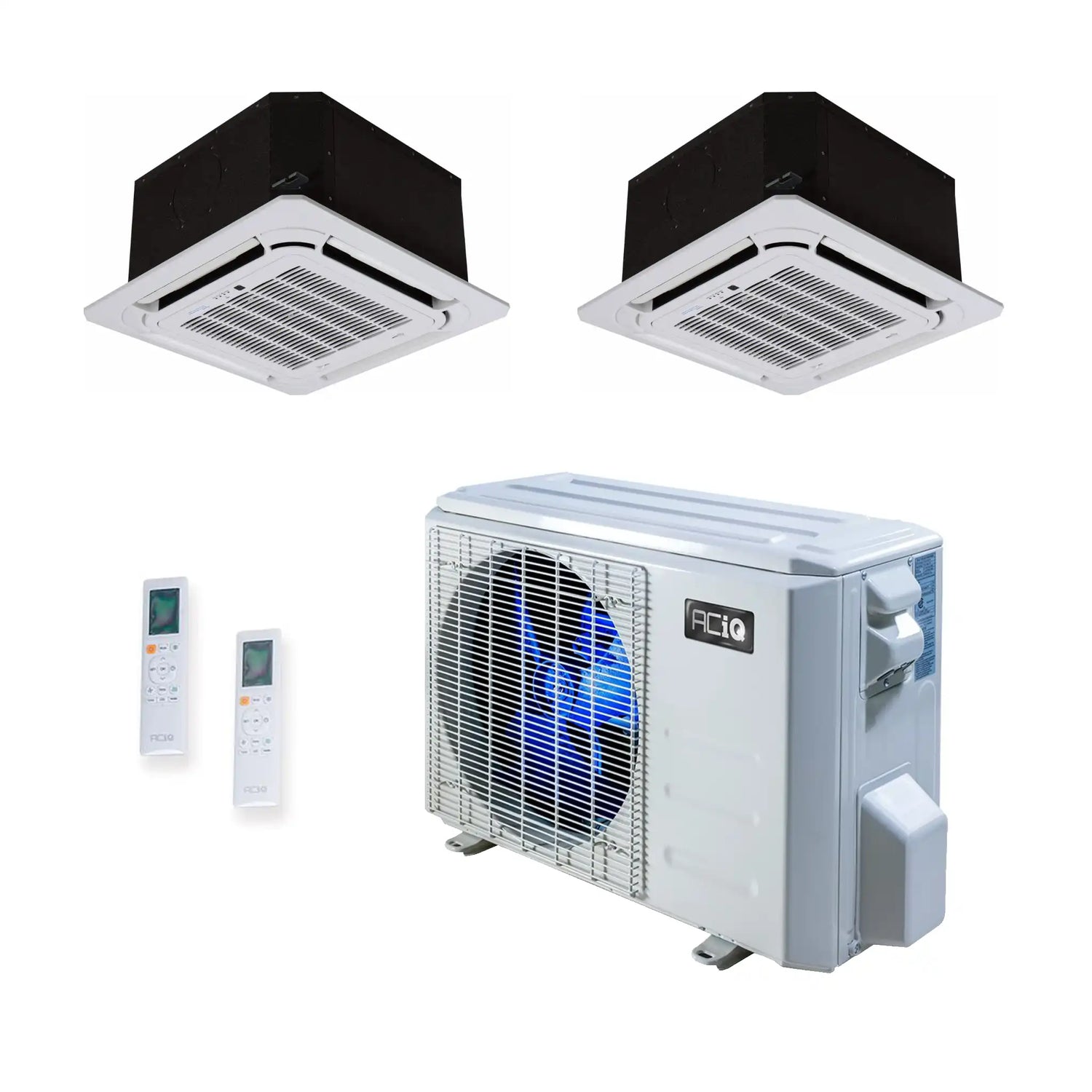

ACiQ 27K BTU 25 SEER2 Ceiling Cassette Mini Split System 2-Zone R454B 18+18

By: ACiQ
SKU: ES-27Z-M4C / ACIQ-18CC-HH-MC-2|ID: 103516
$4,049.99
+ Free shipping

Key Features

  • Efficiency: This inverter-driven system carries a 25 SEER2 / 9.5 HSPF2 rating for high-efficiency comfort down to -13F.
  • Capacity: The 27,000 BTU (2.25 ton) multi-zone condenser supports two matched 18,000 BTU zones through flush-mounted ceiling cassette air handlers.
  • Refrigerant: The condenser and indoor units both operate on R454B refrigerant.
  • Design: Each ceiling cassette delivers 4-way air distribution with a factory-installed condensate pump for a discreet, centralized look, while the condenser's Gold Fin coil coating and self-diagnosing control board add reliability.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 27K BTU 25 SEER2 Ceiling Cassette Mini Split System 2-Zone R454B 18+18

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.

Key Features

  • 27,000 BTU, 25 SEER2 multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

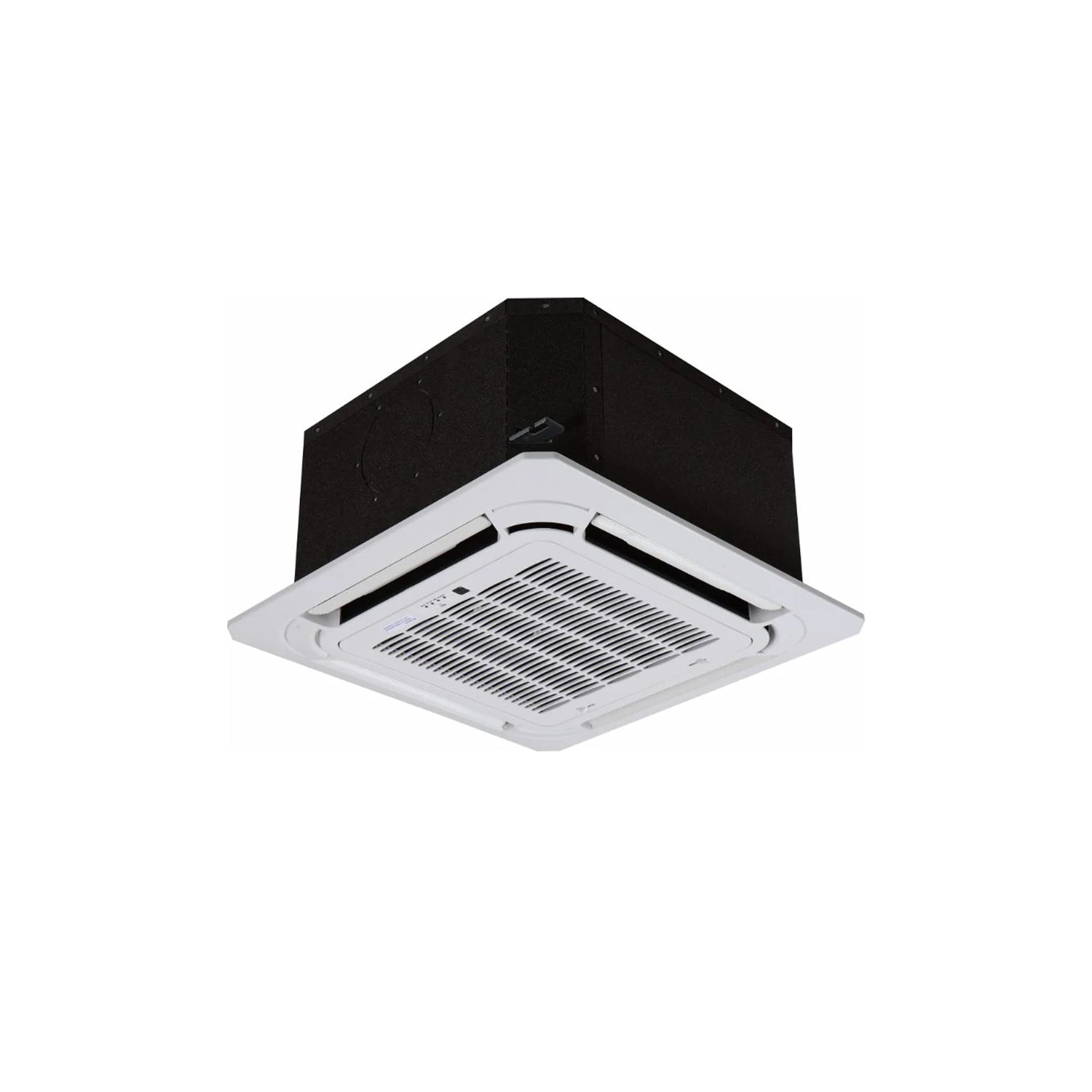

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — Ducted Submittal — Non-Ducted

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Submittal — ACIQ-18CC-HH-MC ACiQ Warranty

Specifications

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

BrandACiQ
SKUES-27Z-M4C
ReplacesES-27Z-M3B
HSPF29.5
Cooling BTU27000 BTU
Heating BTU27000 BTU
Maximum CFM2131
Decibel Level (dBA)61
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25 A
Min. Breaker Size23 A
Tonnage2 Ton to 2.5 Ton
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

BrandACiQ
SKUACIQ-18CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
Maximum CFM562.35
Decibel Level (dBA)As low as 35.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.586 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size25
Min. Breaker Size20
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Height10.25"
Width22.5"
Depth22.5"

Warranty and Product Information

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
