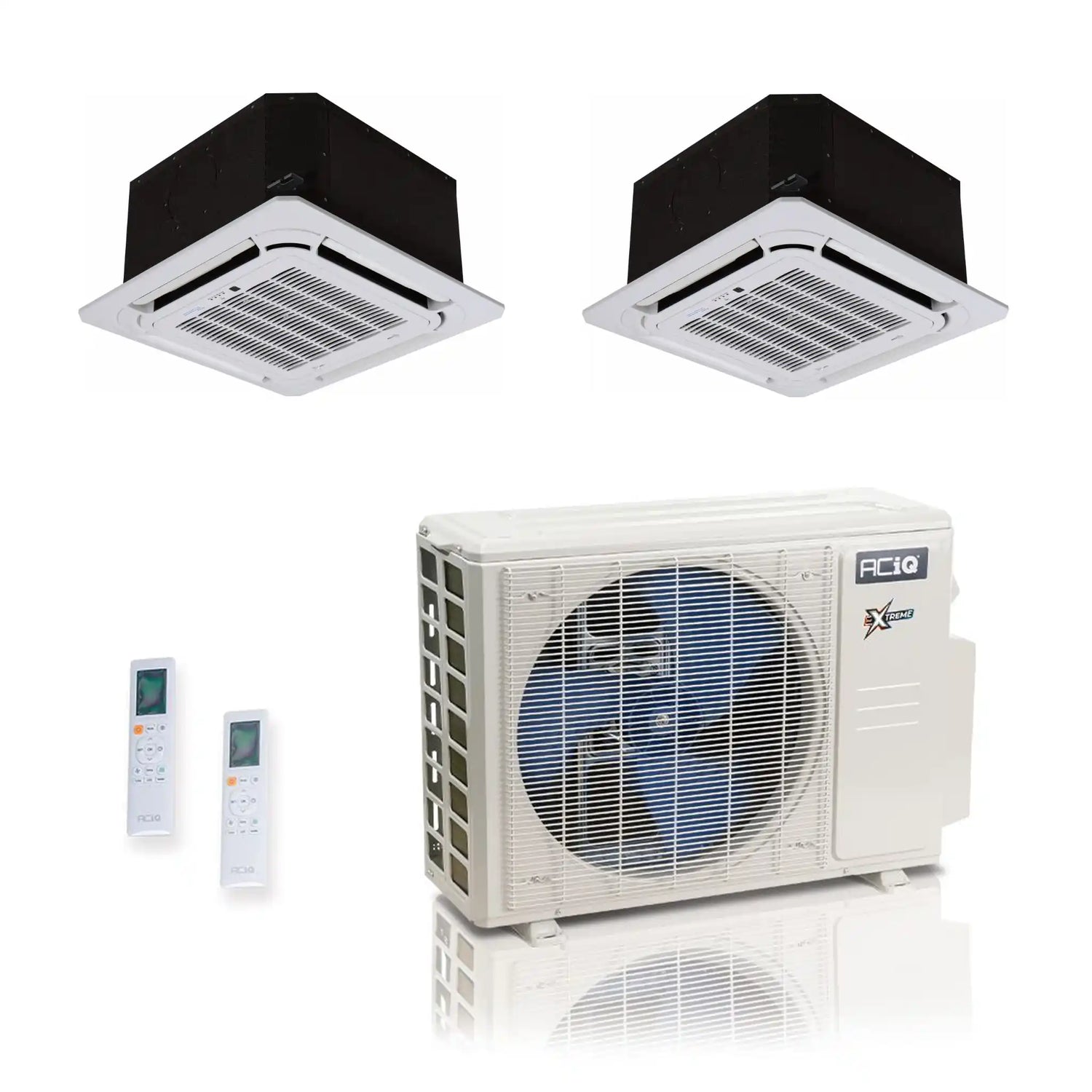

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 18+18
Key Features
- Efficiency: Offers 23 SEER2 and 10.5 HSPF2 efficiency for cost-effective heating and cooling performance.
- Capacity: The 27,000 BTU (2.25-ton) outdoor condenser supplies two independently controlled zones with matching 18,000 BTU ceiling cassette air handlers.
- Refrigerant: Runs on eco-friendly R454B refrigerant for efficient, low-impact operation.
- Design: Flush-mounted 4-way ceiling cassettes deliver discreet, centralized airflow with a factory-installed condensate pump.
Product Details
Product Details
ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 18+18

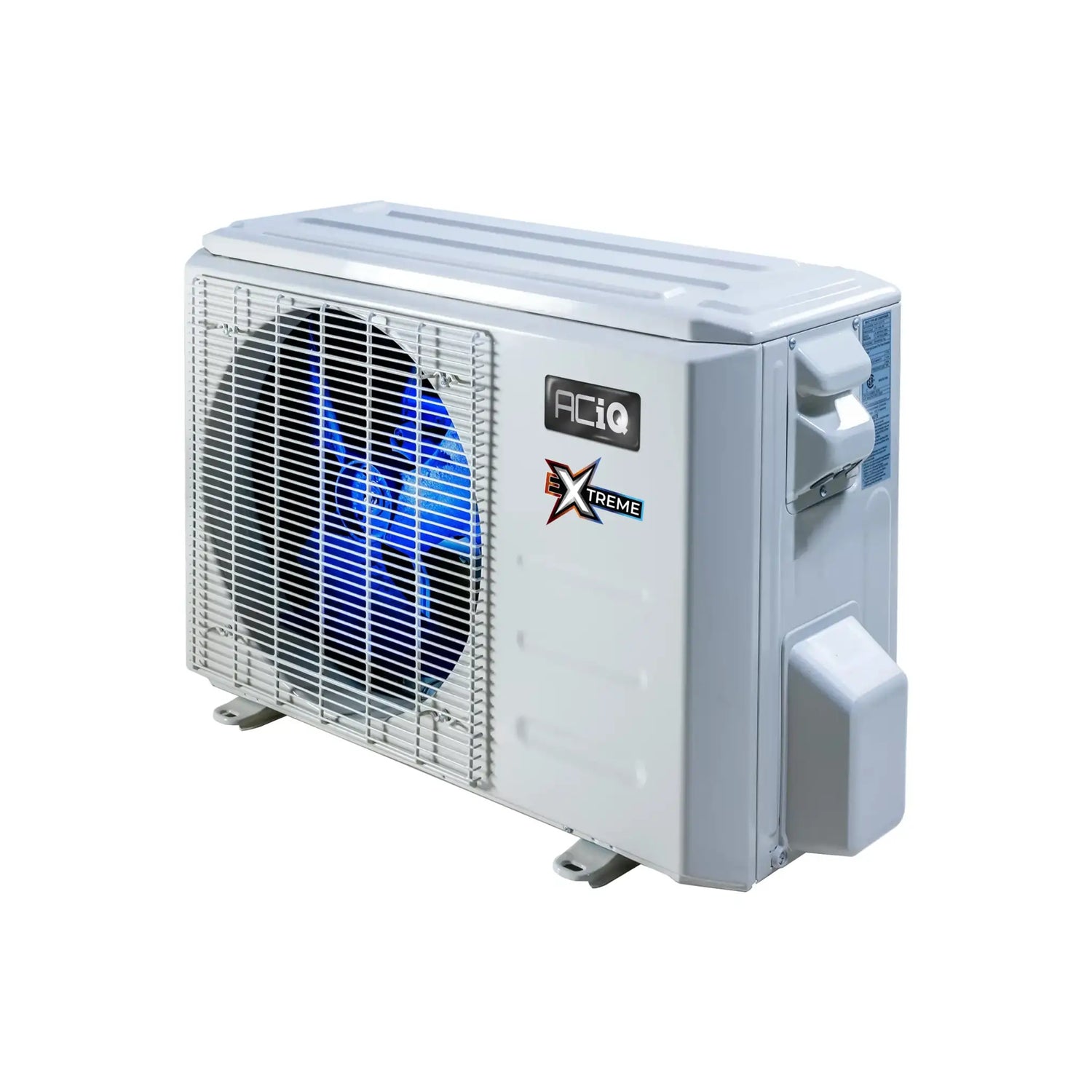

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C
The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.
Key Features
- 27,000 BTU, 23 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

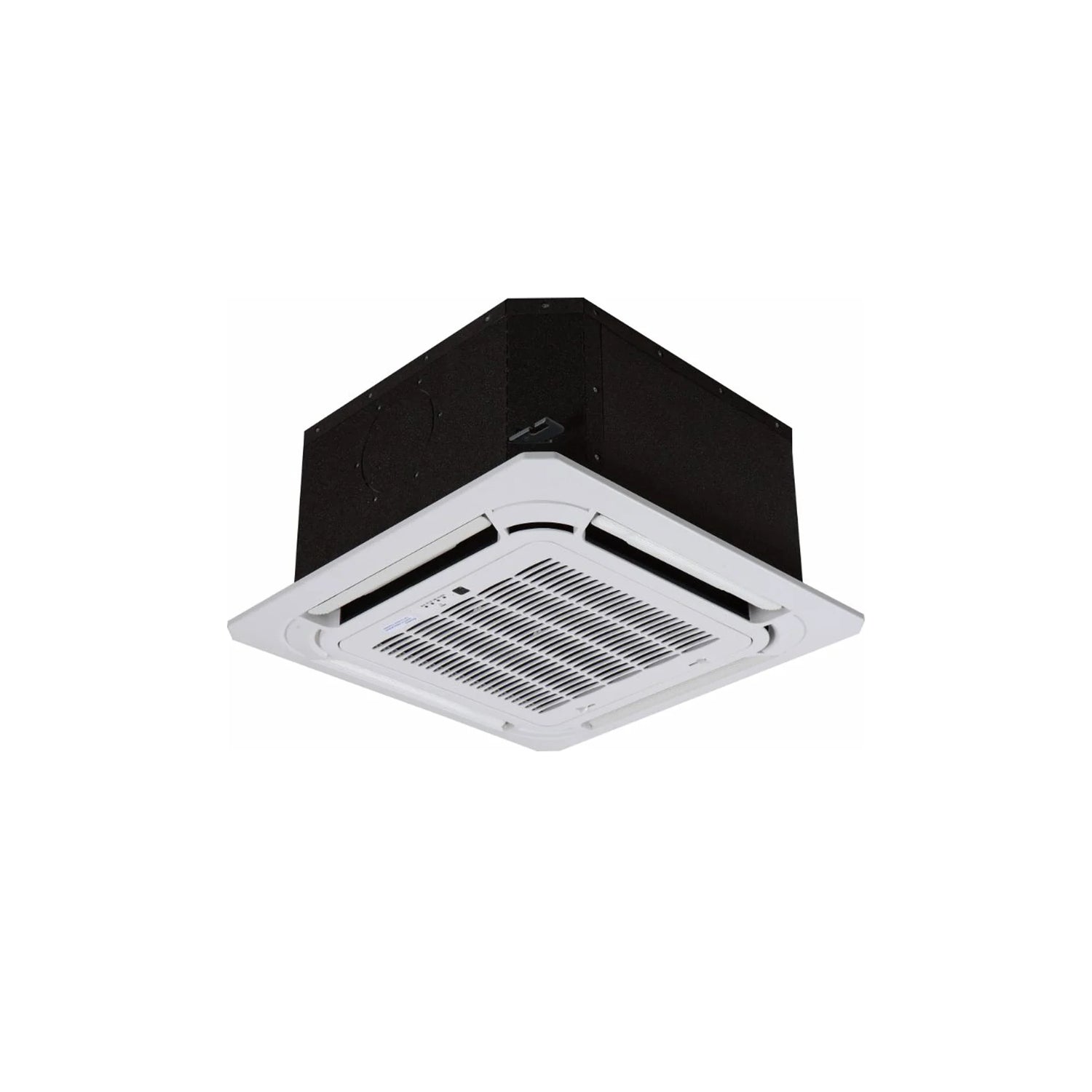

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC x2
Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.
Key Features
- 18,000 BTU of Heating or Cooling
- Dry and Fan modes available
- Suitable for medium rooms in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote and Decorative Grille included
- Flush-mounted Ceiling Cassette design for understated appearance
- Factory installed condensation pump for easy maintenance
ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.
