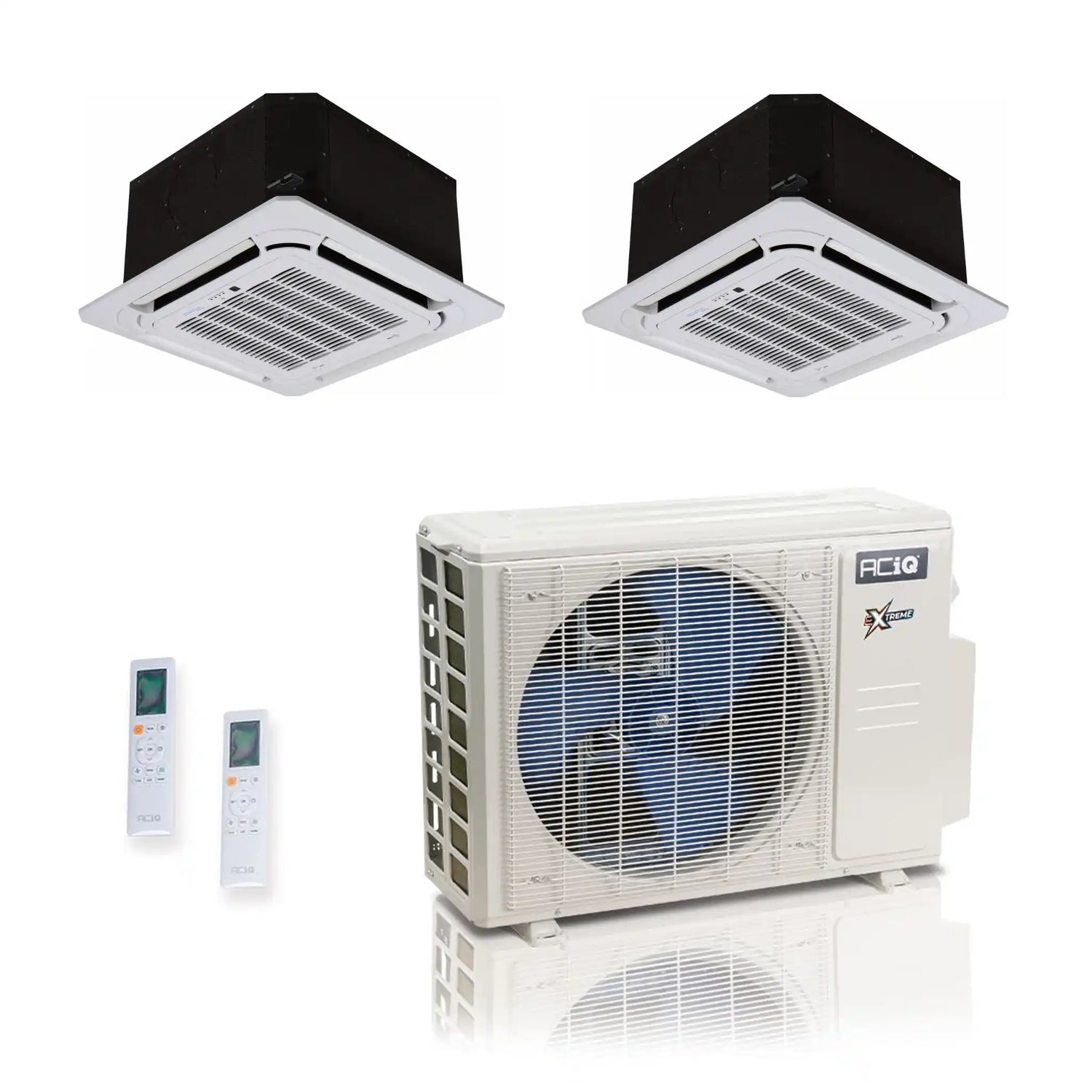

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+18
Key Features
- Efficiency: Achieves 23 SEER2 and 10.5 HSPF2 for strong cooling and heating performance from this Extreme Series system.
- Capacity: The 27,000 BTU (2.25 ton) multi-zone condenser feeds 2 independently controlled zones via 12,000 BTU and 18,000 BTU ceiling cassettes (12K+18K).
- Refrigerant: Operates on R454B refrigerant with a Gold Fin-coated coil and base pan heater for reliable cold-climate performance down to -22°F.
- Design: Flush-mounted ceiling cassettes deliver 4-way air distribution and a discreet, centralized look, each with a handheld remote and factory-installed condensate pump.
Product Details
Product Details
ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+18

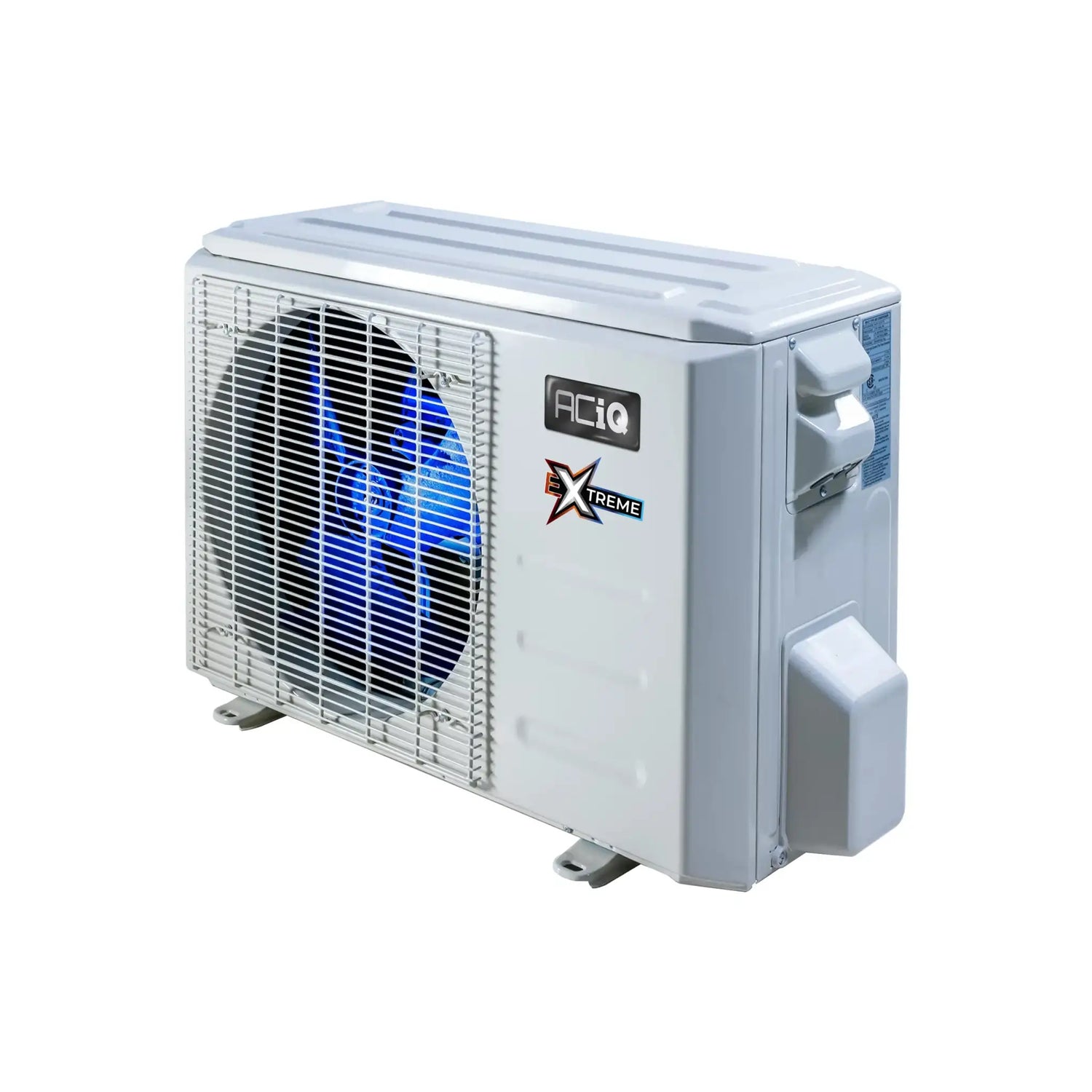

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C
The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.
Key Features
- 27,000 BTU, 23 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

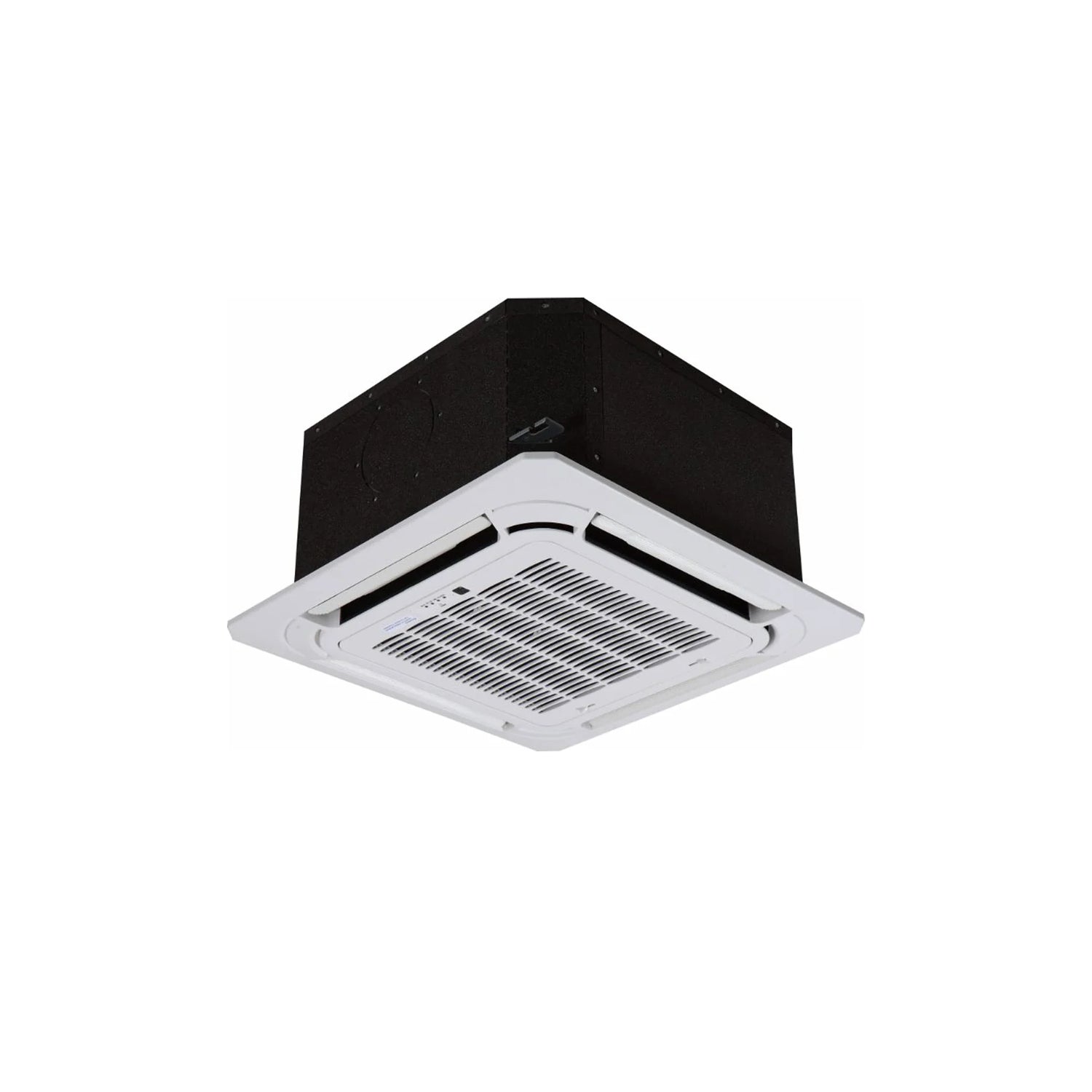

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC
Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.
Key Features
- 12,000 BTU of Heating or Cooling power
- Dry and Fan modes for versatile comfort
- Perfect for small rooms in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote and Decorative Grille included
Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.
ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC
Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.
Key Features
- 18,000 BTU of Heating or Cooling
- Dry and Fan modes available
- Suitable for medium rooms in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote and Decorative Grille included
- Flush-mounted Ceiling Cassette design for understated appearance
- Factory installed condensation pump for easy maintenance
ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.
