ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+12

By: ACiQ
SKU: ACiQ-27Z-HH-M4C / ACIQ-12CC-HH-MC-2|ID: 103391
$5,299.99
+ Free shipping

Key Features

  • Efficiency: 23 SEER2 rated Extreme Series condenser with 10.5 HSPF2 for efficient heating and cooling.
  • Capacity: 27,000 BTU (2.25 ton) outdoor unit feeds two matched 12K ceiling cassette indoor zones for balanced comfort.
  • Refrigerant: Uses R454B refrigerant with a rotary compressor engineered for quiet, reliable operation.
  • Indoor Design: Flush-mount ceiling cassettes (up to 22.3 SEER2) provide 4-way airflow and discreet, centralized distribution.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

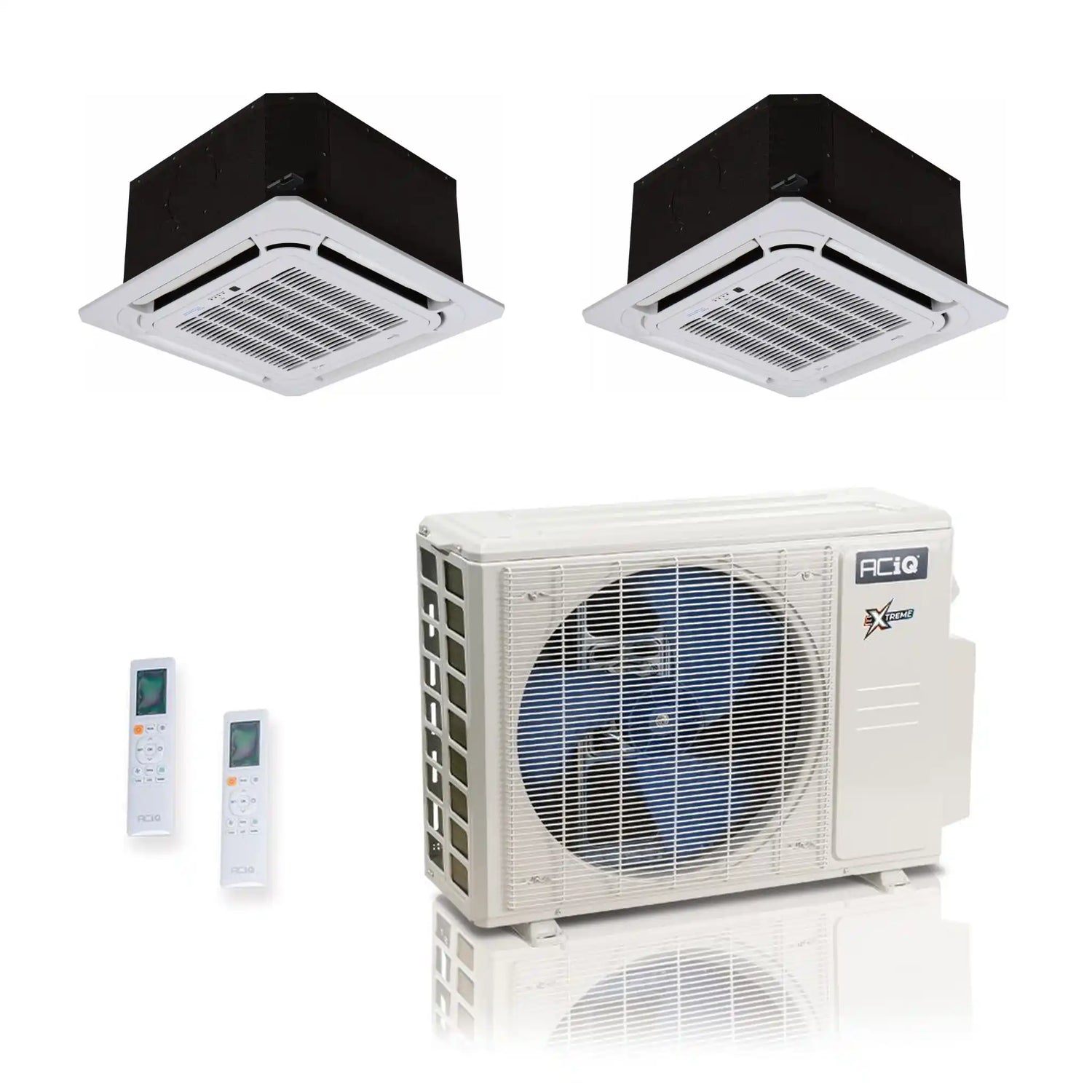

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+12

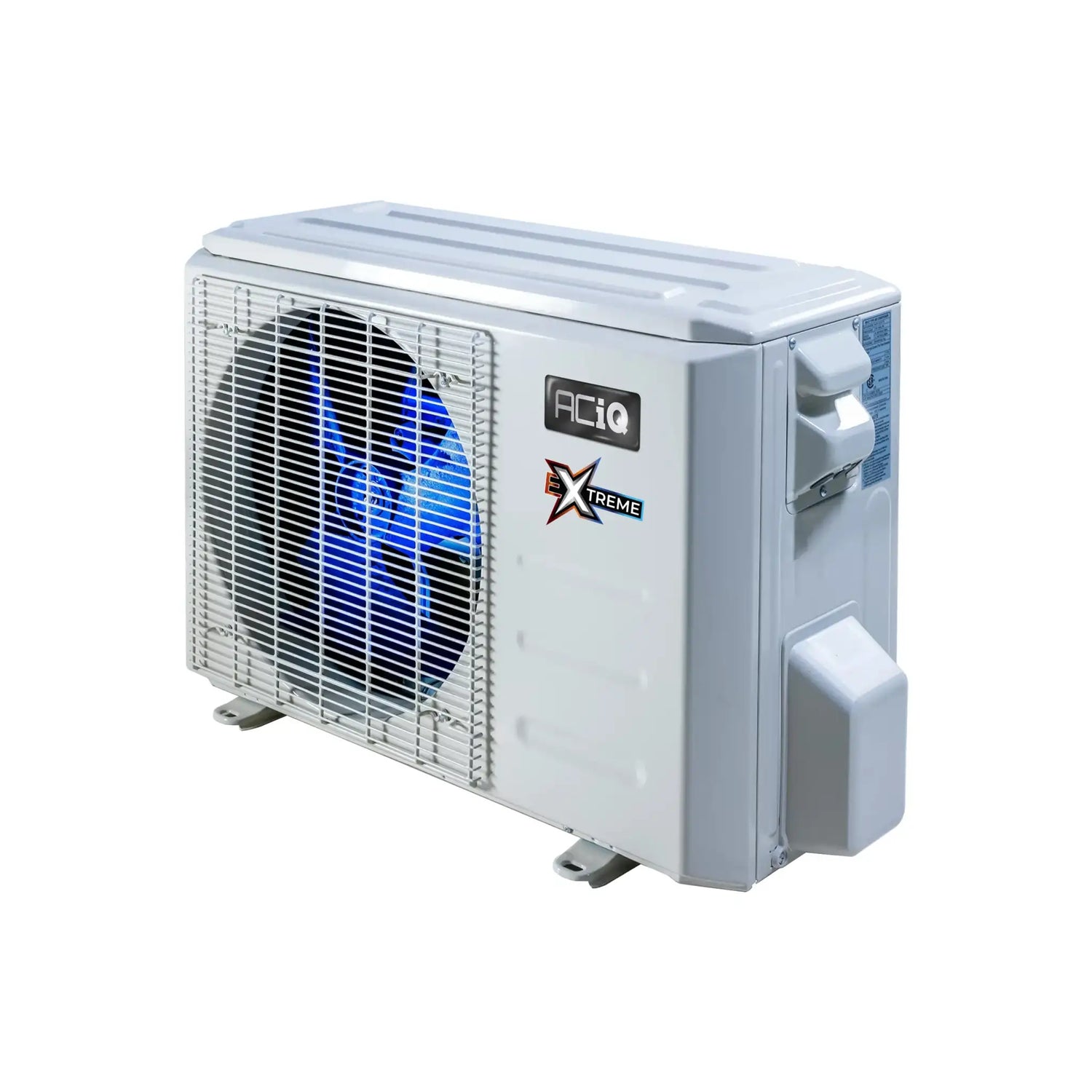

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

  • 27,000 BTU, 23 SEER multi zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

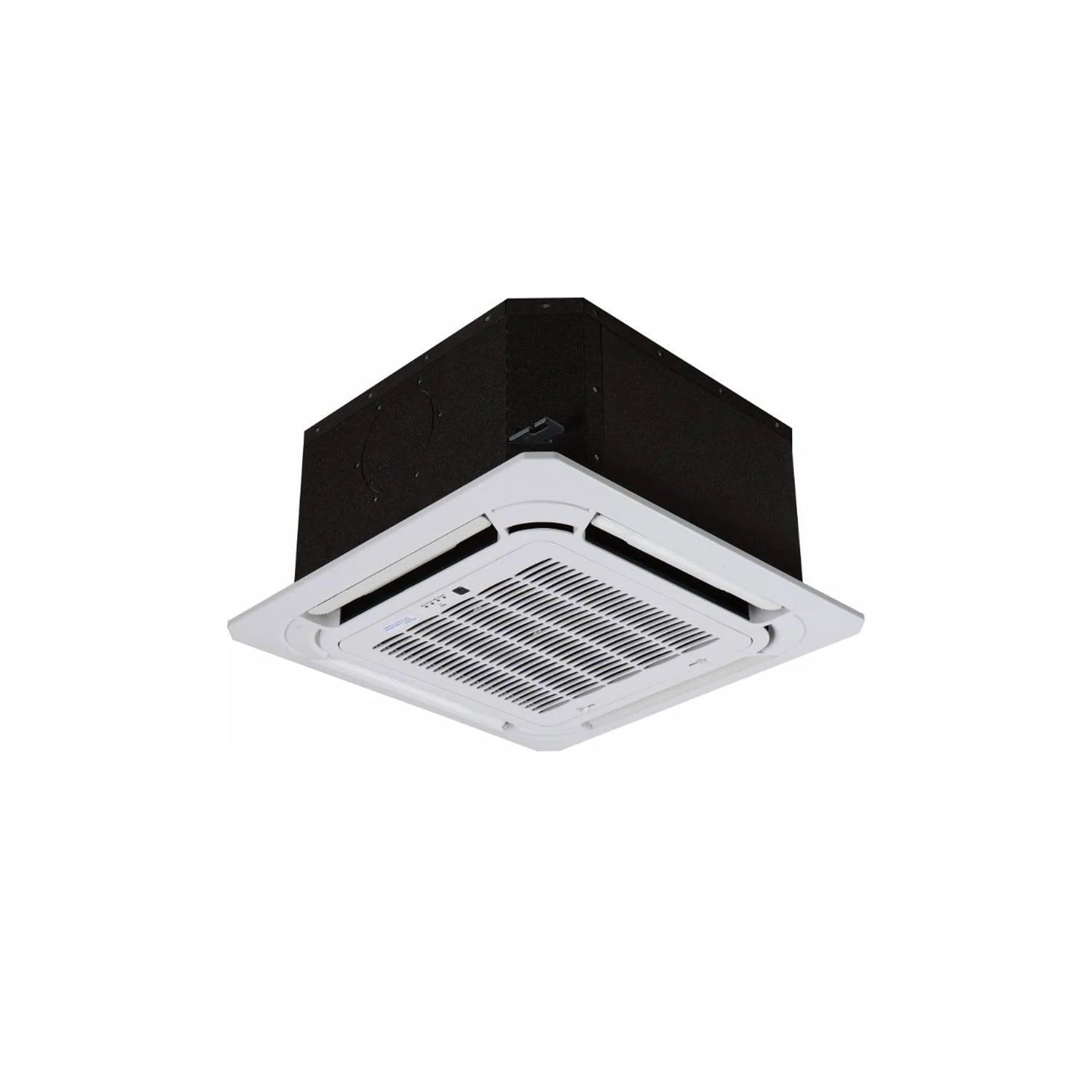

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

  • 12,000 BTU of Heating or Cooling power
  • Dry and Fan modes for versatile comfort
  • Perfect for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-27Z-HH-M4C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Submittal — ACIQ-12CC-HH-MC ACiQ Warranty

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

BrandACiQ
SKUACIQ-27Z-HH-M4C
ReplacesACIQ-27Z-HH-M3B
Product FeaturesLow Ambient Heating
HSPF210.5
Cooling BTU27000 BTU
Heating BTU27000 BTU
Decibel Level (dBA)61
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER223
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2 (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size35 Amps
Min. Breaker Size30 Amps
Tonnage2 Ton to 2.5 Ton
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height31.89"
Width37.24"
Depth16.14"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

BrandACiQ
SKUACIQ-12CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM335.29
Decibel Level (dBA)As low as 31.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.45 gal/hr
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Depth22.44"

Warranty and Product Information

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Standard Warranty5 year parts
Registered Warranty10 year parts
