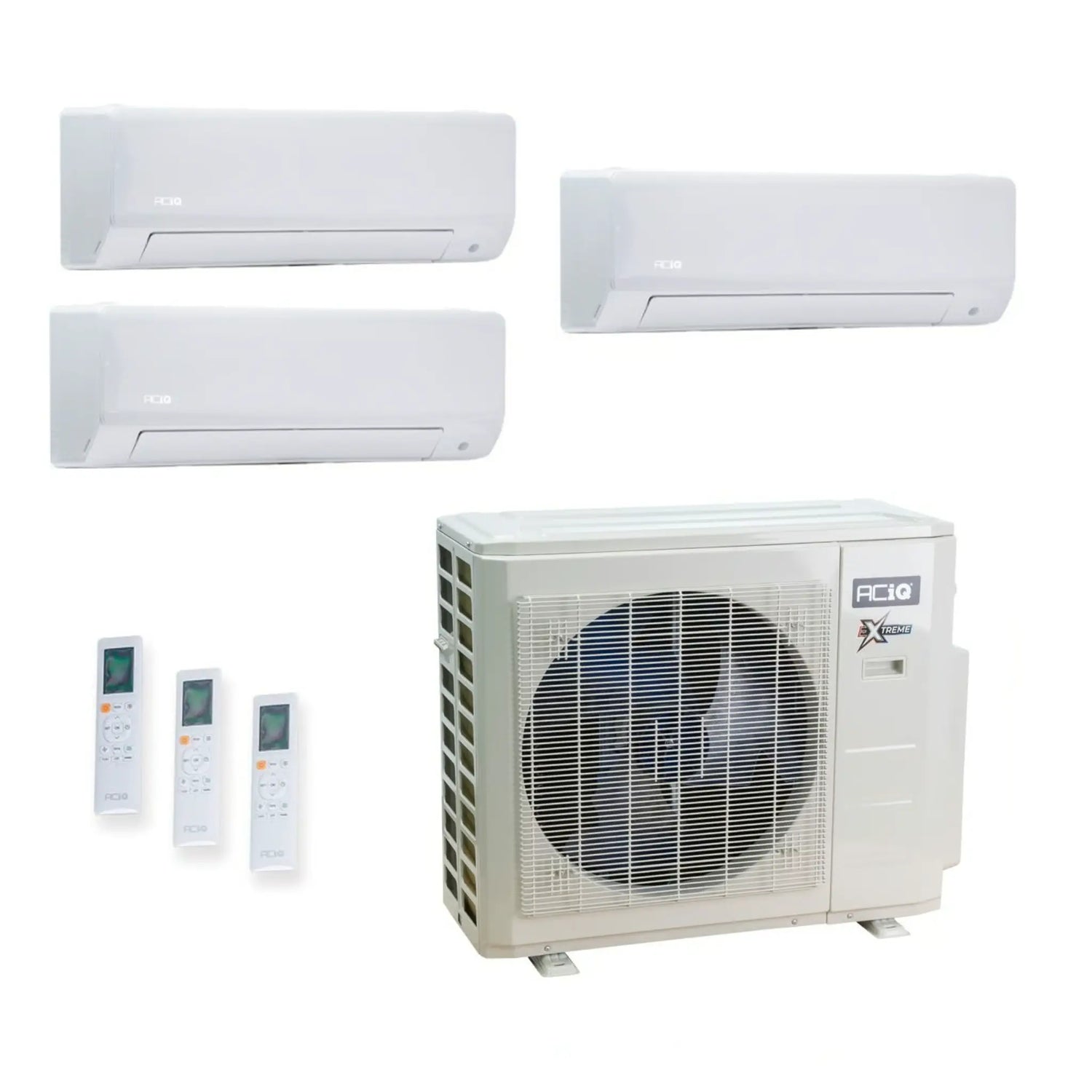

ACiQ 27,000 BTU 25 SEER2 3-Zone Wall Mount Mini Split R454B 230V 12+12+12
Key Features
- Efficiency: Rated up to 25.0 SEER2 for energy-efficient year-round comfort
- Capacity: 27,000 BTUs inverter heat pump conditions up to 3 rooms independently
- Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
- Configuration: 3-zone system (2.25 Ton) with wall mounted mini split system indoor units
Product Details
Product Details
ACiQ 27,000 BTU 25 SEER2 3-Zone Wall Mount Mini Split R454B 230V 12+12+12

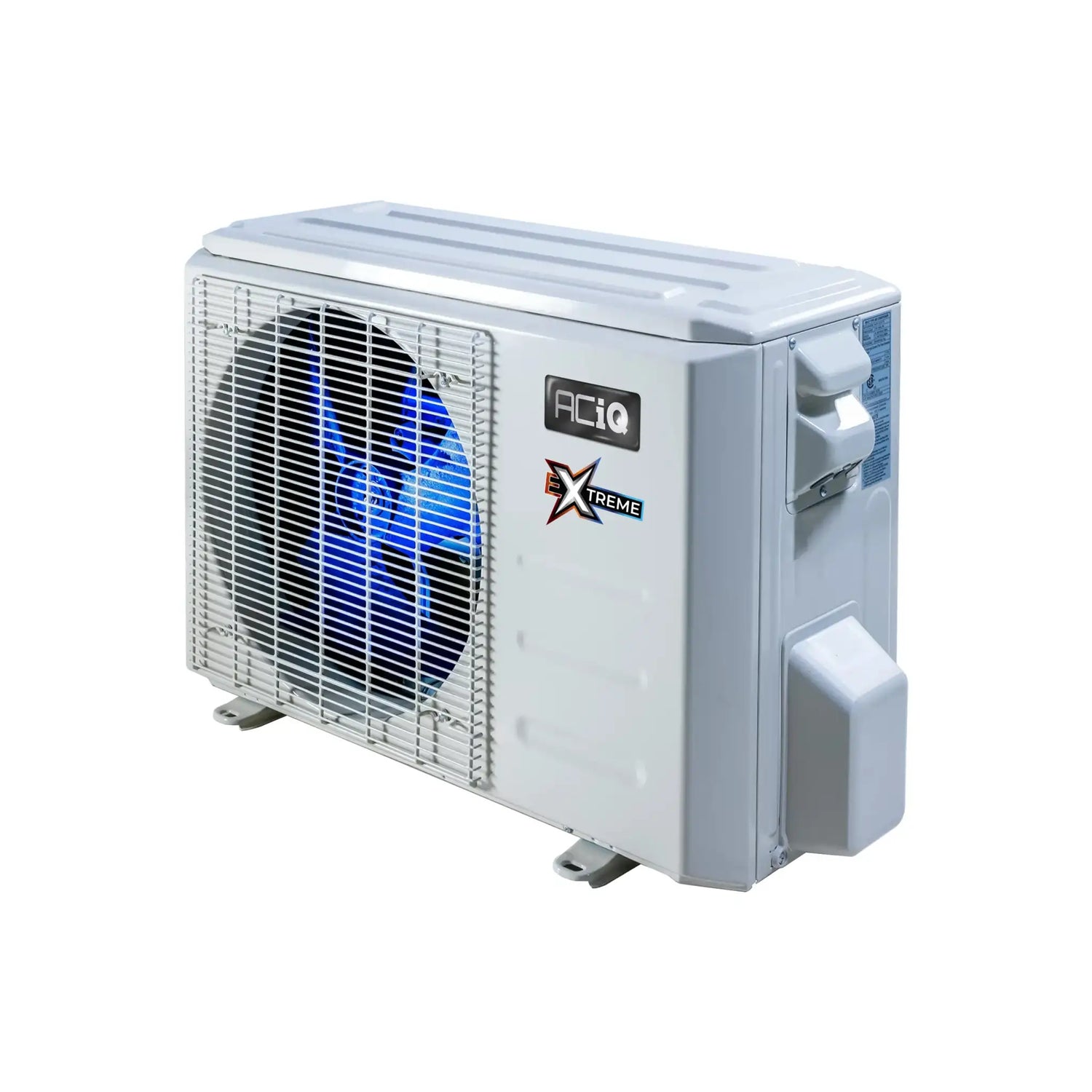

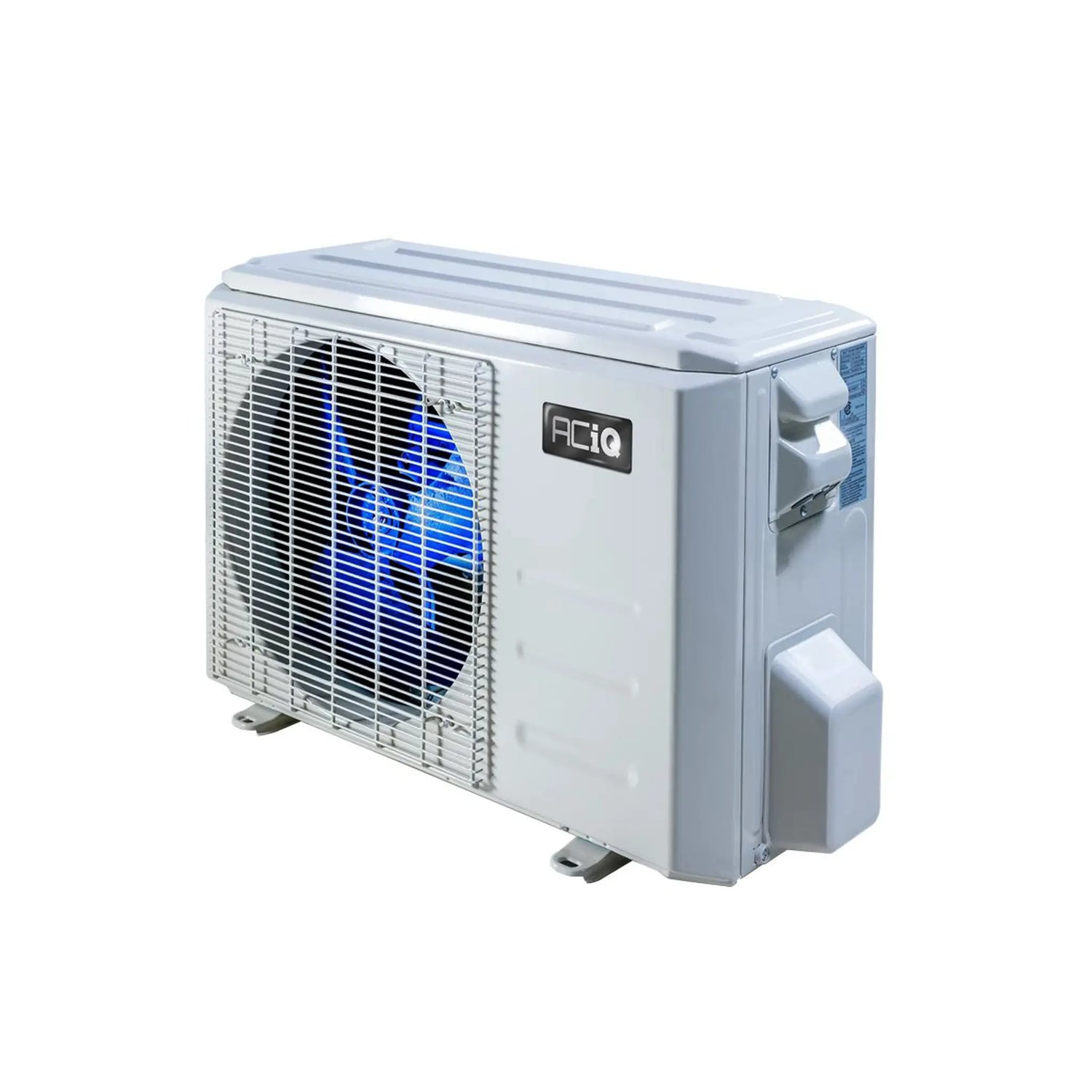

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C
ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.
Key Features
- 27,000 BTU, 25 SEER2 multi zone heat pump condenser
- Designed to function with up to 4 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.
ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x3
The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.
Key Features
- 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
- WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
- Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
- Quiet operation – as low as 19.5 dB for undisturbed comfort
- Advanced display panel with real-time temperature and diagnostic alerts
- Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
- Smart remote control included with LCD feedback screen
- Quick installation with flexible refrigerant line and drain exit
- Energy-efficient R454B refrigerant for reduced environmental impact
Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.
