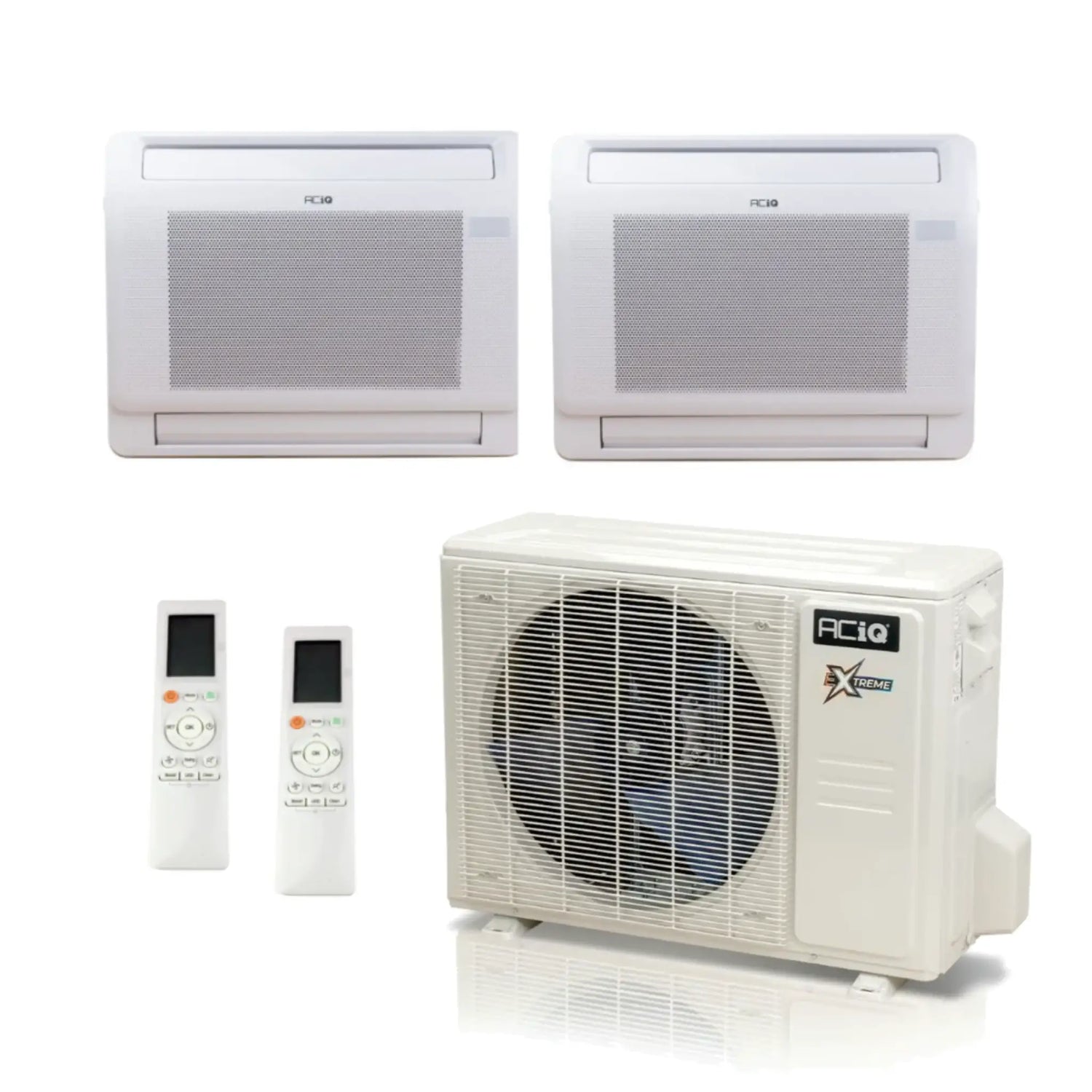

ACiQ 27,000 BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 9+9
Key Features
- Efficiency: Achieves a 23 SEER2 rating with 10.5 HSPF2 for efficient, Energy Star-certified year-round comfort.
- Capacity: The 27,000 BTU (2.25-ton) condenser splits output across two zones via matching 9K+9K BTU floor/ceiling mount air handlers.
- Refrigerant: Operates on R454B refrigerant for low environmental impact.
- Zones: Low-profile floor-or-ceiling mount indoor units suit sunrooms, attics, and low-wall spaces, with quiet operation as low as 25 dBA.
Product Details
Product Details
ACiQ 27,000 BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 9+9

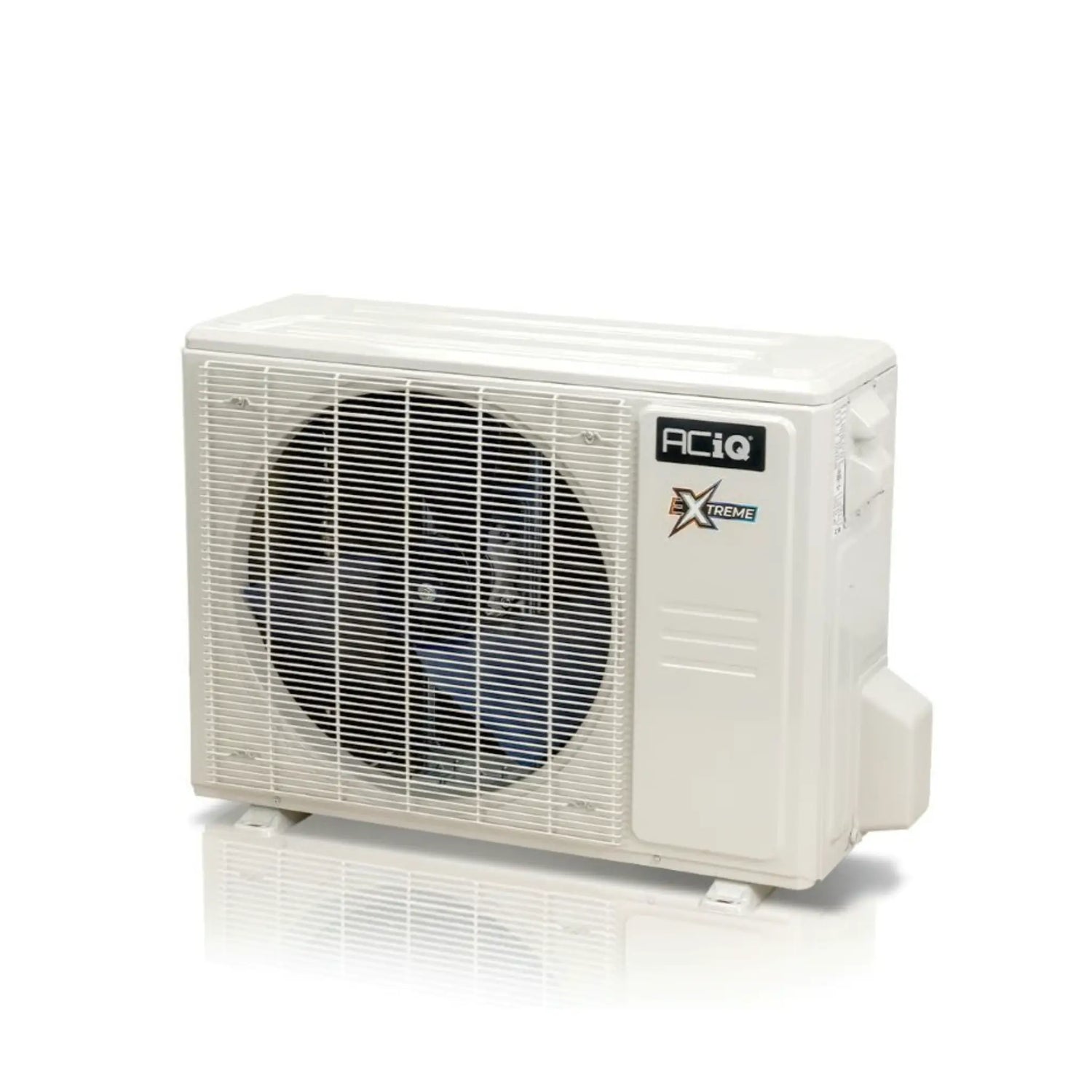

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C
The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.
Key Features
- 27,000 BTU, 23 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

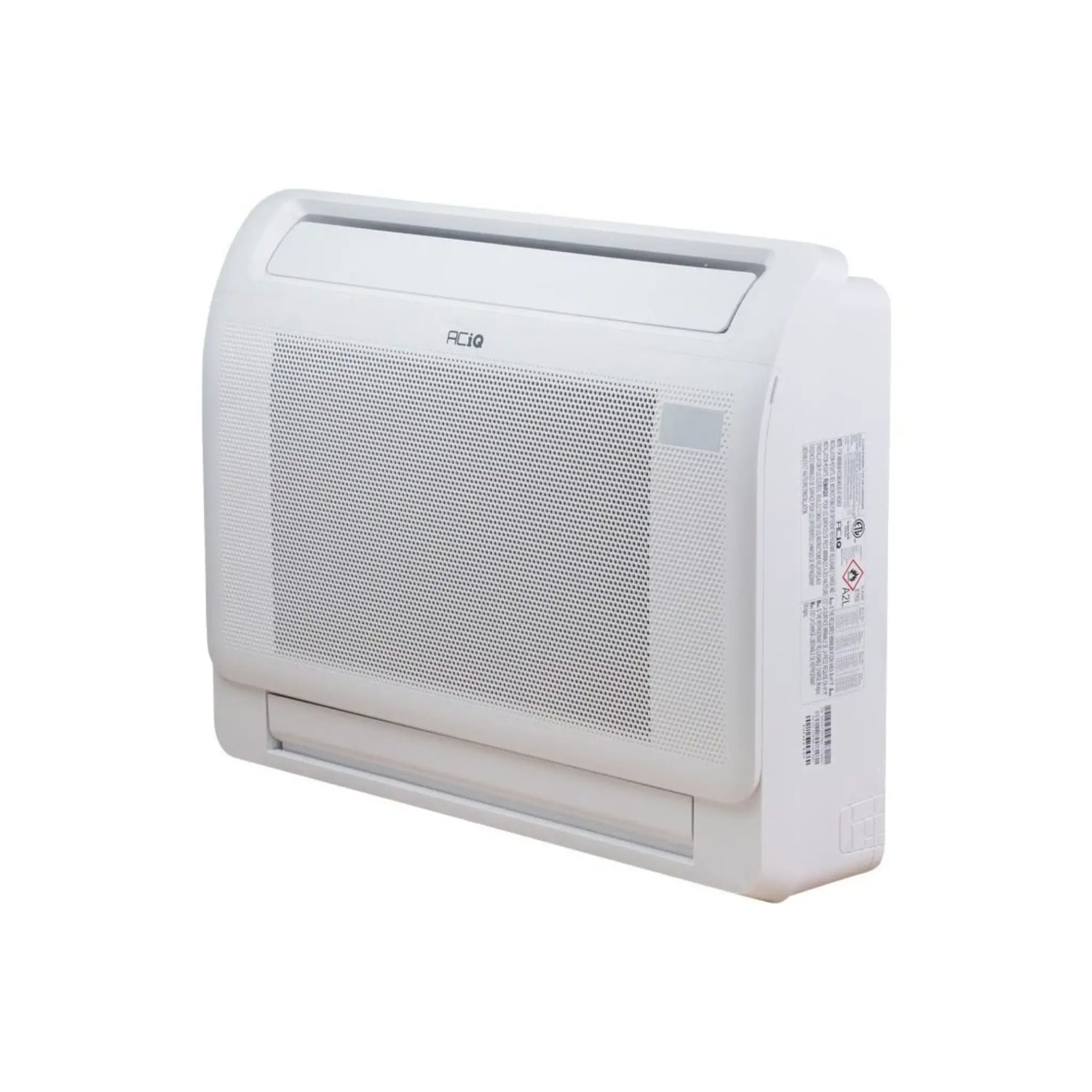

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD x2
The ACiQ Floor or Ceiling Mounted Mini Split Air Handler is a flexible indoor unit designed for installations where high-wall placement is not feasible. Delivering 12,000 BTU of powerful heating and cooling, it can be mounted low on the wall or suspended from the ceiling. Its low-profile design and quiet operation make it ideal for sunrooms, attics, and spaces with limited wall space. Adaptive airflow direction optimizes performance in both heating and cooling modes.
Key Features
- 12,000 BTU floor or ceiling mounted mini split air handler
- Optimized for heating at floor level and cooling with reversed airflow
- Energy-efficient with R454B refrigerant and inverter compatibility
- Ultra-quiet operation as low as 25 dBA
- Multi-zone compatible design
- Includes wireless remote controller
- Ideal for rooms with low walls, sunrooms, or attic remodels
This unit is designed for versatile installations and offers both floor and ceiling mount capability for unique room configurations or limited-space environments.
