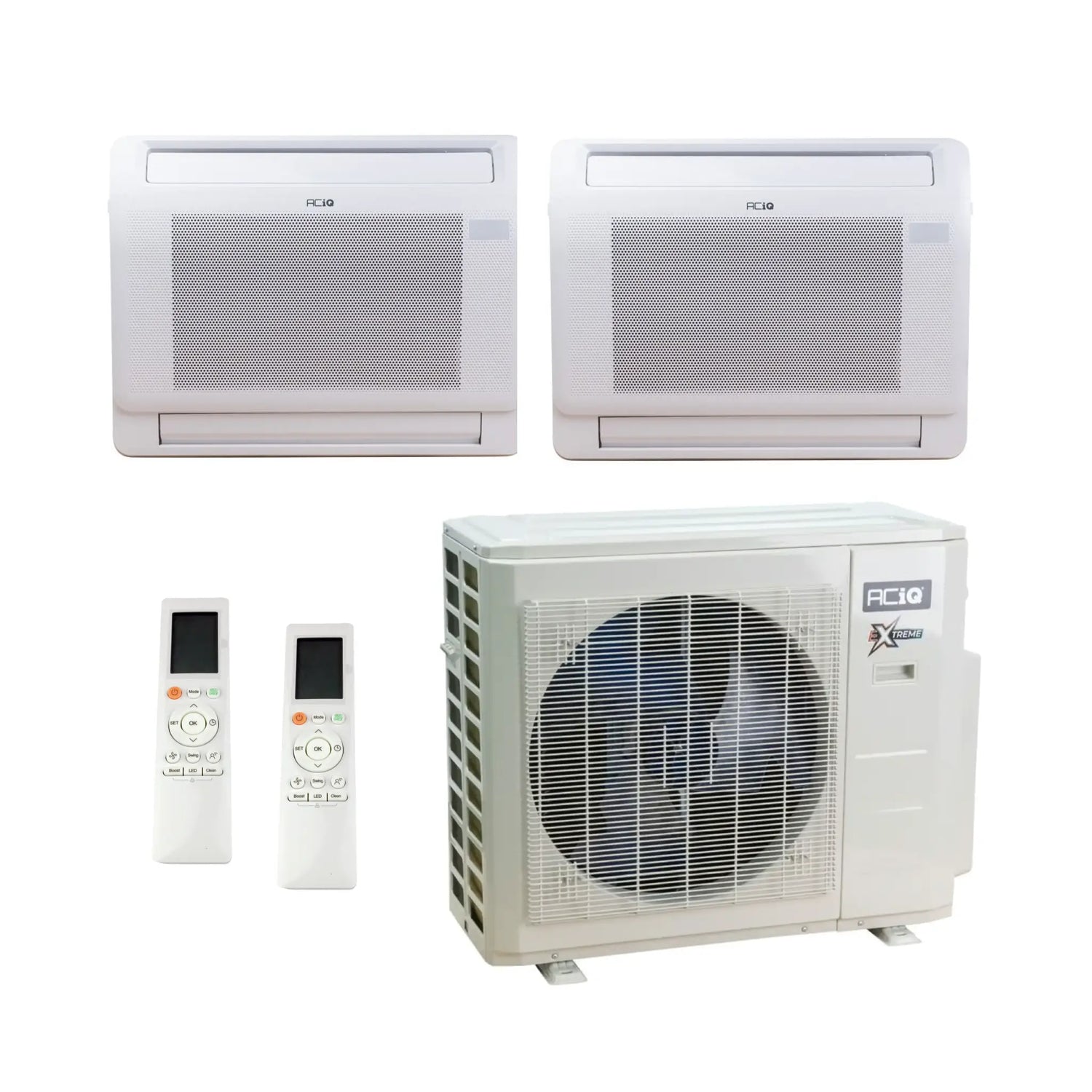

ACiQ 27,000 BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 9+24

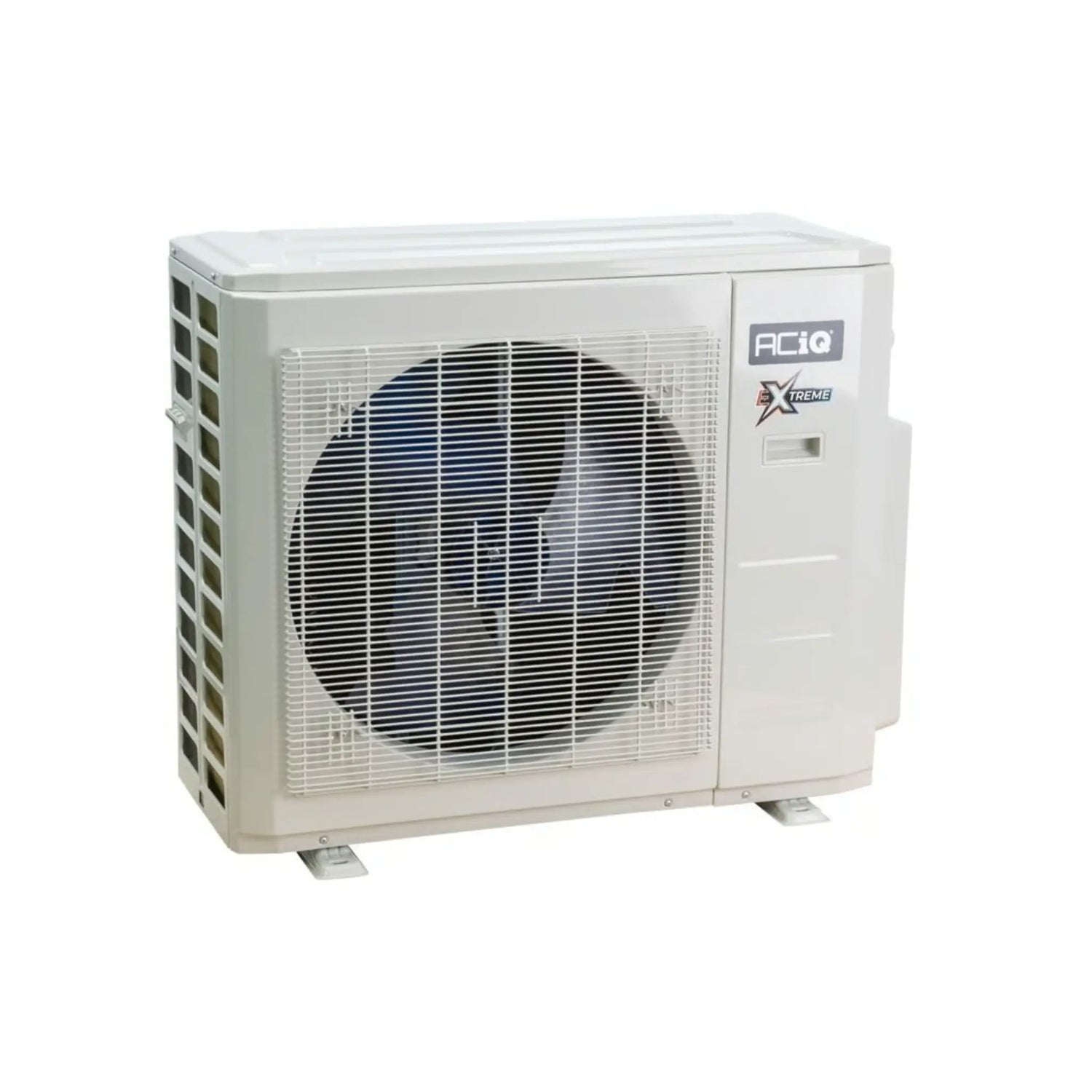

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

• 27,000 BTU, 23 SEER multi zone heat pump condenser
• Designed to function with up to 3 attached air handlers
• Efficient cooling from -22°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Integrated Extreme Heat technology with base pan heater
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

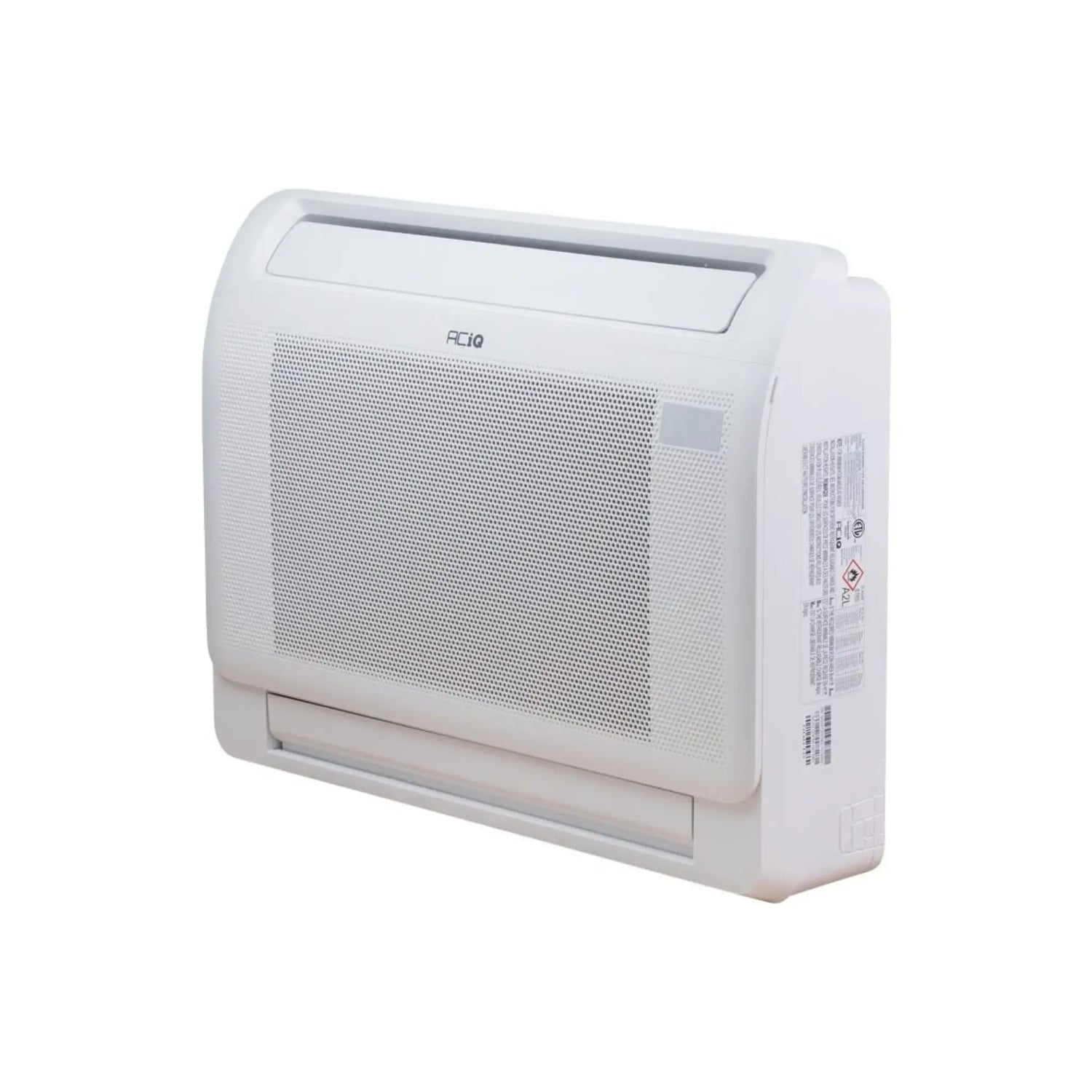

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD

The ACiQ Floor or Ceiling Mounted Mini Split Air Handler is a flexible indoor unit designed for installations where high-wall placement is not feasible. Delivering 12,000 BTU of powerful heating and cooling, it can be mounted low on the wall or suspended from the ceiling. Its low-profile design and quiet operation make it ideal for sunrooms, attics, and spaces with limited wall space. Adaptive airflow direction optimizes performance in both heating and cooling modes.

Key Features

• 12,000 BTU floor or ceiling mounted mini split air handler
• Optimized for heating at floor level and cooling with reversed airflow
• Energy-efficient with R454B refrigerant and inverter compatibility
• Ultra-quiet operation as low as 25 dBA
• Multi-zone compatible design
• Includes wireless remote controller
• Ideal for rooms with low walls, sunrooms, or attic remodels

This unit is designed for versatile installations and offers both floor and ceiling mount capability for unique room configurations or limited-space environments.

ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD

ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.

Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features. Models like the ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB are engineered specifically to solve complex installation challenges in unconventional environments.

Key Installation Advantages:

• Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
• Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
• Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
• Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
• Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.

Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
