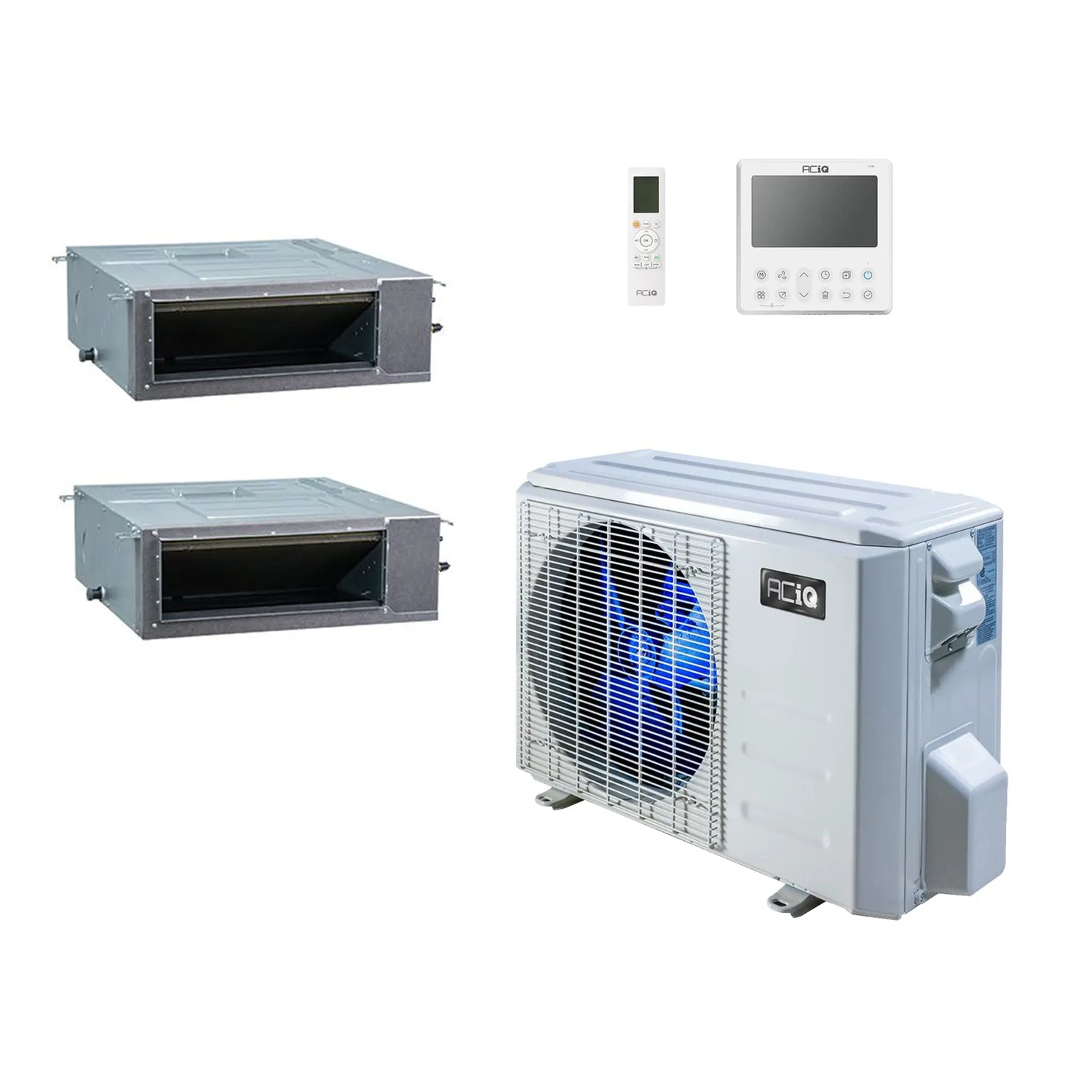

ACiQ 27,000 BTU 21 SEER2 Concealed Duct Mini Split System 2-Zone R454B 9+24
Key Features
- Efficiency: Rated at 21 SEER2 and 9.5 HSPF2, this inverter-driven system delivers efficient heating and cooling performance.
- Capacity: The 27,000 BTU (2.25-ton) condenser splits output across two zones sized at 9,000 and 24,000 BTU for tailored room-by-room comfort.
- Refrigerant: Runs on R454B refrigerant with a Gold Fin-protected coil for efficient operation from -13°F to 122°F outdoors.
- Mounting: Both indoor units are concealed duct air handlers that hide above the ceiling or below the floor, connecting to registers via flex ducting for a seamless look.
Product Details
Product Details
ACiQ 27,000 BTU 21 SEER2 Concealed Duct Mini Split System 2-Zone R454B 9+24
ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C
ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.
Key Features
- 27,000 BTU, 25 SEER2 multi zone heat pump condenser
- Designed to function with up to 4 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

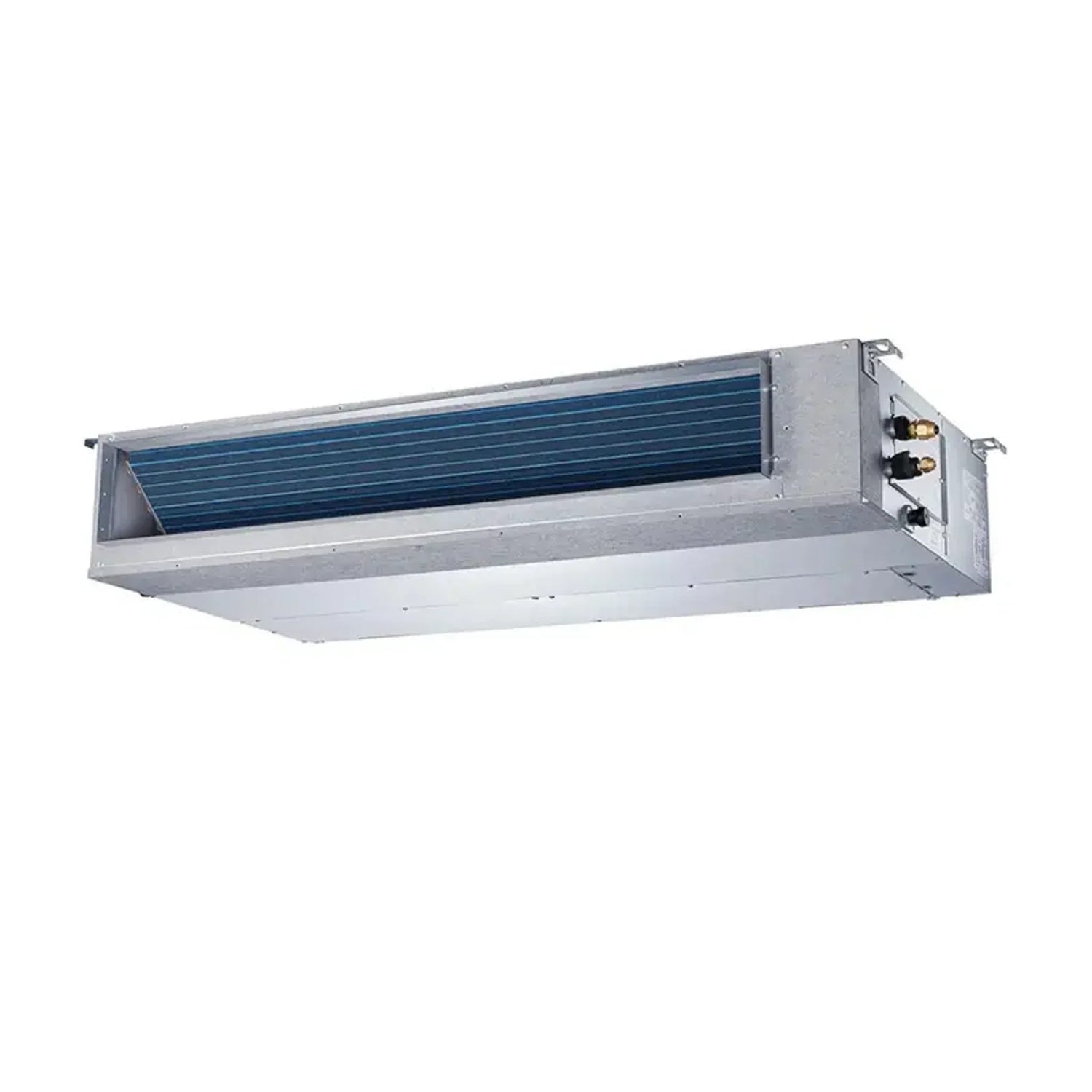

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC
Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.
Key Features
- 9,000 BTU of heating or cooling power
- Dry and fan modes for added versatility
- Perfect for smaller rooms in most climates
- Includes a wall-mounted thermostat for easy temperature control
- Concealed duct design for a seamless look
Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.
ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC
The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.
Key Features
- 24,000 BTU for heating or cooling
- Dry and Fan modes available
- Suitable for medium-sized rooms in most climates
- Includes wall-mounted thermostat
- Concealed Duct design for discreet installation
The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.
