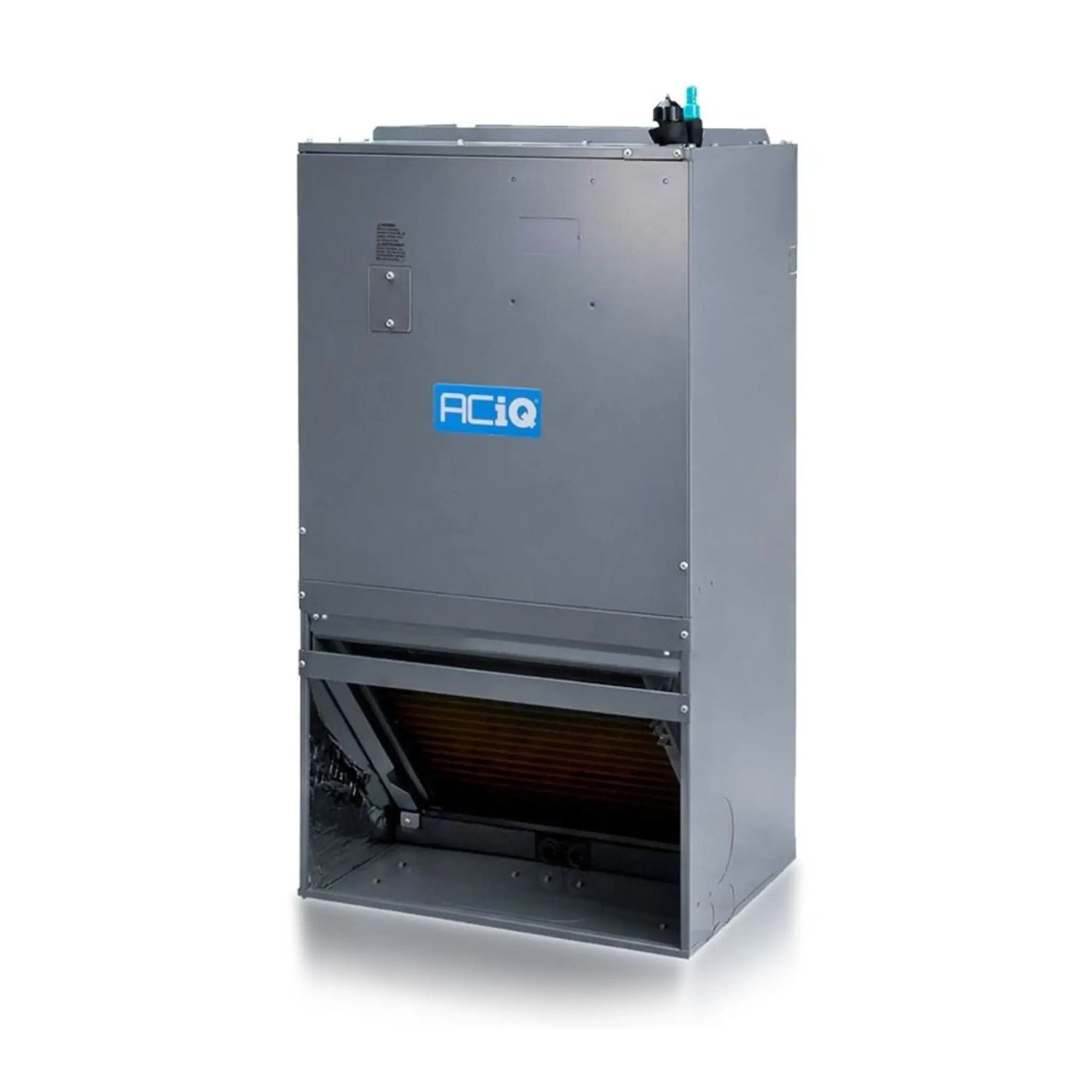

ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow
Key Features
- Capacity: Rated at 2 tons, this wall-mounted air handler delivers consistent ducted heating and cooling for small to mid-size homes.
- Airflow: A direct-drive, multi-speed blower motor moves up to 824 CFM while running at a quiet 53 dBA.
- Refrigerant: Built for R454B systems with a fully adjustable TXV that fine-tunes performance in both cooling and heat pump modes.
- Warranty: Backed by a 7-year parts warranty with online registration, plus optional 3-10 kW electric heat kits for backup warmth.
Product Details
Product Details
ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow
The ACiQ Wall Mounted Ducted Air Handler is built for vertical wall or stud mounting, offering flexible installation options wherever ductwork access is available. Its fully insulated, galvanized-steel cabinet delivers dependable performance and long-lasting durability, making it an ideal indoor component to pair with a compatible ACiQ condenser.
Key Features
- Ducted design connects directly to existing or new ductwork
- Compatible with R454B refrigerant
- Fully adjustable TXV supports both cooling and heat pump operation
- Direct-drive, multi-speed blower motor delivers up to 824 CFM with quiet operation around 53 dBA
- Factory-installed pull-type disconnect switch for safe, convenient servicing
- Aluminum tube coil construction for efficient heat transfer
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack with included filter for improved indoor air quality
- Included wall-hanging bracket simplifies installation
- Supports optional electric heater coil kits (3, 5, 8, or 10 kW) for backup heat
- Pairs with ACiQ's high-efficiency inverter condensers
Installation and Durability
Installation follows the same process as any replacement air handler - a qualified technician will complete the electrical, refrigerant, thermostat, and communication connections, along with the return and supply ductwork. This unit is designed for vertical wall mounting in an up-flow-only configuration. It can be controlled by any 24V thermostat with two stages of heating, though the ACiQ thermostat is recommended, and an optional electric heater coil can be added for backup heat on the coldest days. The intelligent control board displays fault codes to simplify troubleshooting and maintenance. Note: to operate as a heat pump, this air handler must be paired with a compatible condenser and related installation components, which are sold separately.
