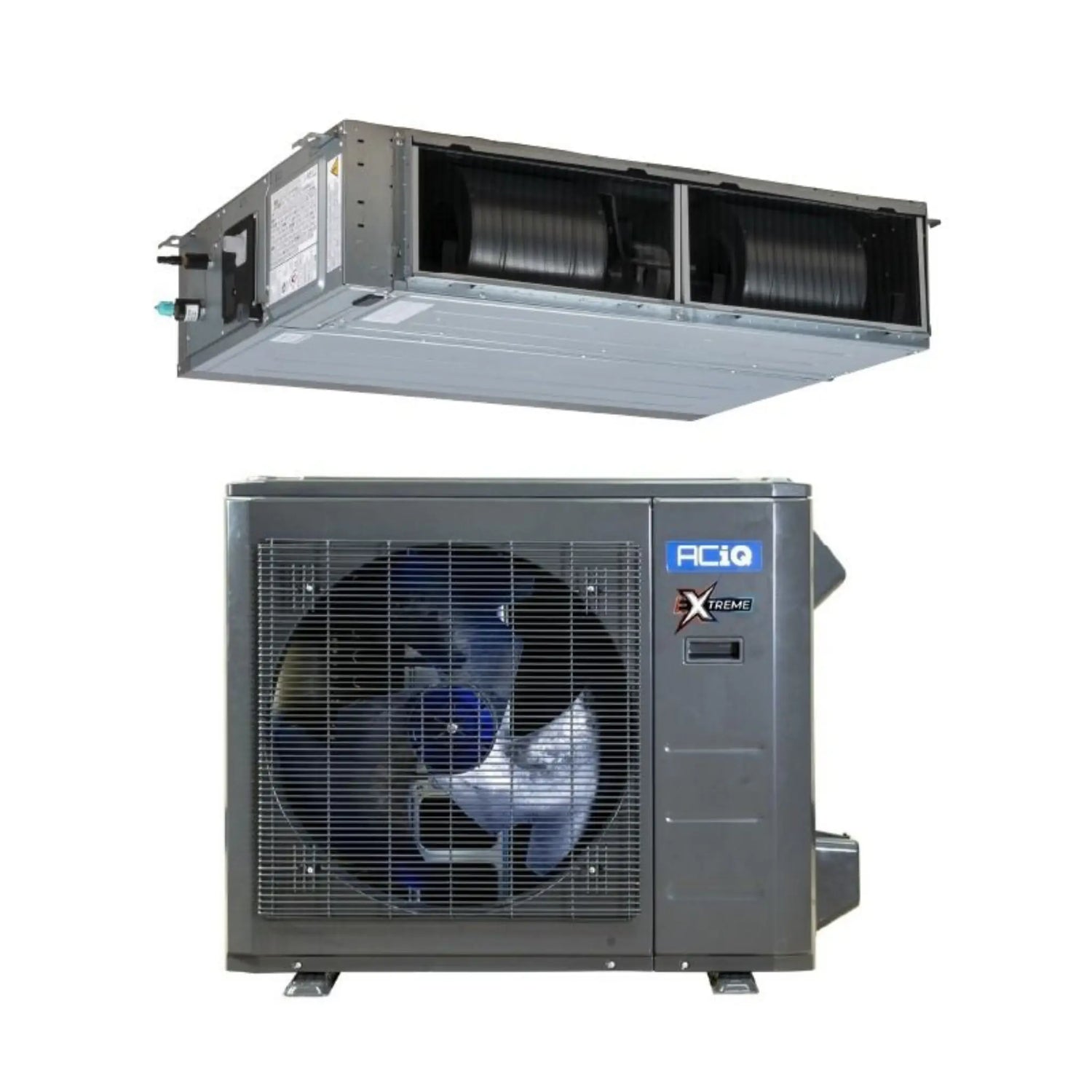

ACiQ 2 Ton 16 SEER2 Ceiling Mount Heat Pump Split System Inverter R454B

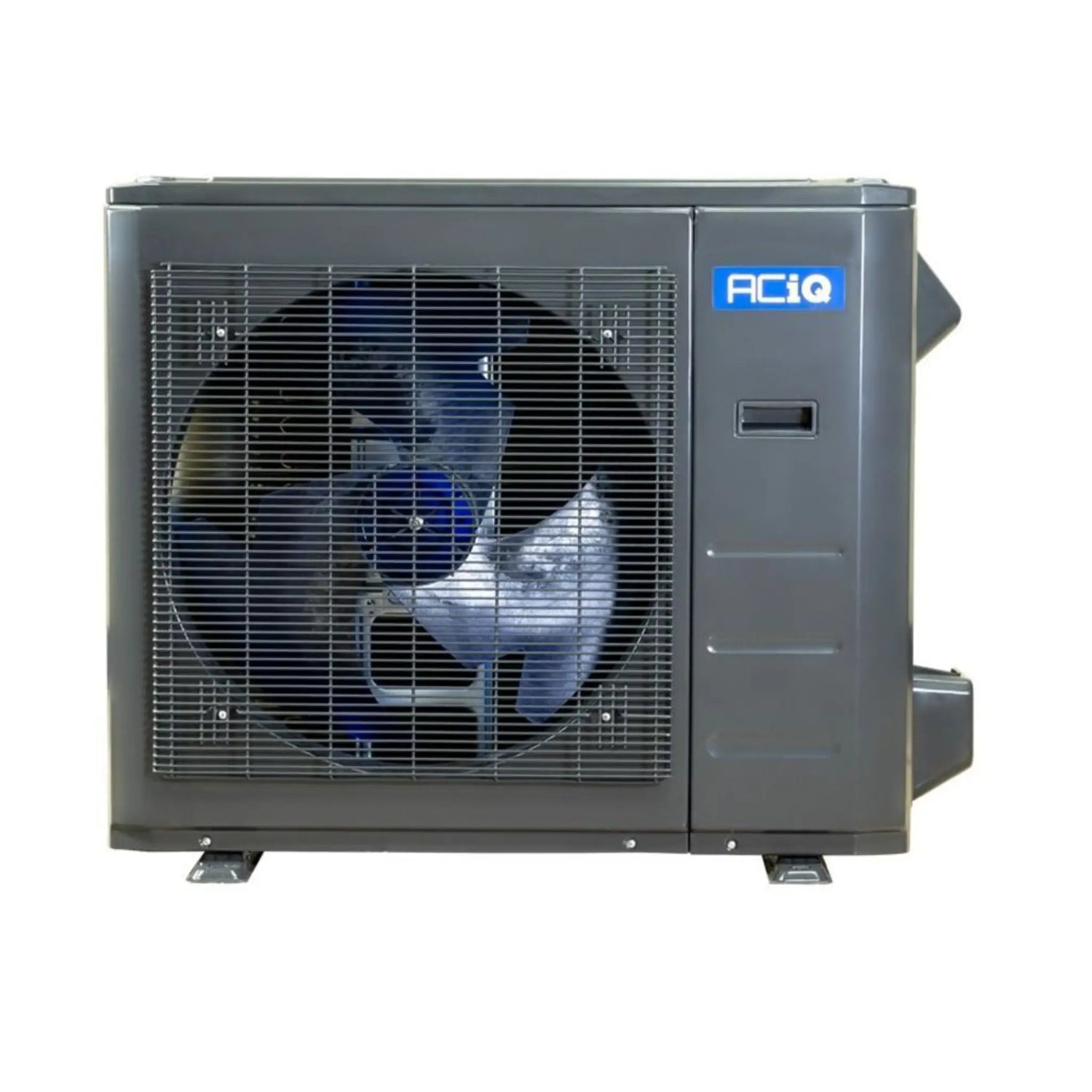

ACIQ Standard Series 2 Ton 18.1 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter (ACIQ-24-EHPD)

Inverter - The ACIQ-24-EHPD 2 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-24-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

Key Features

• Variable output based on demand: 12,000-24,000 BTU for cooling, 12,000-26,000 BTU for heating
• R454B refrigerant
• Inverter heat pump system for ducted applications
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Reliable heating from -13°F to 75°F outdoor temperatures
• Durable gold fin condenser coil coating for longevity
• Quiet operation, even under high workloads

Performance Overview

Boasting an efficiency rating of 18.1 SEER2, the ACIQ-24-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. At 0°F, this heat pump operates at 81% efficiency, making it a good fit for maximizing efficiency in the coldest climates.

Important Refrigerant Safety Notice: This unit uses R454B, an A2L (mildly flammable) refrigerant. It must be paired with a compatible indoor unit equipped with the appropriate leak-detection safety measures.

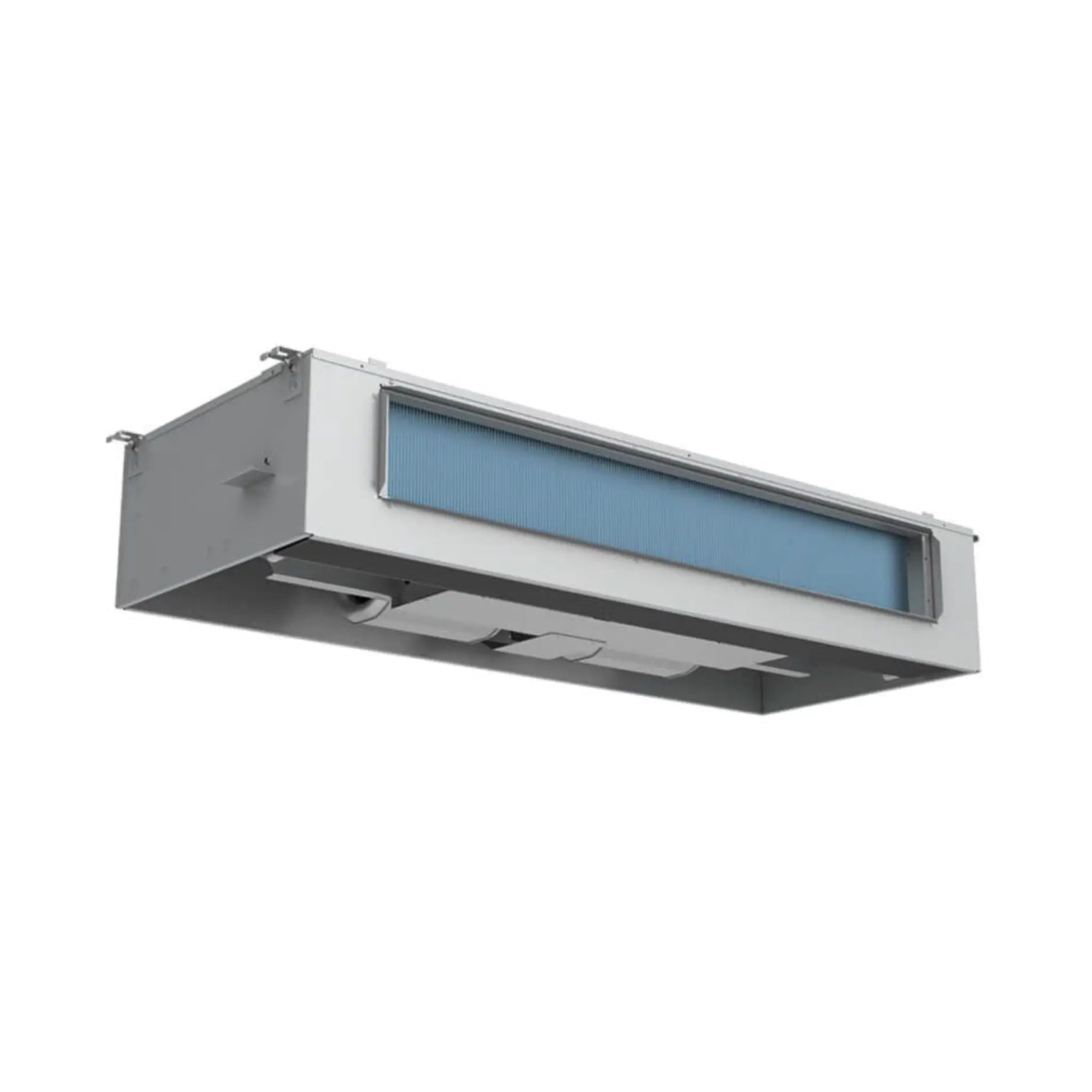

ACIQ 2 Ton Ducted Air Handler Ceiling Mounted - R454B (ACIQ-24W-PB)

The ACIQ Ceiling Mounted Ducted Air Handler, commonly known as the "pancake" air handler, is specifically engineered for use with R454B refrigerant. It is well-suited for installation in drop ceilings and attic spaces and connects directly to ductwork. Designed to pair seamlessly with ACIQ High Efficiency inverter systems, this unit delivers optimal efficiency and quiet operation. Durably built with galvanized-steel construction and offering easy service access, it provides dependable performance. A 7-year parts warranty is included with online registration, ensuring lasting peace of mind.

Key Features

• Connects to ductwork
• Suitable for use with R454B refrigerant
• Variable speed motor for ultimate efficiency
• Quiet operation
• Galvanized-steel construction
• Easy service access
• 7-Year Parts Warranty with Online Registration
• Works with our high-efficiency inverter condensers

Performance Overview

This ceiling-mounted air handler is equipped with a variable-speed blower capable of up to 824 Maximum CFM at a quiet 56.5 dBA, and supports optional electric backup heat kits (3kW, 5kW, 8kW, or 10kW) for supplemental heating. Pairs directly with the ACIQ-24-EHPD condenser above to form a complete R454B ducted heat pump system, ideal for multi-tenant and drop-ceiling installations.
