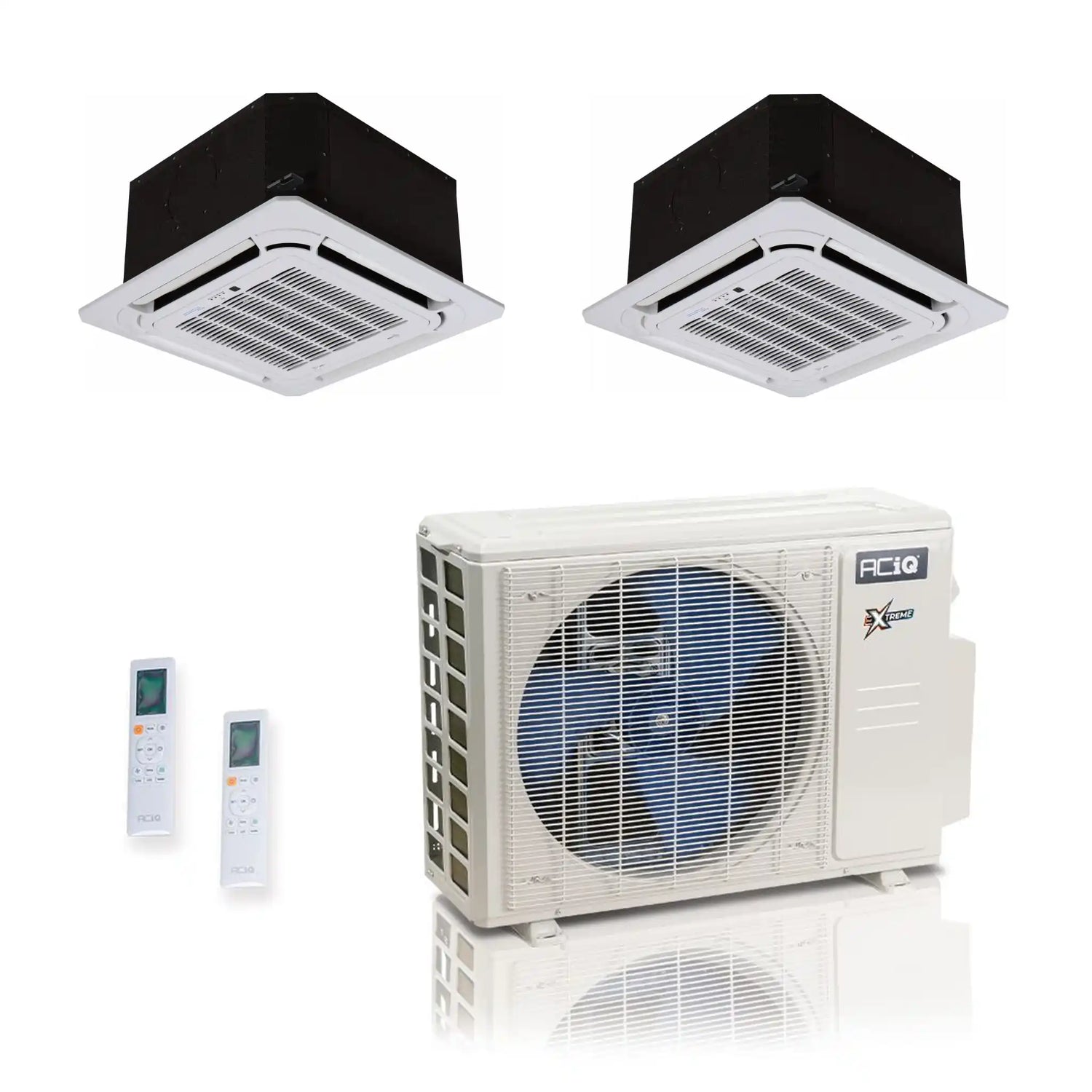

ACiQ 18K BTU 25 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 12+12

By: ACiQ
SKU: ACiQ-18Z-HH-M3C / ACIQ-12CC-HH-MC-2|ID: 103360
$4,349.99
+ Free shipping

Key Features

  • Efficiency: Achieves up to 25 SEER2 cooling and 10.4 HSPF2 heating thanks to a variable-speed twin rotary inverter compressor.
  • Capacity: An 18,000 BTU (1.5-ton) outdoor condenser feeds two matched 12,000 BTU indoor zones for balanced comfort in two rooms.
  • Refrigerant: Uses R454B refrigerant, rated for efficient heating and cooling from -22°F to 122°F outdoors.
  • Design: Both indoor units are discreet 4-way ceiling cassettes with flush-mounted grilles and factory-installed condensate pumps.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18K BTU 25 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 12+12

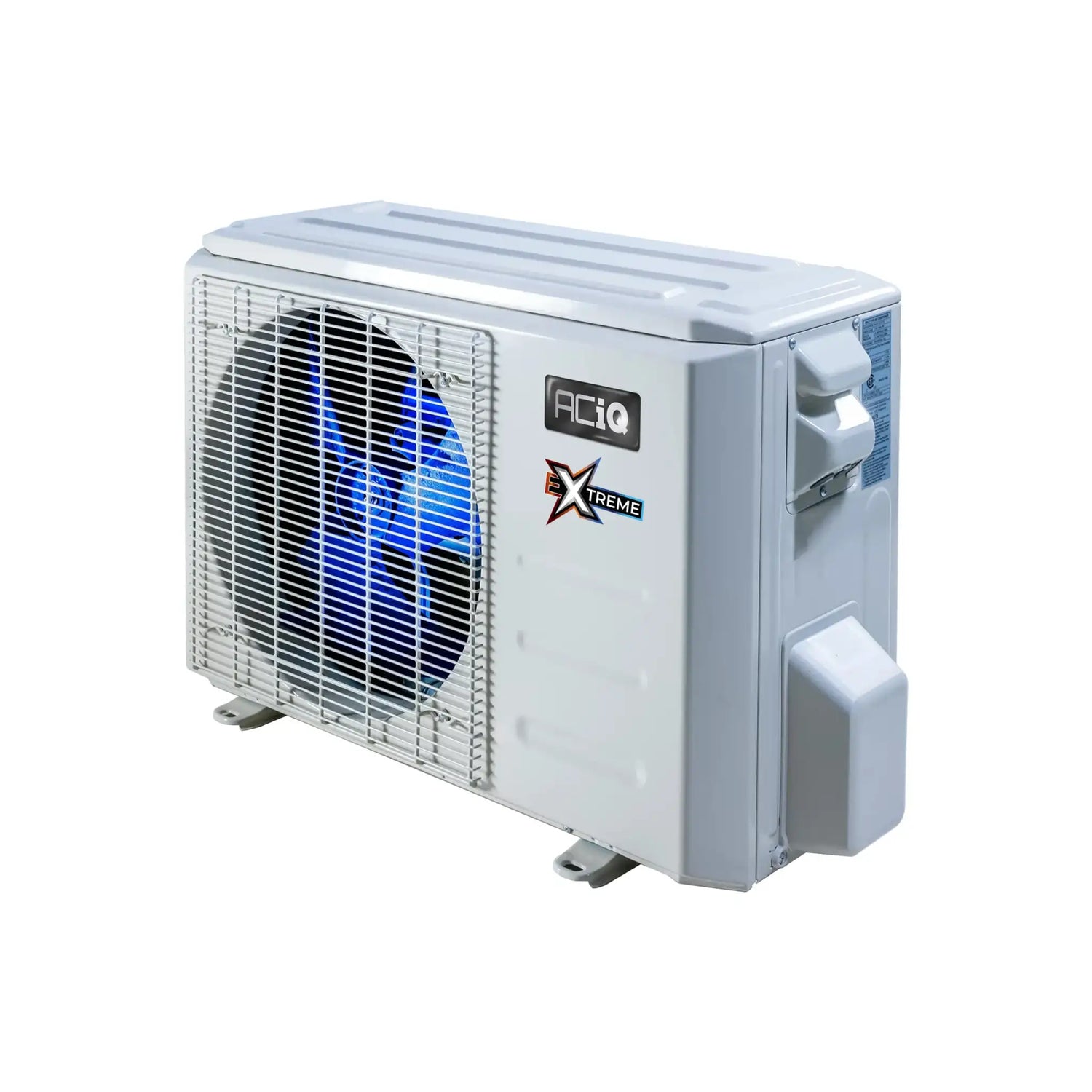

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Experience adaptive heating and cooling with the ACiQ-18Z-HH-M3C multi zone condenser from the Extreme Series. This inverter condenser is designed to efficiently run up to 3 air handlers, providing personalized comfort in every room.

Key Features

  • 18,000 BTU, 25 SEER multi zone heat pump condenser
  • Supports up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure optimal performance and energy savings with the ACiQ-18Z-HH-M3C multi zone condenser. This unit is pre-charged with R410-A refrigerant and features a variable inverter twin rotary compressor for long-lasting reliability. Register your equipment at ACiQ.com to extend warranty protection up to 7 years for parts and 12 years for the compressor.

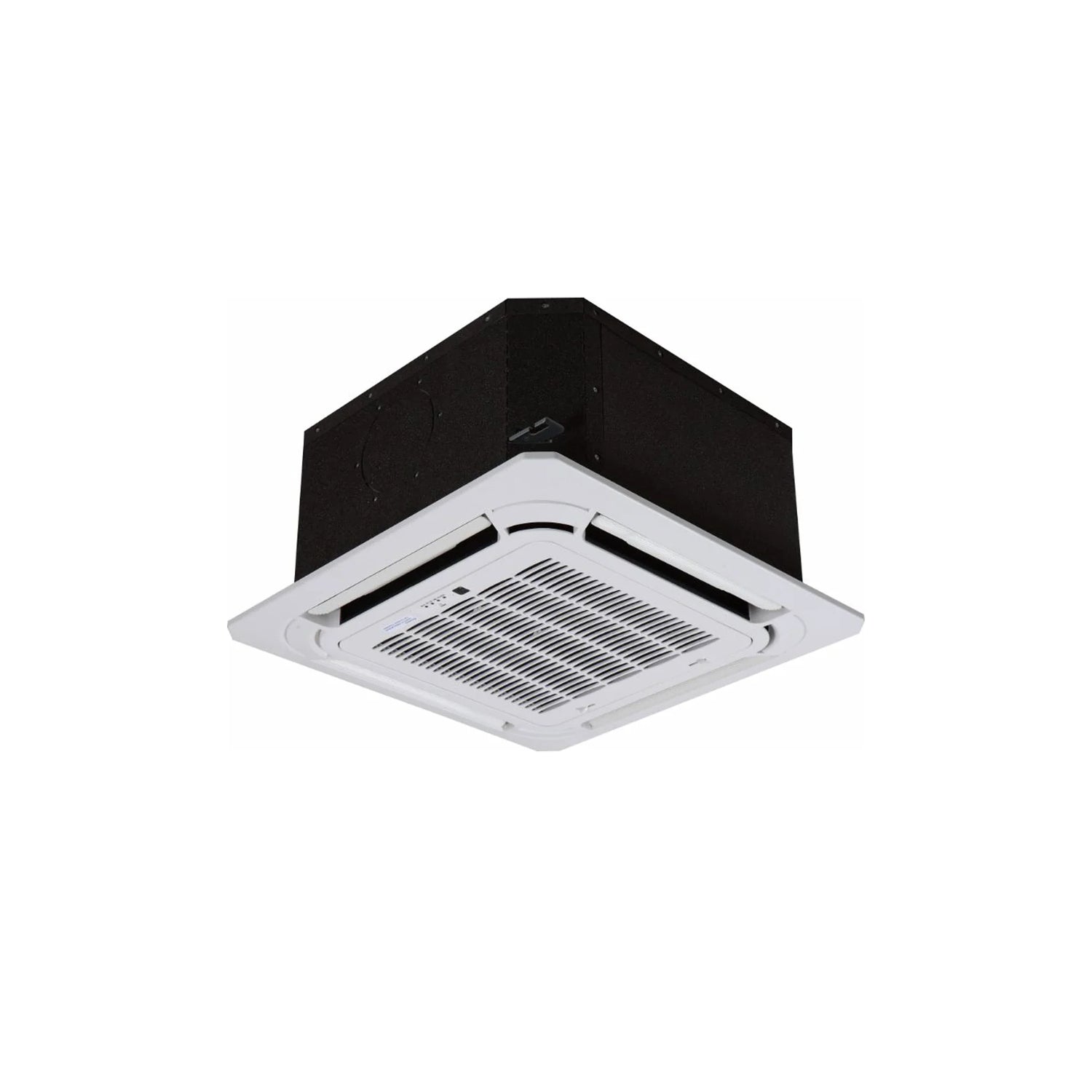

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

Looking for a more discreet air handler option? The ACiQ-12CC-HH-MC ceiling cassette mini split system offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed, only the grille is visible, providing a sleek and understated look.

Key Features

  • 12,000 BTU of heating or cooling power
  • Dry and fan modes for versatile comfort
  • Suitable for small rooms in most climates
  • 4-way air supply for consistent room coverage
  • Handheld remote control included
  • Decorative grille for added style

Ceiling cassettes offer a flush-mounted design for a discreet appearance and efficient air distribution. With a factory-installed condensation pump, these units provide quiet comfort with precise temperature control.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-18Z-HH-M3C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Submittal — ACIQ-12CC-HH-MC ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

BrandACiQ
SKUACIQ-18Z-HH-M3C
ReplacesACIQ-18Z-HH-M2B
Product FeaturesLow Ambient Heating, Rebate Available
HSPF210.4
Cooling BTU19000 BTU
Heating BTU20000 BTU
Decibel Level (dBA)61.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER21-22
SEER222
EER12.5
Compressor TypeRotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size17.5 Amps
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height34.84
Width42.91
Depth19.68

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

BrandACiQ
SKUACIQ-12CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM335.29
Decibel Level (dBA)As low as 31.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.45 gal/hr
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Depth22.44"
ReplacesN/A

Warranty and Product Information

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
