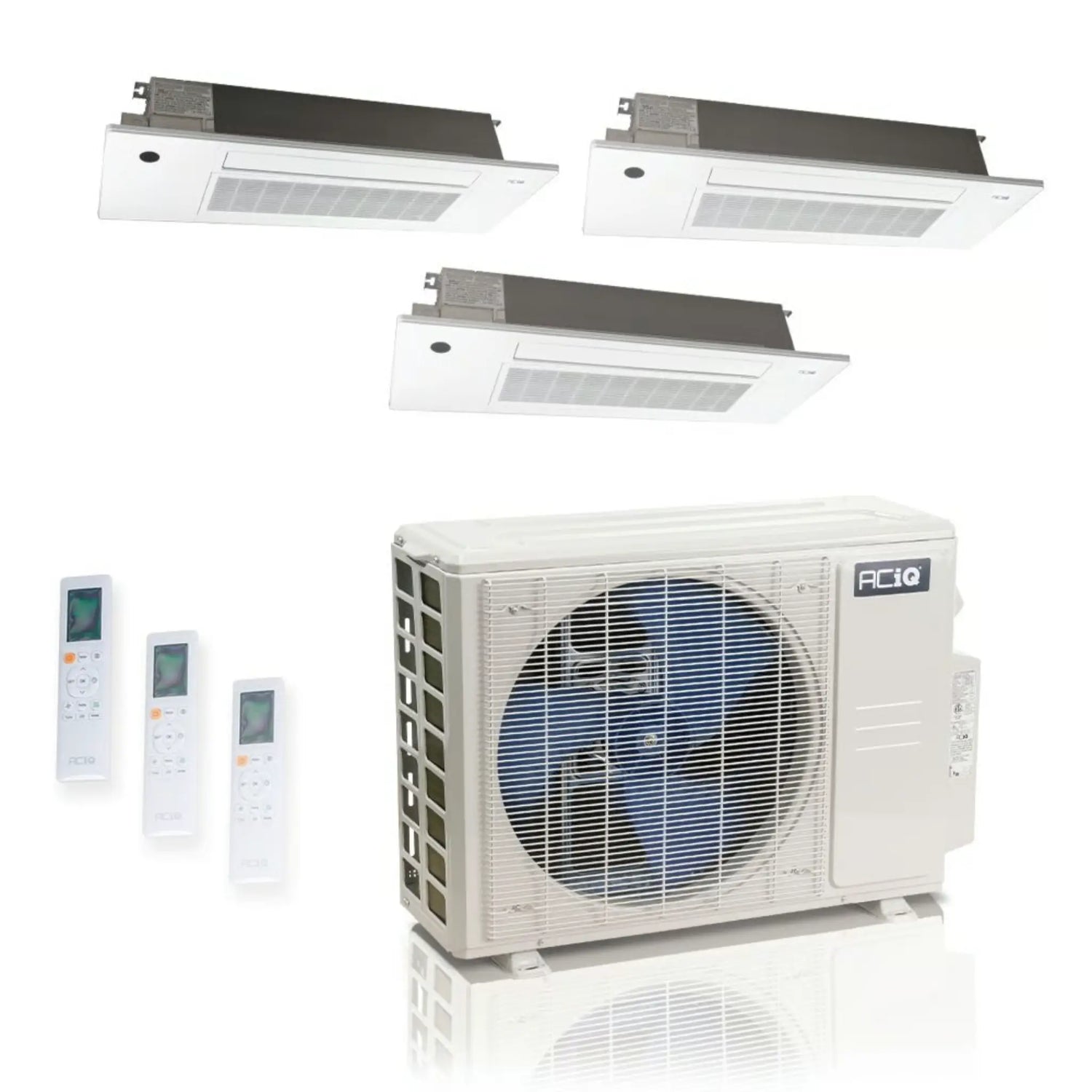

ACiQ 18K BTU 25.1 SEER2 3-Zone Ceiling Cassette Mini Split R454B 230V 6+6+9

By: ACiQ
SKU: ES-18Z-M3C / SCC-06-HH-MB-2 / SCC-09-HH-MB|ID: 103593
$4,649.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 25.1 SEER2 for energy-efficient year-round comfort
  • Capacity: 18,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (1.5 Ton) with ceiling cassette mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18K BTU 25.1 SEER2 3-Zone Ceiling Cassette Mini Split R454B 230V 6+6+9

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

ACiQ offers the ES-18Z-M3C multi-zone condenser, providing adaptive heating and cooling solutions for various spaces and climates at an affordable cost. This unit allows up to 3 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 18,000 BTU, 25.1 SEER2 multi-zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation even at high workloads

ACiQ's ES-18Z-M3C condenser is designed to support multiple air handlers, providing intelligent temperature control and high efficiency with a SEER2 rating of 25.1. This system is cost-effective and energy-efficient, offering long-term savings. Please note that professional installation is required for this model, as it does not have quick connect line set connectors. Additional installation materials are available for purchase separately. Registering the equipment at ACiQ extends the warranty to 7 years for parts and 12 years for the compressor.

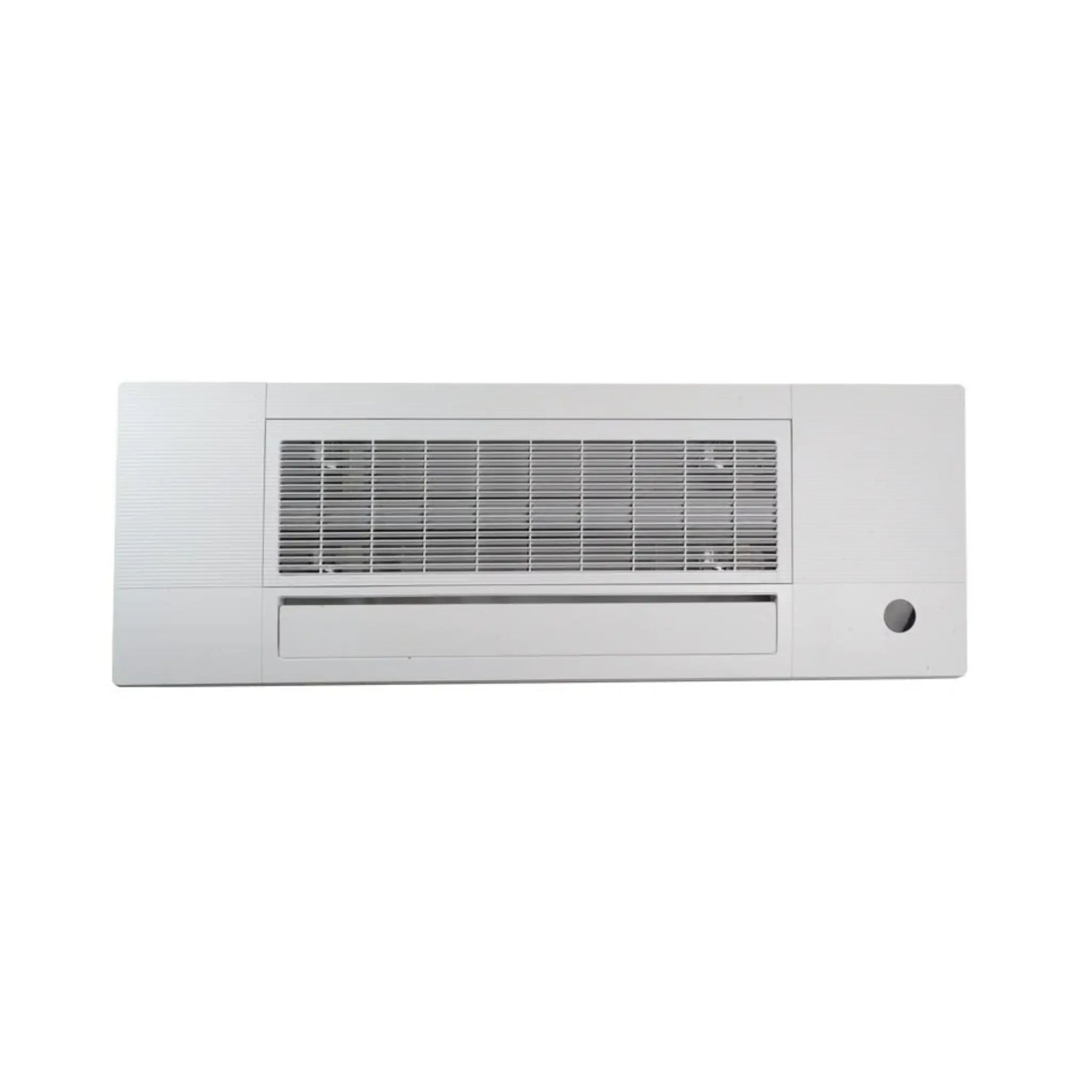

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

  • Fits between 16-inch on-center joists for easier installation
  • Rated for 6K, 9K, and 12K BTU; dip switch adjustable
  • One-way airflow design with discreet ceiling-mounted appearance
  • No-ladder filter access with lowering grille system
  • Handheld remote control included
  • Decorative grille included for a clean, modern look
  • Uses environmentally friendly R-454B refrigerant
  • Compatible with ACiQ multi-zone condensers

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-18Z-M3C

ACiQ Slim Ceiling Cassette Mini Split Air Handler

AHRI Certificate — SCC-06-HH-MB AHRI Certificate — SCC-09-HH-MB Owner's Manual — All Air Handler Remote Control Manual — All Air Handler Submittal — SCC-06-HH-MB Submittal — 9K Slim Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

BrandACiQ
SKUES-18Z-M3C
ReplacesES-18Z-M2B
HSPF29.8
Cooling BTU18000 BTU
Heating BTU19000 BTU
Maximum CFM1766
Decibel Level (dBA)59.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeTwin Rotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 A
Min. Breaker Size16 A
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height26.50"
Width35.04"
Depth13.46"
Warranty12 year compressor, 7 year parts with online registration

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

BrandACiQ
SKUSCC-0612-HH-MB
BTU6,000 / 9,000 / 12,000
Weight (in lbs)82.45
ManufacturerACiQ
ControllerWireless Included
Heating BTU6,000 / 9,000 / 12,000
Maximum CFMUp to 353.20 CFM
Decibel Level (dBA)As low as 24.0 Decibels
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Phase, 60Hz
PhaseSingle Phase
Mini Split TypeSlim Ceiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.98"
Width50.31"
Depth13.19"
Warranty12 year compressor, 7 year parts with online registration

Warranty and Product Information

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Standard Warranty (Parts)5 years
Standard Warranty (Compressor)7 years
Registered Warranty (Parts)7 years
Registered Warranty (Compressor)12 years

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

Standard Warranty (Parts)5 year parts
Standard Warranty (Compressor)7 year parts
Registered Warranty (Parts)7 year parts
Registered Warranty (Compressor)12 year parts

Product Q&A

Have a question?

Be the first to ask about this product.

Shipping & Returns

Shipping

Free shipping on all orders over $1,000. Orders are processed within 1–3 business days and typically ship within 3–7 business days, though lead times vary by brand. We ship to the 48 contiguous United States only.

Returns

Returns accepted within 30 days of receipt. A 20–30% restocking fee applies. Items must be returned unused, in original packaging. Returned items are inspected before a full refund is issued. To start a return, contact support@buildory.com.
