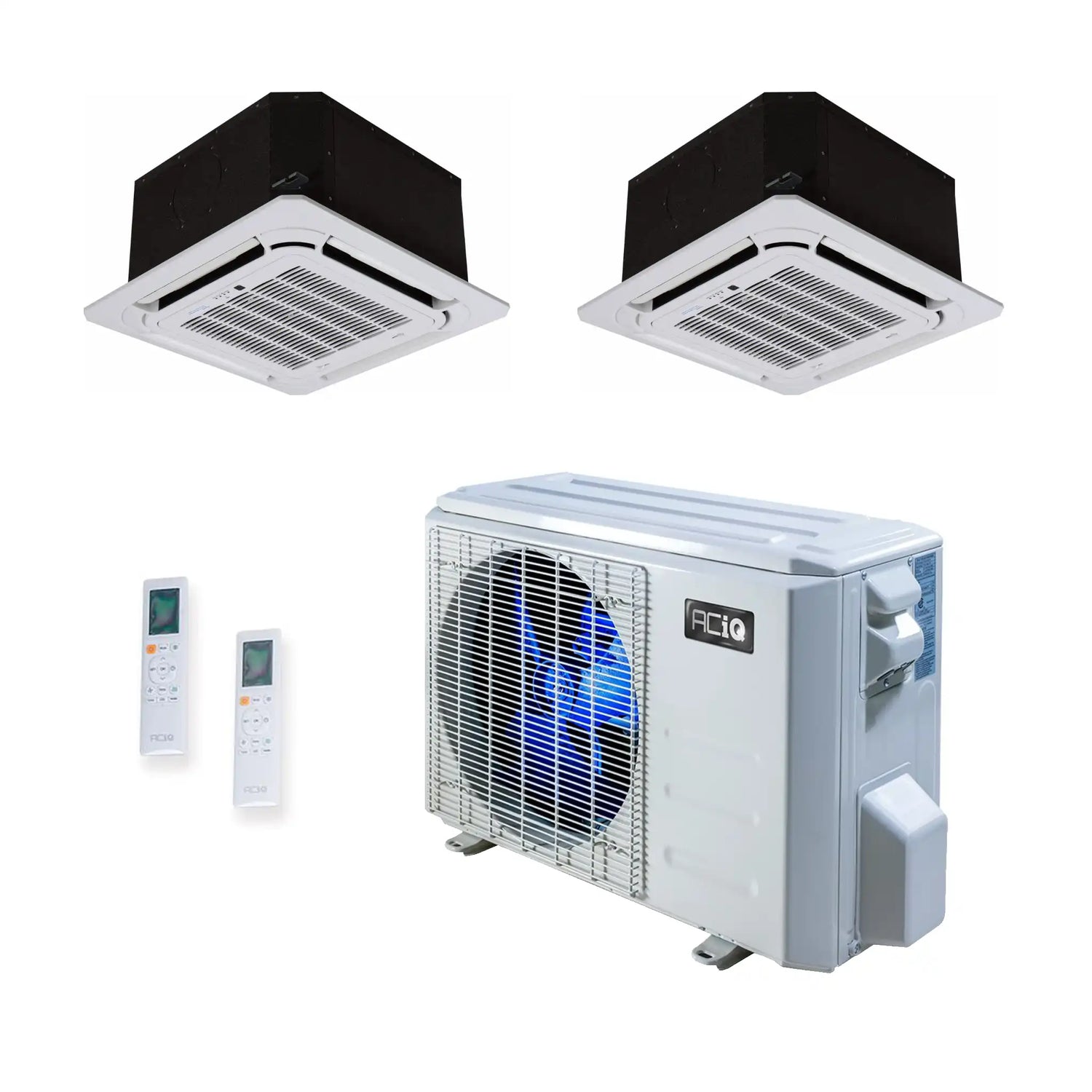

ACiQ 18K BTU 25.1 SEER2 2-Zone Ceiling Cassette Mini Split R454B 230V 12+12

By: ACiQ
SKU: ES-18Z-M3C / ACIQ-12CC-HH-MC-2|ID: 103475
$3,299.99
+ Free shipping

Key Features

  • Efficiency: Rated an outstanding 25.1 SEER2 and 9.8 HSPF2, among the most efficient units in the ACiQ lineup.
  • Capacity: The 1.5-ton (18,000 BTU) multi-zone condenser powers two independently controlled zones at 12K+12K BTU.
  • Refrigerant: Uses R454B refrigerant with a twin-rotary inverter compressor.
  • Indoor Units: Twin 12,000 BTU ceiling cassette air handlers deliver 4-way airflow and a flush, discreet ceiling-mounted appearance in each zone.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18K BTU 25.1 SEER2 2-Zone Ceiling Cassette Mini Split R454B 230V 12+12

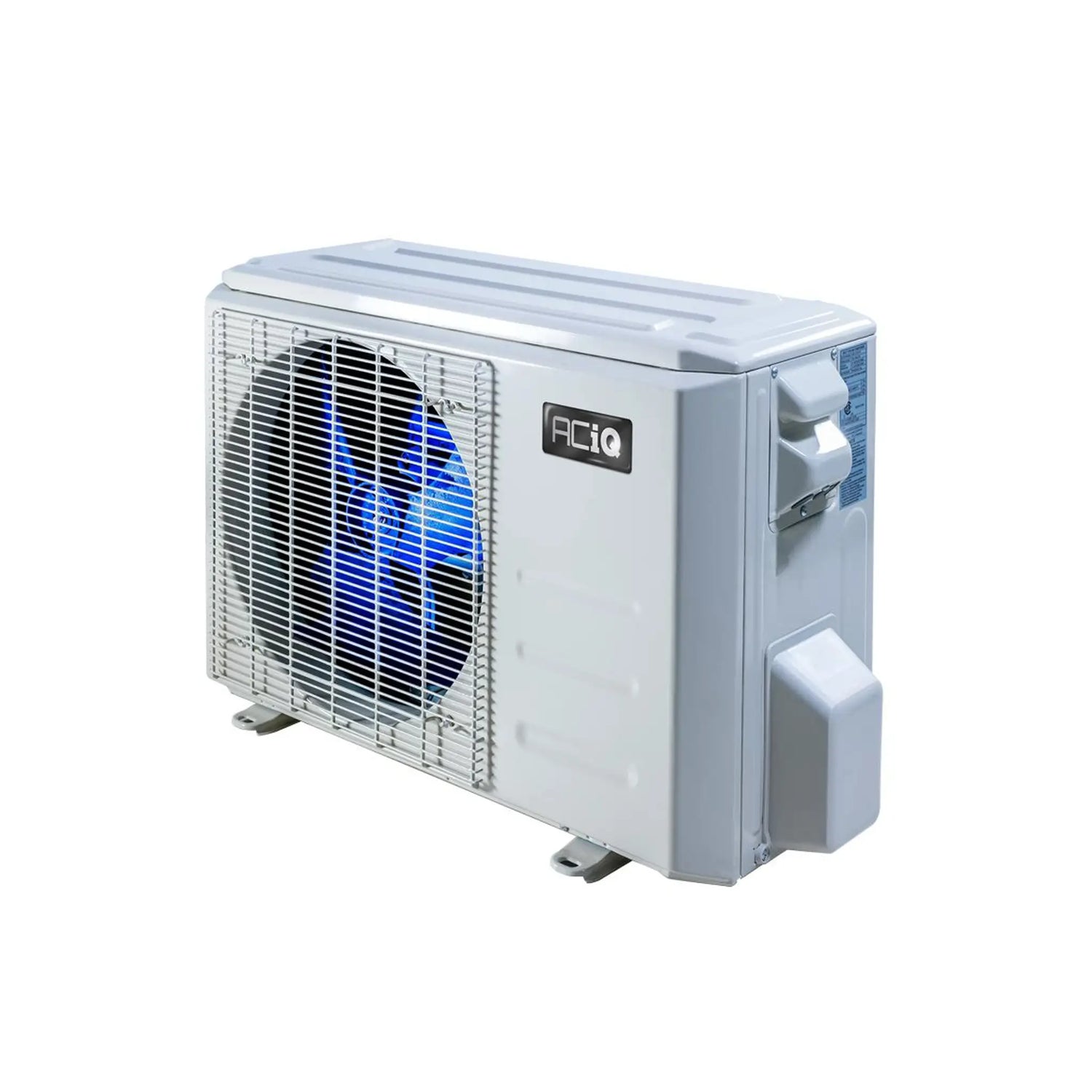

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

ACiQ offers the ES-18Z-M3C multi-zone condenser, providing adaptive heating and cooling solutions for various spaces and climates at an affordable cost. This unit allows up to 3 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 18,000 BTU, 25.1 SEER2 multi-zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation even at high workloads

ACiQ's ES-18Z-M3C condenser is designed to support multiple air handlers, providing intelligent temperature control and high efficiency with a SEER2 rating of 25.1. This system is cost-effective and energy-efficient, offering long-term savings. Please note that professional installation is required for this model, as it does not have quick connect line set connectors. Additional installation materials are available for purchase separately. Registering the equipment at ACiQ.com extends the warranty to 7 years for parts and 12 years for the compressor.

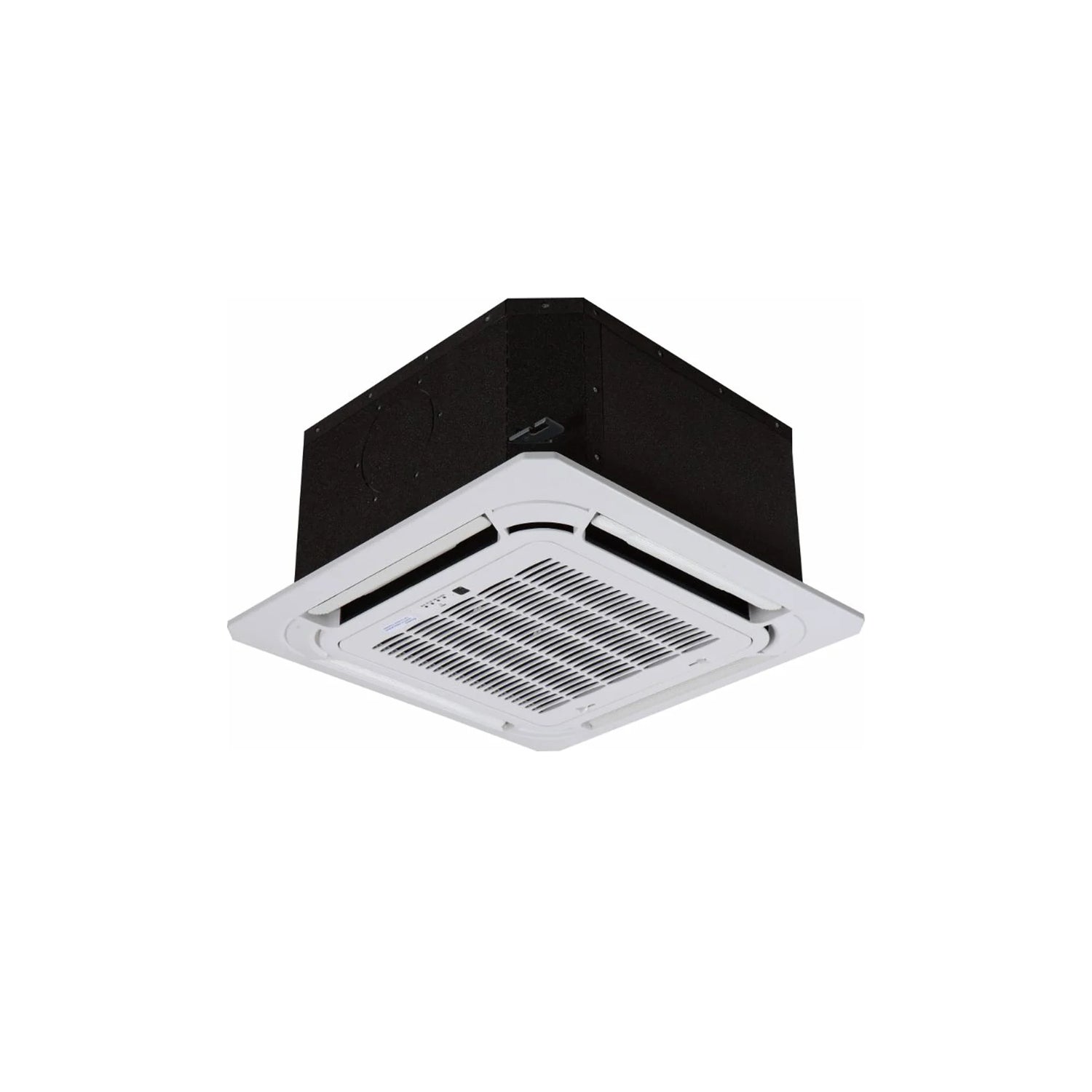

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

  • 12,000 BTU of Heating or Cooling power
  • Dry and Fan modes for versatile comfort
  • Perfect for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-18Z-M3C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Submittal — ACIQ-12CC-HH-MC ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

BrandACiQ
SKUES-18Z-M3C
ReplacesES-18Z-M2B
HSPF29.8
Cooling BTU18000 BTU
Heating BTU19000 BTU
Maximum CFM1766
Decibel Level (dBA)59.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeTwin Rotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 A
Min. Breaker Size16 A
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height26.50"
Width35.04"
Depth13.46"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

BrandACiQ
SKUACIQ-12CC-HH-MC
ControllerWireless Included
Product FeaturesLow Ambient Heating
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM335.29
Decibel Level (dBA)As low as 31.5
Electric HeatHeat Pump
RefrigerantR454B
CapacityDehumidification Rate: 0.45 gal/hr
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone
Length22.44"
Height10.24"
Depth22.44"

Warranty and Product Information

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
