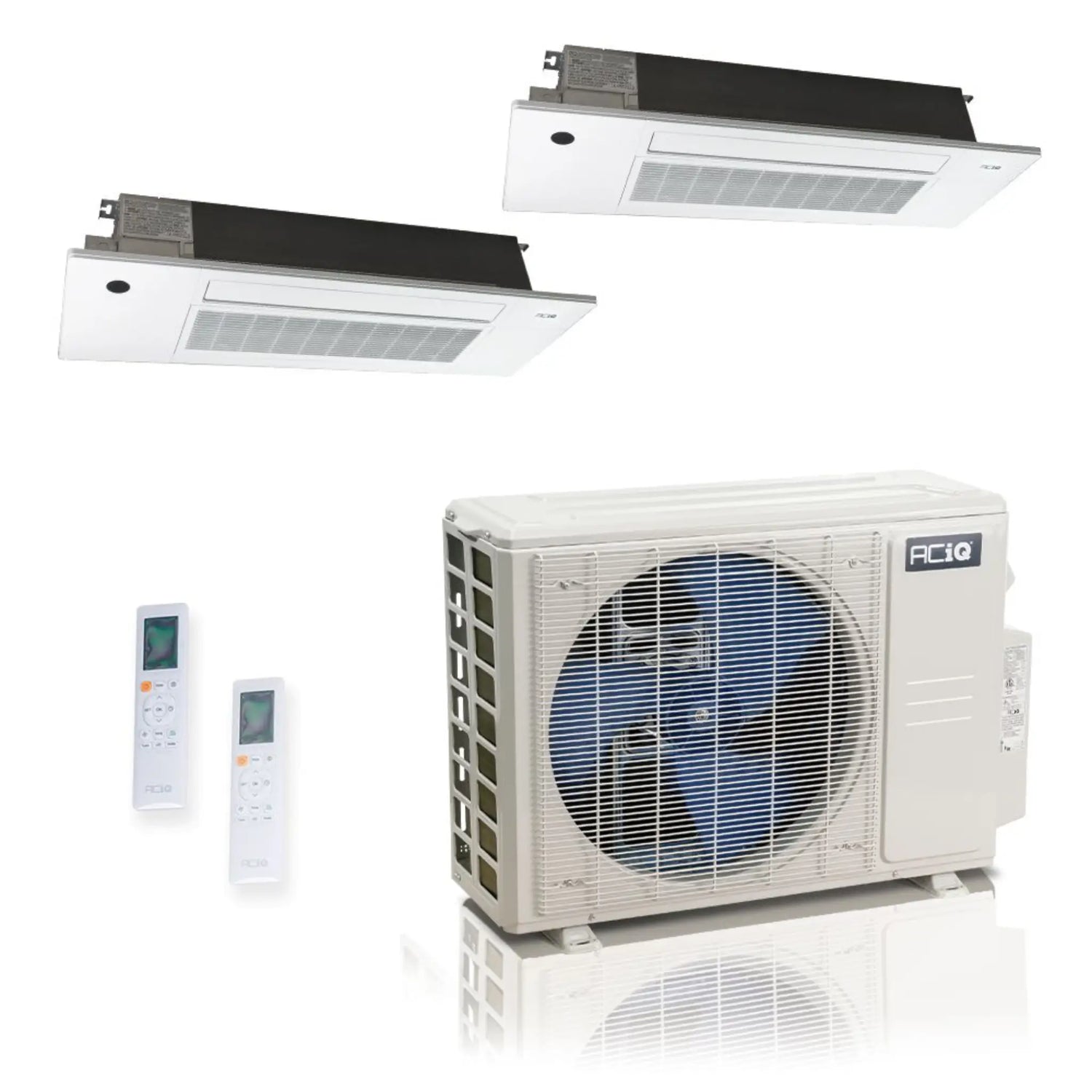

ACiQ 18K BTU 25.1 SEER2 2-Zone Ceiling Cassette Mini Split 230V R454B 12+12
Key Features
- Efficiency: This inverter-driven system delivers 25.1 SEER2 cooling efficiency and a 9.8 HSPF2 heating rating for top-tier performance.
- Capacity: The 18,000 BTU (1.5 ton) outdoor condenser powers two independently controlled 12,000 BTU slim ceiling cassette zones.
- Refrigerant: Both the condenser and cassettes use environmentally friendly R454B refrigerant.
- Design: Slim ceiling cassettes fit between 16-inch on-center joists with a no-ladder lowering grille, giving each zone a discreet, flush-mounted look.
Product Details
Product Details
ACiQ 18K BTU 25.1 SEER2 2-Zone Ceiling Cassette Mini Split 230V R454B 12+12

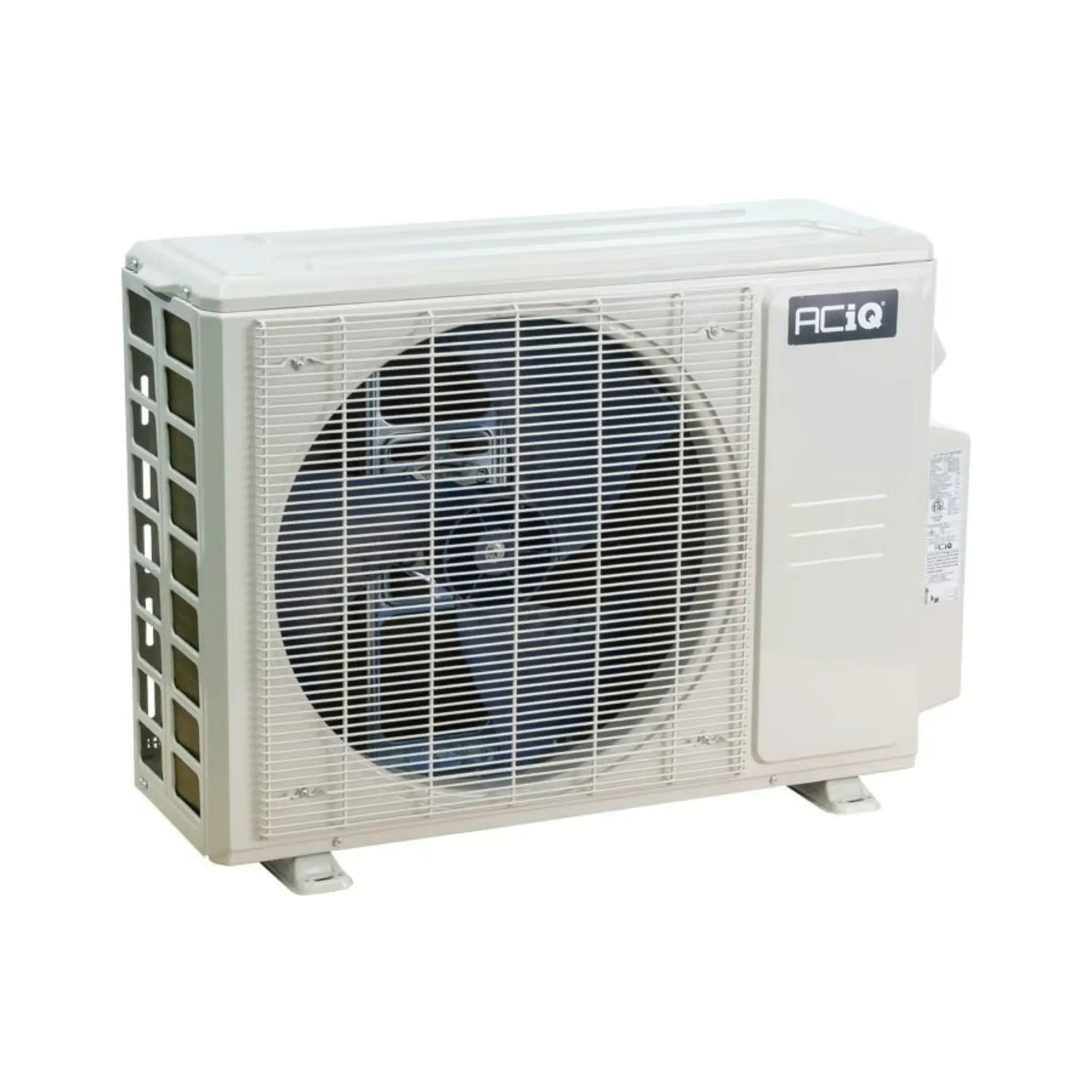

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C
ACiQ offers the ES-18Z-M3C multi-zone condenser, providing adaptive heating and cooling solutions for various spaces and climates at an affordable cost. This unit allows up to 3 air handlers to run off a single condenser, saving space and ensuring comfort in your home.
Key Features
- 18,000 BTU, 25.1 SEER2 multi-zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation even at high workloads
ACiQ's ES-18Z-M3C condenser is designed to support multiple air handlers, providing intelligent temperature control and high efficiency with a SEER2 rating of 25.1. This system is cost-effective and energy-efficient, offering long-term savings. Please note that professional installation is required for this model, as it does not have quick connect line set connectors. Additional installation materials are available for purchase separately. Registering the equipment at ACiQ extends the warranty to 7 years for parts and 12 years for the compressor.

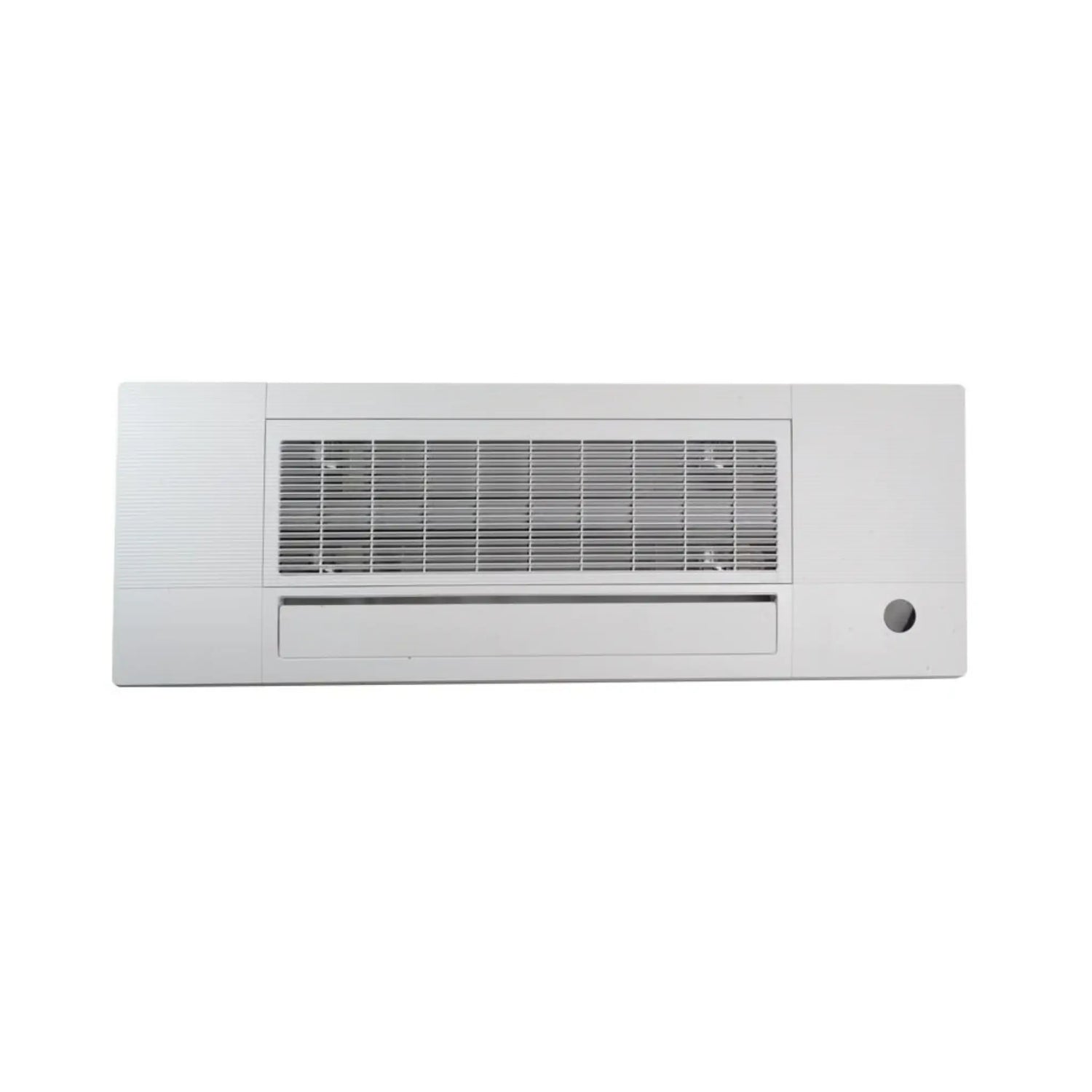

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x2
The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.
Key Features
- Fits between 16-inch on-center joists for easier installation
- Rated for 6K, 9K, and 12K BTU; dip switch adjustable
- One-way airflow design with discreet ceiling-mounted appearance
- No-ladder filter access with lowering grille system
- Handheld remote control included
- Decorative grille included for a clean, modern look
- Uses environmentally friendly R-454B refrigerant
- Compatible with ACiQ multi-zone condensers
