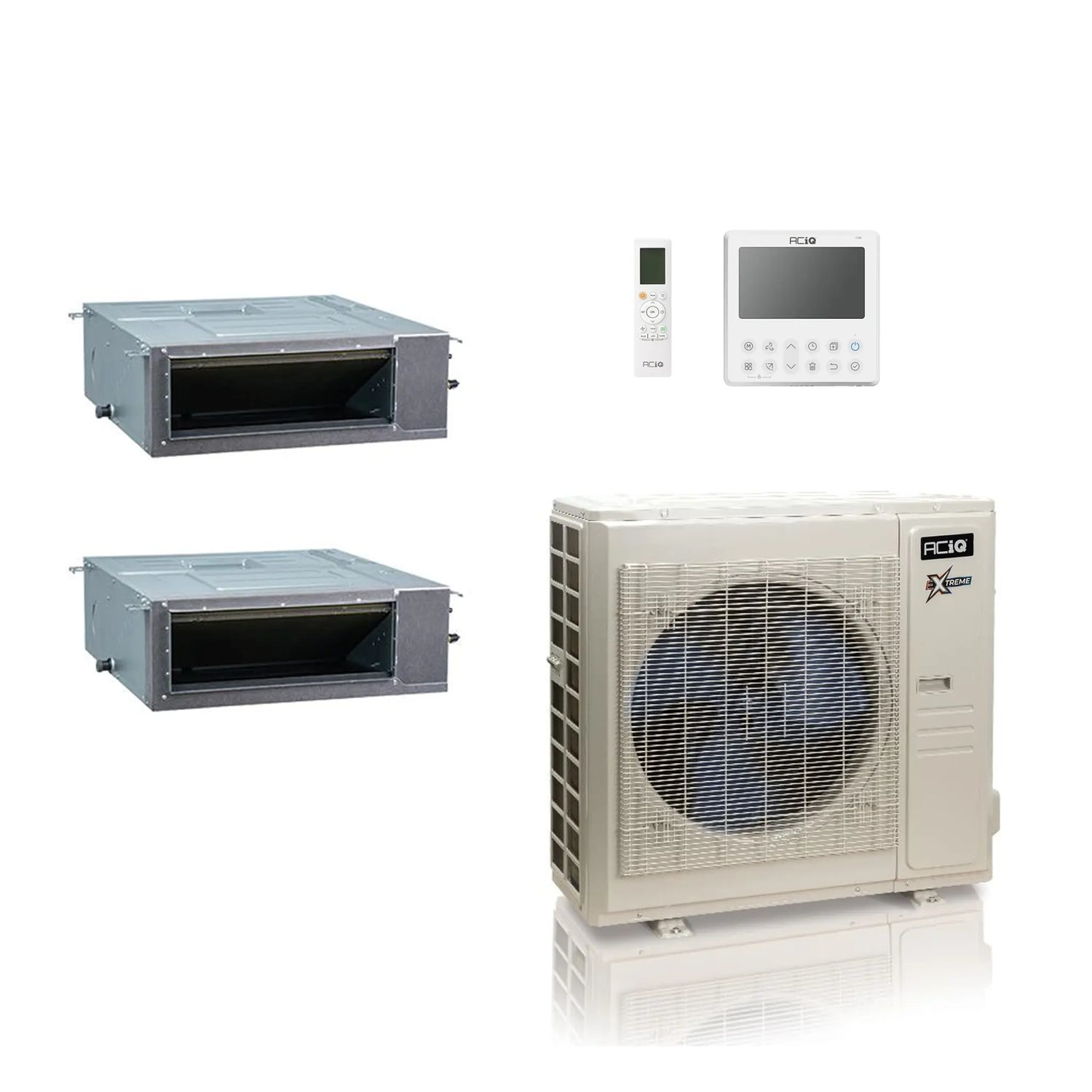

ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 9+9

By: ACiQ
SKU: ACiQ-18Z-HH-M3C / ACIQ-09CD-HH-MC-2|ID: 103355
$4,449.99
+ Free shipping

Key Features

  • Efficiency: Delivers 20 SEER2 and 10.4 HSPF2 for efficient heating and cooling year-round.
  • Capacity: This 18,000 BTU (1.5-ton) Extreme Series condenser splits output across two matched 9,000 BTU concealed duct zones.
  • Refrigerant: Uses R454B refrigerant for low-GWP, environmentally responsible operation.
  • Design: Concealed duct air handlers hide completely above the ceiling or below the floor, feeding registers through flex ducting for a seamless look.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 9+9

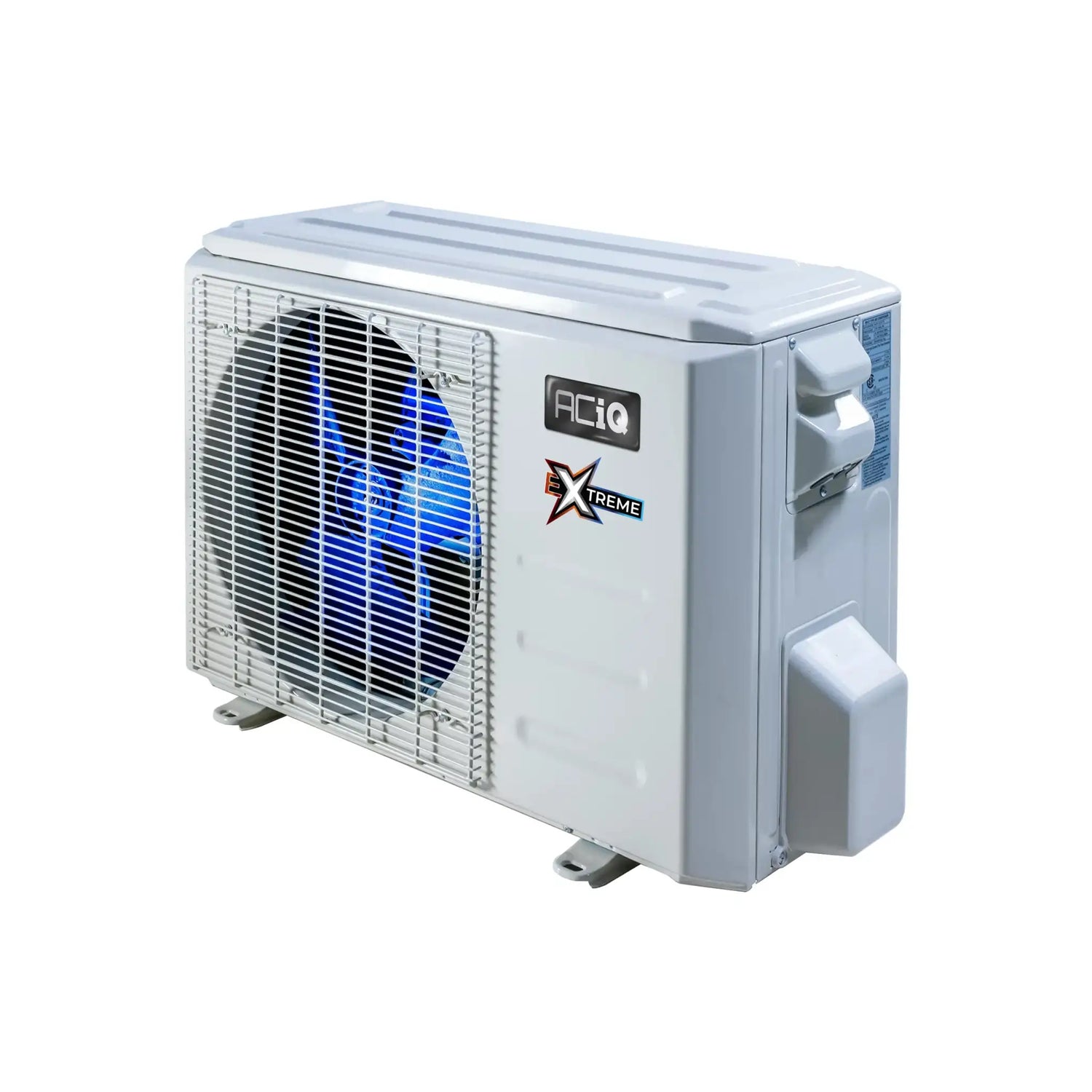

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Experience adaptive heating and cooling with the ACiQ-18Z-HH-M3C multi zone condenser from the Extreme Series. This inverter condenser is designed to efficiently run up to 3 air handlers, providing precise temperature control in each room or zone.

Key Features

  • 18,000 BTU, 25 SEER multi zone heat pump condenser
  • Supports up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure comfort in your home with the ACiQ-18Z-HH-M3C multi zone condenser. This unit is pre-charged with R410-A refrigerant and is designed for easy installation and maintenance. Register your equipment at ACiQ.com for extended warranty protection.

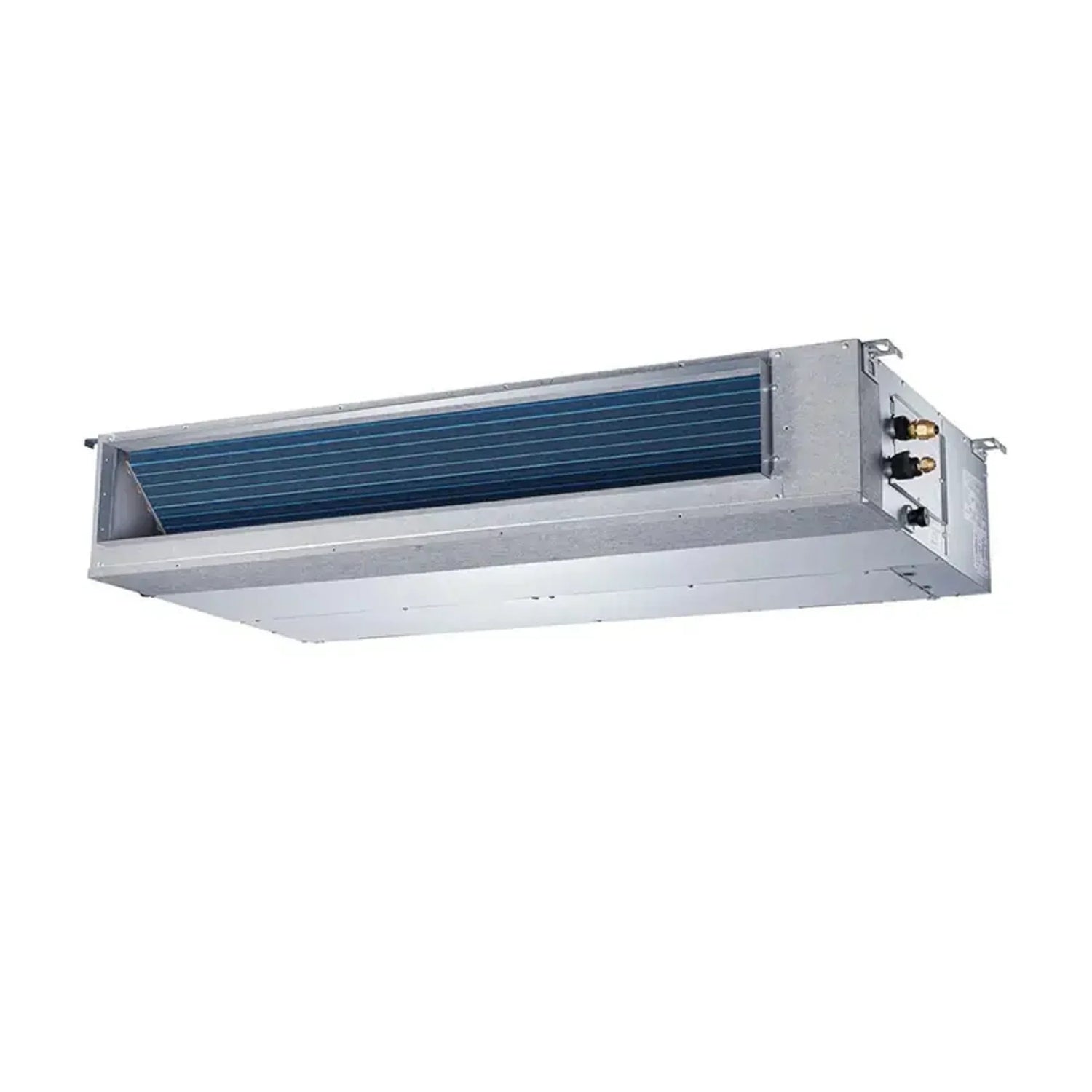

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x2

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x2. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

  • 9,000 BTU of heating or cooling power
  • Dry and fan modes for added versatility
  • Perfect for smaller rooms in most climates
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-18Z-HH-M3C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Installation Manual — 9K-60K Owner's Manual — 9K-60K Remote Control Manual Service Manual — 9K-60K Submittal — ACIQ-09CD-HH-MC ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

BrandACiQ
SKUACIQ-18Z-HH-M3C
ReplacesACIQ-18Z-HH-M2B
Refrigerant Charge73.8'
Weight148.150000
AHRI Certificate Number216032361
Product FeaturesLow Ambient Heating, Rebate Available
HSPF210.4
Cooling BTU19000 BTU
Heating BTU20000 BTU
Decibel Level (dBA)61.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER21-22
SEER222
EER12.5
Compressor TypeRotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size17.5 Amps
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height34.84
Width42.91
Depth19.68

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x2

BrandACiQ
SKUACIQ-09CD-HH-MC
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 27
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
