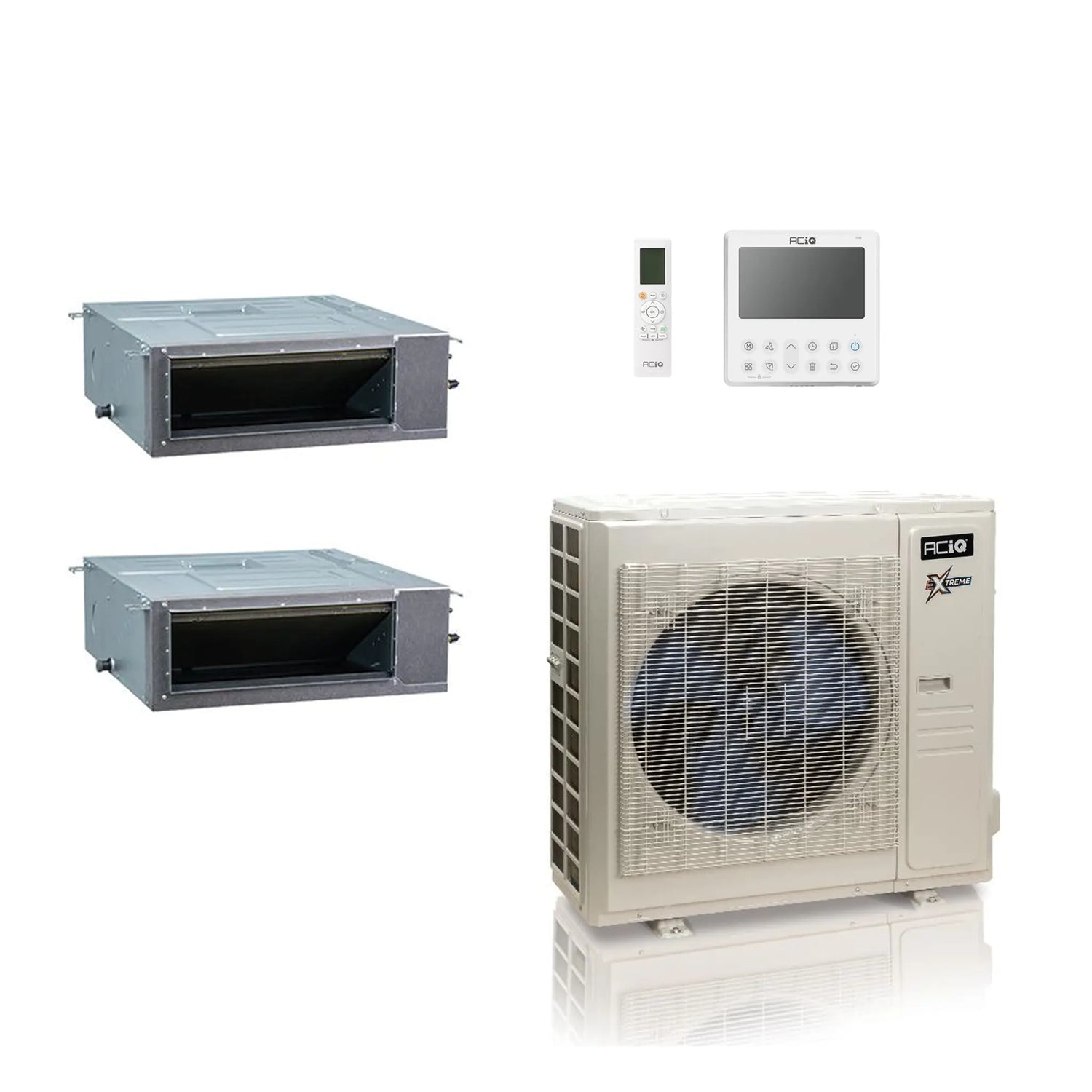

ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 12+12

By: ACiQ
SKU: ACiQ-18Z-HH-M3C / ACIQ-12CD-HH-MC-2|ID: 103361
$4,549.99
+ Free shipping

Key Features

  • Efficiency: Rated 20 SEER2 and 10.4 HSPF2 for efficient heating and cooling performance.
  • Capacity: This 1.5-ton (18,000 BTU) Extreme Series condenser powers two independently controlled zones, each fed by a 12,000 BTU concealed duct air handler (12K+12K).
  • Refrigerant: Uses R454B refrigerant, pre-charged for easy installation.
  • Indoor Units: Both concealed duct air handlers install above the ceiling, below the floor, or behind a soffit for a fully hidden, ductwork-free zone design.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 12+12

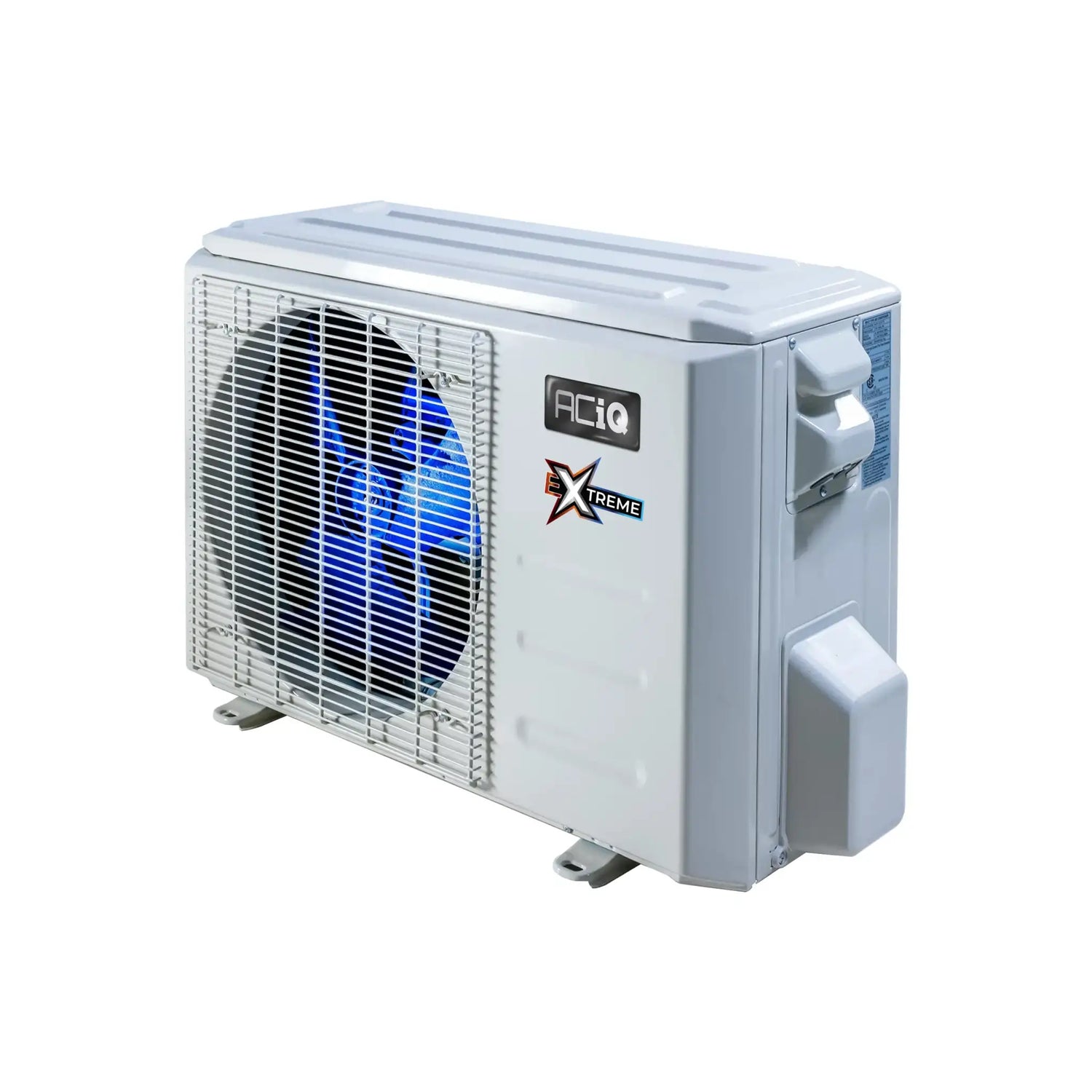

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Experience adaptive heating and cooling with the ACiQ-18Z-HH-M3C multi zone condenser from the Extreme Series. This inverter condenser is designed to efficiently run up to 3 air handlers, providing precise temperature control in each room or zone.

Key Features

  • 18,000 BTU, 25 SEER multi zone heat pump condenser
  • Supports up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure comfort in your home with the ACiQ-18Z-HH-M3C multi zone condenser. This unit is pre-charged with R410-A refrigerant and is designed for easy installation and maintenance. Register your equipment at ACiQ.com for extended warranty protection.

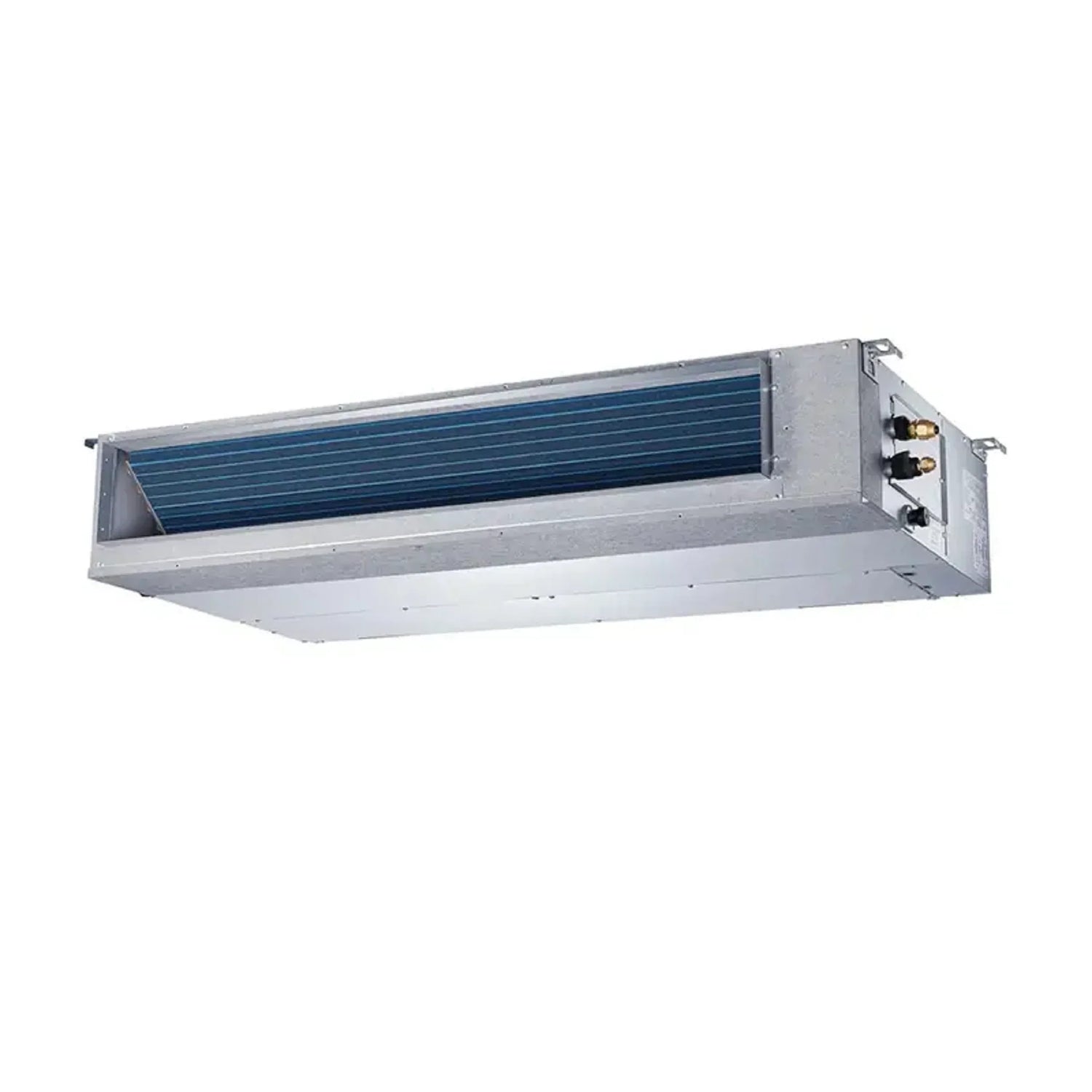

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

  • 12,000 BTU of heating or cooling power
  • Dry and Fan modes for added versatility
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-18Z-HH-M3C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — ACIQ-12CD-HH-MC ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

BrandACiQ
SKUACIQ-18Z-HH-M3C
ReplacesACIQ-18Z-HH-M2B
Refrigerant Charge73.8'
Weight148.150000
AHRI Certificate Number216032361
Product FeaturesLow Ambient Heating, Rebate Available
HSPF210.4
Cooling BTU19000 BTU
Heating BTU20000 BTU
Decibel Level (dBA)61.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER21-22
SEER222
EER12.5
Compressor TypeRotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size17.5 Amps
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height34.84
Width42.91
Depth19.68

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

BrandACiQ
SKUACIQ-12CD-HH-MC
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 26.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
