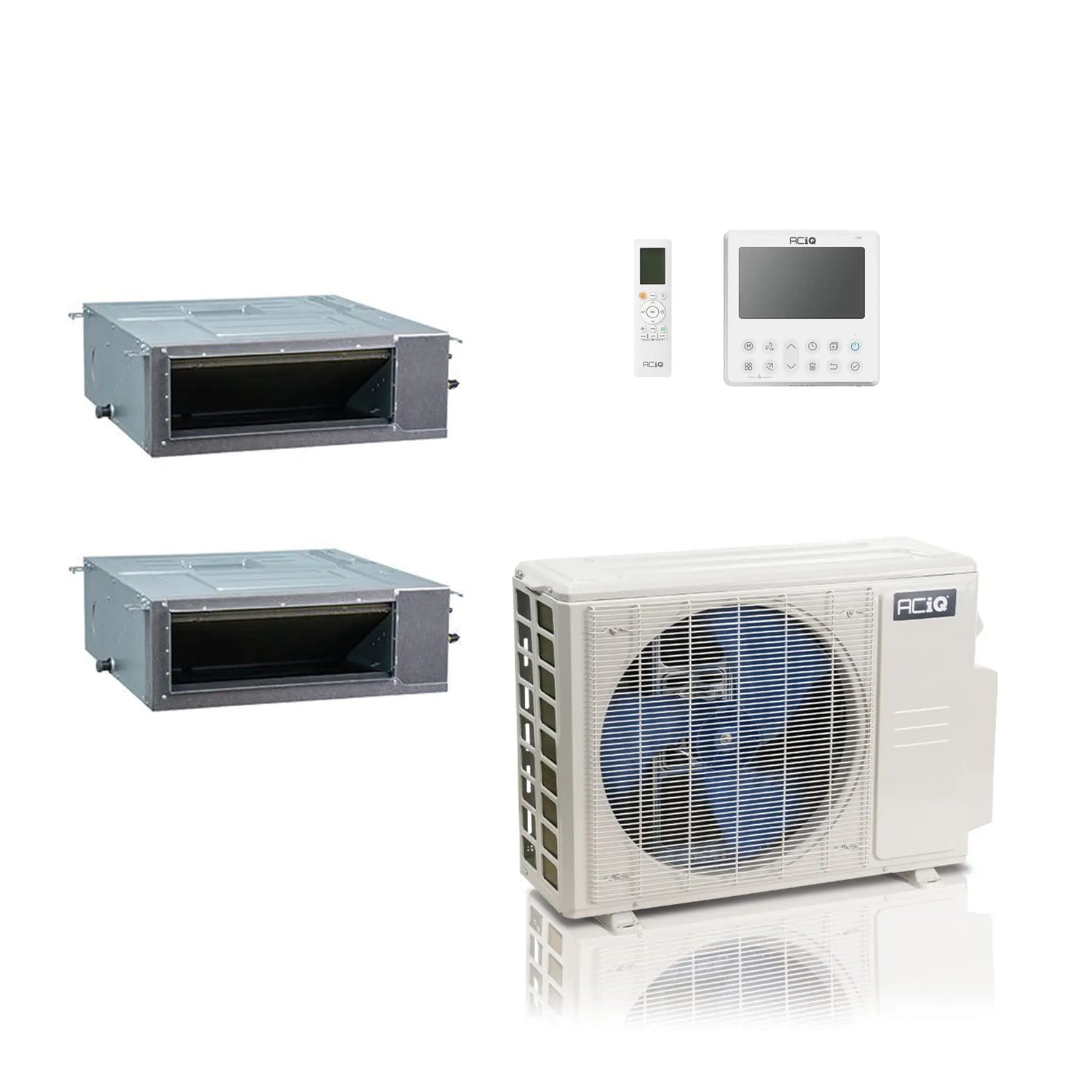

ACiQ 18,000 BTU 20 SEER2 Concealed Duct Mini Split System 2-Zone 230V 12+12

By: ACiQ
SKU: ES-18Z-M3C / ACIQ-12CD-HH-MC-2|ID: 103476
$3,499.99
+ Free shipping

Key Features

  • Efficiency: Rated at 20 SEER2 and 9.8 HSPF2, this system delivers efficient heating and cooling with a twin rotary inverter compressor.
  • Capacity: The 18,000 BTU (1.5-ton) condenser powers two matched 12,000 BTU zones for independent comfort control in each room.
  • Refrigerant: Uses R454B refrigerant, rated for efficient cooling and heating from -13°F to 122°F outdoor temperatures.
  • Mounting: Both indoor units are concealed duct air handlers that install above the ceiling or below the floor for a fully hidden, ductwork-style installation.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 18,000 BTU 20 SEER2 Concealed Duct Mini Split System 2-Zone 230V 12+12

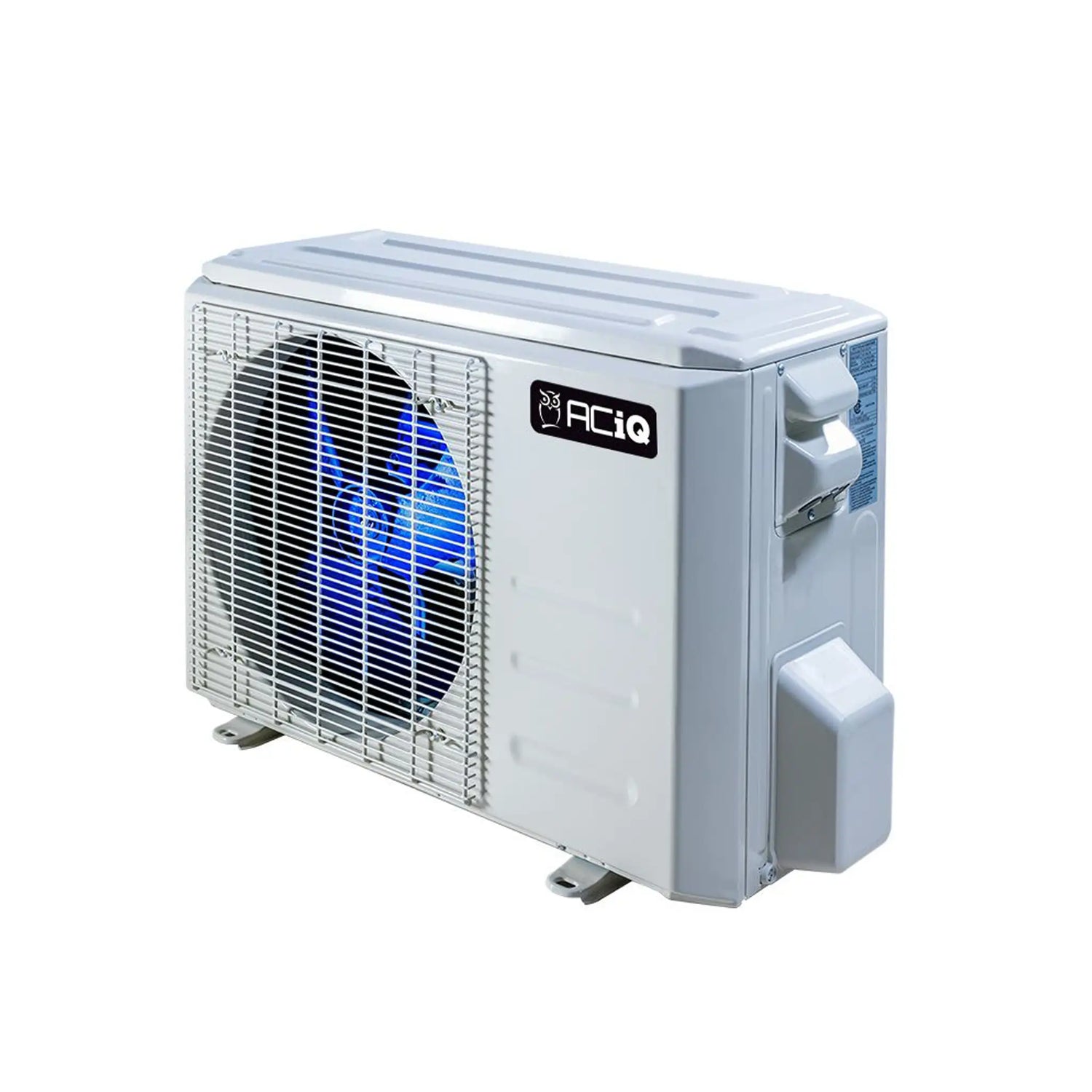

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

ACiQ offers the ES-18Z-M3C multi-zone condenser, providing adaptive heating and cooling solutions for various spaces and climates at an affordable cost. This unit allows up to 3 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 18,000 BTU, 25.1 SEER2 multi-zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation even at high workloads

ACiQ's ES-18Z-M3C condenser is designed to support multiple air handlers, providing intelligent temperature control and high efficiency with a SEER2 rating of 25.1. This system is cost-effective and energy-efficient, offering long-term savings. Please note that professional installation is required for this model, as it does not have quick connect line set connectors. Additional installation materials are available for purchase separately. Registering the equipment at ACiQ extends the warranty to 7 years for parts and 12 years for the compressor.

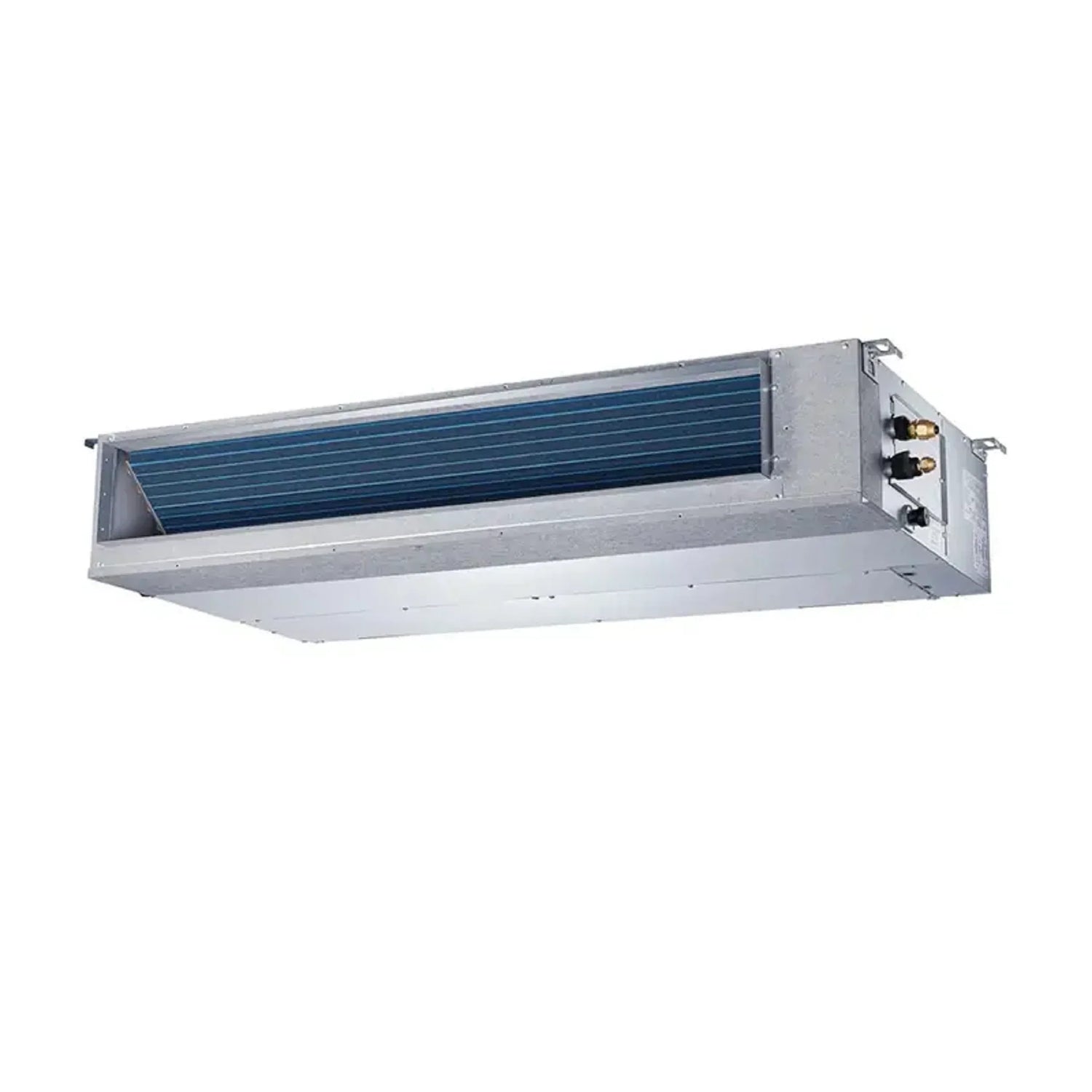

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

  • 12,000 BTU of heating or cooling power
  • Dry and Fan modes for added versatility
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-18Z-M3C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Remote Control Manual Submittal — ACIQ-12CD-HH-MC ACiQ Warranty

Specifications

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

BrandACiQ
SKUES-18Z-M3C
ReplacesES-18Z-M2B
HSPF29.8
Cooling BTU18000 BTU
Heating BTU19000 BTU
Maximum CFM1766
Decibel Level (dBA)59.5
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER225
Compressor TypeTwin Rotary
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20 A
Min. Breaker Size16 A
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Zone CompatibilityMulti Zone
Ambient Temperature Range-13 ~ 122
Height26.50"
Width35.04"
Depth13.46"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

BrandACiQ
SKUACIQ-12CD-HH-MC
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 26.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
