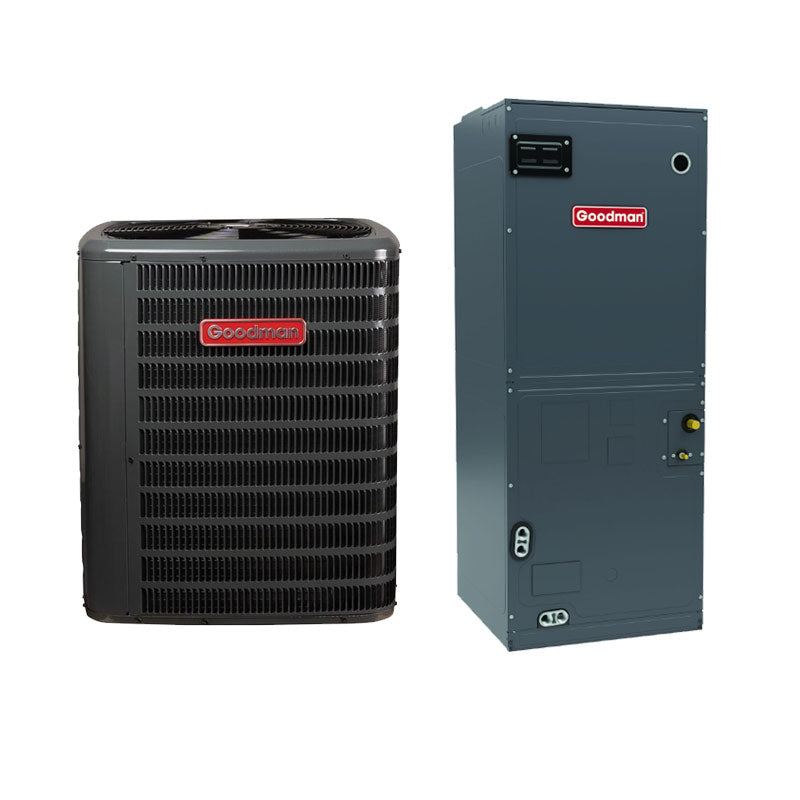

Goodman 3.5 Ton 15.2 SEER2 Heat Pump Air Handler System Multi-Position R32

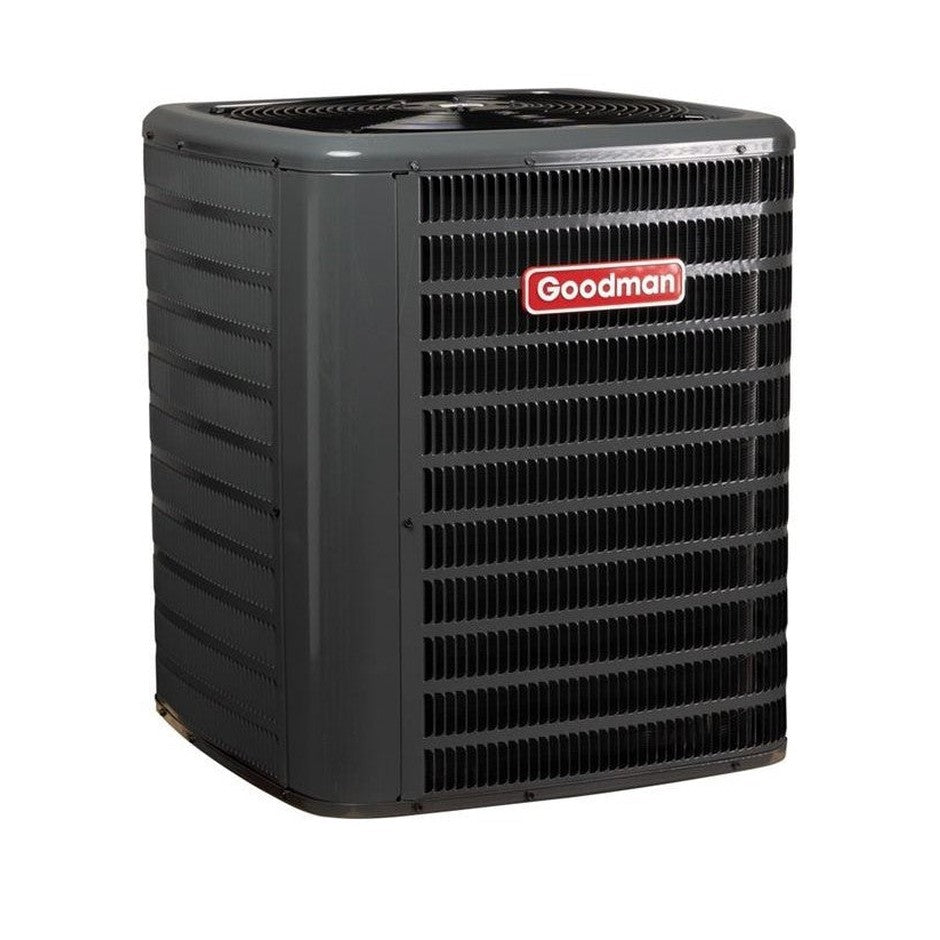

Goodman 3.5 Ton R32 Heat Pump 14.3 SEER2 Single-Stage 208/230 1-Ph GLZS4BA4210

The Goodman 3.5 Ton R32 Heat Pump Condenser, with a SEER2 rating of 14.5, delivers efficient heating and cooling with single-stage, scroll compressor technology. The SmartShift® defrost system ensures quiet operation, while the aluminum fin coil optimizes heat transfer. It features a factory-installed bi-flow filter drier, suction-line accumulator, and compressor crankcase heater for reliability. With high and low-pressure switches, enclosed contactor, and sweat connection service valves, this unit offers dependable performance and easy maintenance. Built with a durable galvanized steel cabinet, it meets AHRI and ETL certifications for quality and safety.

• Heating Capacity Nominal: 42000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 35.75 in
• Unit Width: 35.5 in
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 262 lb
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Factory-Installed Components

• Bi-Flow Liquid-Line Filter Drier: Protects the system from moisture and contaminants, prolonging component life.
• Suction-Line Accumulator: Prevents refrigerant from flooding the compressor, adding extra durability.
• Compressor Crankcase Heater: Ensures reliable start-up and prevents refrigerant migration in cooler conditions.
• High-Capacity Muffler: Reduces operational noise, providing quieter operation.
• High and Low-Pressure Switches: Offers built-in safety measures, protecting the compressor from extreme conditions.
• Sweat Connection Service Valves with Easy Gauge Access: Simplifies maintenance and system diagnostics.
• Fully Enclosed Contactor with Lug Connection and Ground Lug: Improves safety and ensures secure electrical connections.
• Extended Life Capacitors: Enhances system durability and supports consistent performance.

Cabinet Features

• Removable Grille-Style Top Design: Complies with UL 60335-2-40 standards, allowing for easier cleaning and servicing.
• Steel Louver Coil Guard: Shields the coil from debris, improving longevity.
• Heavy-Gauge Galvanized Steel Cabinet: Built for durability, with a powder-paint finish approved for 500-hour salt-spray resistance in Architectural Gray.
• Top and Side Maintenance Access: Provides convenient entry points for servicing, reducing maintenance time.

Compliance and Certification

• AHRI Certified & ETL Listed: Recognized for quality, performance, and safety.
• Florida Building Code Compliant: Meets the 2023 requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

This unit’s feature set underscores its energy efficiency, robust construction, and suitability for challenging climates, making it an attractive choice for both residential and commercial applications.

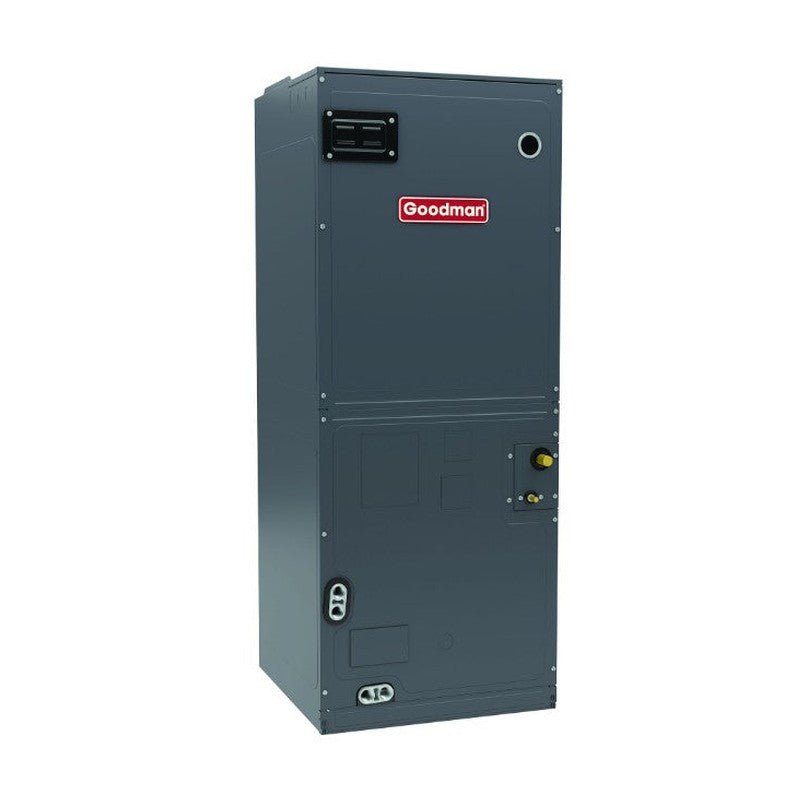

Goodman 3.5 Ton R32 Air Handler Multi-position Nine Speed ECM Motor Ducted with TXV Expansion AMST42CU1300

The Goodman R32 Air Handler, 2-5 Ton, model AMST42CU1300, features a nine-speed ECM motor for optimal airflow and efficient cooling. Designed for R-32 refrigerant, it includes internal thermal expansion valves for enhanced performance in cooling and heat pump applications. The all-aluminum evaporator coil ensures superior heat exchange, while the cabinet boasts less than 2.0% air leakage at 1.0 inch H₂O, adhering to ASHRAE standards. With a rigid SmartFrame™ cabinet and a sleek galvanized finish, this air handler offers horizontal or vertical installation flexibility, easy attic access, and tool-less filter maintenance.

• Refrigerant Type: R-32
• Unit Height: 53-7/16 in
• Unit Width: 21-1/8 in
• Cooling Capacity Nominal: 42000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 153 lb
• Tonnage: 3.5
• Unit Depth: 21 in


Product Feature For Goodman Multi-Position Air Handler AMST42CU1300

• Internal factory-installed thermal expansion valves for efficient cooling and heat pump applications
• Direct drive multi-speed ECM blower motor for optimal airflow
• All-aluminum evaporator coil ensures superior heat exchange
• Coil mounting track allows for quick repositioning
• Optimized for R-32 refrigerant for enhanced performance
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O, tested per ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O, tested per ASHRAE standard 193
• AHRI certified and ETL listed for quality assurance
• UL 60335 2-40 compliant for safety standards
• Factory-installed R-32 sensor designed for the coil's lifespan
• Rigid SmartFrame™ cabinet for durability
• Horizontal or vertical configuration capabilities for installation flexibility
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back reduce condensation in humid locations
• Foil-faced insulation covers the internal casing to minimize cabinet condensation
• Galvanized leather grain-embossed finish for aesthetic appeal
• Glue-less cabinet insulation retention enhances efficiency
• Tool-less filter access for convenient maintenance
• Field installed 3 kW – 25 kW electric heater kits available for added heating options
