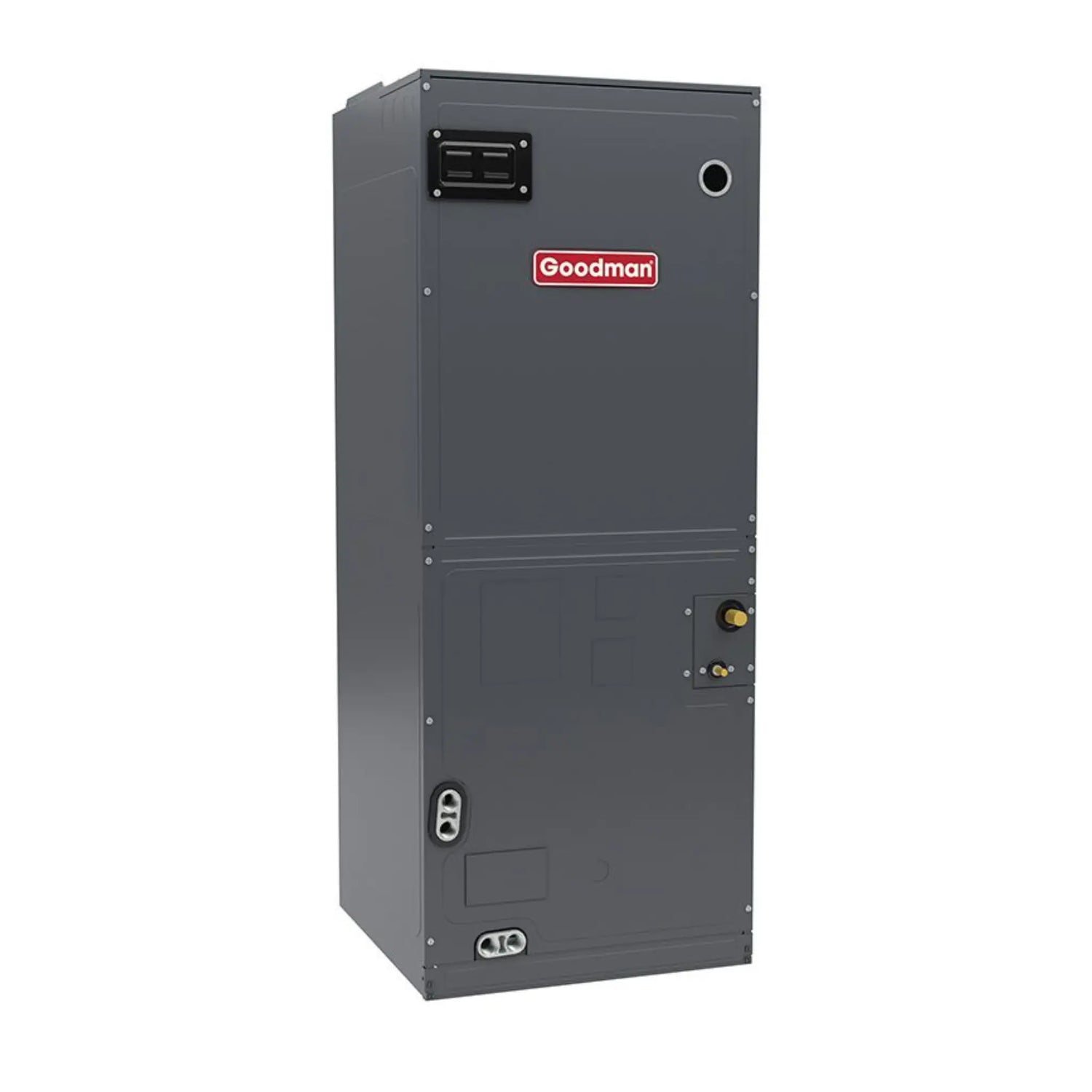

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 120V R32

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

This 115V AHVE ducted multi-position air handler is a 5-ton unit with a variable-speed ECM blower motor in a compact 24.5-inch cabinet designed for horizontal or vertical installation. It features anelectronic expansion valve (EEV) for cooling and heat pump applications, an all-aluminum 7 mm evaporator coil, and delivers constant CFM across a wide range of static pressures for consistent comfort and improved humidity control. The unit is ComfortNet compatible, works with the Daikin One+ smart thermostat, and is built with a low-leakage, insulated cabinet to reduce air loss and condensation. It is AHRI certified, ETL listed, and includes a 21-inch cabinet depth for easier attic access.

Key Features & Cabinet Features:

• Electronic Expansion Valve (EEV) for cooling and heat pump applications
• Variable-speed ECM blower motor with constant CFM control
• All-aluminum 7 mm evaporator coil
• ComfortNet compatible; supports Daikin One+ smart thermostat
• Low cabinet air leakage per ASHRAE Standard 193
• Improved humidity control and adjustable low CFM fan-only operation
• Horizontal or vertical installation capability
• 21" cabinet depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back to help reduce condensation in humid environments
• Foil-faced internal insulation to minimize cabinet condensation
• Galvanized, leather grain-embossed cabinet finish
• Glue-less cabinet insulation retention
• Tool-less filter access
