Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat R32

By: Goodman
SKU: ACST30LU1305|ID: 101201
$1,089.00
+ Free shipping
Width: 54.2"
Depth: 22.27"

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat R32

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST30LU1305

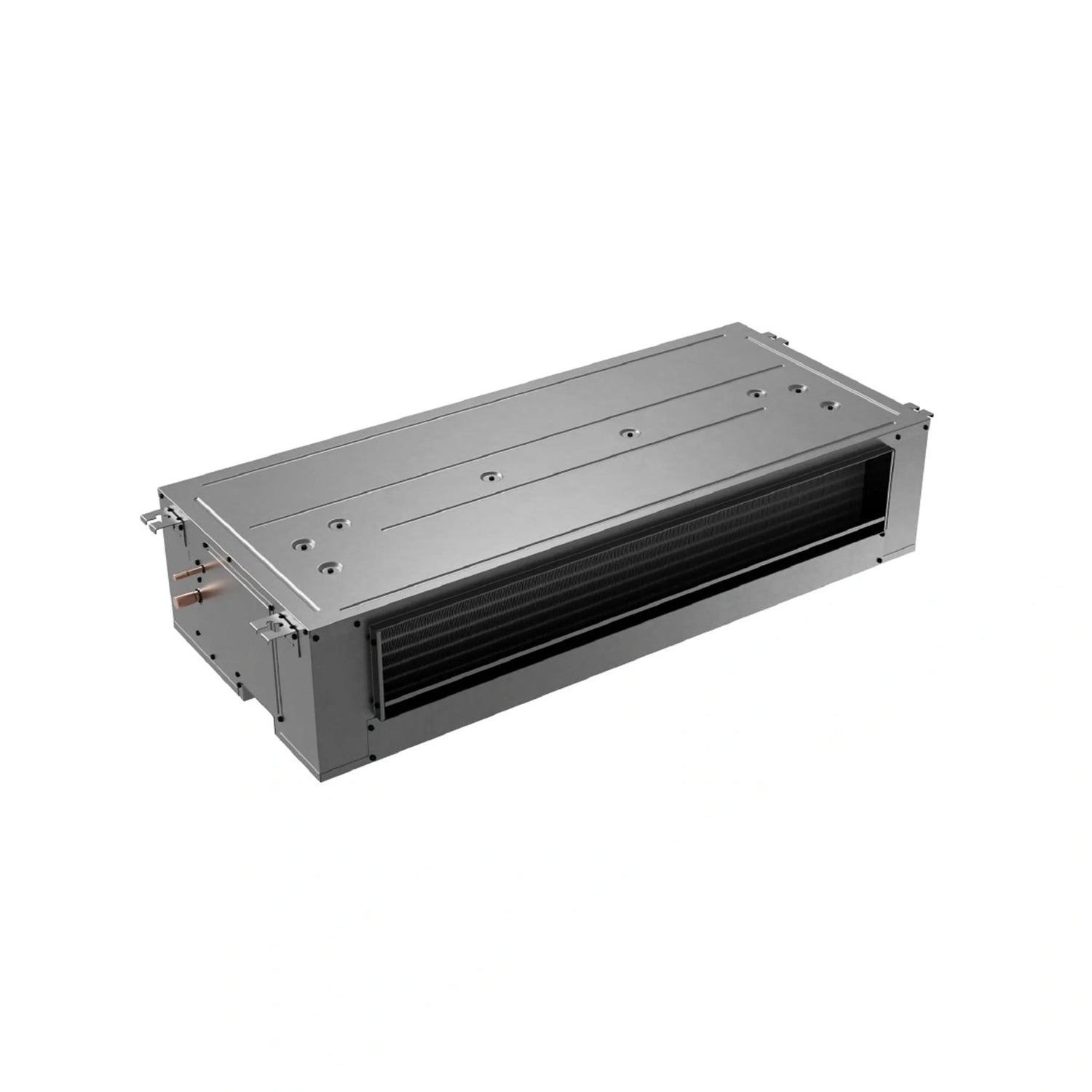

The Goodman ACST30LU1305 Ceiling Mounted Air Handler offers powerful performance in a space-saving design, perfect for areas where standard vertical units cannot be installed. Designed to support R-32 refrigerant systems, this 2.5-ton model delivers 30,000 BTU cooling capacity, features a multi-speed ECM motor, and integrates a 5kW electric heat element. Its galvanized steel construction, all-aluminum coil, and factory-installed safety features make it an efficient, durable, and quiet air handler for ceiling-mounted applications.

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

This unit is ideal for residential or light commercial applications requiring ceiling-mounted air handling with efficient cooling and supplemental electric heat.

Learning Resources

ACST Specifications ACST Service Manual ACST Goodman Air Handler Warranty

Specifications

BrandGoodman
SKUACST30LU1305
Weight (in lbs)97
Product FeaturesSpace-Saving
Cooling BTU30,000
Blower MotorMulti-Speed ECM
Maximum CFM934
Electric Heat5 Kilowatts
ConfigurationCeiling Mounted
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size30 Amps/30 Amps
Amperage Requirement28.5 Amps/25.1 Amps
Tonnage2.5 Ton
Height11"
Width54.2"
Depth22.27"
Warranty10 Years Parts with Online Registration

Warranty and Product Information

Standard Warranty5 Years
Registered Warranty10 Years
